My Gameboy Advance Zero

Post by Brett82 » Sat Aug 06, 2016 5:58 pm

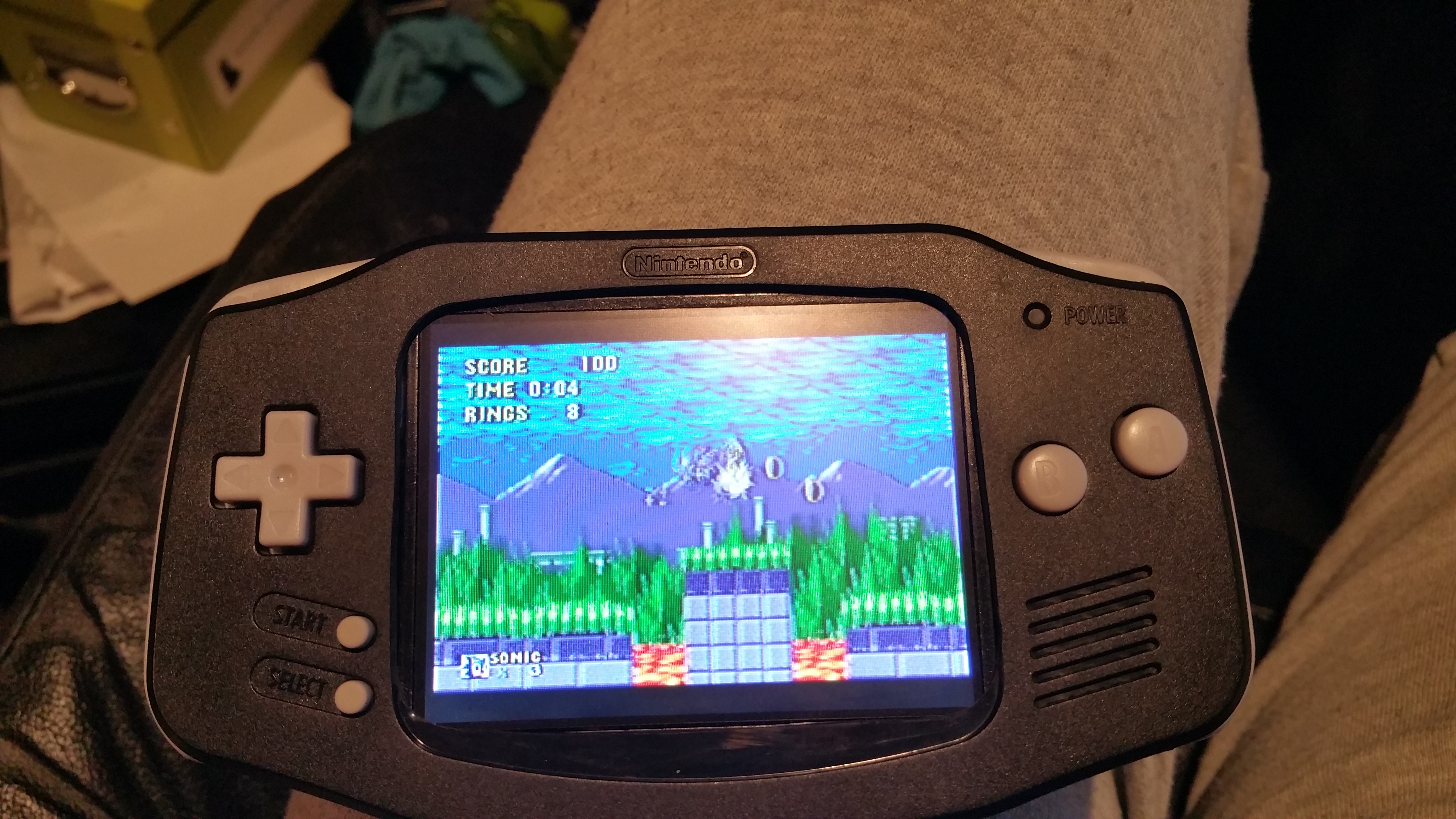

So I thought I would share my first Zero project. started this few weeks ago as I had the advance in the draw so made this
while I gathered the stuff to make my GBZ sorry only completed pics may open it up at some point and take a few for you guys.

Enjoy!!
[spoiler="Pictures"]
[/spoiler]
Last edited by Brett82 on Sun Aug 21, 2016 4:25 pm, edited 2 times in total.

User avatar
Racerboy
Posts: 100
Joined: Thu Jun 02, 2016 4:49 pm
Has thanked: 17 times
Been thanked: 28 times

Re: My Gameboy Advance Zero

Post by Racerboy » Sun Aug 07, 2016 9:44 am

Ha, you beat me to it! Looks great :)

Would love to see the inside if you get the chance.
Colorado State University - Undergraduate Mechanical Engineer and Minor in Mathematics

Brett82
Posts: 52
Joined: Fri Jul 08, 2016 8:12 am
Has thanked: 19 times
Been thanked: 23 times

Re: My Gameboy Advance Zero

Post by Brett82 » Sun Aug 07, 2016 10:49 am

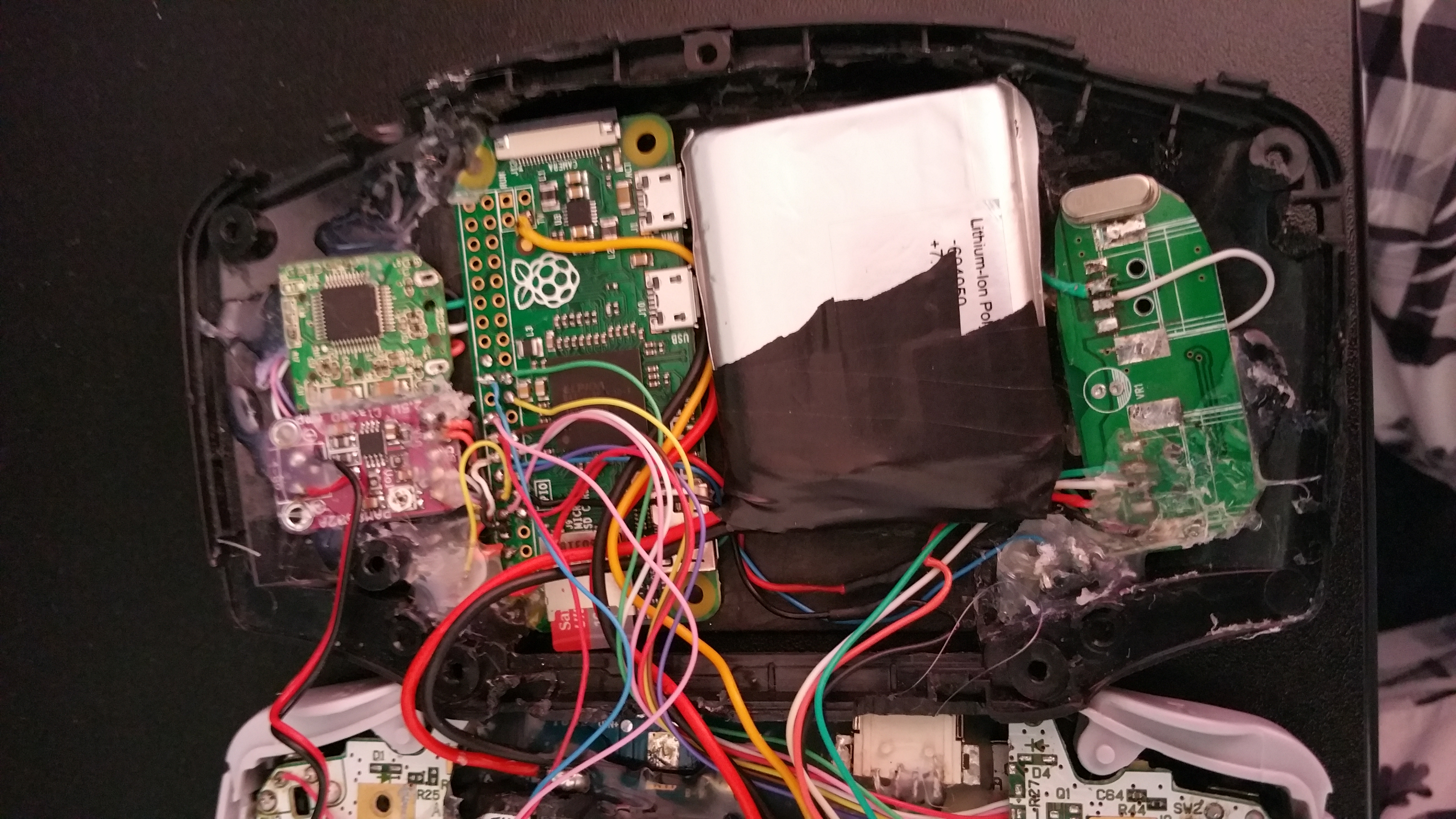

its not pretty but space is tight at the moment there is only an old 1000mah battery I had, only lasts bout an hour I cant have one that's any wider but I can have one 10mm or so longer ill pop it open in a bit but was a pain to close it lol.
I only lost one original screw hole if I could of found a smaller usb hub it would of been better, but I trimmed it as much as I could if I can find a really tiny hub I think I can squeeze a 2000mah battery in.
ive made a lead so can plug a battery bank into the ext usb port and power it off that or can plug one in the charge port as well but it uses more than you can put in that way.

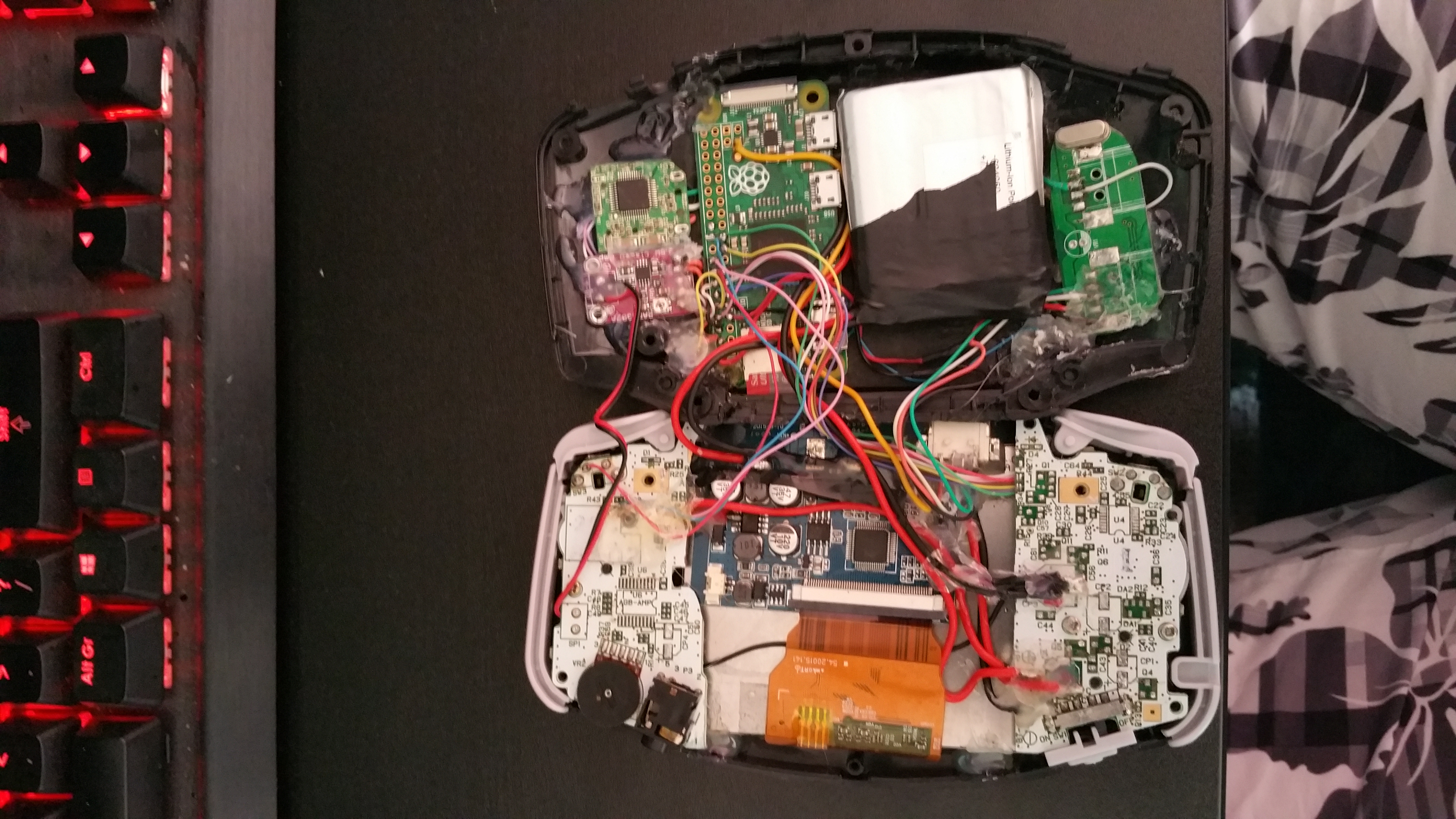

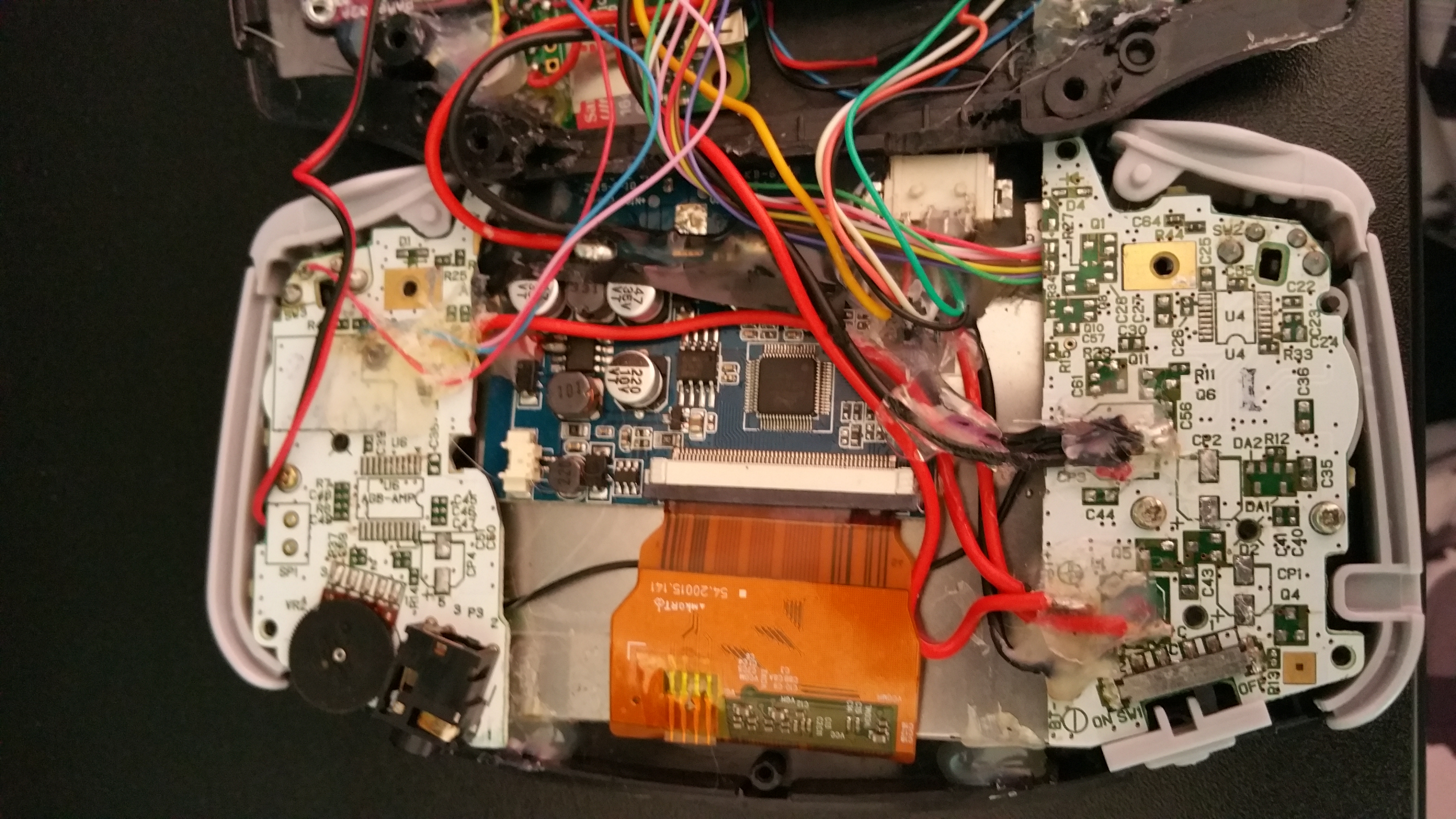

[spoiler="pics"]
[/spoiler]
Last edited by Brett82 on Sun Aug 21, 2016 4:27 pm, edited 2 times in total.

User avatar
MauroS
Posts: 8
Joined: Mon Jun 06, 2016 12:35 pm
Been thanked: 1 time

Re: My Gameboy Advance Zero

Post by MauroS » Tue Aug 09, 2016 8:31 am

Great work!!
love the gba case!

Online
User avatar
Helder
Trailblazer
Trailblazer
Posts: 1227
Joined: Thu May 05, 2016 8:33 am
Location: Fall River, MA
Has thanked: 519 times
Been thanked: 1646 times

Re: My Gameboy Advance Zero

Post by Helder » Tue Aug 09, 2016 2:28 pm

@Brett82 What LCD did you use? can you get a list of parts you used to build it? I think this will be my next project.

User avatar
Fleder
Posts: 847
Joined: Thu May 05, 2016 9:04 am
Location: Germany
Has thanked: 176 times
Been thanked: 246 times

Re: My Gameboy Advance Zero

Post by Fleder » Wed Aug 10, 2016 1:43 am

Sweet, i had an idea about this, too, but ditched it because of the space.
Add 2 more buttons and i am all yours :) Good work!
Last edited by Fleder on Fri Aug 12, 2016 12:06 am, edited 1 time in total.

Brett82
Posts: 52
Joined: Fri Jul 08, 2016 8:12 am
Has thanked: 19 times
Been thanked: 23 times

Re: My Gameboy Advance Zero

Post by Brett82 » Wed Aug 10, 2016 8:57 am

x and y are under the shoulder buttons ;).
I used the bw screen from amazon helder and a cheap copy of the adafruit mono amp and a mini usb card for audio I havnt connected to volume wheel or headphone socket yet put plan too soon. this would be a great one to do if you could make some custom boards helder. I thought it was going to be a nightmare but wasn't that difficult the only thing is battery size. I'm on the hunt for a larger one.

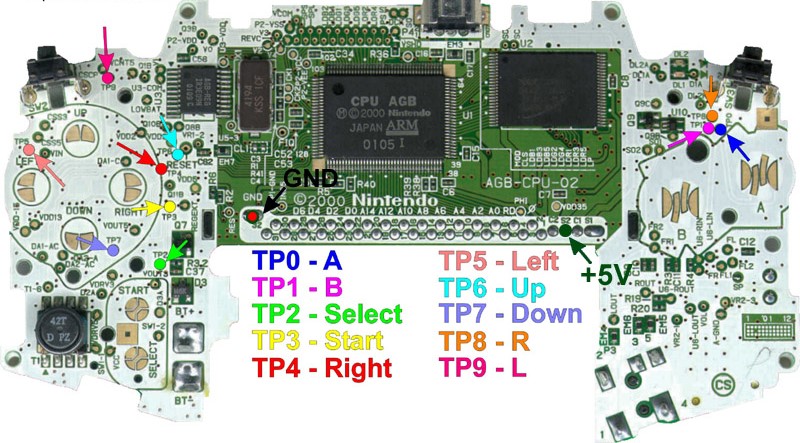

have attached a picture to help with hooking up the buttons for anyone who wants to give this ago
Screen
https://www.amazon.co.uk/BW-Monitor-Dig ... rds=bw+3.5
Amp
http://www.ebay.co.uk/itm/291774244322? ... EBIDX%3AIT
Usb Audio
https://www.amazon.co.uk/gp/product/B00 ... UTF8&psc=1
Power Module
used the power/Charger Module out of this, going to use the 2500mah cell for my GBZ got it for £9.99 from a shop called Robert dyas here in uk
https://www.amazon.co.uk/PNY-PowerPack- ... k+alu+2500

User avatar
ABH
Posts: 92
Joined: Sat May 28, 2016 7:01 pm
Location: Qatar
Has thanked: 25 times
Been thanked: 30 times

Re: My Gameboy Advance Zero

Post by ABH » Thu Aug 11, 2016 6:54 pm

Nice work ;)
Check out my GameBoy Pocket RPI3 build Here

Code: Select all

Enjoy your time ..
[/u]

User avatar
Fleder
Posts: 847
Joined: Thu May 05, 2016 9:04 am
Location: Germany
Has thanked: 176 times
Been thanked: 246 times

Re: My Gameboy Advance Zero

Post by Fleder » Fri Aug 12, 2016 12:07 am

@[mention]Brett82[/mention]
Take a look at this.

Brett82
Posts: 52
Joined: Fri Jul 08, 2016 8:12 am
Has thanked: 19 times
Been thanked: 23 times

Re: My Gameboy Advance Zero

Post by Brett82 » Fri Aug 12, 2016 7:02 am

Looks a little interesting I just hope they have Included everything on that board it's gonna be tight for screen and driver board with that central piece in there an spi screen would probably fit but as we all know there slow refresh is no good for gaming!
