Mintypi lite bezel causing screen glitches
-
- Posts: 4
- Joined: Mon Aug 24, 2020 5:14 pm
Mintypi lite bezel causing screen glitches
I found out today that the 3D printed bezel makes my mintypi screen glitches when it is attached. When I took the bezel off, all the games and menus worked perfectly fine, when I put it back on, it would work for a couple seconds, start glitching and becoming unresponsive, and then turn to a white screen. I’m using one of Helder’s presoldered boards for my Mintypi lite so I know it isn’t anything wrong with the internals. I took the bezel off and tested it multiple times and tested it multiple times with bezel on and got the same results.
-
- Posts: 10
- Joined: Wed Jun 10, 2020 3:30 pm
- Been thanked: 2 times
Re: Mintypi lite bezel causing screen glitches
Is the screen all the way in the 3d printed part. Some of the 3d printed parts where not big enough for the screen. I squeezed my screen in.
Another problem could be the ribbon cable. It could be bent or being pinched. A picture would be helpful.
Another problem could be the ribbon cable. It could be bent or being pinched. A picture would be helpful.
-
- Posts: 4
- Joined: Mon Aug 24, 2020 5:14 pm
Re: Mintypi lite bezel causing screen glitches

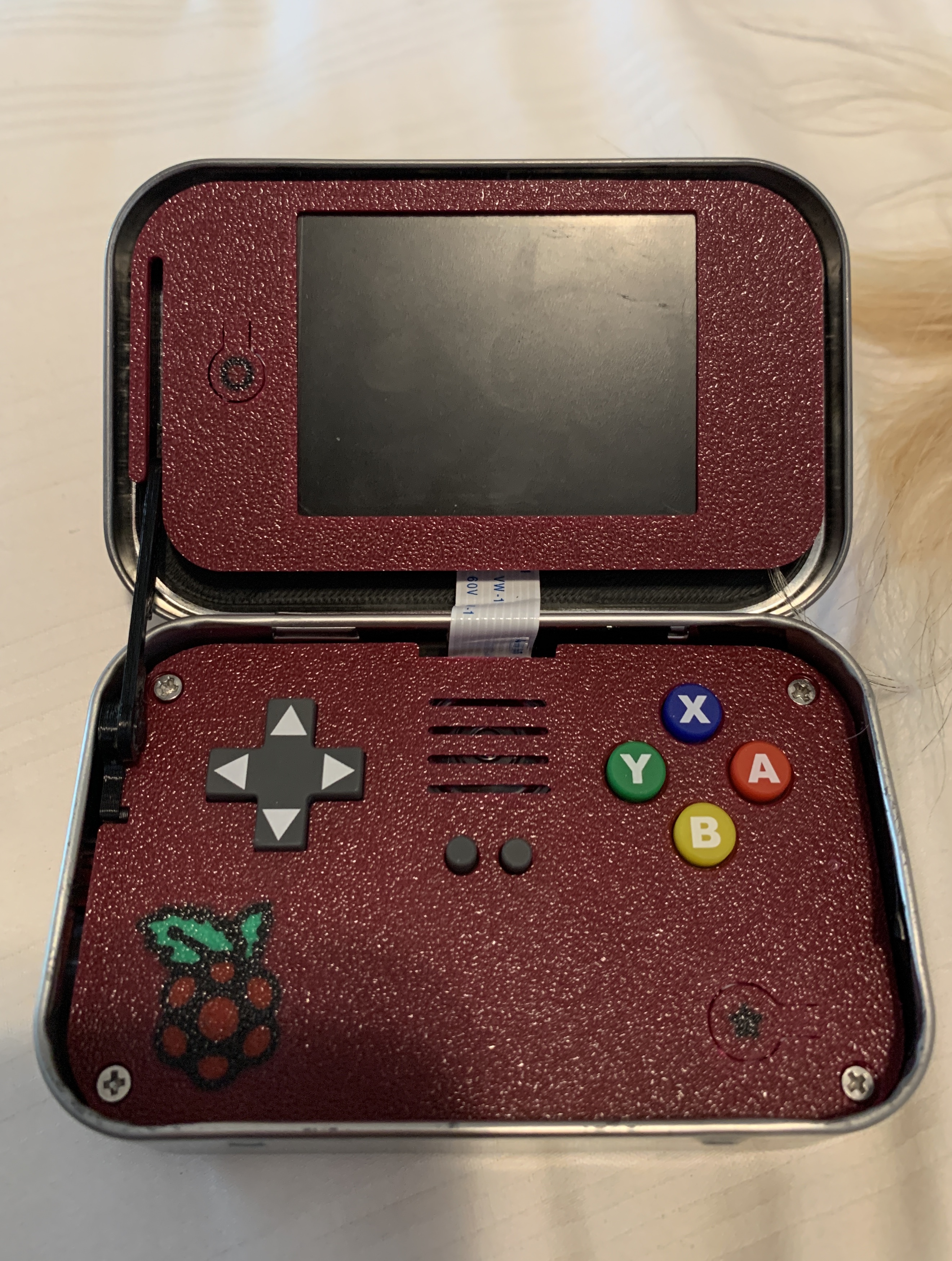

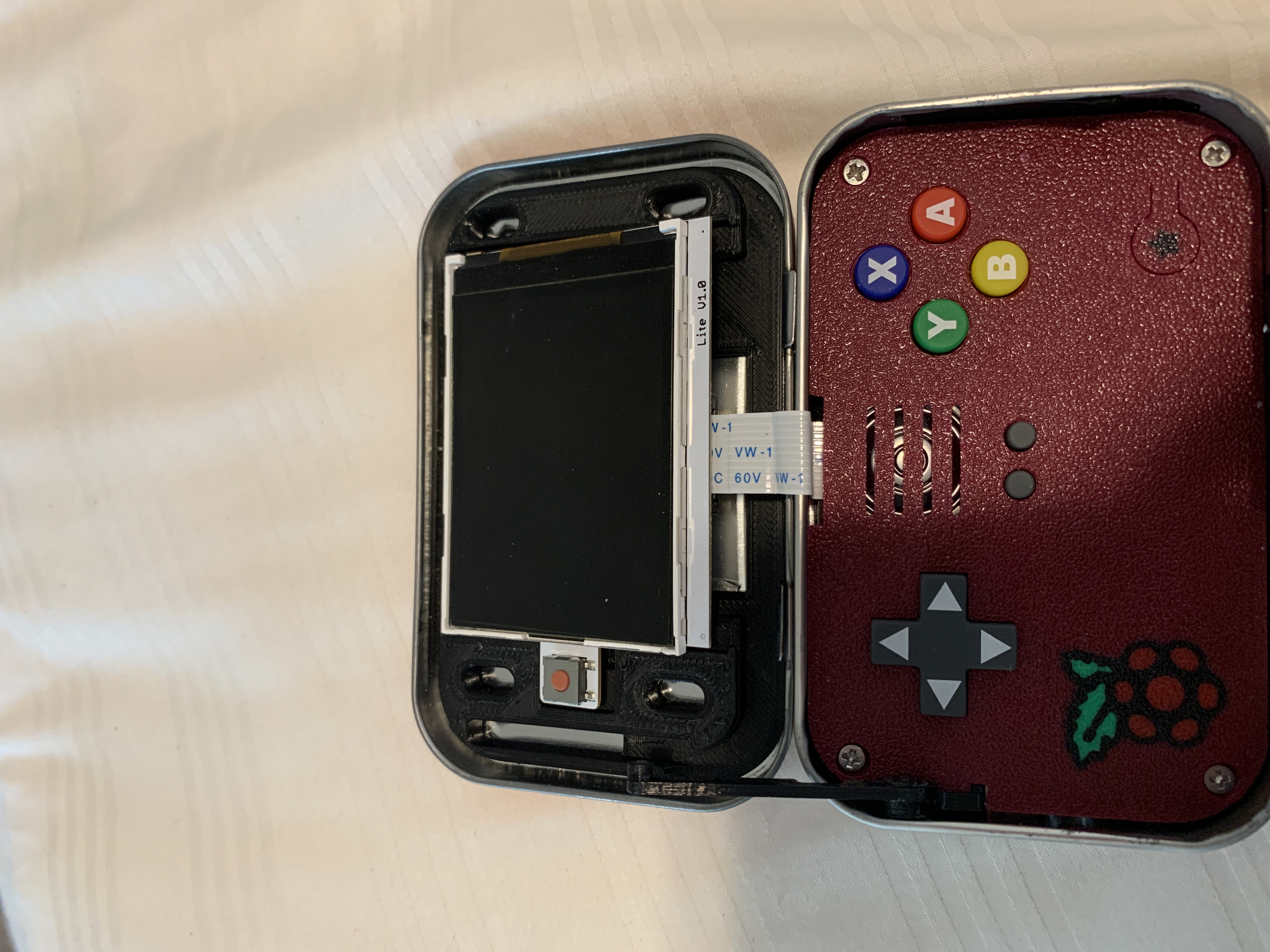

I checked many times so I’m pretty sure it was in the 3D printed part all the way. Here are the pictures with and without the bezel attached
- Attachments
-
- 16A58012-F534-4EE4-A662-E935433B6F4A.jpeg (2.64 MiB) Viewed 2357 times
-
- 9C491913-72A5-4F10-B27F-C4D7AB1E1D29.jpeg (2.91 MiB) Viewed 2357 times
-
- Posts: 10
- Joined: Wed Jun 10, 2020 3:30 pm
- Been thanked: 2 times
Re: Mintypi lite bezel causing screen glitches
The right looks like its in but on the left, the actual screen and not the board is hanging over a bit. It could be that. I know I had to wedge my screen in kind of like that.
