hi all, i have a new screen:
it is like this:
https://www.sudomod.com/wiki/index.php? ... umper.jpgù
but I'm not sure what to do.
help pls
it is like this:
https://www.sudomod.com/wiki/index.php? ... umper.jpgù
but I'm not sure what to do.
help pls
- Wailer
- Posts: 119
- Joined: Mon Jan 15, 2018 3:45 pm
- Location: Tiel, The Netherlands
- Has thanked: 30 times
- Been thanked: 38 times
Re: Collecting information on alternative displays - please contribute
This screen works with the pi, take a look over here https://github.com/CrackberryPi/hardwar ... /README.mdJaspermcwolffe wrote: ↑Sun Dec 31, 2017 3:40 pmHas anyone tried the Crystalfontz CFAF320480C4-035T? It says it runs off 3v. I know next to nothing about any of this. Just wanted to see if it was worth the try.
The width of the screen is slightly wider than what the gameboy case could accommodate, it has roughly the same dimensions as a pi2/pi3 board so you will have to take some material of the case to make it fit.
I think the price online is quite high...
- Wailer
- Posts: 119
- Joined: Mon Jan 15, 2018 3:45 pm
- Location: Tiel, The Netherlands
- Has thanked: 30 times
- Been thanked: 38 times
Re: Collecting information on alternative displays - please contribute

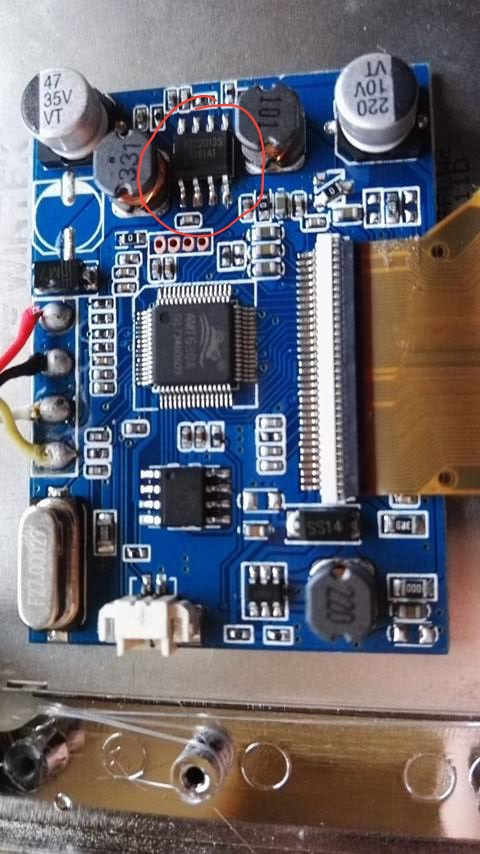

Can't read what type of voltage regulator is used (in the red circle). Have you tried running it at 5v?hi all, i have a new screen:
it is like this:
https://www.sudomod.com/wiki/index.php? ... umper.jpgù
but I'm not sure what to do.
help pls
Just connect it (with the attached wires) to 5v and feed a composite display signal (otherwise the screen does not turn on, could be a video/photo camera, or a raspberry ).
- Wailer
- Posts: 119
- Joined: Mon Jan 15, 2018 3:45 pm
- Location: Tiel, The Netherlands
- Has thanked: 30 times
- Been thanked: 38 times
Re: Collecting information on alternative displays - please contribute

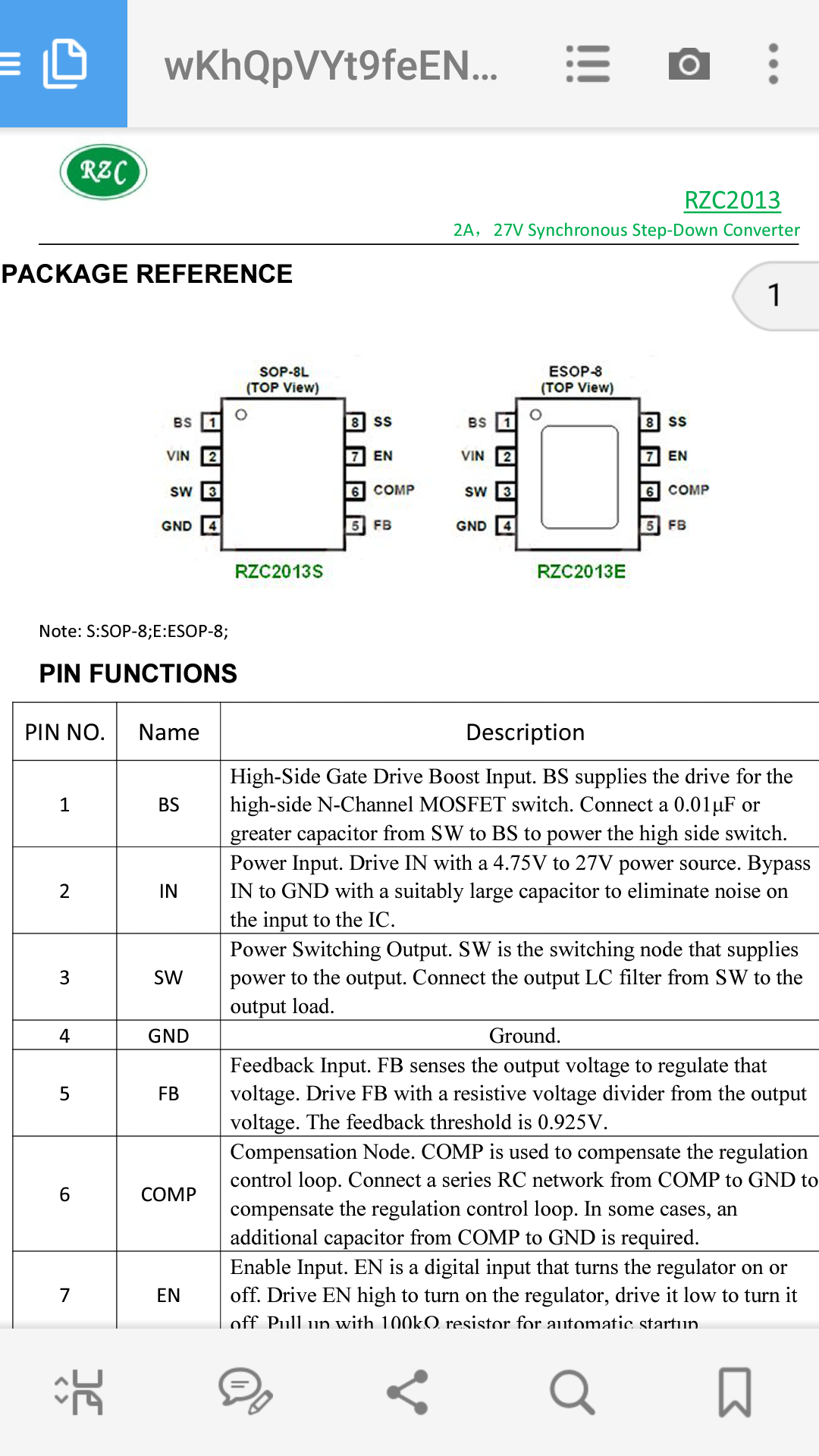

According to the datasheet this regulator has an operating range from 4.75 up to 27 volt, so it should work on 5 volts without any modifications.
Here is a link to the datasheet: https://files.acrobat.com/a/preview/2e ... f52ada491d
I don't know what kind of psu (adafruit/bangood) you will be using but as long as it can provide enough juice (so no voltage drop when under load, say below the needed minimum of 4.75) all should be fine.
Just feed it 5v (on the wires not the chip ) and a composite signal to see if it works.
- Wailer
- Posts: 119
- Joined: Mon Jan 15, 2018 3:45 pm
- Location: Tiel, The Netherlands
- Has thanked: 30 times
- Been thanked: 38 times
Re: Collecting information on alternative displays - please contribute
If supplying 5v does not work, you should suply it to pin 3 (see screenshot) i believe this is the regulators 5v output.
Please mind the little dot on the chip to get the correct pin.
Maybe can someone confirm my interpretation of the datasheet is correct!
Brigghius, if you have a voltmeter you can measure if (when supplying the standard 12v) that this pin delivers 5v.
Re: Collecting information on alternative displays - please contribute
Damn, I wish I had known this. I just got two variant sevens and did the mod that runs the wire from the chip to the 5V pad. (method 1 i think).Wailer wrote: ↑Thu Feb 15, 2018 11:06 amBought on ebay
Board found in the screen wiki (variant 7), but this one works at 5v without any modifications (even as low as 4,5v).
It looks like they have changed the voltage regulator to XL1509 datasheet: https://files.acrobat.com/a/preview/d9f ... a2f9aa70b
You could still remove it to make it more power efficient (regulator is 82% at 5v), and feed it system 5v through pin 2 on the chip but imho this is not worth the effort.
https://rover.ebay.com/rover/0/0/0?mpr ... 2241298189
One quick adition,
The screen is held by one little clamp, so removal is extremely easy!
No glue, no prying with screwdrivers, just remove one screw an it pops right out!
Welp, the second one I won't mod. TY for the information!
- Wailer
- Posts: 119
- Joined: Mon Jan 15, 2018 3:45 pm
- Location: Tiel, The Netherlands
- Has thanked: 30 times
- Been thanked: 38 times
Re: Collecting information on alternative displays - please contribute
You're welcome!chris wrote: ↑Mon Mar 05, 2018 7:43 pmDamn, I wish I had known this. I just got two variant sevens and did the mod that runs the wire from the chip to the 5V pad. (method 1 i think).Wailer wrote: ↑Thu Feb 15, 2018 11:06 amBought on ebay
Board found in the screen wiki (variant 7), but this one works at 5v without any modifications (even as low as 4,5v).
It looks like they have changed the voltage regulator to XL1509 datasheet: https://files.acrobat.com/a/preview/d9f ... a2f9aa70b
You could still remove it to make it more power efficient (regulator is 82% at 5v), and feed it system 5v through pin 2 on the chip but imho this is not worth the effort.
https://rover.ebay.com/rover/0/0/0?mpr ... 2241298189
One quick adition,
The screen is held by one little clamp, so removal is extremely easy!
No glue, no prying with screwdrivers, just remove one screw an it pops right out!
Welp, the second one I won't mod. TY for the information!
Maybe the first rule in the screen wiki should be to "try to run a screen on 5v"
And if that doesn't work, mod it.
(Maybe this already is the rule )
But hey if we could find everything in there, we wouldn't have this great forum
Re: Collecting information on alternative displays - please contribute
Just got this board from EPATHDEALS through amazon. Runs fine on 5v, but I get this weird flicker at the top. I want to do a 5v mod, but none of the boards look exactly like this one on the wiki. Any help would be great! Thank!
-
