Which Version Screen Do I Have And How to Convert It?

[Pepe_Silvia]

Here ya go! I just had to do this board the other day. Just about to head to bed, but I figured I would fire up Photoshop to help out a fellow Sudomodder. YOU'RE WELCOME!!! Hope this helps you and I didn't reply too late.

Hell yeah! Thank you so much, gonna try it right now

[sggeek]

Here ya go! I just had to do this board the other day. Just about to head to bed, but I figured I would fire up Photoshop to help out a fellow Sudomodder. YOU'RE WELCOME!!! Hope this helps you and I didn't reply too late.

hi DannyJK , you removed the whole chip ?

[sggeek]

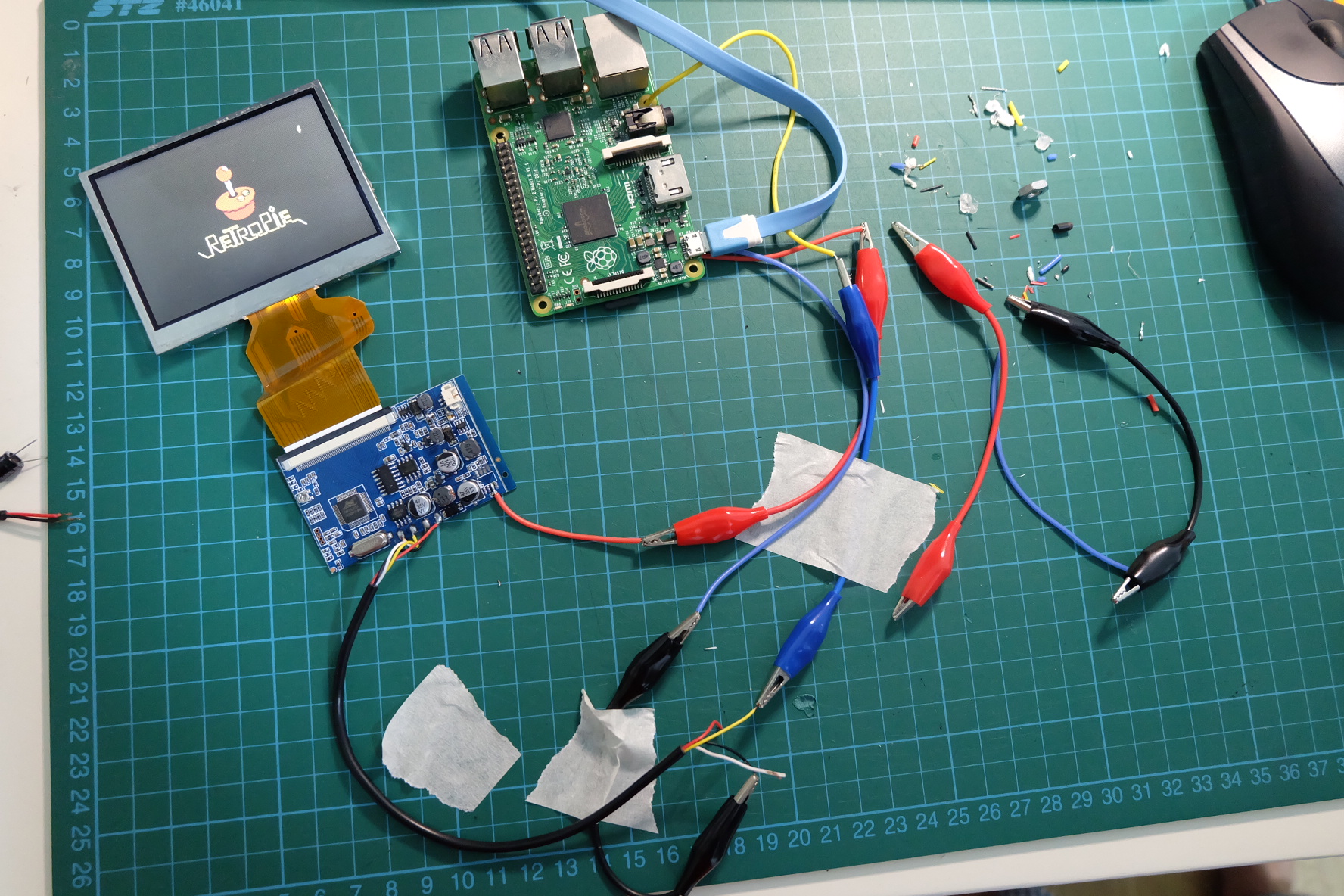

hey guys, just to share my result with this particular screen. i managed to make it work with a raspberry pi 3.

As instructed i removed the component at the bottom right and soldered in the 5v input.

screen pcb1.jpg (809.95 KiB) Viewed 4286 times

I've yet to try this on a pi zero (it is still shipping here). But at least i've figured out how this lcd can be powered with 5v.


[DannyJK]

Here ya go! I just had to do this board the other day. Just about to head to bed, but I figured I would fire up Photoshop to help out a fellow Sudomodder. YOU'RE WELCOME!!! Hope this helps you and I didn't reply too late.

hi DannyJK , you removed the whole chip ?

Yes, remove the whole chip.
