I'm getting ~3.4v from the battery. The pads for + and - from the JST connector were torn off. The battery is meant to be connected to the JST connector and I'm not sure if you can charge from any of those other spots on the charger board. I would suggest replacing it with a micro lipo or the alter...

I did solder them. I'm only getting 2.4v at those test points Cool, try this now. Take off the electrical tape and test your voltage on your battery wires. If you get 2.4v your battery is flat. Also, solder the battery wires to the + and - where the JST connector was. This is similar to how you're ...

I am getting 2.5v at the PCB and the Pi. I don't hav ethe battery monitor. I'm using the powerboost 500 charger Did you solder those battery wires together before you wrapped them in electrical tape? Give me your voltage reading on the 500. If it's low at these points you have an issue with your ba...

Are you getting 2.5v at both the PCB and the Pi? Also, are you using the battery monitor? What battery charger are you using and do you ever get a green light saying the battery is charged? Can you post pictures? I am getting 2.5v at the PCB and the Pi. I don't hav ethe battery monitor. I'm using t...

dryja123 wrote: ↑

Sat Sep 16, 2017 8:33 pm

http://www.sudomod.com/forum/viewtopic.php?f=34&t=4115

I checked for continuity and the soldered points were fine. I am only ready ~2.5v no matter how long I wait for a full charge.

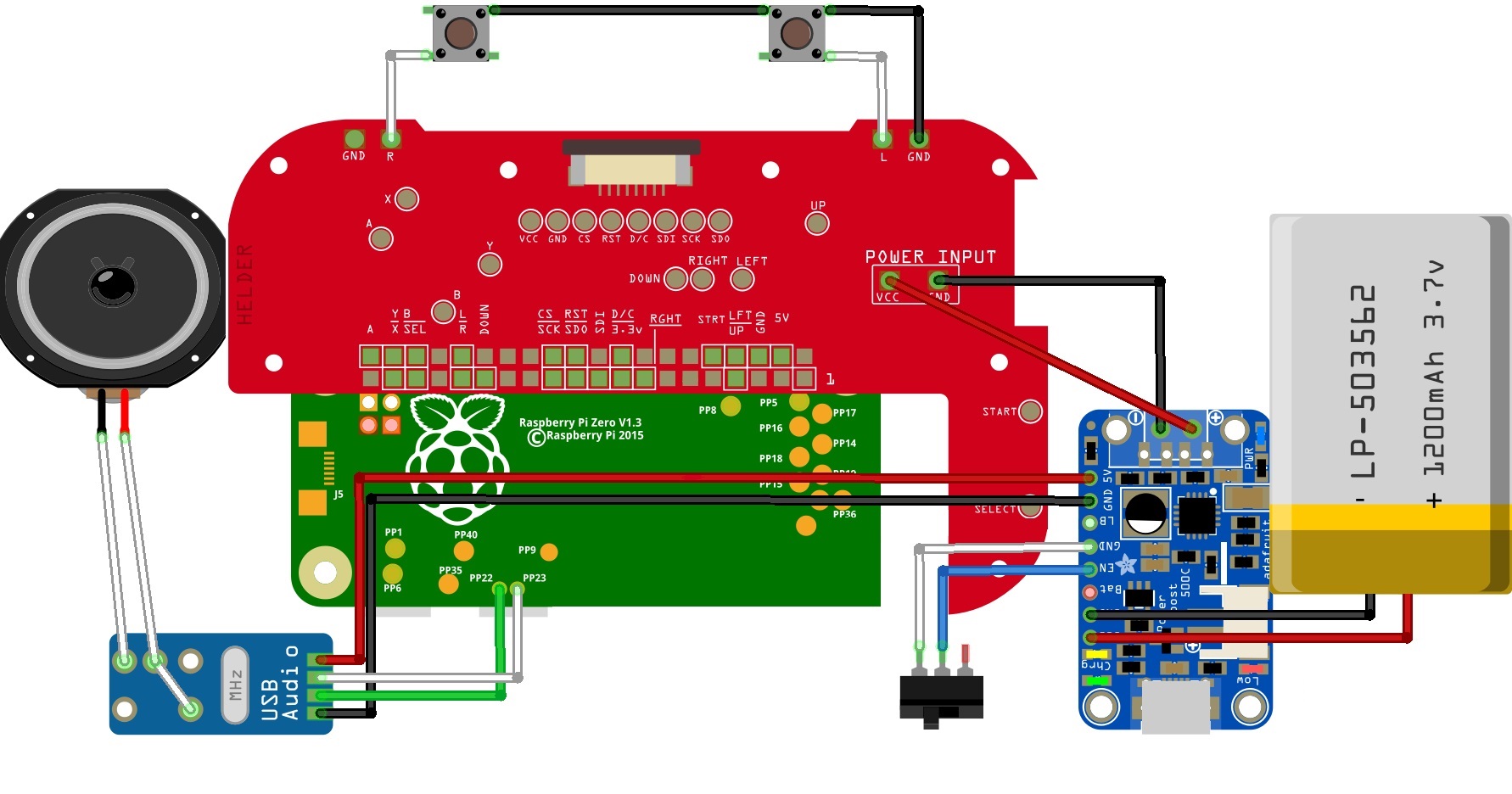

I have everything wired like so: Everything works fine when I power the R Pi directly, but when i power it on via switch & battery the screen flickers as if it isn't getting enough power to come on fully.

Did you wire up the sound card to the USB pads? I'm asking because maybe you shorted something there... Those pads are in an extremely tight spot and it's super easy to short a connection. I did, that could be what caused it . Give it a shot. I was having issues with my Pi and it was ever so slight...

Lphillimore wrote: ↑

Tue Aug 29, 2017 8:24 am

Yeah any signs of a short on it at all? Seems odd. Could be life in it yet!!

I'm not sure how to spot a short on the R pi.

dryja123 wrote: ↑

Tue Aug 29, 2017 8:04 am

Did you wire up the sound card to the USB pads? I'm asking because maybe you shorted something there... Those pads are in an extremely tight spot and it's super easy to short a connection.

I did, that could be what caused it .

what happened to make it fail? What happens when you plug it into the micro HDMI and hook upto a TV? Assuming the green light doesn't flash on it and the SD card has been tested and confirmed ok elsewhere? Its salvageable but likely you'll need a heatgun to remove it. I'm not exactly sure what caus...
