Tiny castellated modules

Post by Sushi » Sun Aug 05, 2018 3:44 pm

I've been doing some design lately for my DS Lite AIO. I realized that if I wanted to change the form factor of my board, I'd need to rewire everything manually on the new PCB despite it having common components. That's why I'm designing everything on small modules that can be rearranged and put onto any project.

All the modules are castellated, meaning the edges are vias that have been cut in half. The goal is that each module is less than a square inch, and so far, that goal has been met.

Modules so far:
https://github.com/Dopp-IO/32U4Castel - Arduino Leonardo - 0.91" x 0.81"
https://github.com/Dopp-IO/USBCastel - 4-Port USB hub - 0.54" x 0.51"
https://github.com/Dopp-IO/SoundCastel - USB stereo sound card and amplifier - 0.66" x 0.59"
https://github.com/Dopp-IO/PowerCastel - Adaptation of PowerBoost 1000C - 0.96" x 0.49"
https://github.com/Dopp-IO/BacklightCastel - High-voltage backlight driver - 0.49" x 0.47"

Module library:
https://github.com/Dopp-IO/CastelLib
Last edited by Sushi on Tue Dec 25, 2018 5:32 pm, edited 6 times in total.

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2985
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1459 times
Been thanked: 3114 times

Re: Tiny castellated modules

Post by Helder » Sun Aug 05, 2018 10:24 pm

I love castellated holes when attaching things to existing projects or better yet existing PCBs (retro consoles in my case) to make soldering basically wireless but not solderless. Why are you using these board if you're designing a board from scratch? Just redesign everything to have all you need.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.


Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.

User avatar
Sushi
Posts: 99
Joined: Sat Jul 23, 2016 8:17 am
Location: East USA
Has thanked: 4 times
Been thanked: 34 times

Re: Tiny castellated modules

Post by Sushi » Mon Aug 06, 2018 4:01 pm

I want to do more boards in the future with the same chips. I don't want to re-implement my designs every time I do a new board. It's very easy to just slap these on any future boards I do. Plus, I effectively get 4 layers to work with.

User avatar
Sushi
Posts: 99
Joined: Sat Jul 23, 2016 8:17 am
Location: East USA
Has thanked: 4 times
Been thanked: 34 times

Re: Tiny castellated modules

Post by Sushi » Thu Aug 09, 2018 7:04 pm

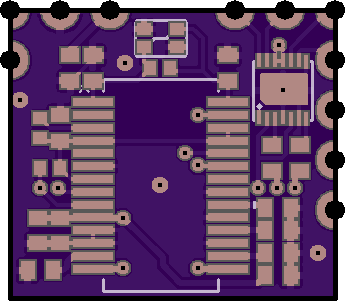

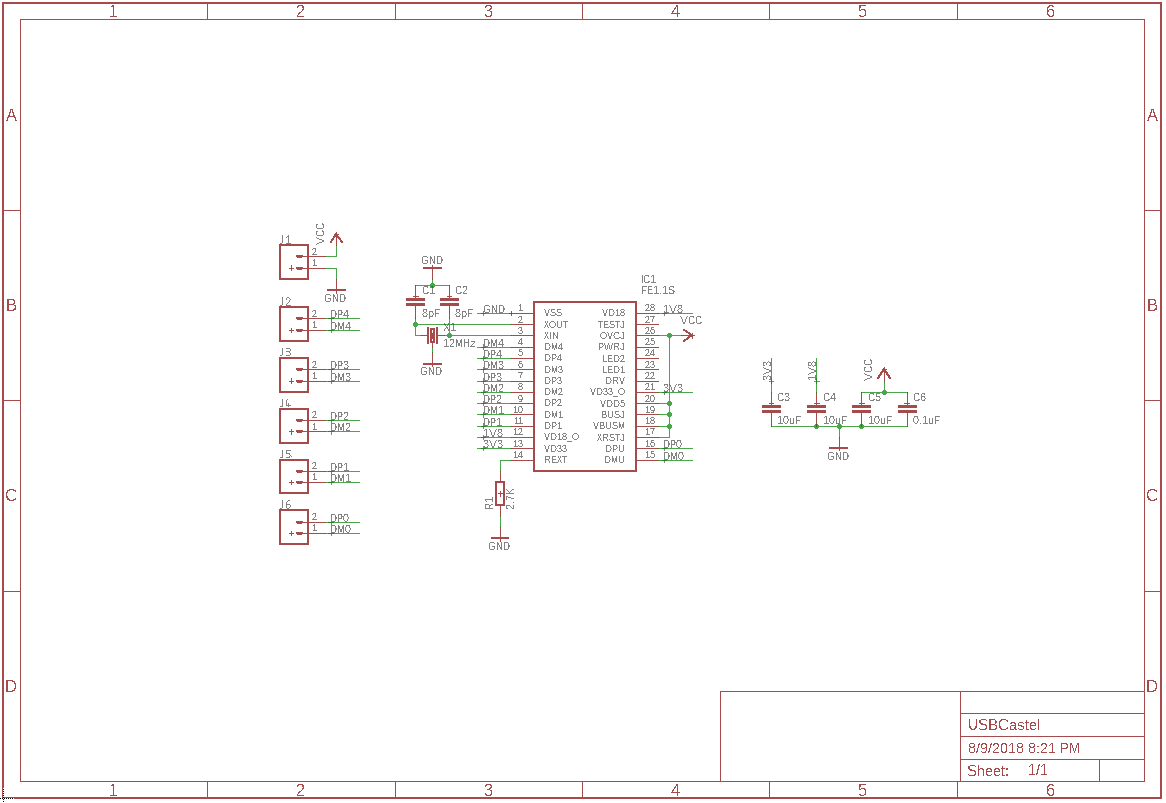

Another module is complete, and this one is an FE1.1s module (4 port USB hub). It measures 0.54" x 0.51".
ImagesShow
https://github.com/Dopp-IO/USBCastel
Last edited by Sushi on Fri Aug 10, 2018 6:35 pm, edited 1 time in total.

User avatar
Sushi
Posts: 99
Joined: Sat Jul 23, 2016 8:17 am
Location: East USA
Has thanked: 4 times
Been thanked: 34 times

Re: Tiny castellated modules

Post by Sushi » Fri Aug 10, 2018 6:35 pm

Aaaand another. This one's a USB sound card and stereo amp. It measures 0.66" x 0.59".

I'm changing the links to the CAD files to github links.
ImagesShow
https://github.com/Dopp-IO/SoundCastel

User avatar
Sushi
Posts: 99
Joined: Sat Jul 23, 2016 8:17 am
Location: East USA
Has thanked: 4 times
Been thanked: 34 times

Re: Tiny castellated modules

Post by Sushi » Fri Aug 10, 2018 10:28 pm

Probably the final module (I think I've got everything needed for any Pi build). This is the PowerCastel (adaptation of PowerBoost 1000C).

https://github.com/Dopp-IO/PowerCastel

I'd appreciate if somebody could do a quick review of the board. I've made it very small, so I may have messed something up.

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2985
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1459 times
Been thanked: 3114 times

Re: Tiny castellated modules

Post by Helder » Sat Aug 11, 2018 8:10 pm

The board dimension is too large and not castellated in it's current board size. Once it is the right size there are 2 GND air wires so you need to put some GND vias somewhere.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.


Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.

User avatar
Sushi
Posts: 99
Joined: Sat Jul 23, 2016 8:17 am
Location: East USA
Has thanked: 4 times
Been thanked: 34 times

Re: Tiny castellated modules

Post by Sushi » Sun Aug 12, 2018 2:13 pm

I've done that because eagle will not properly pour the ground plane when the board dimensions castellate the vias. When properly poured, there are no airwires. However, I'm worried that the ground path for components on the left of the board is convoluted. I modified the gerber files such that they are properly castellated.

Edit: I revised the board by making the ground plane more connected and adding power planes as specified by the datasheets.

User avatar
VeteranGamer
Posts: 1738
Joined: Thu Jan 26, 2017 11:12 am
Location: London, UK
Has thanked: 528 times
Been thanked: 909 times

Re: Tiny castellated modules

Post by VeteranGamer » Fri Aug 17, 2018 9:51 am

Sushi wrote:
Thu Aug 09, 2018 7:04 pm
Another module is complete, and this one is an FE1.1s module (4 port USB hub). It measures 0.54" x 0.51".
ImagesShow
https://github.com/Dopp-IO/USBCastel

really nice work.....
and appreciate the share.....


i was looking to make a couple of the 4 port hubs, i as need something like this for a future project...
(and it seem like a really compact and cost effective solution to what i need)

now i'm a complete NOOB. so apologies if these questions are a little on basic side....


the FE1.1S chip, can i just get any.....

https://www.aliexpress.com/item/50PCS-F ... autifyAB=0


also have you tested these, and know that they work......


thanks.....




.

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2985
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1459 times
Been thanked: 3114 times

Re: Tiny castellated modules

Post by Helder » Fri Aug 17, 2018 1:11 pm

Yea that will work just fine.
