Ampersound - A DIY MP3 Player

Post by Ampersand » Thu Aug 27, 2020 11:19 am

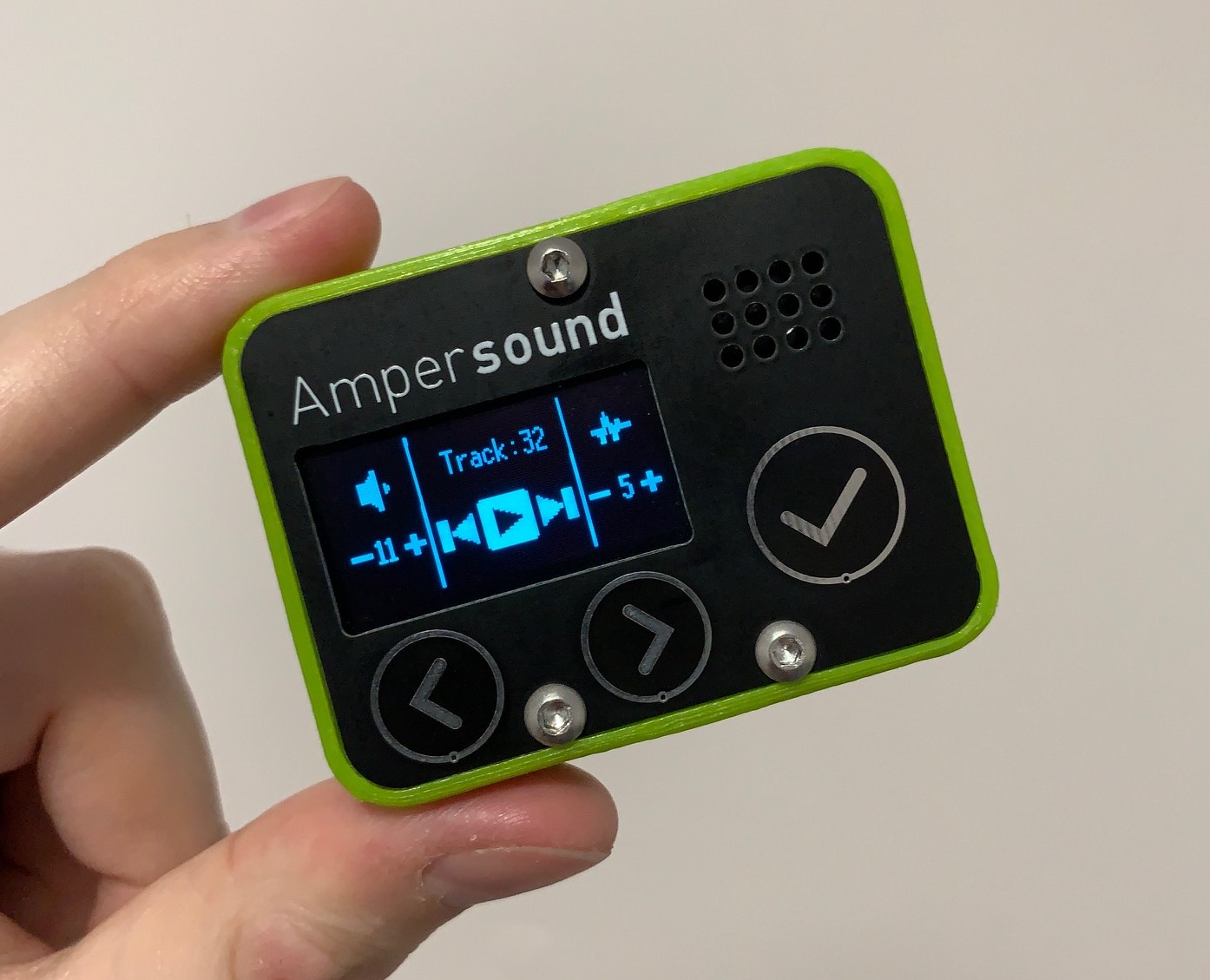

Ampersound is a DIY MP3 Player with capacitive touch controls, USB C charging, and a small built-in speaker.
It uses a Pro Micro to drive the controls and screen, and a DFPlayer mini for playback.
All files can be found here: https://1drv.ms/u/s!AqMvwiYIMMtm6WrbG8I ... m?e=fL9FeX

It includes the arduino code; Eagle PCB library, schematics, and gerbers; STLs and Solidworks files for the case; the build guide; bill of materials; and some extras.

Feel free to modify/improve/expand anything provided here. I hope it helps someone get started with PCB design.
SpoilerShow

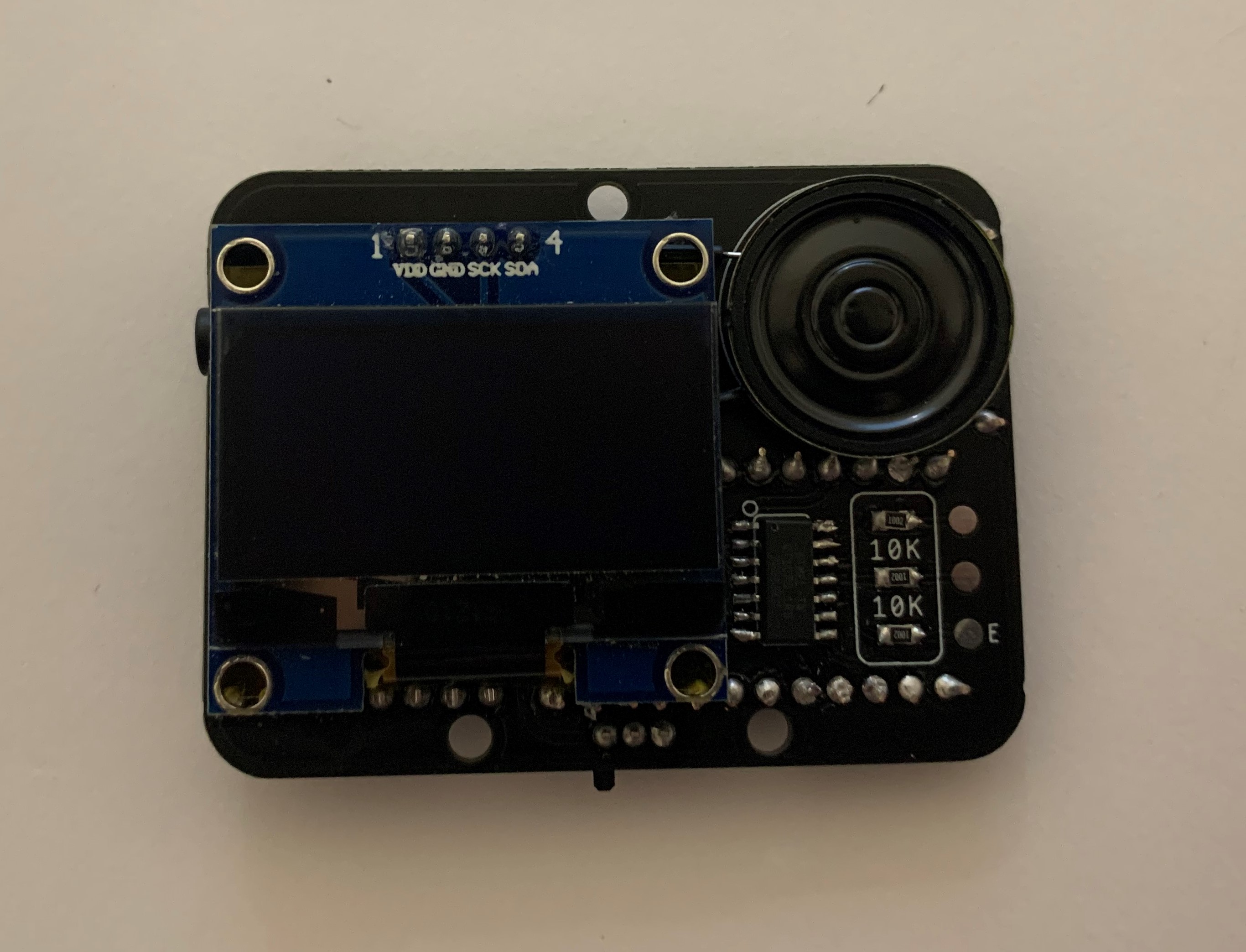

Ampersound Top.JPG
Ampersound Top.JPG (679.15 KiB) Viewed 569 times

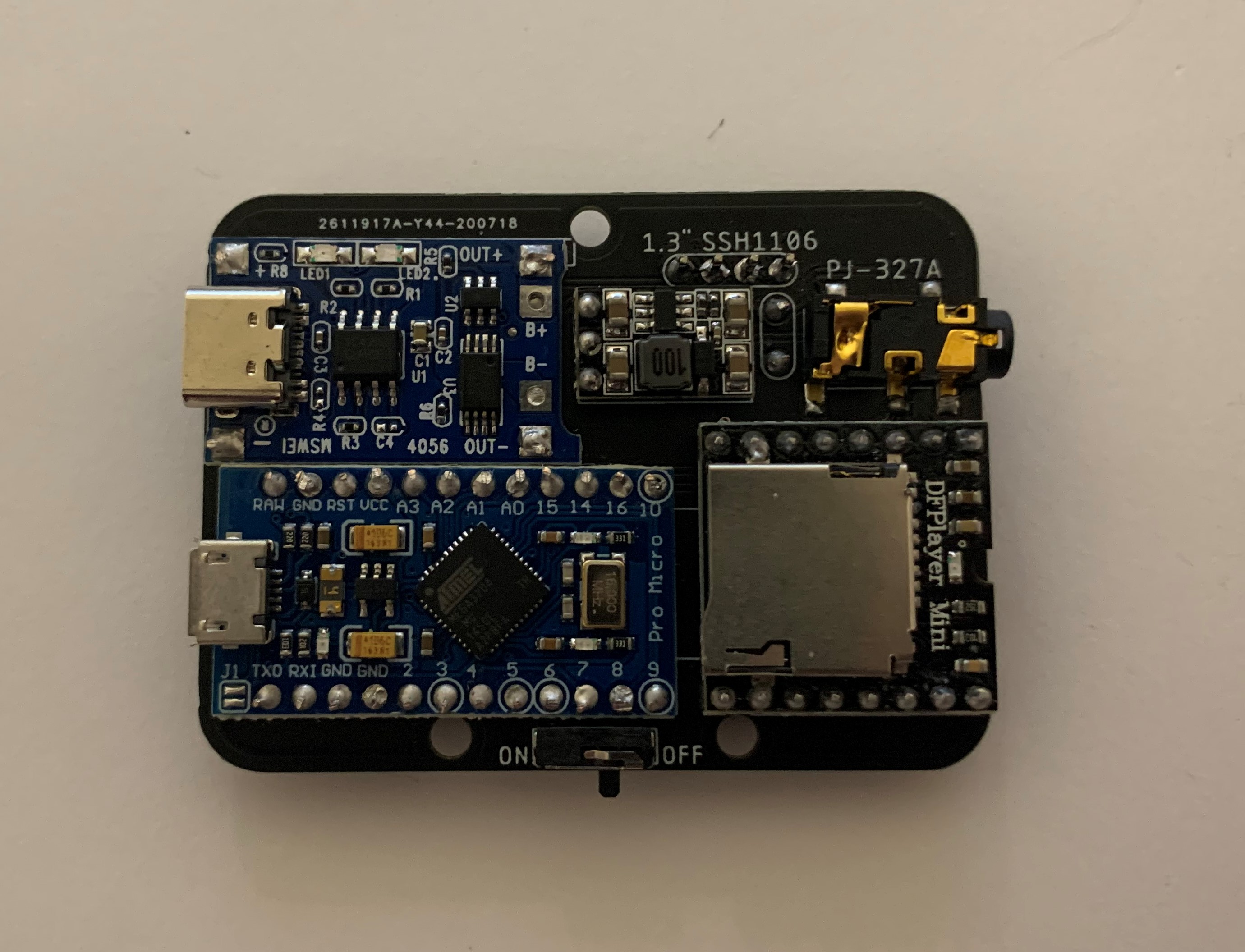

Ampersound Bottom.JPG
Ampersound Bottom.JPG (745.06 KiB) Viewed 569 times
This project is based on Neutrino-1's Soundpod project, which you can find here:
https://www.instructables.com/id/Arduin ... P3-Player/
