Micro Arcade Machine Build With 7 Inch Screen

Post by shanet94 » Sun Sep 17, 2017 9:10 am

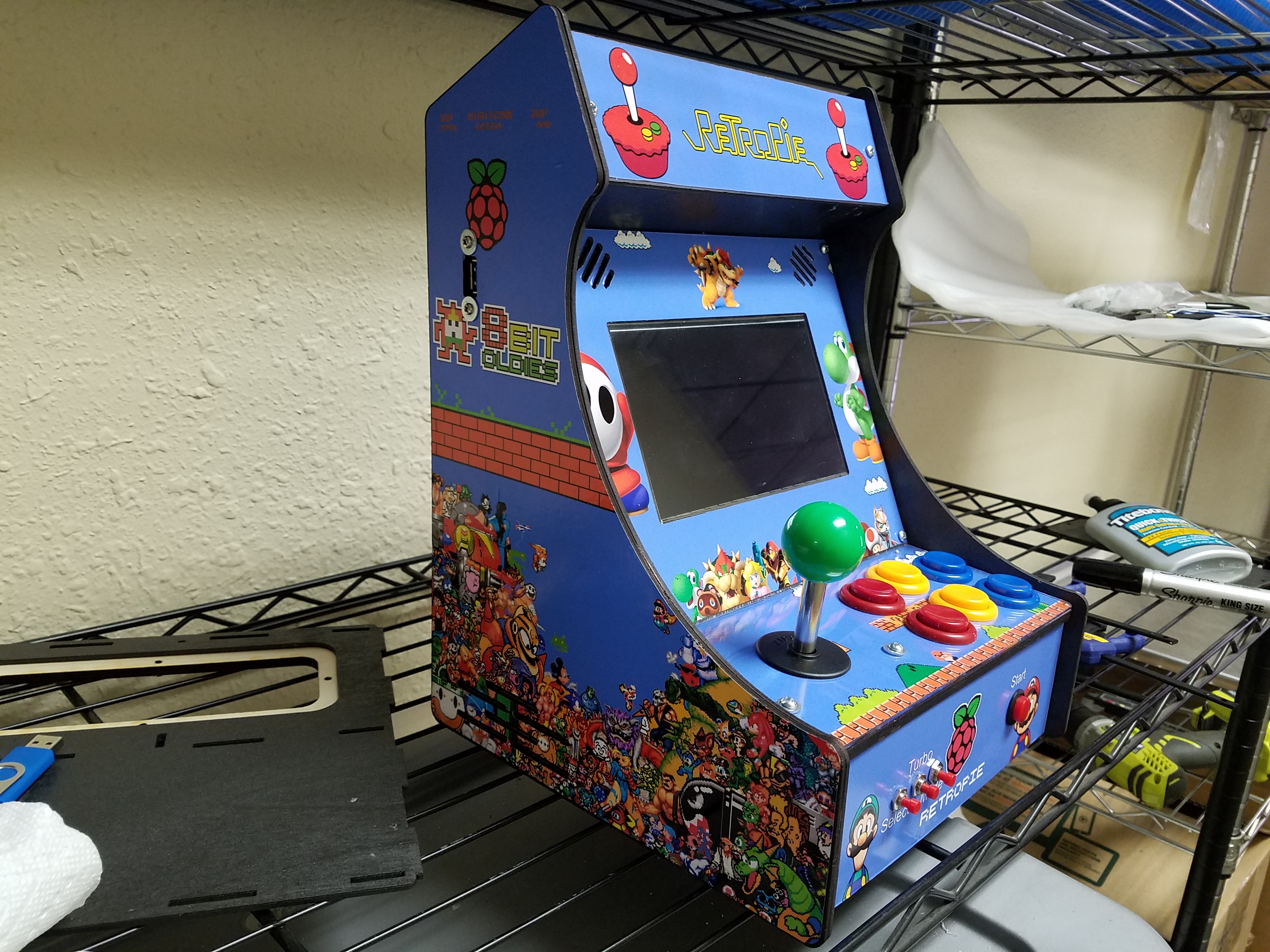

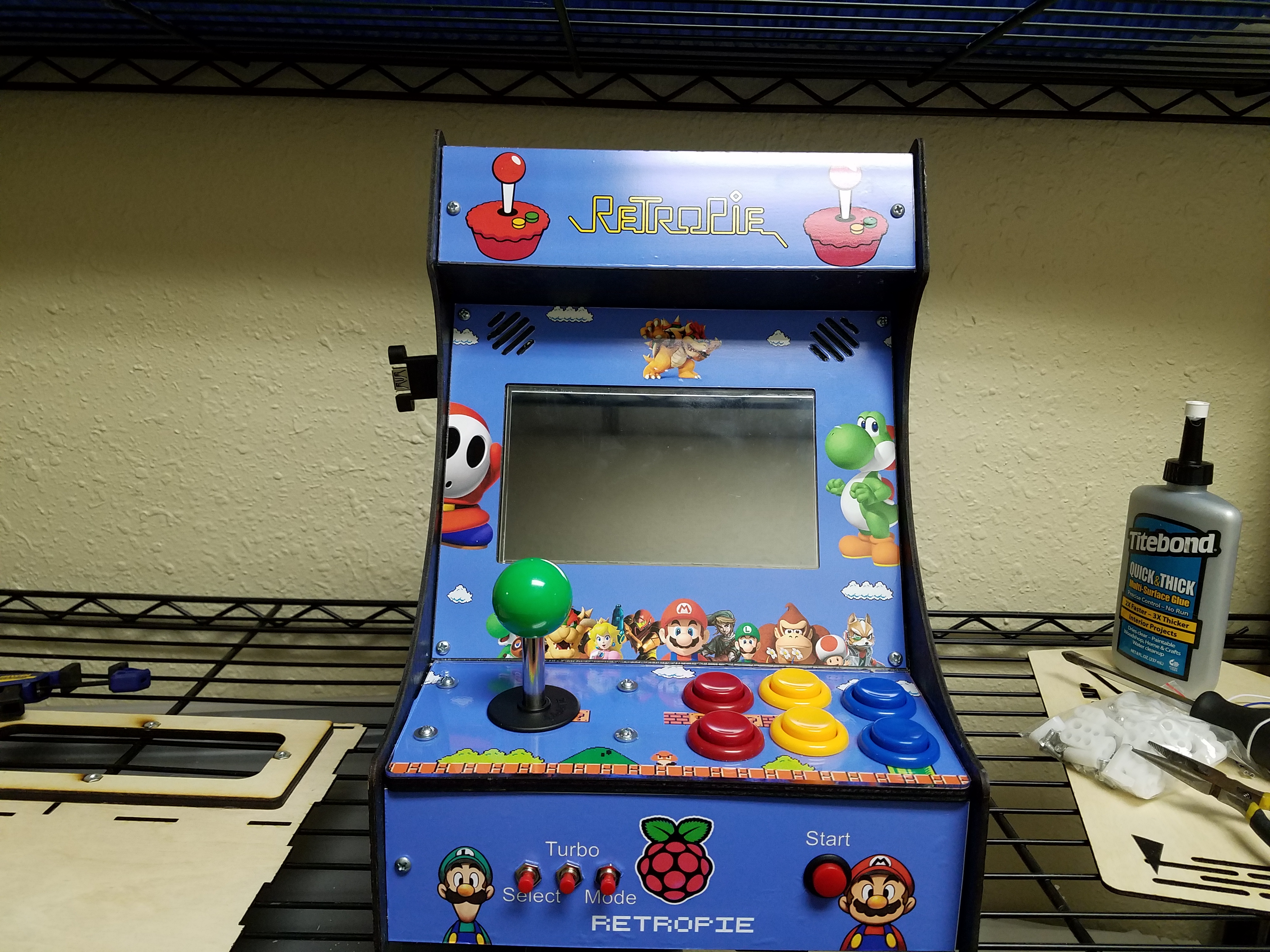

I have been playing more and more with my laser and cut out this little arcade machine based off a Instructable. I have been modifying it more and more to be a easy to assemble kit. Runs retropie with a 7" lcd. Making a step bigger machine next, one that will hold a 10.4. My end goal is to offer a kit once I get everything 100% to my liking that is a "plug and play" kind of design.

User avatar
BLAU
Posts: 21
Joined: Tue Aug 01, 2017 12:26 pm
Location: Bay Area, CA
Has thanked: 11 times
Been thanked: 10 times
Contact:

Re: Micro Arcade Machine Build With 7 Inch Screen

Post by BLAU » Sun Sep 17, 2017 11:23 pm

Well done, looks nice & very clean! :) I like your side-art, was that your creation?
BLAU's wintergreen mintyPi
http://www.sudomod.com/forum/viewtopic.php?f=32&t=4009
In the works: peppermint blue mintyPi | GBZ | PI3 Gameboy

User avatar
BadBert
Posts: 377
Joined: Wed Jun 29, 2016 4:14 am
Location: Hoogerheide, Netherlands
Has thanked: 100 times
Been thanked: 61 times
Contact:

Re: Micro Arcade Machine Build With 7 Inch Screen

Post by BadBert » Mon Sep 18, 2017 1:44 am

that.... is.... awsome....

cant wait for a kit to become available!!!
My first GBZ build -=HERE=- -> Became a gift to my little brother!
My 2nd GBZ build -=WIP HERE=- -> going with HDMI!

User avatar
dbak85
Posts: 40
Joined: Thu Mar 09, 2017 2:04 am
Has thanked: 14 times
Been thanked: 19 times

Re: Micro Arcade Machine Build With 7 Inch Screen

Post by dbak85 » Mon Sep 18, 2017 8:56 am

This looks real good! Amazing job!

You have so much space around that PI. I think it would be a lot happier with a bigger heat sink and a fan :)

Check this dual fan out

shanet94
Posts: 6
Joined: Wed Aug 30, 2017 10:17 am
Been thanked: 3 times

Re: Micro Arcade Machine Build With 7 Inch Screen

Post by shanet94 » Mon Sep 18, 2017 10:04 am

BLAU wrote:
Sun Sep 17, 2017 11:23 pm
Well done, looks nice & very clean! :) I like your side-art, was that your creation?
Yes, we have Roland Versacamms large format printer here so I can make the art too. I just assembled images found online. ;) I have ran photoshop since 1999 so pretty good at it!

User avatar
woans
Posts: 15
Joined: Fri Aug 18, 2017 4:52 pm
Been thanked: 9 times

Re: Micro Arcade Machine Build With 7 Inch Screen

Post by woans » Mon Sep 18, 2017 6:04 pm

Very nice work ! congrats dude

shanet94
Posts: 6
Joined: Wed Aug 30, 2017 10:17 am
Been thanked: 3 times

Re: Micro Arcade Machine Build With 7 Inch Screen

Post by shanet94 » Wed Sep 20, 2017 9:15 am

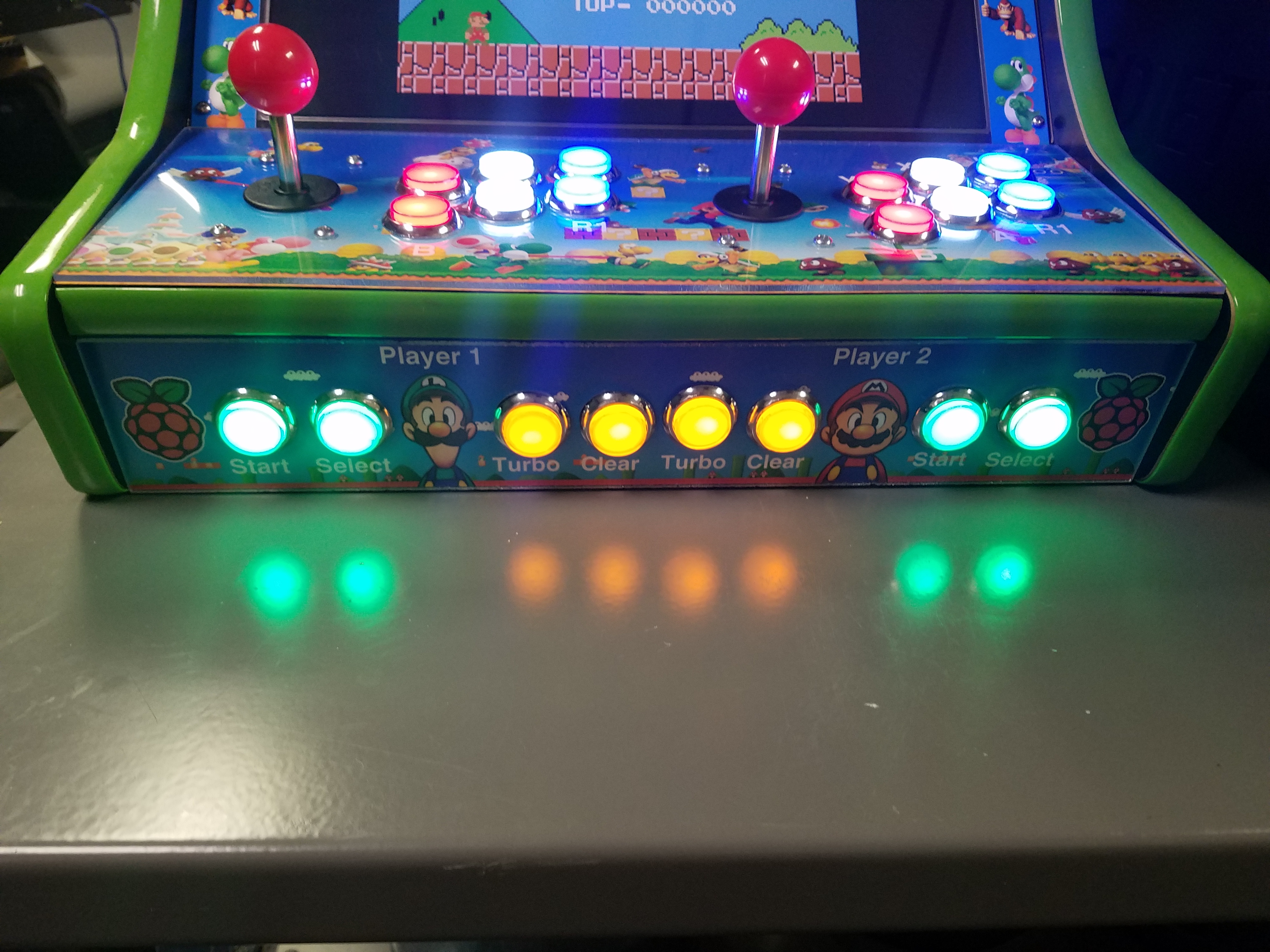

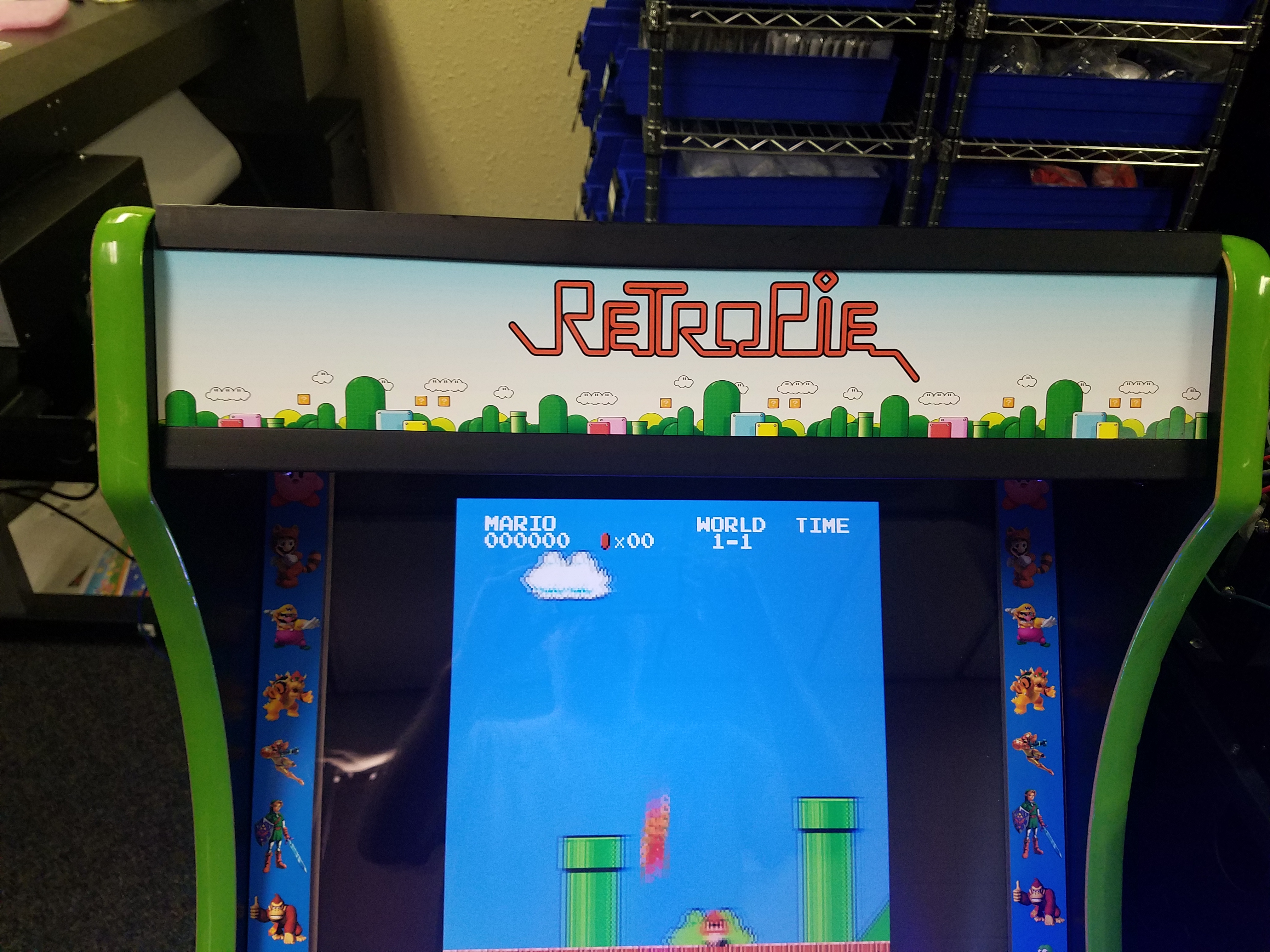

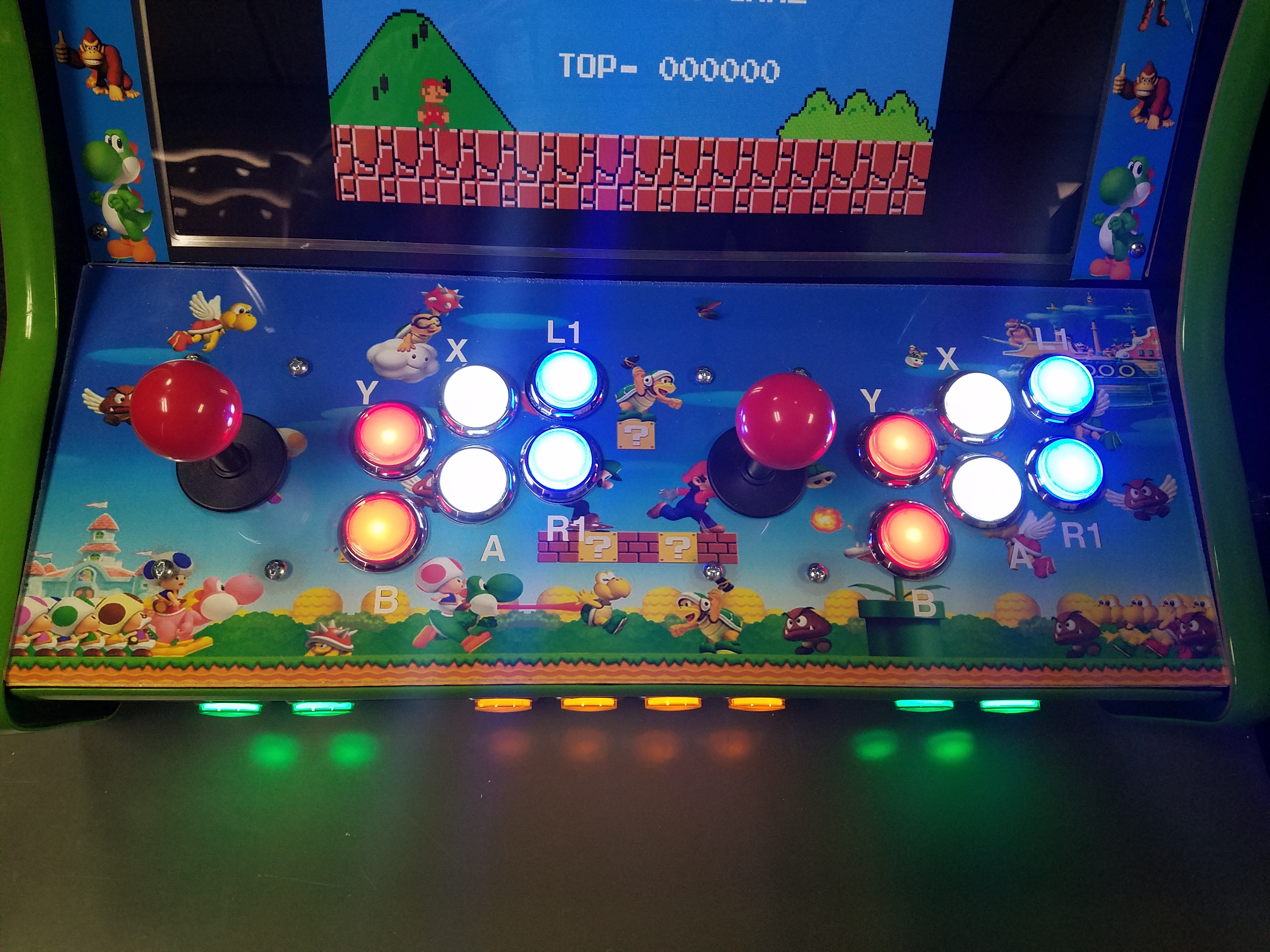

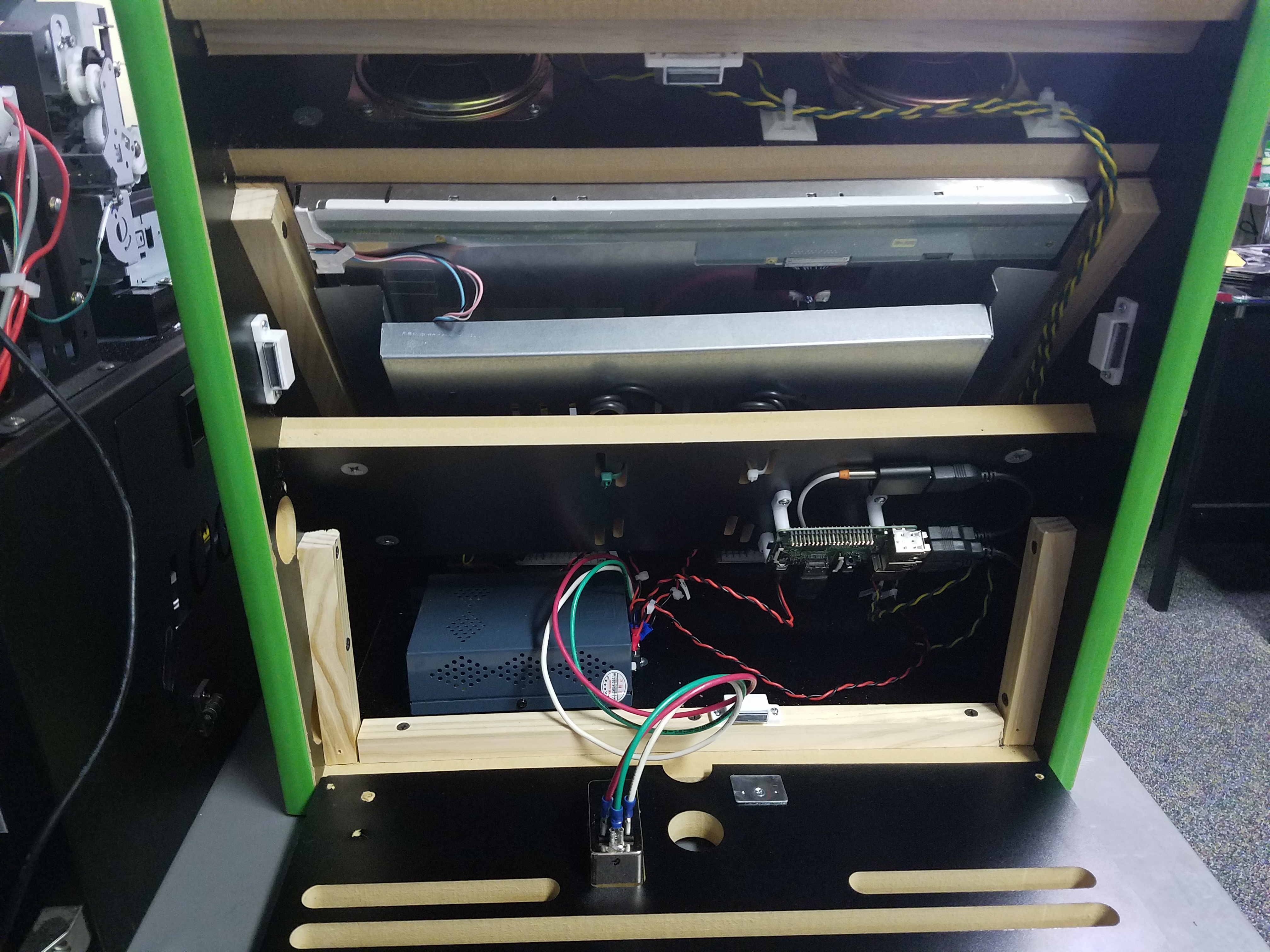

Full size done, this was using a 3rd party cabinet kit as my laser can only cut up to 1/4 next is a in between size that will be 1 player. I have it all done in corel, just need to cut it.

WoWin
Posts: 22
Joined: Mon Jun 26, 2017 12:11 pm
Has thanked: 17 times
Been thanked: 2 times

Re: Micro Arcade Machine Build With 7 Inch Screen

Post by WoWin » Thu Sep 21, 2017 12:55 am

Could you share which cabinet kit you used exactly?

shanet94
Posts: 6
Joined: Wed Aug 30, 2017 10:17 am
Been thanked: 3 times

Re: Micro Arcade Machine Build With 7 Inch Screen

Post by shanet94 » Thu Sep 21, 2017 7:46 am

WoWin wrote:
Thu Sep 21, 2017 12:55 am
Could you share which cabinet kit you used exactly?
https://gameroomsolutions.com/shop/bartop-arcade-kit/
the one with lock cams and Black Melamine. Absolutely not worth it. We are ordering a CNC machine to make our own. The back door never fit right so we have to modify it to attach a completely different way and the Melamine just flakes really easy. for what it cost yeah I would look else where. :)
