Restless Build Log

Post by cbafun » Thu Nov 01, 2018 1:30 pm

Hi,

Here is a little build log of me and my brothers project. Grown a bit over the past months, but hope we can complete it before Christmas.

Here are some pictures of the intended design, PCB progress and experiments.

As you can see, we changed our minds regarding the joysticks after the first PCB were ordered.

Also thanks to Helder for the awesome PSU!
Attachments

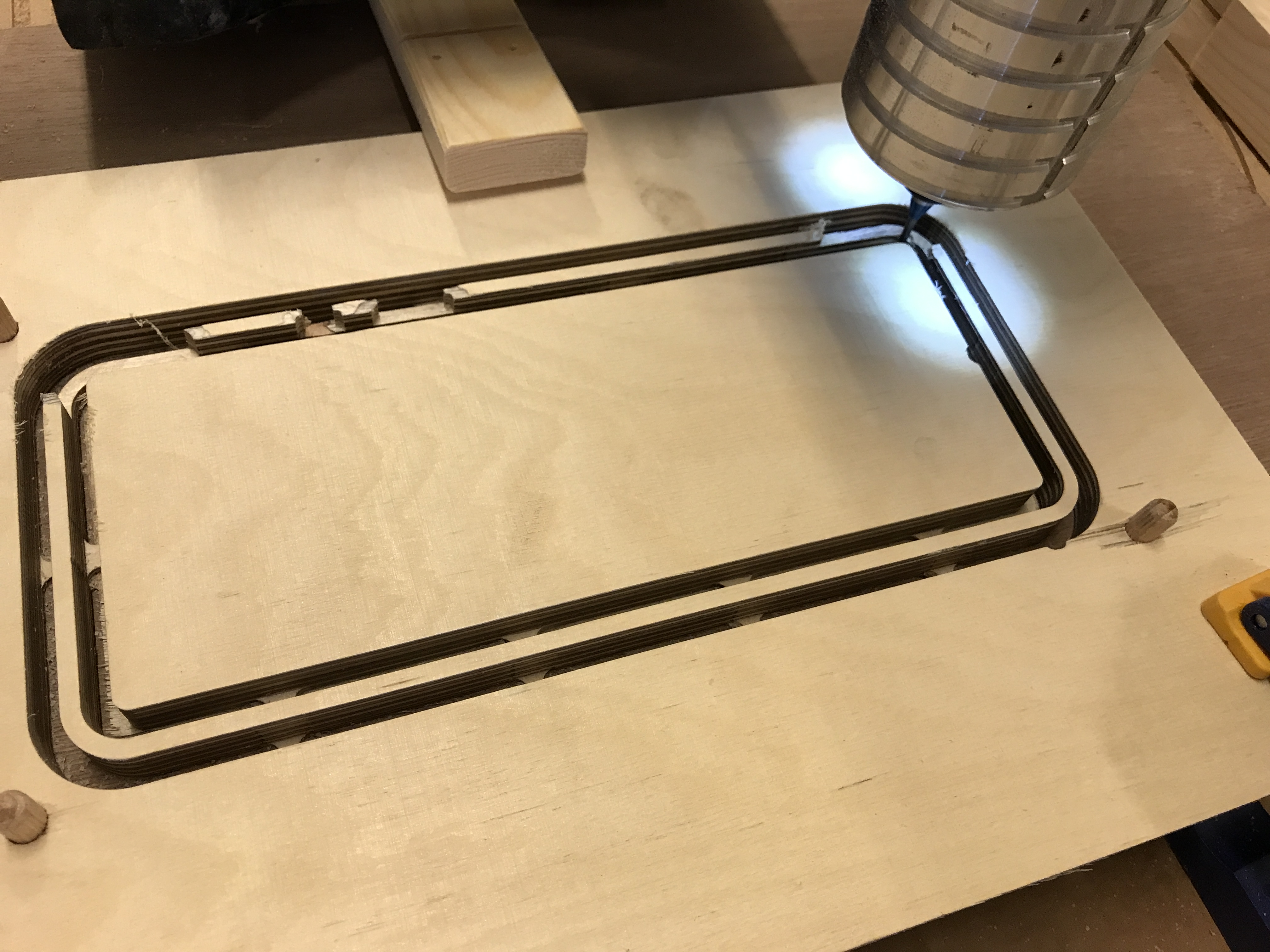

Wooden case proto..

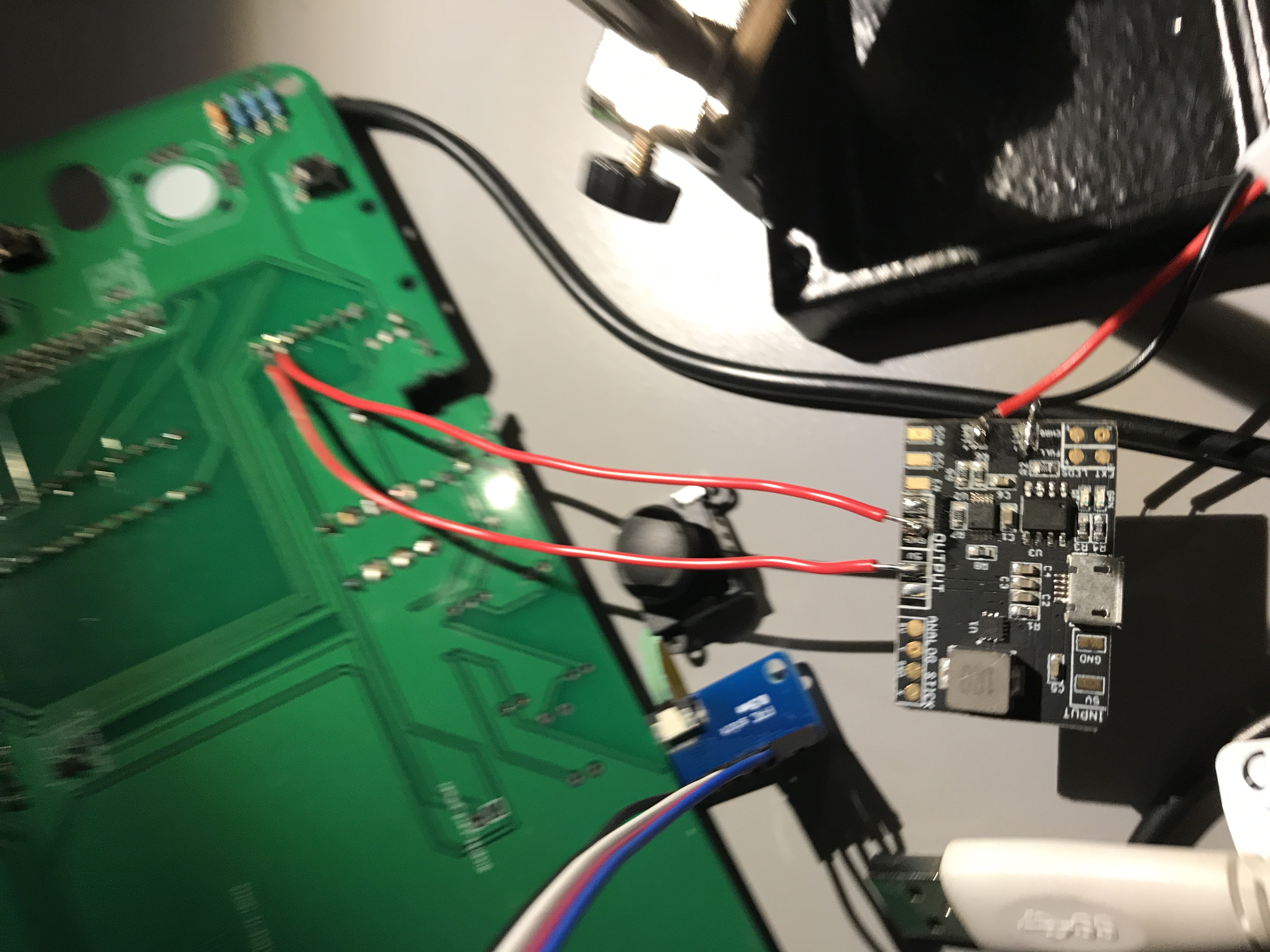

Helder’s PSU working like a charm

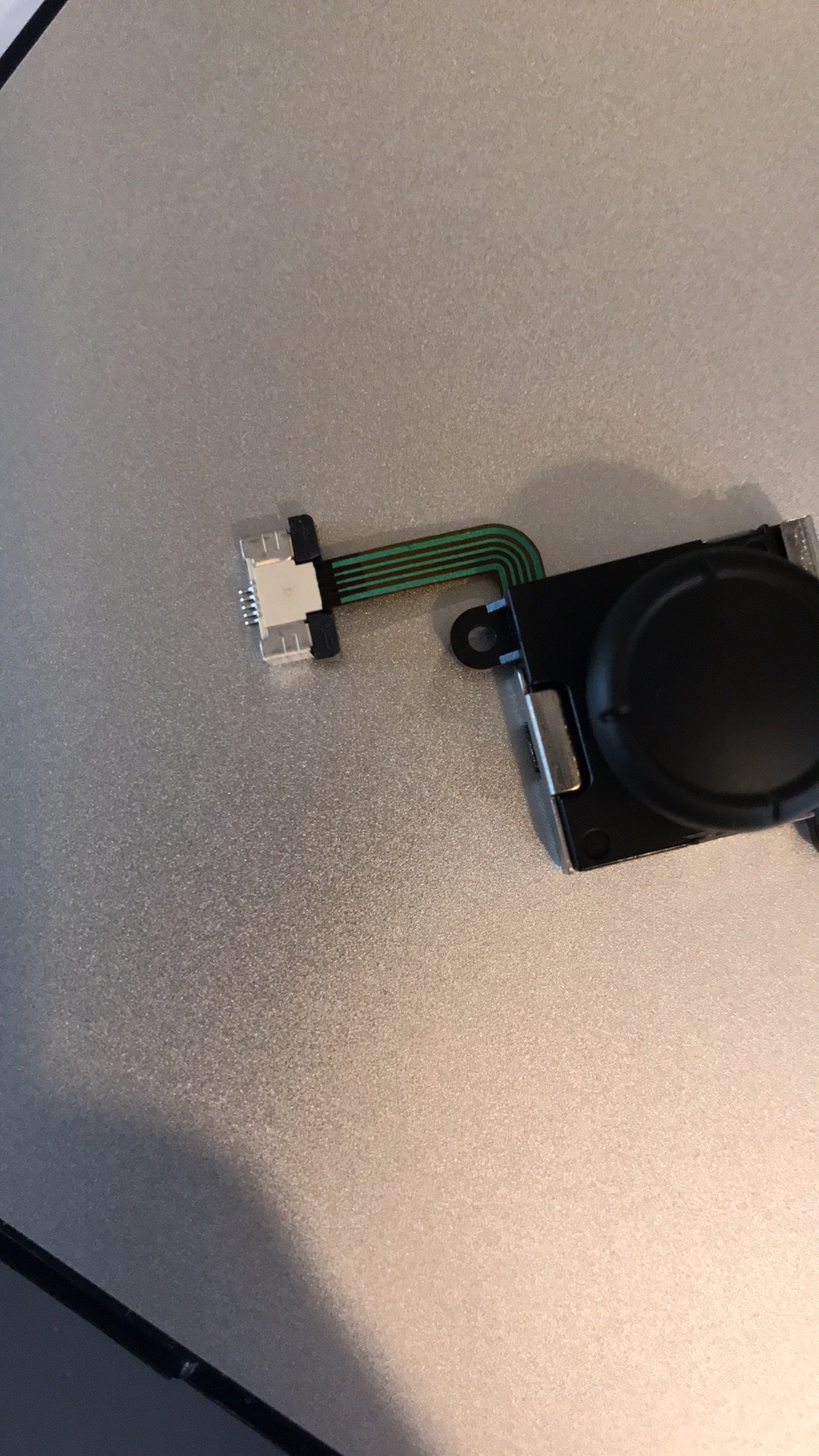

Switch Joystick and a painfully small FPC connector..

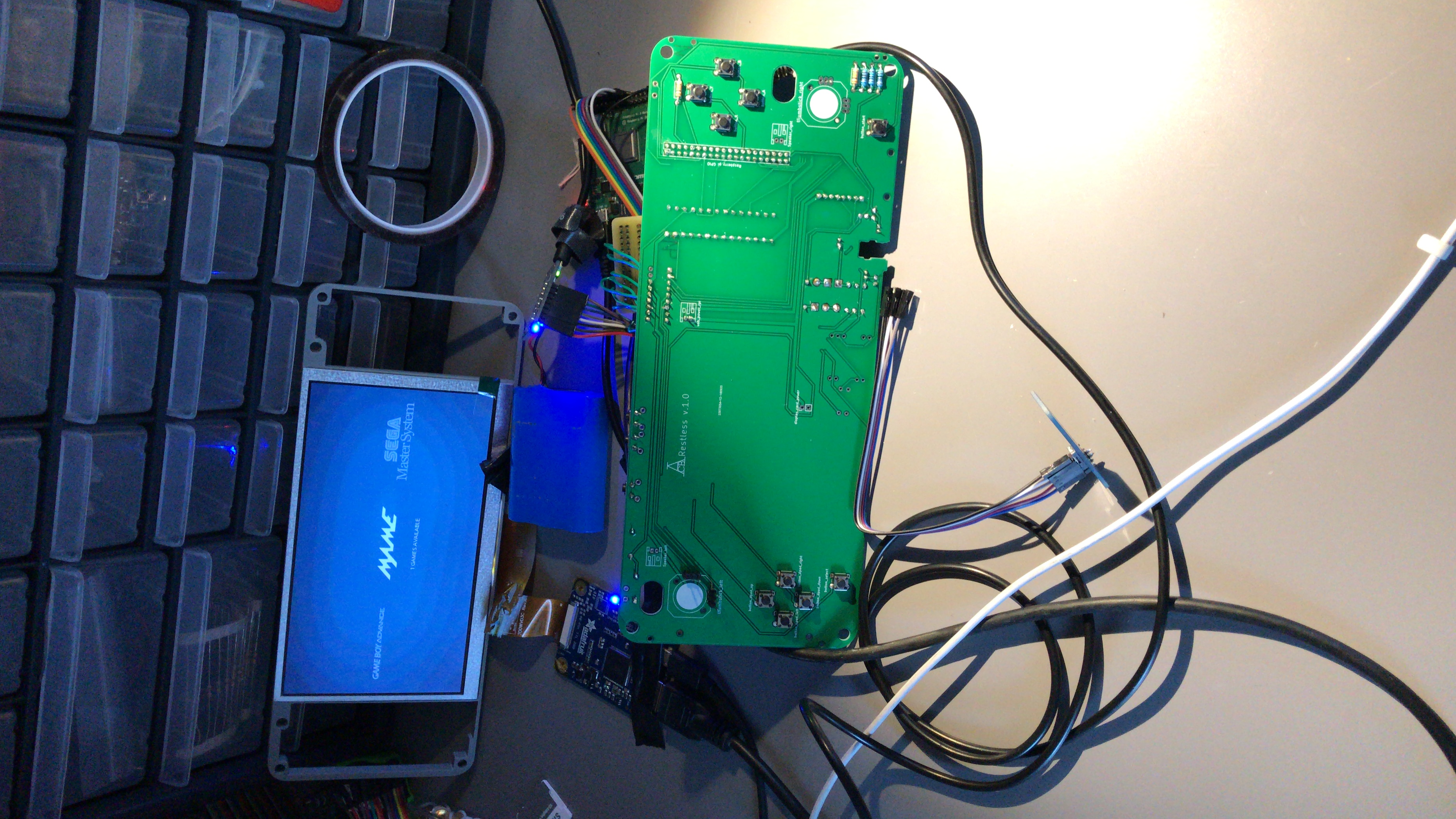

Obviously not wasting Soft Buttons for first proto builds..

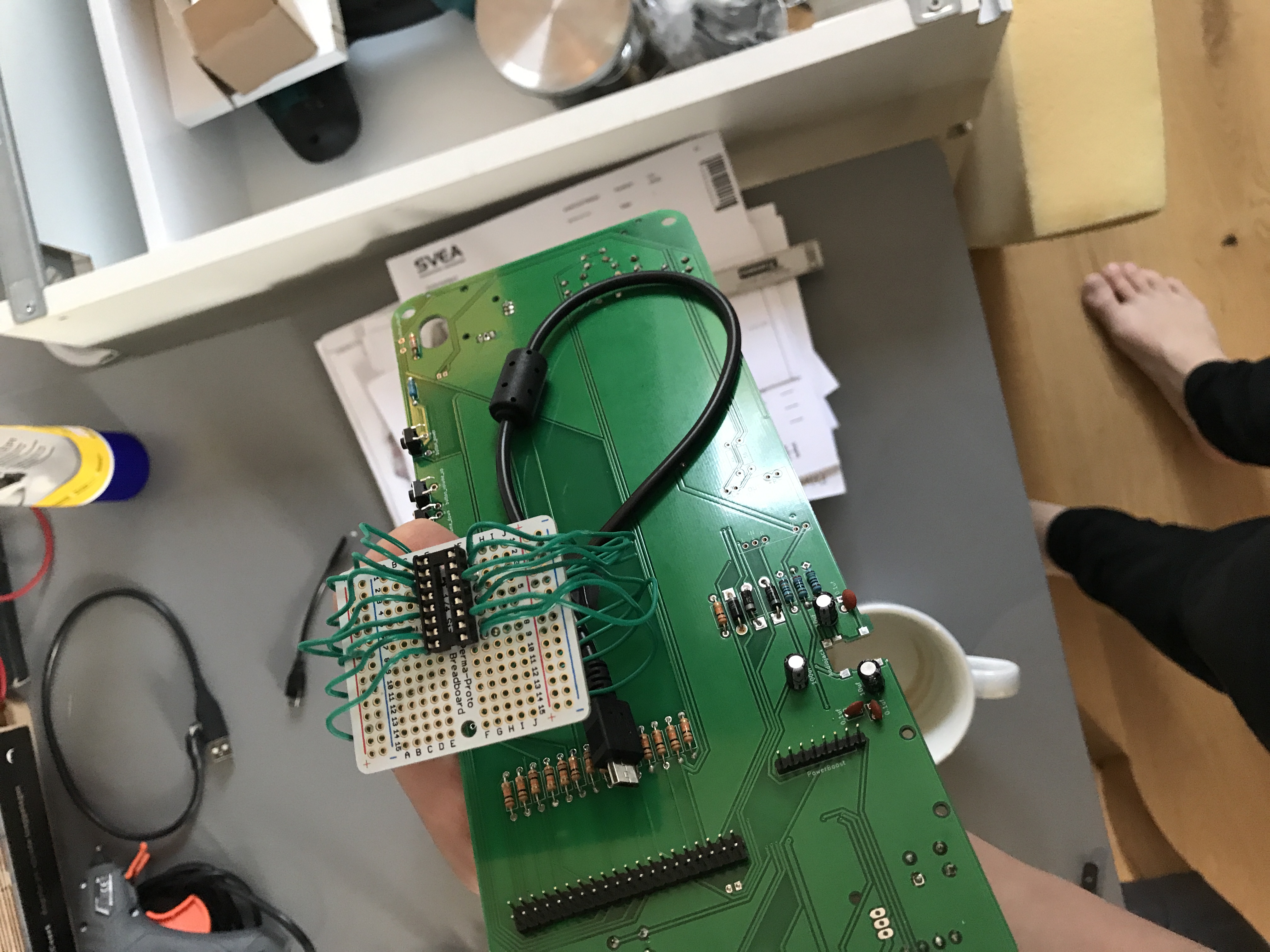

When you choose the wrong PCB footprint..

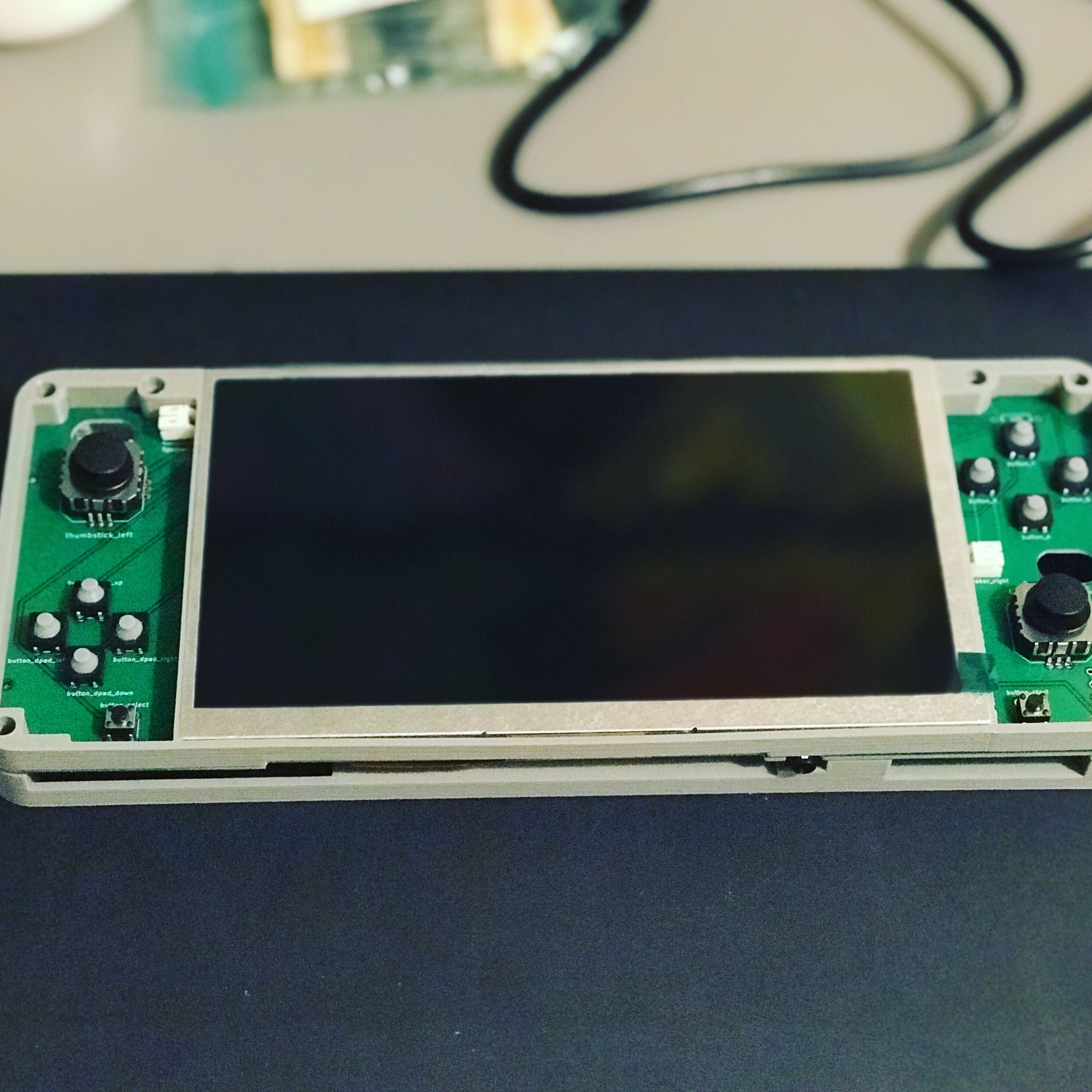

PCB with plastic chassi. Wooden enclosure coming

Warzone1320
Posts: 39
Joined: Tue Sep 04, 2018 10:26 am
Has thanked: 19 times
Been thanked: 5 times

Re: Restless Build Log

Post by Warzone1320 » Thu Nov 01, 2018 7:42 pm

This looks pretty awesome!

User avatar
ThompsonTinkers
Posts: 38
Joined: Sat Jan 28, 2017 9:36 pm
Has thanked: 57 times
Been thanked: 20 times

Re: Restless Build Log

Post by ThompsonTinkers » Tue Nov 06, 2018 9:49 am

Very nice!

User avatar
Killar
Posts: 55
Joined: Sat Dec 02, 2017 6:29 am
Has thanked: 17 times
Been thanked: 9 times

Re: Restless Build Log

Post by Killar » Sat Nov 10, 2018 8:00 am

hvad does it use ? a pi zero or a slimed down pi3? Cm3?

User avatar
cbafun
Posts: 8
Joined: Wed Sep 19, 2018 10:16 am
Has thanked: 4 times
Been thanked: 5 times

Re: Restless Build Log

Post by cbafun » Tue Dec 04, 2018 12:28 am

We were planning on using a slimmed down pi3, but thanks to the release of the 3A+, it is all coming together a little easier. An update coming soon.

dmradford
Posts: 1
Joined: Fri Jun 29, 2018 1:02 pm

Re: Restless Build Log

Post by dmradford » Wed Dec 05, 2018 7:48 pm

Where did you get those joycon FPC connectors?

User avatar
cbafun
Posts: 8
Joined: Wed Sep 19, 2018 10:16 am
Has thanked: 4 times
Been thanked: 5 times

Re: Restless Build Log

Post by cbafun » Fri Dec 07, 2018 7:14 am

dmradford wrote:
Wed Dec 05, 2018 7:48 pm
Where did you get those joycon FPC connectors?
I got those from AliExpress. Can't find the link now, but have seen them on ebay too.

constipatedchicken
Posts: 32
Joined: Tue Mar 14, 2017 4:20 pm
Has thanked: 1 time
Been thanked: 3 times

Re: Restless Build Log

Post by constipatedchicken » Tue Feb 12, 2019 4:17 pm

any word on this build?
