Peanut - A Tiny Arduboy

Post by Ampersand » Sat Jul 06, 2019 6:22 pm

UPDATE: All files to make your own Peanut are now freely available here:
https://1drv.ms/u/s!AqMvwiYIMMtm6hI_e_M ... n?e=kmfwXH

In between working on the Null 2, I've been making Peanut.
This is the pre-final prototype.
SpoilerShow

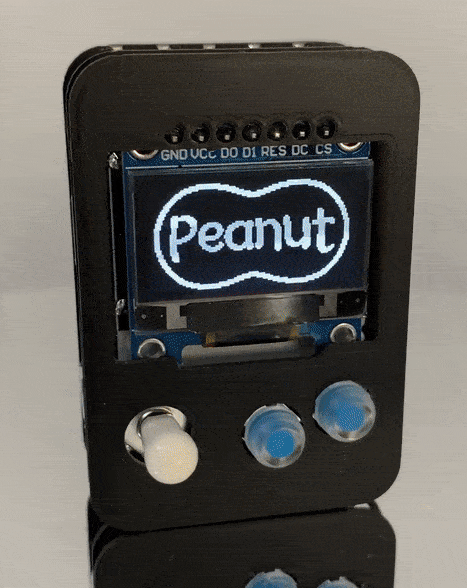

IMG_8359 - Copy.JPG
IMG_8359 - Copy.JPG (971.99 KiB) Viewed 19588 times

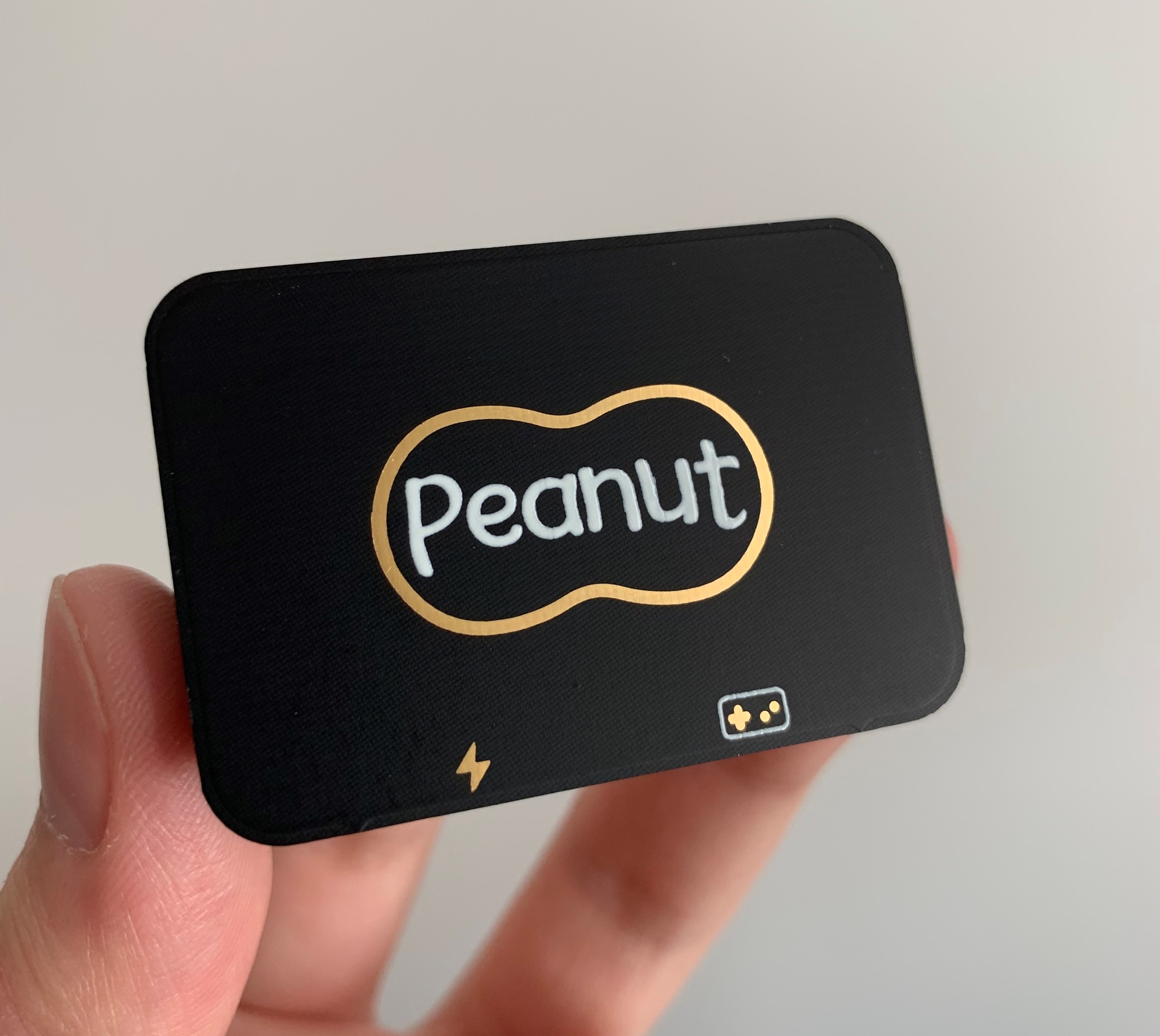

IMG_8306 - Copy.JPG
IMG_8306 - Copy.JPG (917.24 KiB) Viewed 19588 times

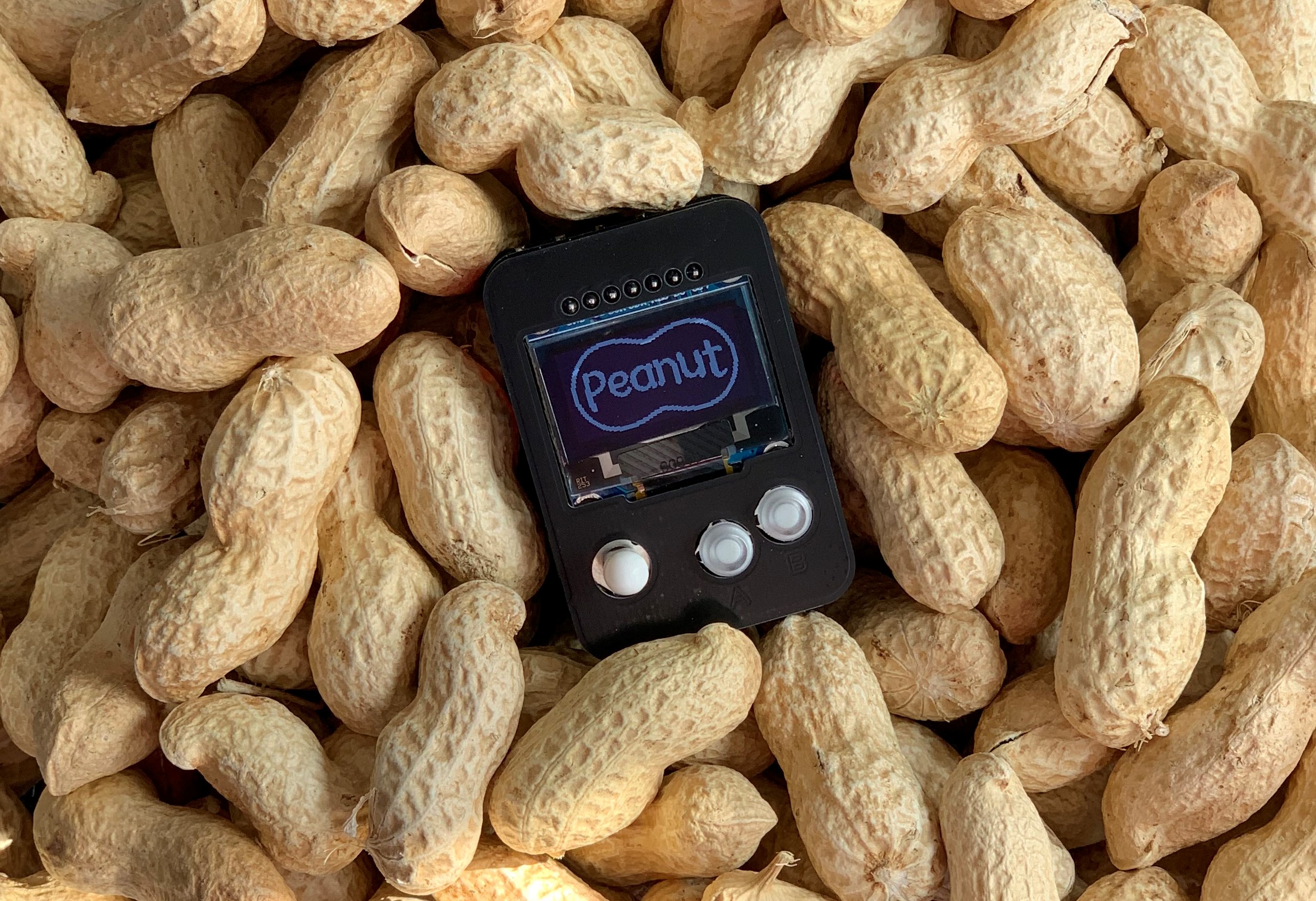

IMG_8294 - Copy.JPG
IMG_8294 - Copy.JPG (1.16 MiB) Viewed 19588 times

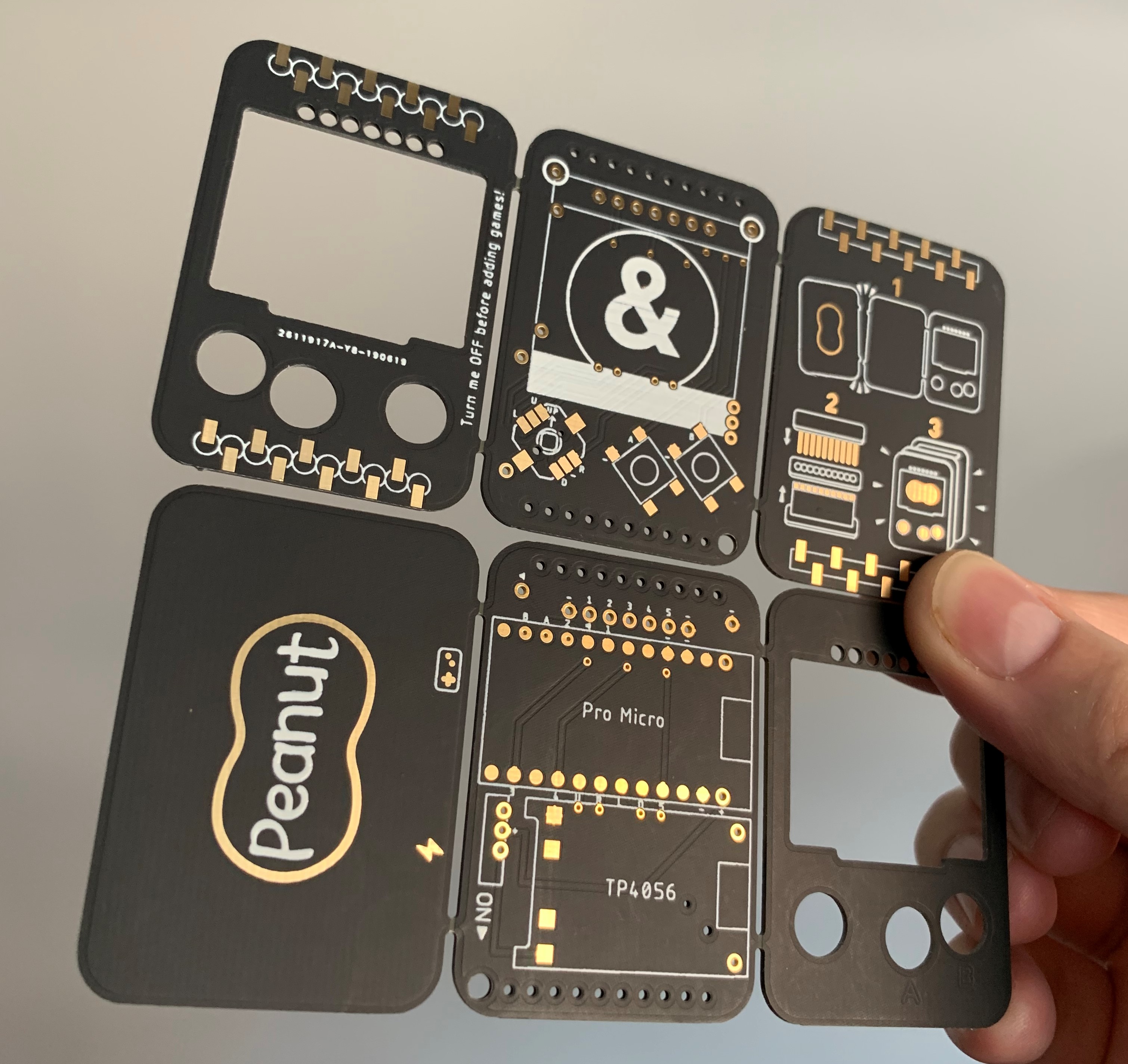

Peanut is a DIY kit that uses modules rather than tiny components so that it’s easier to make.
It comes on a single PCB with the shell attached, simply snap off the shell (like a real peanut) and solder everything down.
You don’t need any glue or screws or 3D printing to make Peanut.

Features:
0.96" OLED screen
Injection moulded joystick for a proper arcade feel
Rubber button caps for comfort
Peizo speaker
Small but sturdy power switch
Gold-plated PCB
Tiny - 50x35mm

It uses a 360mAh battery, which lasts up to 12 hours and fully charges in 1 hour.

I’m planning to have kits available for $20 on tindie, which includes everything except the battery.
SpoilerShow
