CBA Pocket PCB/Handheld

Post by cbafun » Wed Mar 18, 2020 12:10 pm

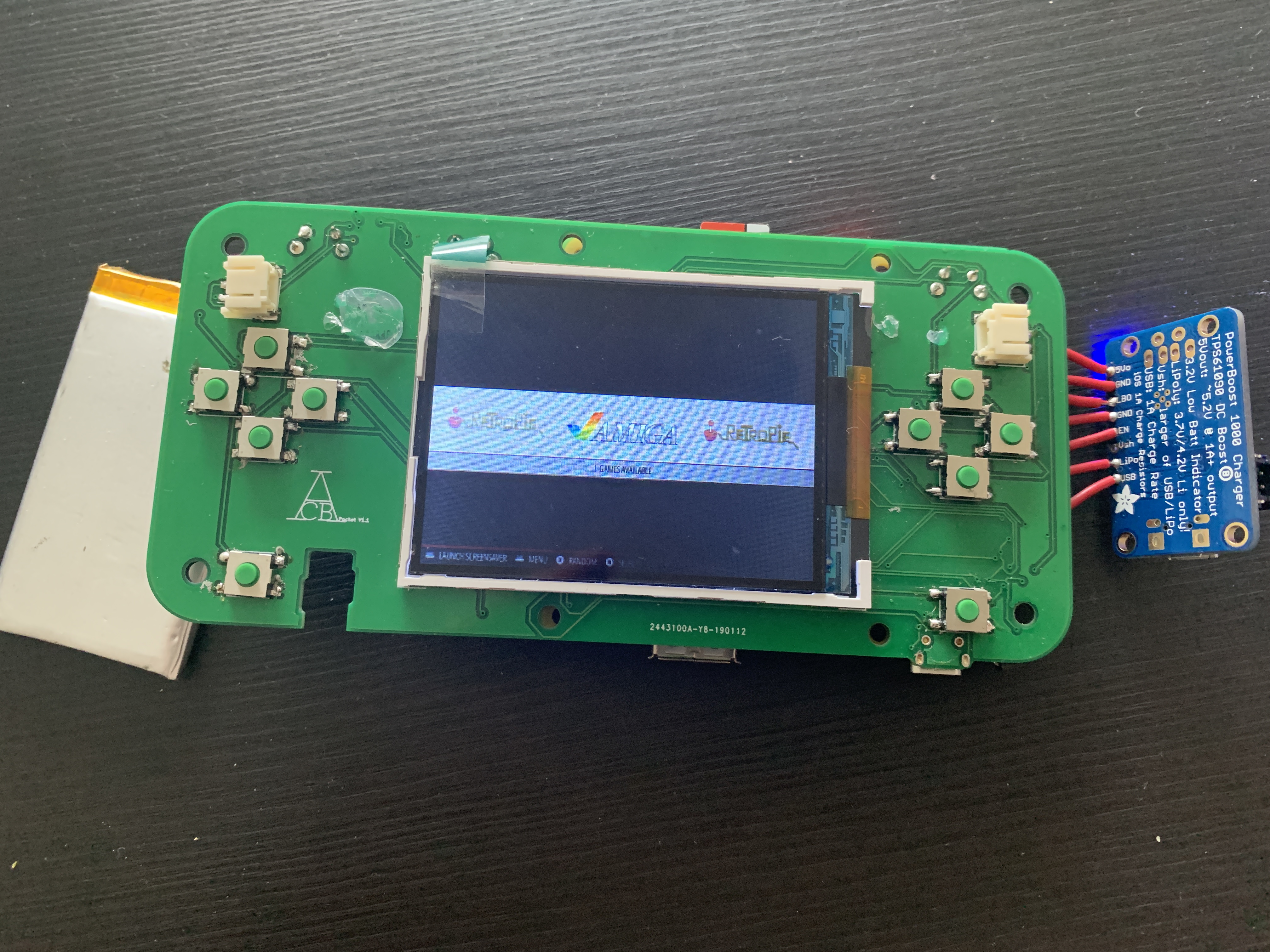

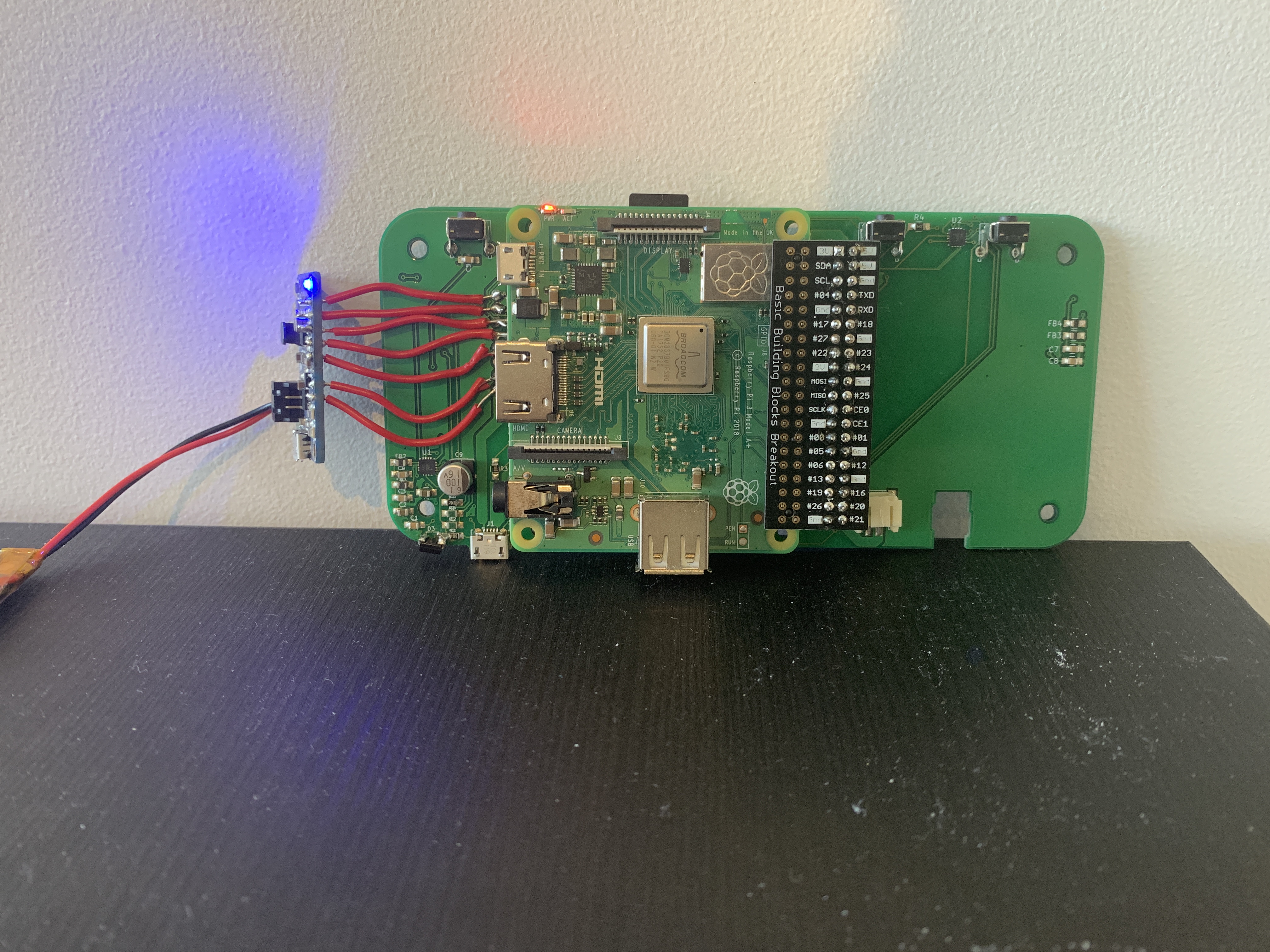

Here are some images of my pocket handheld project.

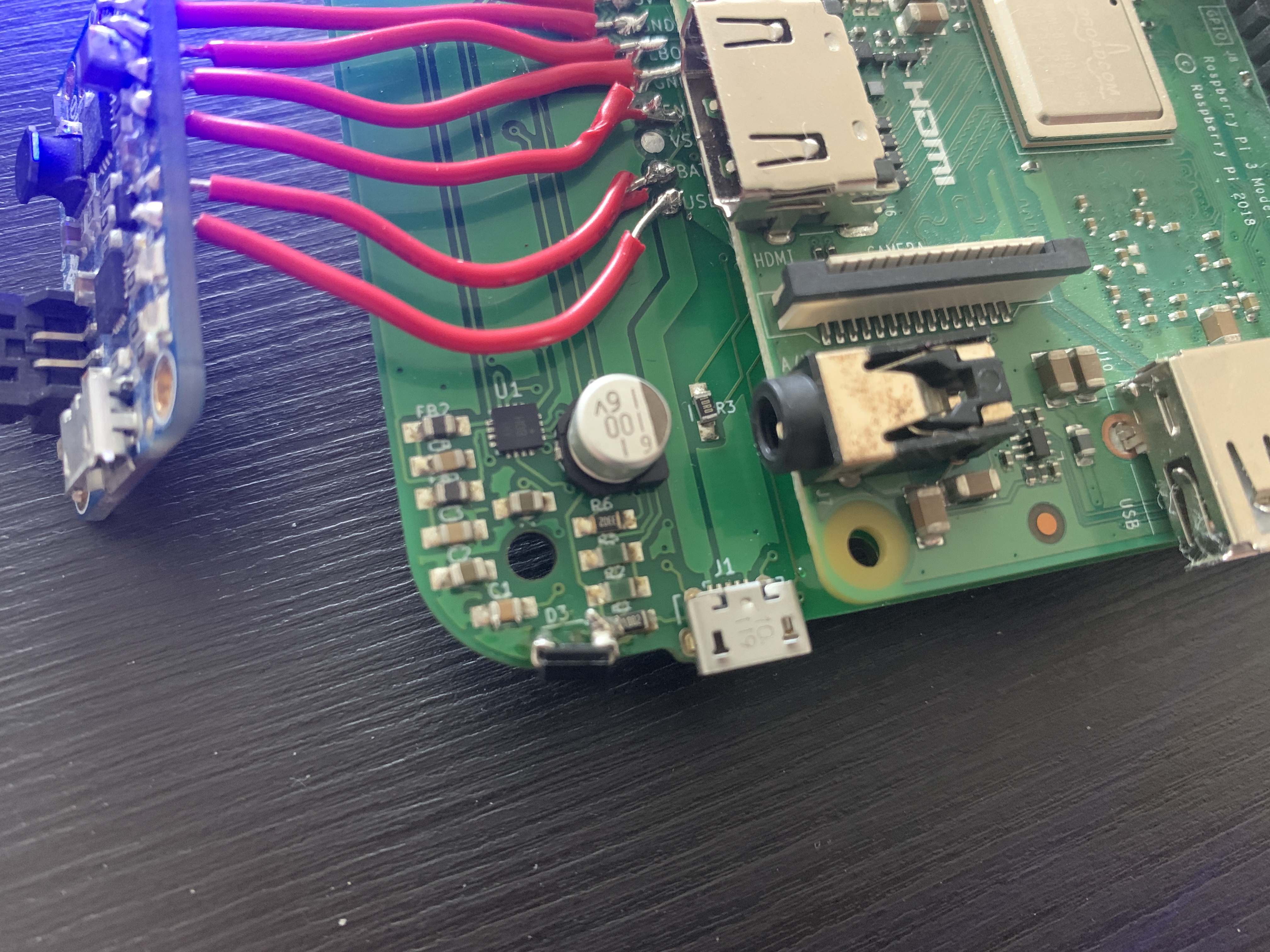

Would love to hear thoughts on how to improve it etc. An obvious is a charger/booster circuit, but I haven't dared to venture there yet.The wired PowerBoost connection is simply to avoid a painful desolder job later down the line. The battery connection on the other side of the board works, so this is just me being lazy..

There are some issues with distortion on the audio and a bad diode footprint.

Thanks
