HELP - Soldering and Programming with alternative Teensy Bord

Arduino-related hardware discussion (including Teensy and other Arduino clones)
Post Reply
CaptainfutureHD
Posts: 5
Joined: Thu May 05, 2016 2:37 pm

HELP - Soldering and Programming with alternative Teensy Bord

Post by CaptainfutureHD » Tue Aug 16, 2016 9:33 am

Hi Guys,

im from Germany and i got different Parts as some are not available in Europe.
I got a massive Problem with my Buttons.

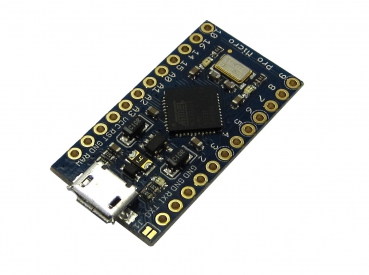

I Use the ATmega Pro Micro from Amazon. It has a different layout.

https://simpledevelopment.de/de/Arduino ... jjenum3km1

Can somebody help me?

Thank You
Attachments

User avatar
ABH
Posts: 187
Joined: Sat May 28, 2016 7:01 pm
Location: Qatar
Has thanked: 76 times
Been thanked: 111 times

Re: HELP - Soldering and Programming with alternative Teensy Bord

Post by ABH » Tue Aug 16, 2016 5:34 pm

it's similar to teency
I am not sure but try to use pins from Gnd to 15 .

with this code :

Code: Select all

#include <Bounce.h>

#define NUM_KEYS 13

struct Key {
  int keycode;
  Bounce* bounce;
};

Key keys[NUM_KEYS];

Key key(int keycode, int pin) {
  Key *ret = new Key;
  ret->keycode = keycode;
  ret->bounce = new Bounce(pin, 10);
  pinMode(pin, INPUT_PULLUP);
  return *ret;
}

void setupKeys() {
  keys[0] = key(KEY_UP_ARROW, 0);
  keys[1] = key(KEY_LEFT_ARROW, 1);
  keys[2] = key(KEY_DOWN_ARROW, 2);
  keys[3] = key(KEY_RIGHT_ARROW, 3);
  keys[4] = key('z', 4);
  keys[5] = key('x', 5);
  keys[6] = key('k', 6);
  keys[7] = key('o', 7);
  keys[8] = key(KEY_ESC, 8);
  keys[9] = key(KEY_RETURN, 9);
  keys[10] = key('q',10);
  keys[11] = key('e',11);
  keys[12] = key(KEY_TAB, 12);
}

void setup() {
  setupKeys();
  Keyboard.begin();
  //  pinMode(0, INPUT_PULLUP);
}

void loop() {
  for (int i = 0; i < NUM_KEYS; i++) {
    keys[i].bounce->update();
    if (keys[i].bounce->fallingEdge()) {
      Keyboard.press(keys[i].keycode);
    } else if (keys[i].bounce->risingEdge()) {
      Keyboard.release(keys[i].keycode);
    }
  }
}
as you see the code use pins from 1 - 12
1 to 12 = buttons
and GND = Ground

Sorry for my bad english
Good luck .

User avatar
Fleder
Posts: 848
Joined: Thu May 05, 2016 9:04 am
Location: Germany
Has thanked: 182 times
Been thanked: 257 times

Re: HELP - Soldering and Programming with alternative Teensy Bord

Post by Fleder » Wed Aug 17, 2016 12:38 am

Wow, that is nearly the price of a Teensy here. Those are usually around 3€.
Well, if you still need help, hit me up. I've got those, too and will gladly share my sketches and knowledge with you.
Even in german :) Good luck.

CaptainfutureHD
Posts: 5
Joined: Thu May 05, 2016 2:37 pm

Re: HELP - Soldering and Programming with alternative Teensy Bord

Post by CaptainfutureHD » Wed Aug 24, 2016 7:58 am

German:
Hallo zusammen.
Danke ihr seid echt super.
Ich versuche es nachdem mein Teensy LC Versuch zu programmieren kläglich gescheitert ist. Das Kompilieren geht einfach nicht.
Ich veruche nun die alternative....

bluebiscuit85
Posts: 6
Joined: Thu Jul 28, 2016 1:41 pm
Has thanked: 5 times

Re: HELP - Soldering and Programming with alternative Teensy Bord

Post by bluebiscuit85 » Sat Sep 24, 2016 4:43 am

I would love to know how you attached it to the usb hub. I would rather not have a mivro usb cable cuit and soldered to the hub but if thats what I have to do then I will. Are there no D+ D- pin outs?
