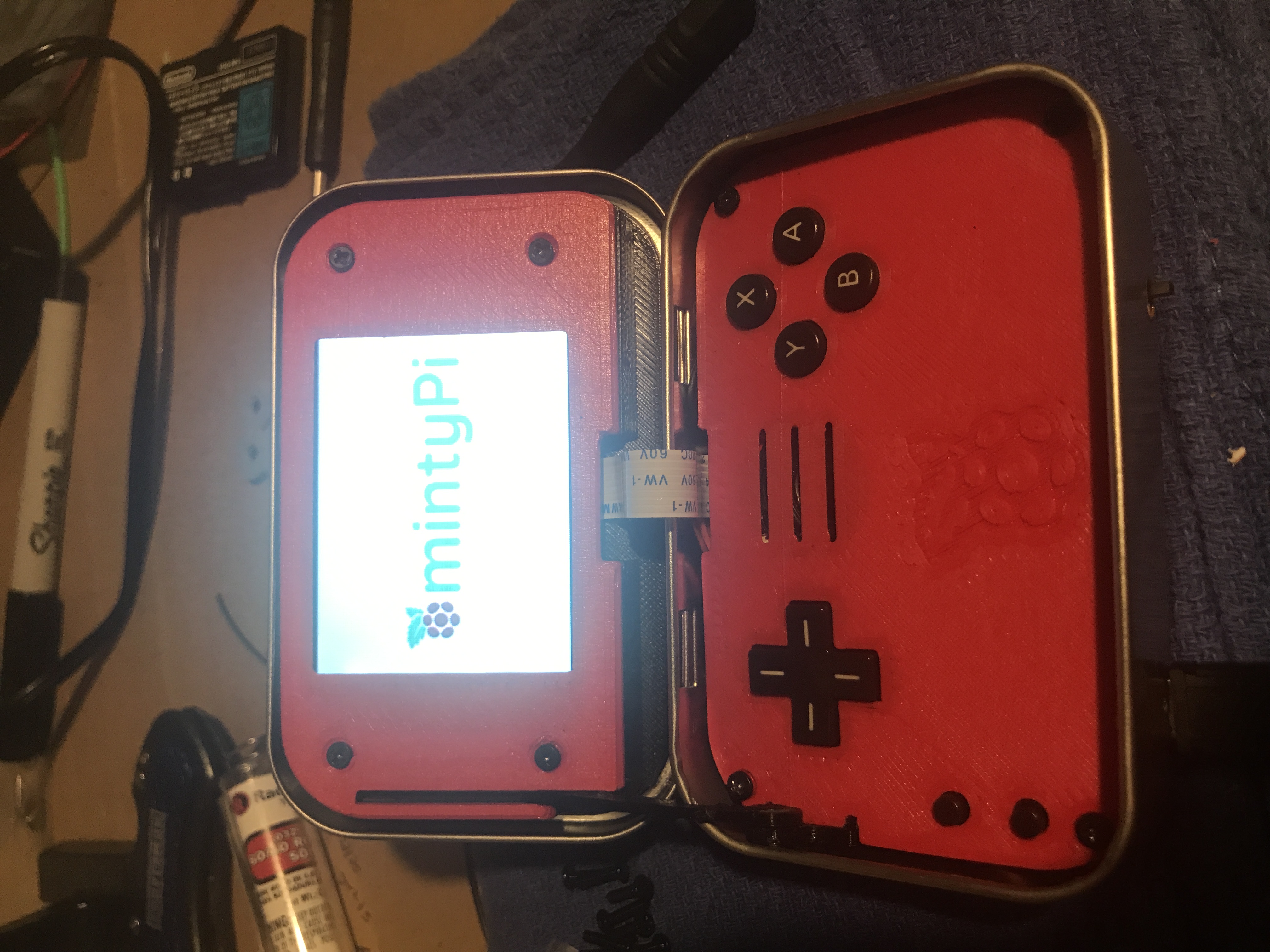

Robochris' first mintypi

Post by Robochris » Thu Jul 27, 2017 10:38 am

The usual thanks to wermy and helder for their hard work on all this. The wow factor is thru the roof. It's a gold hat, cool cat.

Tin cutting was probably the biggest challenge for me. Not that it was hard, just more difficult than I expected.

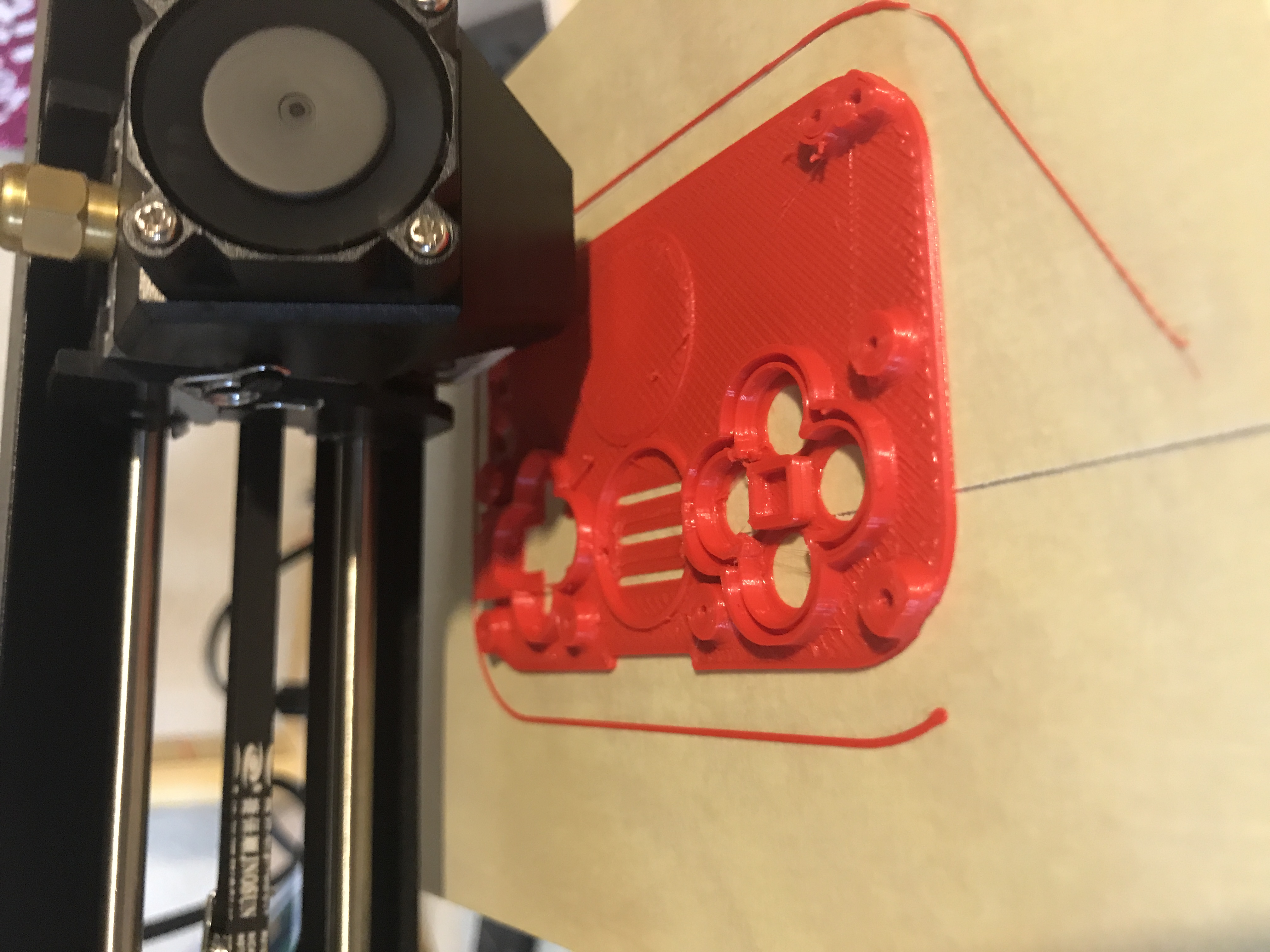

The faceplate print took me about 4 prints to get the setting just right for my printer. It's not as perfect as wermys but I'm happy with the results.

I tore off two pads from the USB audio, thanks to helder for mapping out additional solder points. And I ended up using a speaker from a ds lite because I'm 50+ days waiting on speakers from China 😡.

The lid doesn't close completely because of the top half placement and my vhb tape being too thick. I can deal with it though.

I'll build a few more because my wife and kids want one of their own!
Last edited by Robochris on Sat Nov 17, 2018 7:09 am, edited 1 time in total.

User avatar
wermy
Site Admin
Posts: 1344
Joined: Tue May 03, 2016 8:51 pm
Has thanked: 617 times
Been thanked: 1319 times
Contact:

Re: Robochris' first mintypi

Post by wermy » Thu Jul 27, 2017 10:40 am

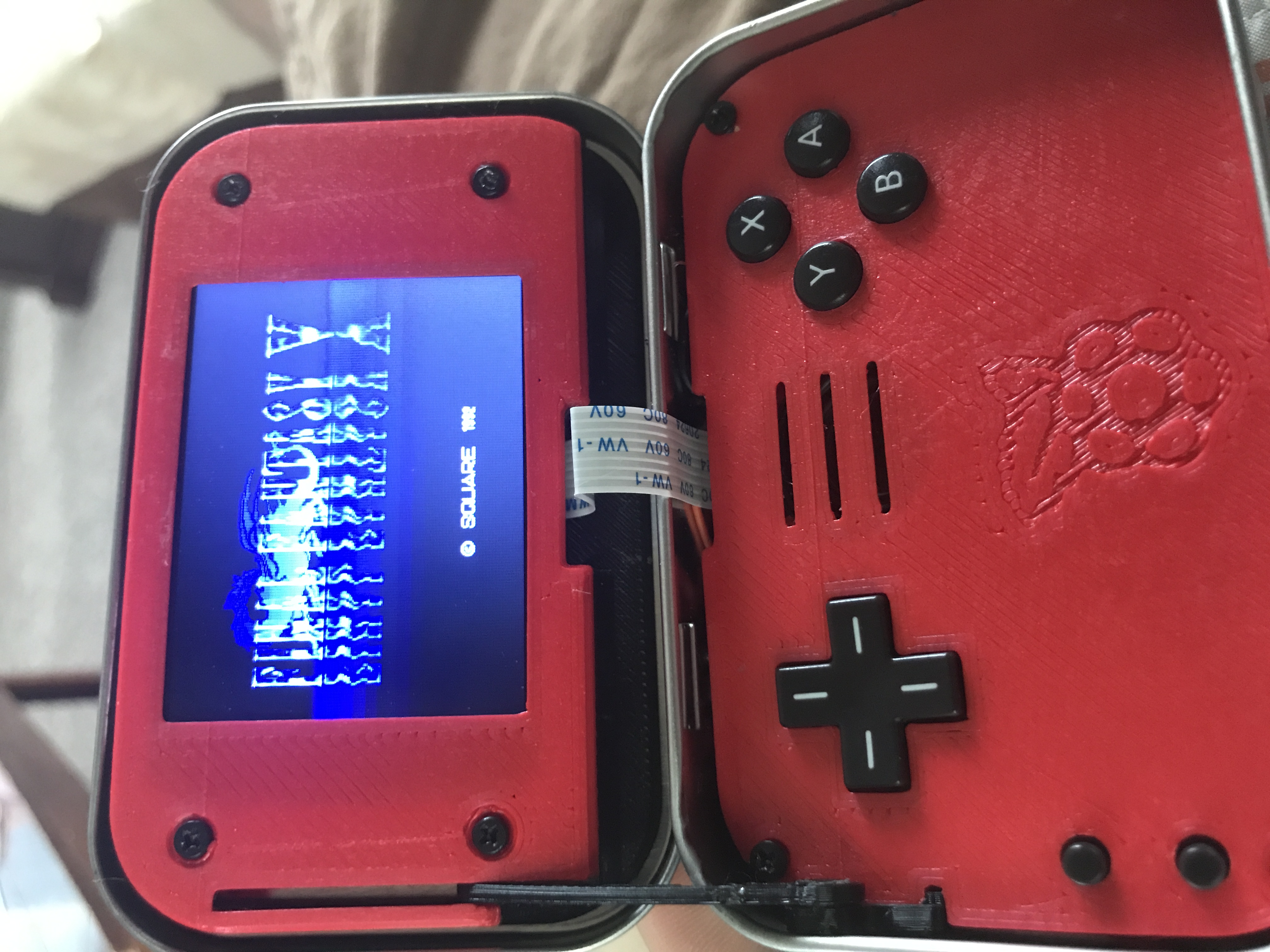

Nice! For a second I thought that said Final Fantasy X :D

User avatar
Robochris
Posts: 281
Joined: Thu Feb 16, 2017 7:49 am
Location: Ohio
Has thanked: 78 times
Been thanked: 38 times

Re: Robochris' first mintypi

Post by Robochris » Thu Jul 27, 2017 10:56 am

wermy wrote:
Thu Jul 27, 2017 10:40 am
Nice! For a second I thought that said Final Fantasy X :D
If only!


User avatar
Robochris
Posts: 281
Joined: Thu Feb 16, 2017 7:49 am
Location: Ohio
Has thanked: 78 times
Been thanked: 38 times

Re: Robochris' first mintypi

Post by Robochris » Thu Jul 27, 2017 11:26 am

Lphillimore wrote:
Thu Jul 27, 2017 11:11 am
Top job!
Thanks!
