MintyPi XL - The Remix

Post by HoolyHoo » Sat Oct 28, 2017 12:07 pm

Updated with STL's for Printing

Parts used:
Standard MintyPi Kit but used a 2.8 LCD (Ebay or Aliexpress)
Standard USB from Minty Build
Standard 3.7V Charger from Minty Build
12mm Tact from this package: ... rehouse=CN
Audio Jack from here: ... ds=myorder
Switch from here: ... 2262667703
Shoulder Buttons from here:
You can also find those cheaper on Aliexpress.

Link is at the bottom of this post. If you print it and make one please share a build log. :D
Enjoy guys!


So this post is not exactly a MintyPi show-off but rather more of a spinoff of the hardware from the MintyPi.

I saw this post in the forums and it really got me thinking. ... 751#p47751

Seemed to me a great way to repurpose a very specific board design. So since the trouble is being taken to make a 3D printable case, then why not add some upgrades along the way. :D

Some of the more common things I see mentioned in the forums people would like to see in a MintyPi are bigger screen, larger capacity battery and headphones. I also did not want visible screws on the outside of the case and minimal glueing inside, if any at all, and soft feel shoulder buttons similar to the button pads. So I decided to give it a go using Eve-Tech's inspiration, thanks. ;) .

I started with a Fusion 360 design using Wermy's model but made from scratch as opposed to a Meshmixer mash up of sorts which offered me greater flexibility.

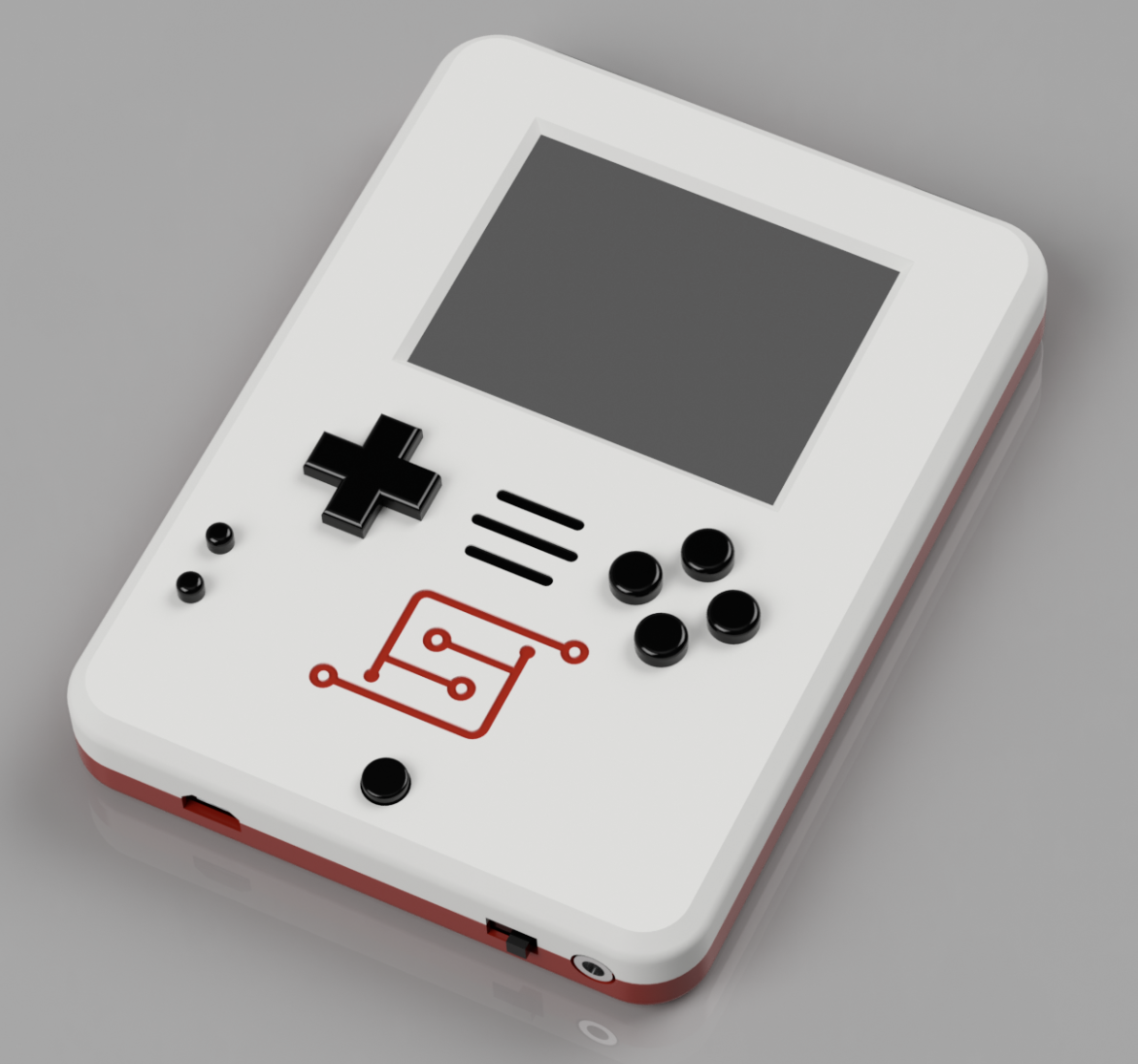

Here is the rendering of what I came up with.
And here is what the inside would look like.
I went with a 2.8 screen, used Adafruit's soft tact buttons for a soft feel on the shoulder buttons, a 12x12 tact for the mode button, headphone jack, and bigger battery. Other than that, everything else is the same as in the MintyPi build.

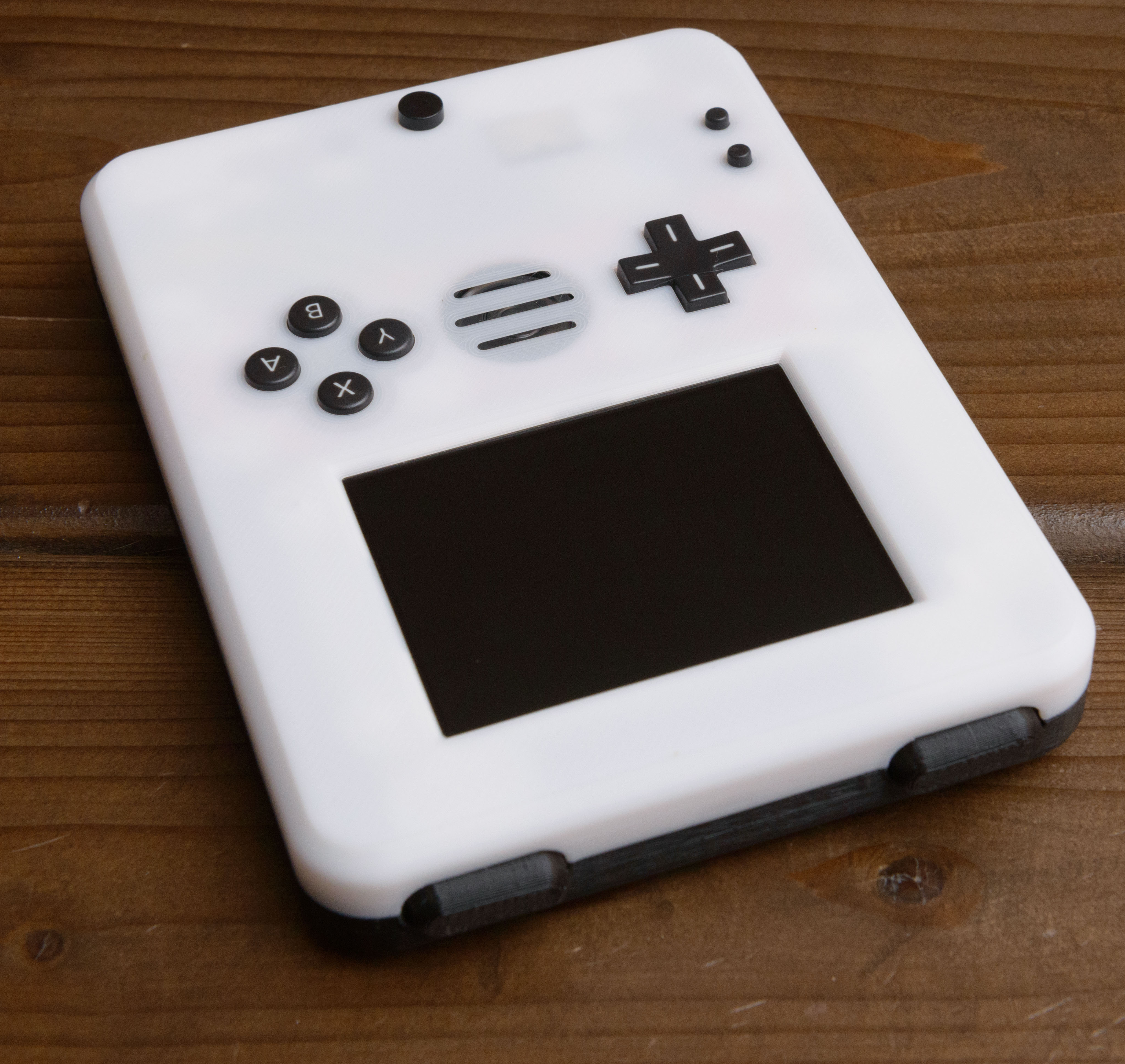

Here's a couple more photos of the actual working build.
I managed to place one of Dextech's 5500mAh battery inside rather easily as the entire back half of the case is virtually unused as I purposely placed all the components on the front shell. Also the case snaps together rather satisfyingly and holds together without issue which gives it a rather clean look. The mode button was also placed on the bottom center to make reaching with either thumb easier. This makes combos that use any keys on the left or right easier. Gameplay is very smooth with the bigger screen and is not affected at all by the upgrade in size. Also used Wermy's image for the build.

Let me know what you guys think. :D

If Downloading, Please Consider Using the Button :D :
(1.82 MiB) Downloaded 168 times

User avatar
Posts: 1076
Joined: Tue May 09, 2017 5:34 pm
Location: Central NJ
Has thanked: 239 times
Been thanked: 553 times

Re: MintyPi XL - The Remix

Post by dryja123 » Sat Oct 28, 2017 12:19 pm

You know what I think?
This is stunning!

Posts: 10
Joined: Sat Oct 28, 2017 8:08 am

Re: MintyPi XL - The Remix

Post by BayouBlaster » Sat Oct 28, 2017 1:29 pm

That looks great! I'm only just starting my first MintyPi but am already trying to figure out what to do next. That looks like a great project and it would be a fun thing to build for my son.

User avatar
Posts: 1738
Joined: Thu Jan 26, 2017 11:12 am
Location: London, UK
Has thanked: 528 times
Been thanked: 905 times

Re: MintyPi XL - The Remix

Post by VeteranGamer » Sat Oct 28, 2017 1:41 pm

really nice build....

its great the see the mintypi project evolving in this way....

User avatar
Posts: 1703
Joined: Mon Aug 22, 2016 3:14 pm
Location: Saskatchewan
Has thanked: 606 times
Been thanked: 599 times

Re: MintyPi XL - The Remix

Post by rodocop » Sat Oct 28, 2017 3:46 pm

So awesome!

User avatar
Posts: 38
Joined: Sat Jan 28, 2017 9:36 pm
Has thanked: 57 times
Been thanked: 20 times

Re: MintyPi XL - The Remix

Post by ThompsonTinkers » Sat Oct 28, 2017 6:41 pm

This is an amazing build, HoolyHoo!

User avatar
Posts: 1703
Joined: Mon Aug 22, 2016 3:14 pm
Location: Saskatchewan
Has thanked: 606 times
Been thanked: 599 times

Re: MintyPi XL - The Remix

Post by rodocop » Sat Oct 28, 2017 6:45 pm

If you ever decide to sell the 3d parts I will buy them in an instant!

User avatar
Posts: 75
Joined: Wed Aug 09, 2017 9:21 pm
Location: FLORIDA
Has thanked: 45 times
Been thanked: 44 times

Re: MintyPi XL - The Remix

Post by EVE-TECH » Sat Oct 28, 2017 9:21 pm

That is awesome you beat me to it that was going to be my next design but slim down otherwise great design love it.

User avatar
Posts: 523
Joined: Wed Jan 25, 2017 6:18 am
Has thanked: 69 times
Been thanked: 241 times

Re: MintyPi XL - The Remix

Post by moosepr » Sun Oct 29, 2017 5:25 am

Yeah this is pretty sweet! So much room for activities! 😀
Get a small cheep LCD in your project
Wrap it all round a battery
Or use a custom PCB to make it really small
or make it really really really really tiny!!

Posts: 230
Joined: Sat Oct 29, 2016 12:31 am
Location: Gelderland, Netherlands
Has thanked: 55 times
Been thanked: 60 times

Re: MintyPi XL - The Remix

Post by cobramike » Sun Oct 29, 2017 11:30 am

I like your build. Are you also gona release the stl files or are you gonna sel it. Great work
Whooo Stop befor ask in a post. First use the search or the wiki befor you make a topic.. Just saying.........
