My first MintyPi build + Audio Jack

[Mario.Semiglia]

Hallo guys,

I am making this post mainly to say thanks to wermy and to Helder, and to all of you who are always support and help others like veterangamer, rodocop and yaya. I am really exited about this project: mostly of the parts came today and I am really happy with the quality. By the way the color of the Cinamom 3d printed parts from wermy are just beautifull, I thought I would get something more pinky, but after looking the other colors (which seemed a little electrical to me) I decided to give it a go and I am really happy with what I got.

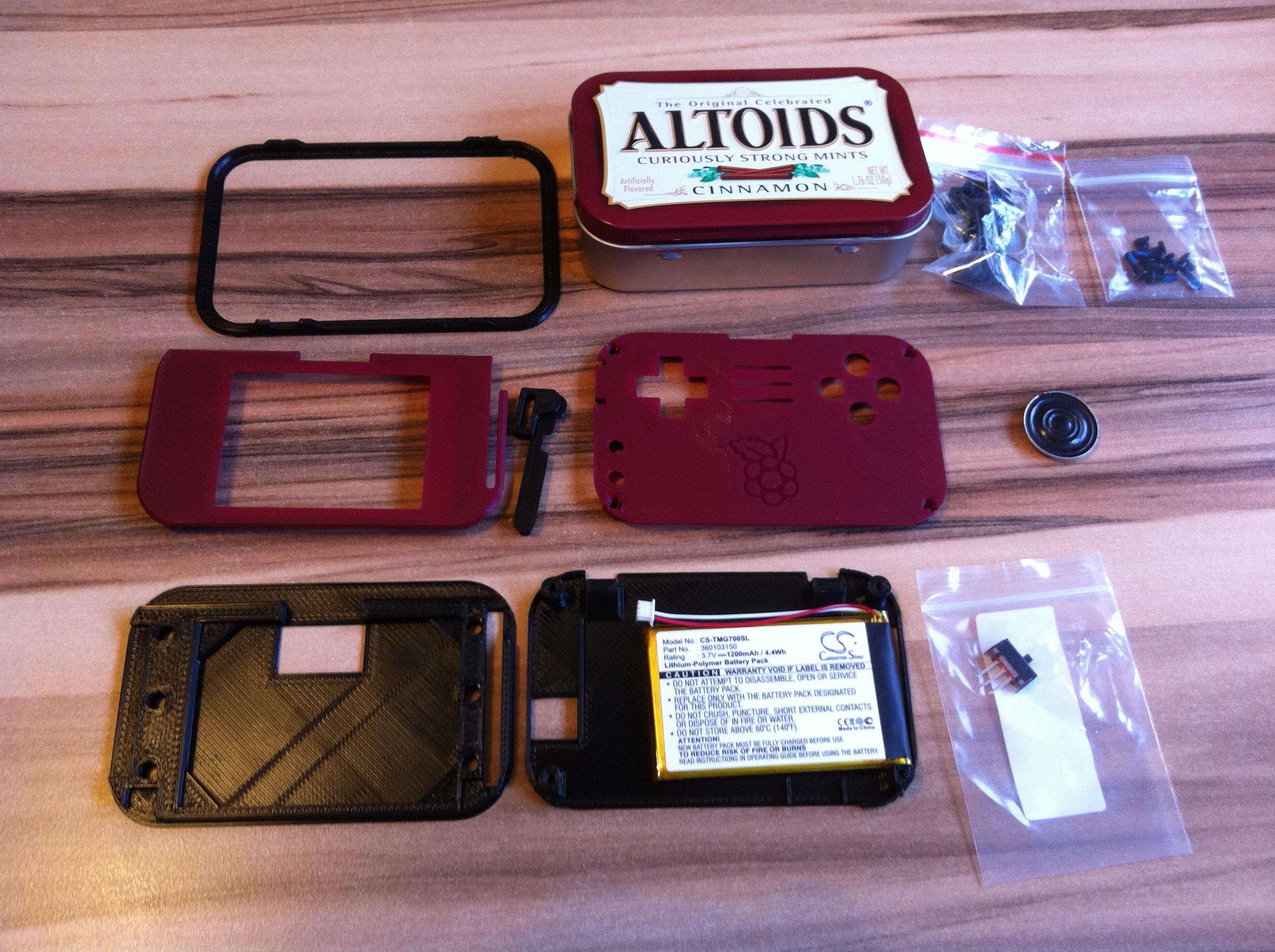

Here is a picture of all the things that came today:

SpoilerShow


The actuall color is a little brighter than the one of the picture. This is a post in which I will add pictures of my project as soon as I have some time to put in modifying the case and show my progress.

Thanks again and keep it up


I am happy to post some progress

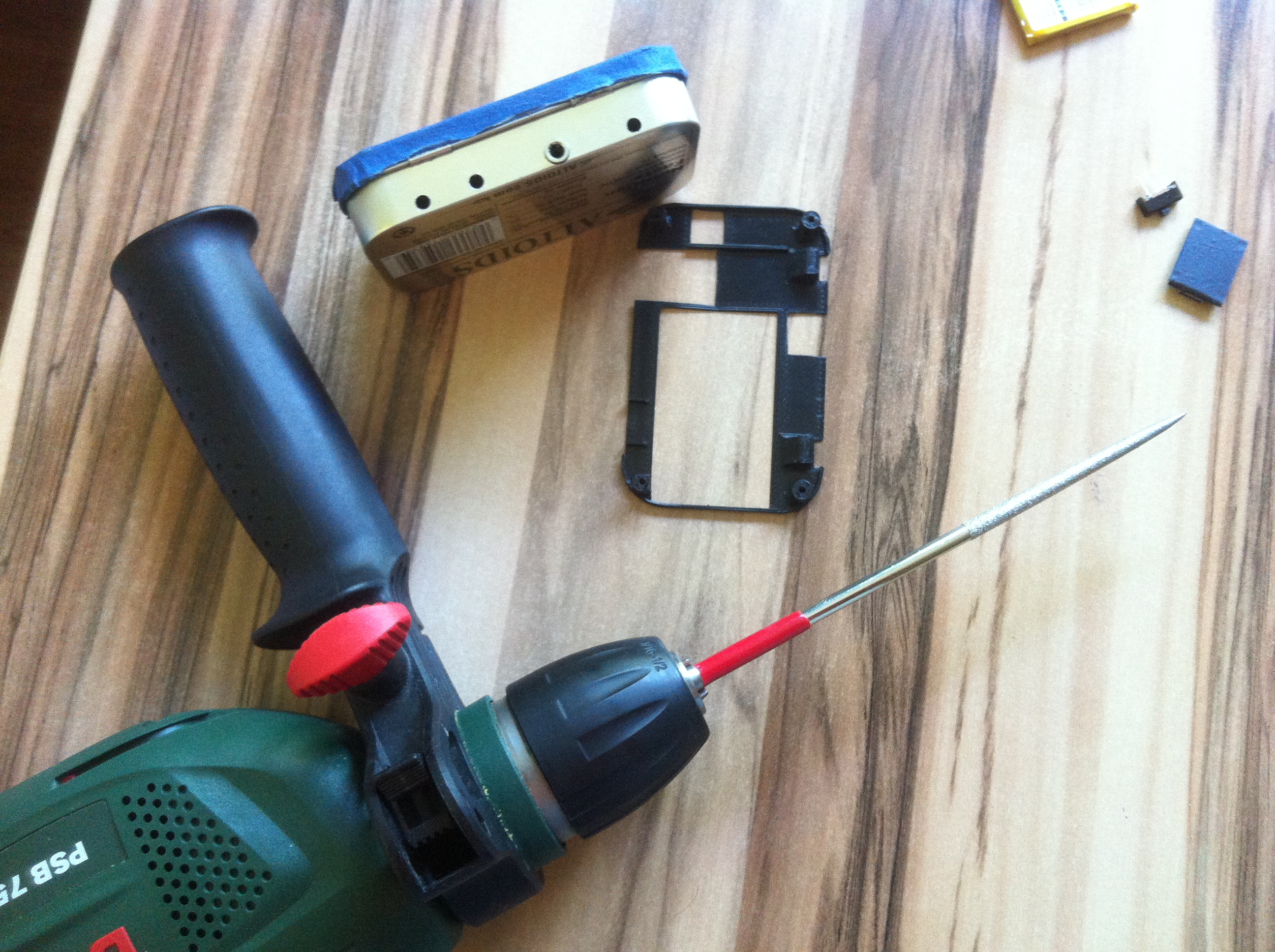

as you can see I am very very clumsy but I don't mind posting my mistakes, this boxes will be used as "part boxes", for buttons and so on... after all this mess, I finally got some real time to do the things right (with some scratches)...

SpoilerShow

photo 2.jpg (119.89 KiB) Viewed 3981 times

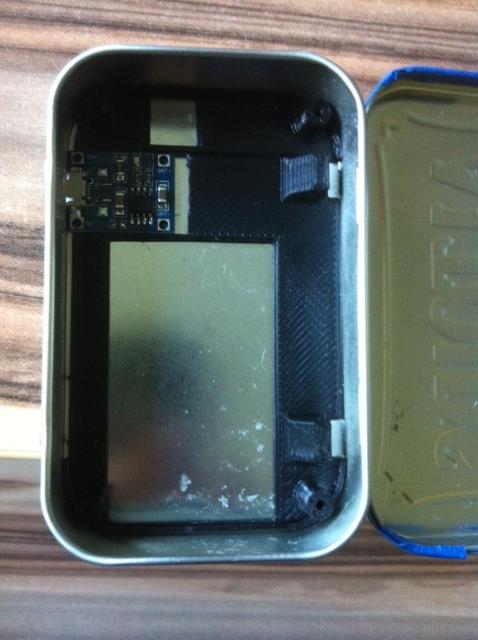

the hole was even too low and took me a lot of time to do so I decided to cut a piece of the plastic that goes inside what turned out really well, the plastic doesn't move at all inside the box, I just used some electrical tape on the bottom... I also grinn the powerboost metal so it sticks a little out, tomorrow Ill keep making holes

SpoilerShow

photo 1.JPG (38.19 KiB) Viewed 3981 times

Still need to clean the tin inside... will do it after all holes are done...

by the way I wanna add the function button at the back of the tin plus two led lights, do you think they'll fit?

So I gave up on the led lights but I added a Audio Jack when making the holes I got very bored about the fact that I don't have a drimmel so I made one

SpoilerShow


for the Audio Jack I used the same method as for the powerboost to same some space, I cut the bottom plastic carefully with the shape of the Jack

SpoilerShow

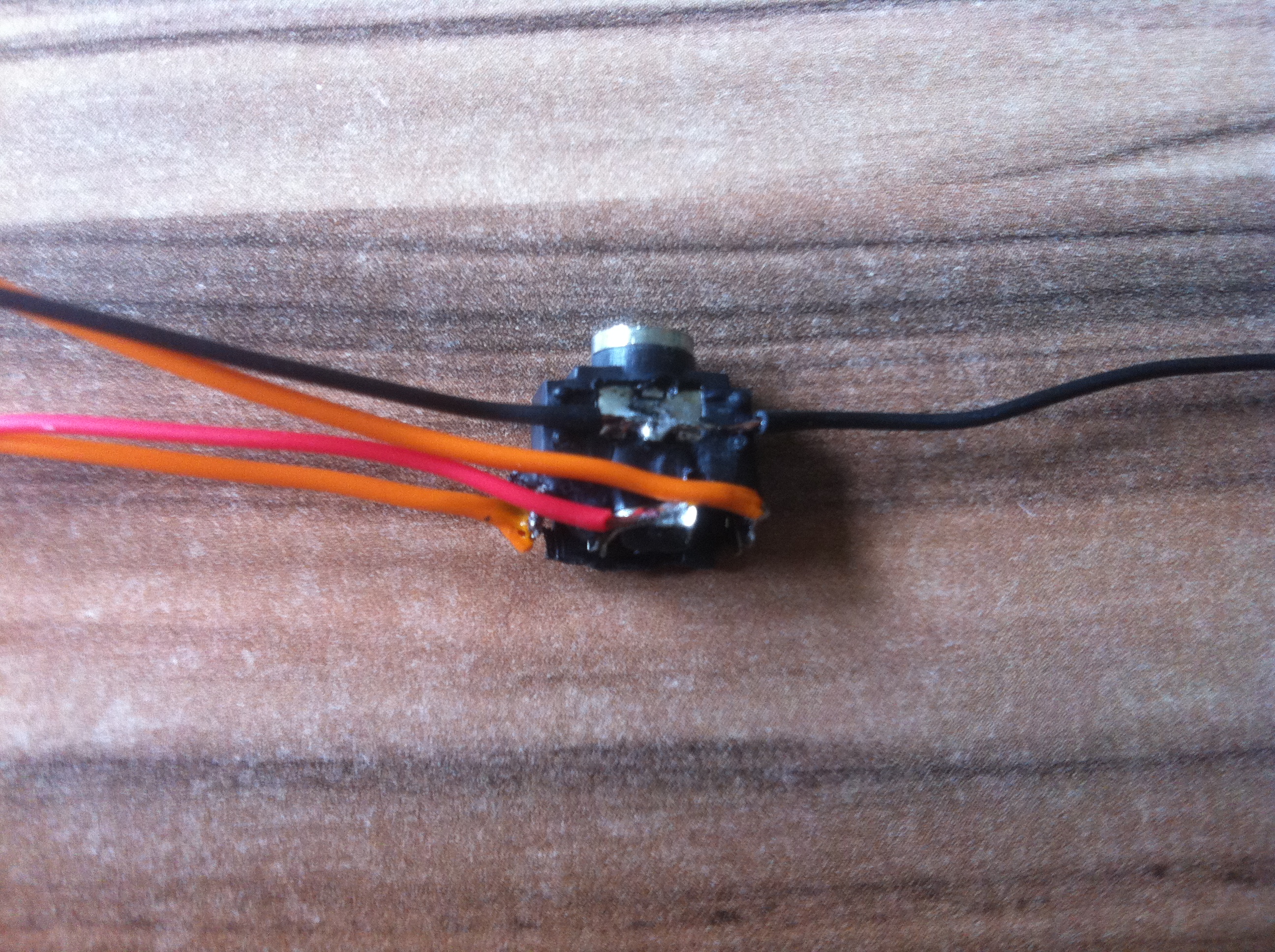

and I also tried to make the wires as flat as possible

SpoilerShow

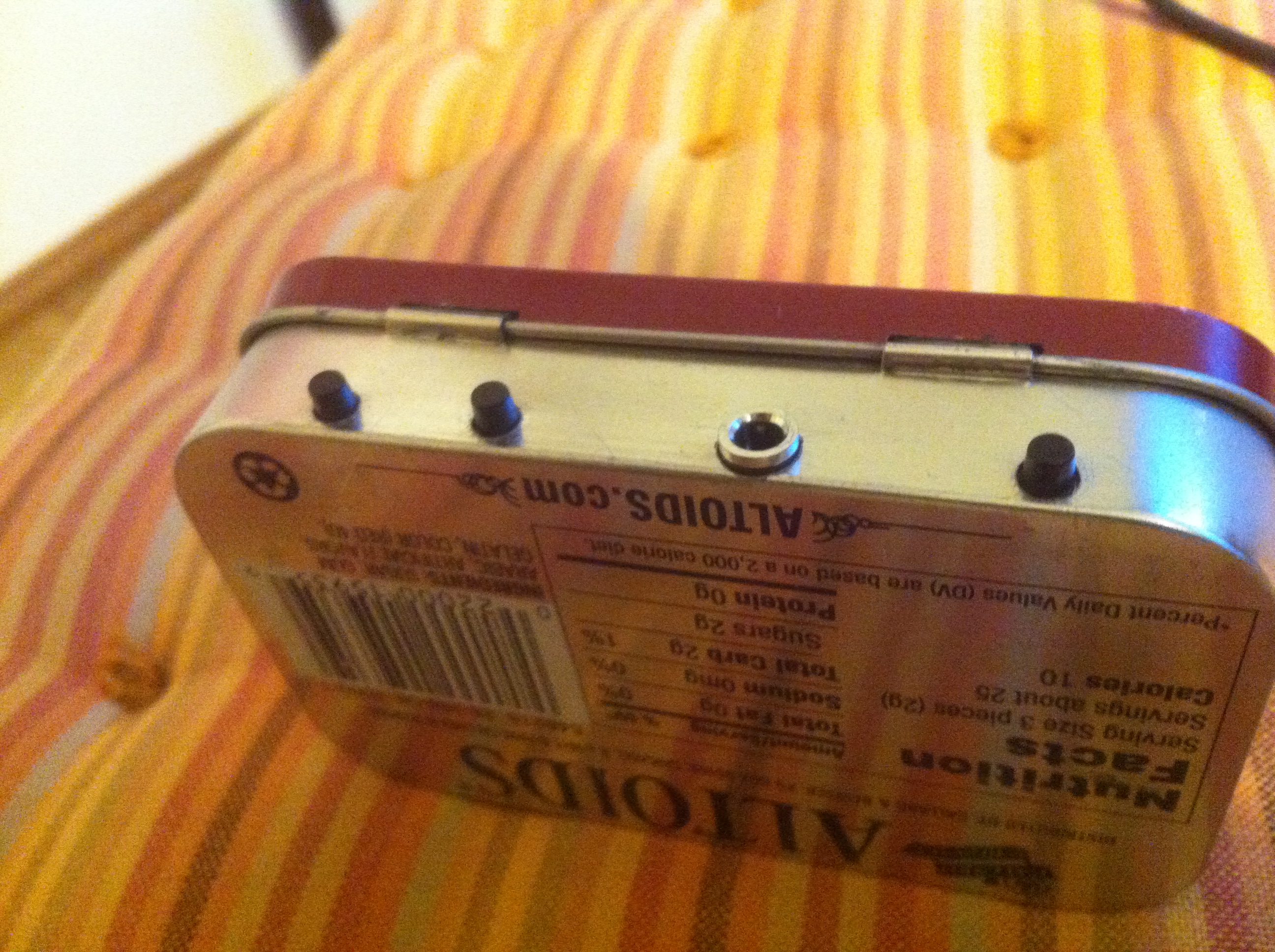

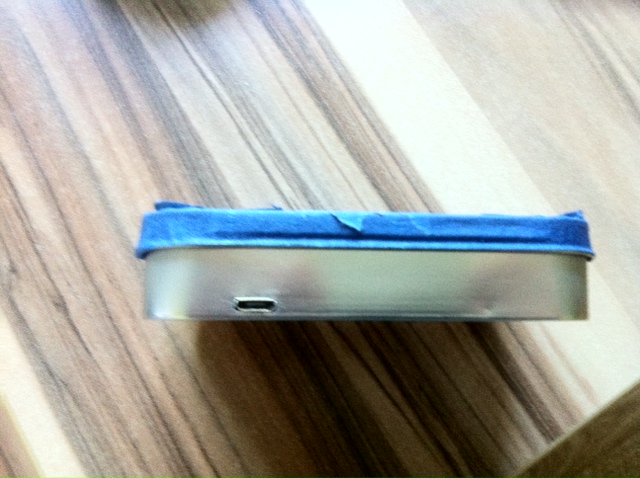

so this is how it looks outside

SpoilerShow

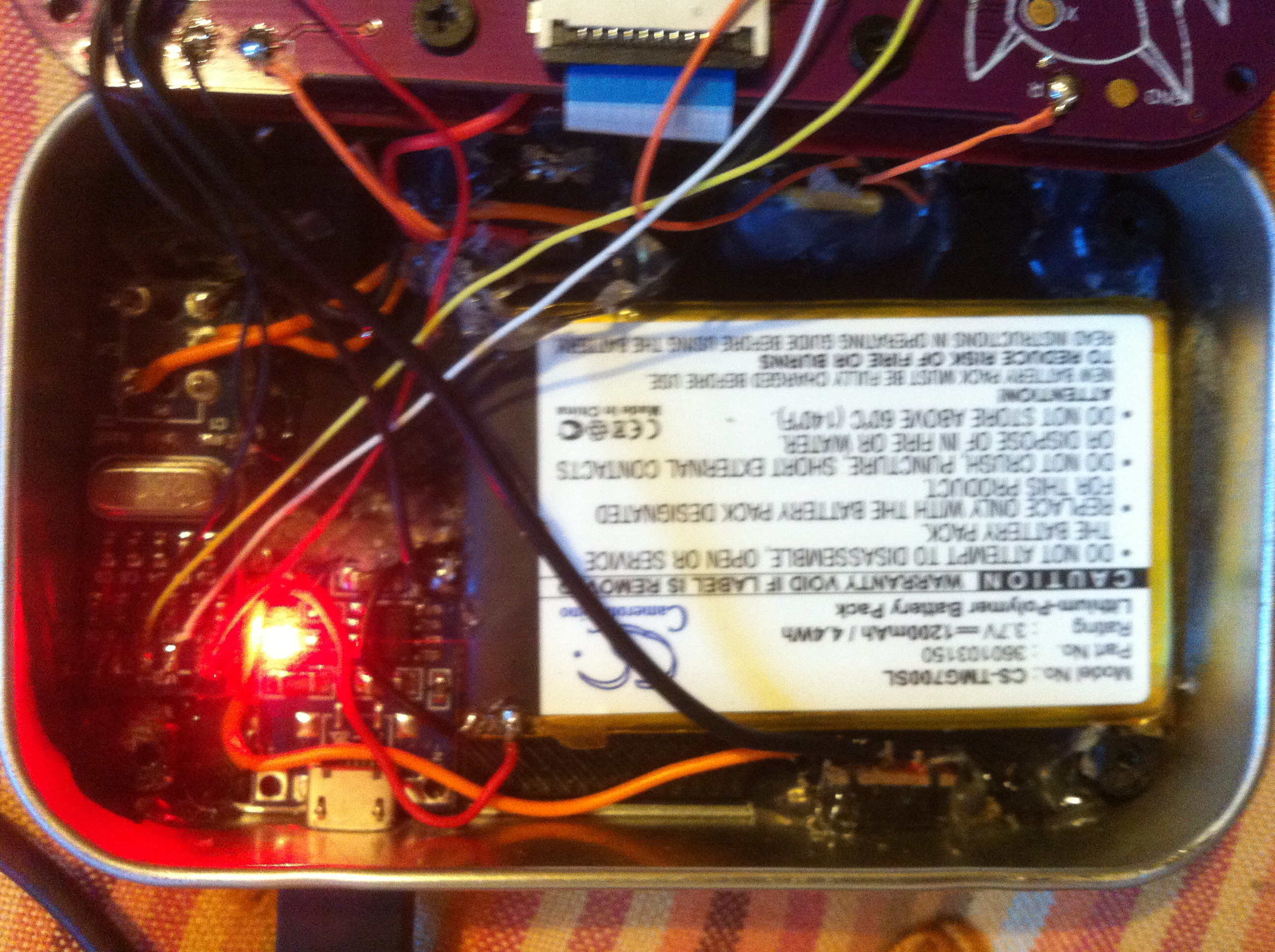

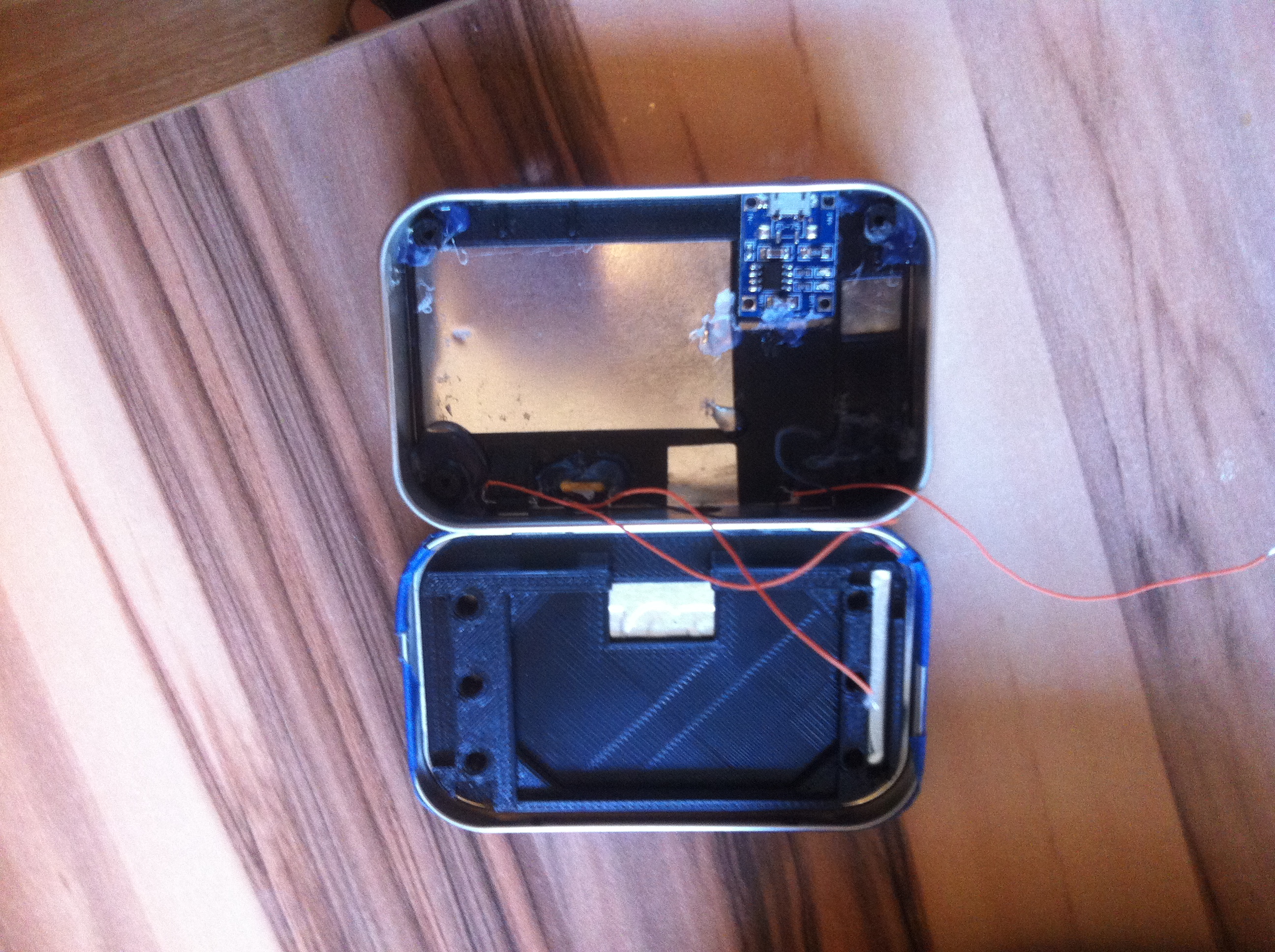

and after some wiring inside

SpoilerShow


so after all the bottom of the case was done putting everything together was the only thing that was left

SpoilerShow


and this is the result

SpoilerShow


BIG THANKS TO EVERYONE IN THIS COMMUNITY!!!!!
I am very happy with the result, and I still have to tune some little things like making the tin close completely and figure out were there is a little shortcut but all good, I will be posting on the support section. THANKS!!!!
