18 pin 0.8mm ribbon connector
18 pin 0.8mm ribbon connector

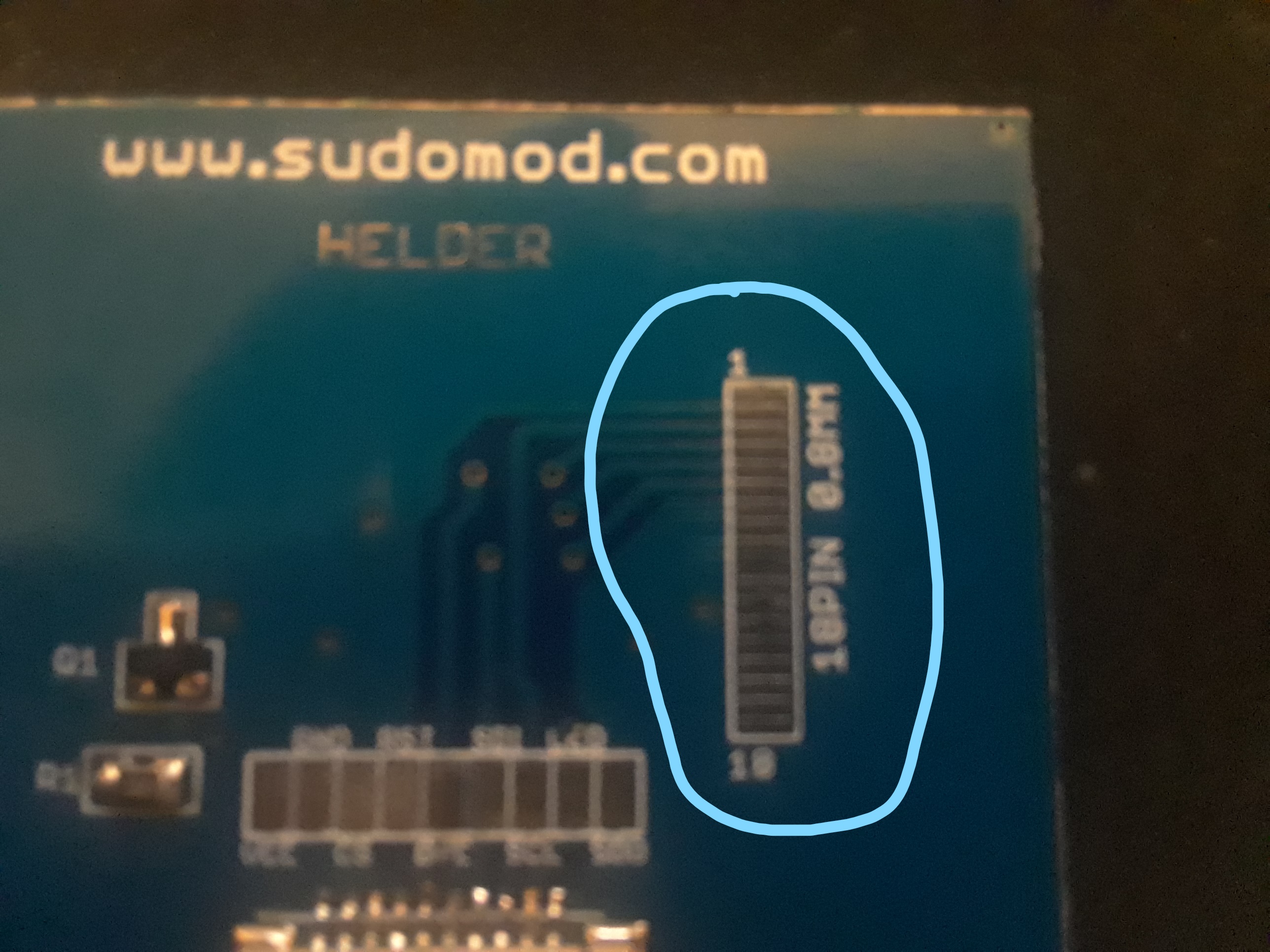

Does anyone know where i would be able to get a 18 pin 0.8mm connector for the LCD in mintyPi v2.0?(I did not order from the pre-order - i made a seperate purchase and it was not included.)
- Attachments
-
- Inked20200228_223131_LI.jpg (2.63 MiB) Viewed 3988 times
- Helder
- Trailblazer
- Posts: 2985
- Joined: Thu May 05, 2016 8:33 am
- Location: Rogers, AR
- Has thanked: 1459 times
- Been thanked: 3114 times
Re: 18 pin 0.8mm ribbon connector
You're supposed to solder the LCD ribbon cable to that area, there is connector needed.
