Its not powering on

[Shade]

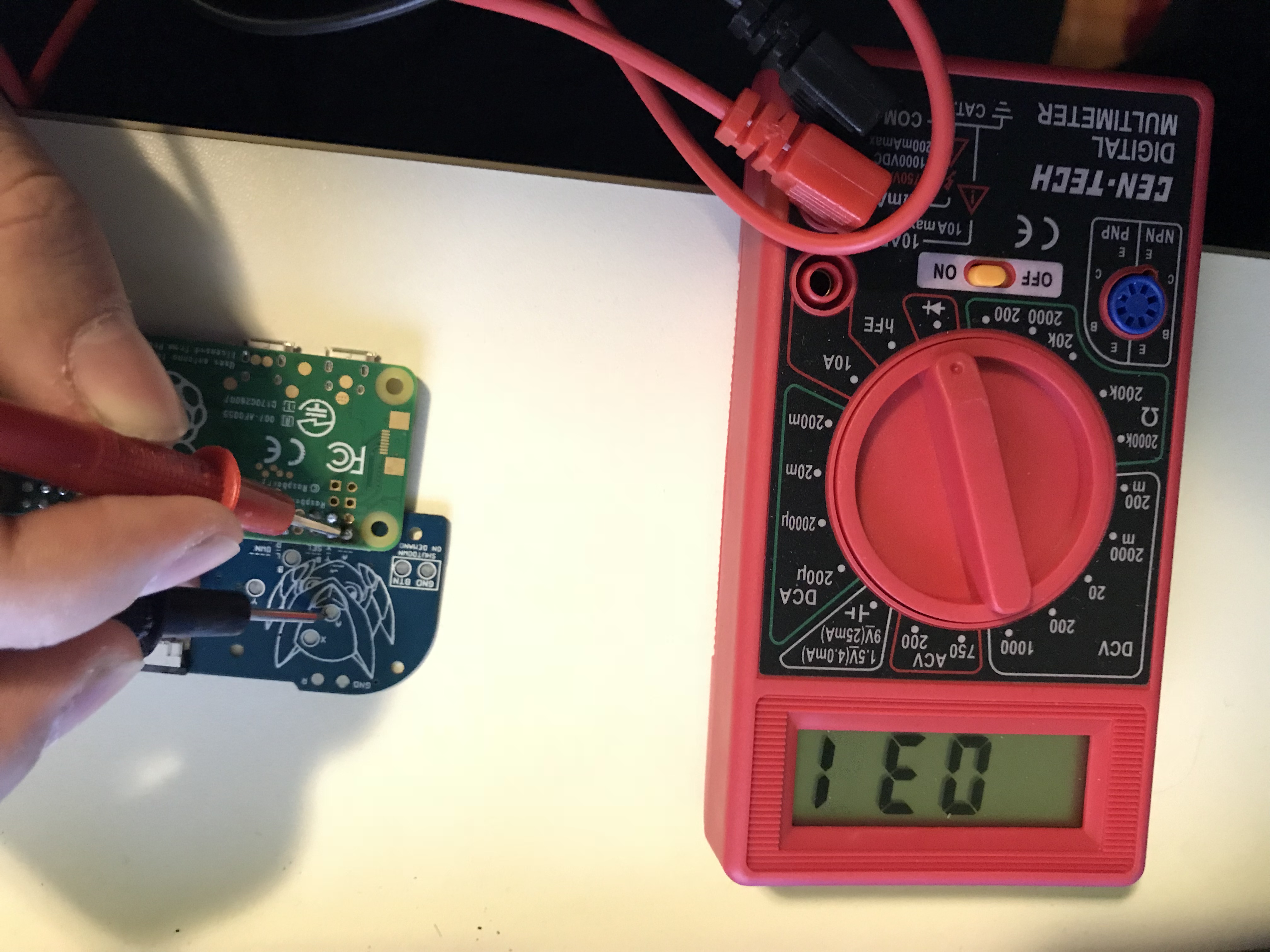

I think i know the problem. Every pad except for A is reading .6. Could it be that the connection between everything isn't strong enough. Also what soldering iron would you recommend i use?

[Helder]

You have that meter on the wrong setting you want the next setting which looks like an arrow with a + attached it's right above the ON writing. That is the continuity setting, you have it on resistance which will not give you good results.

[Shade]

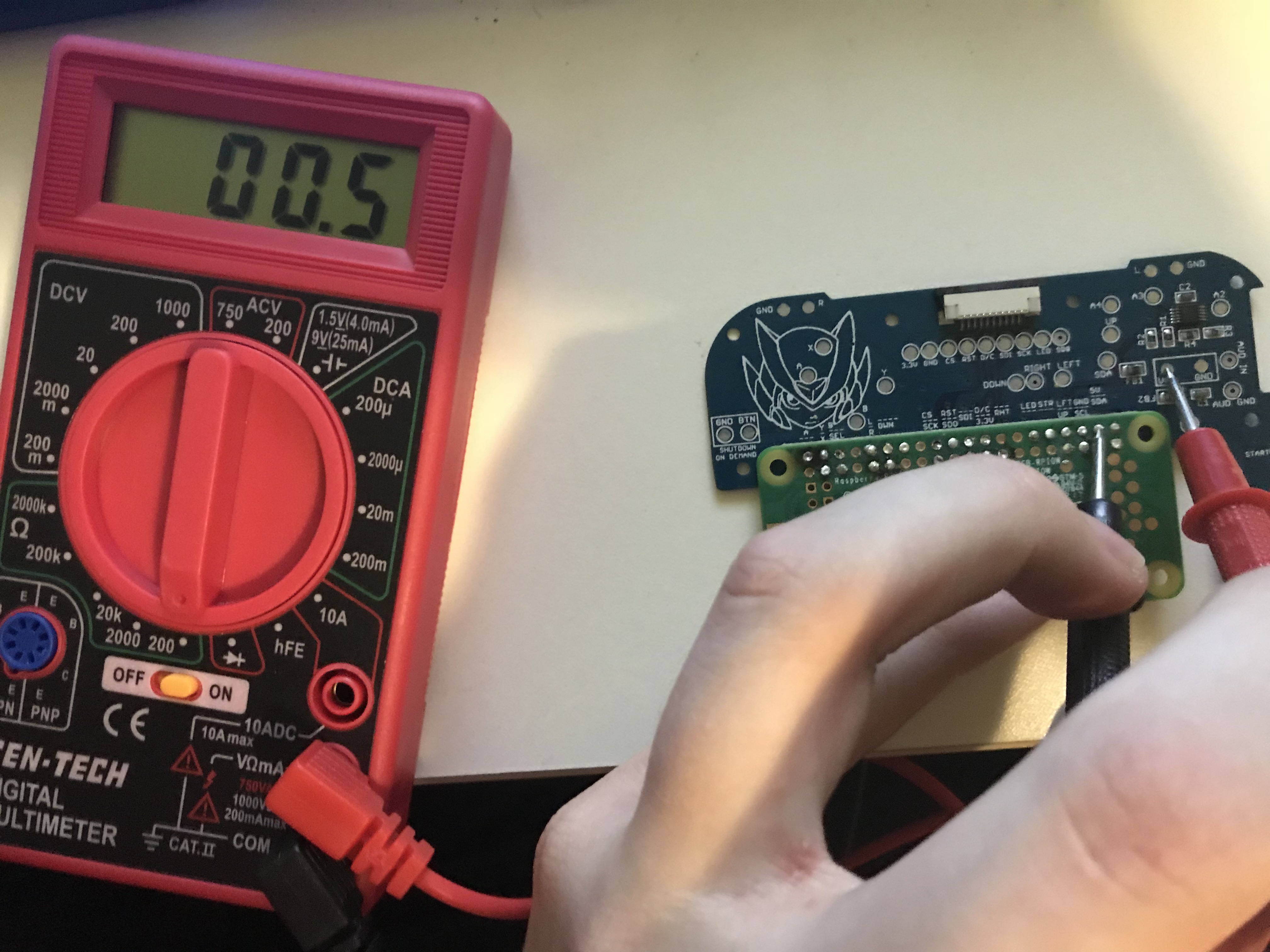

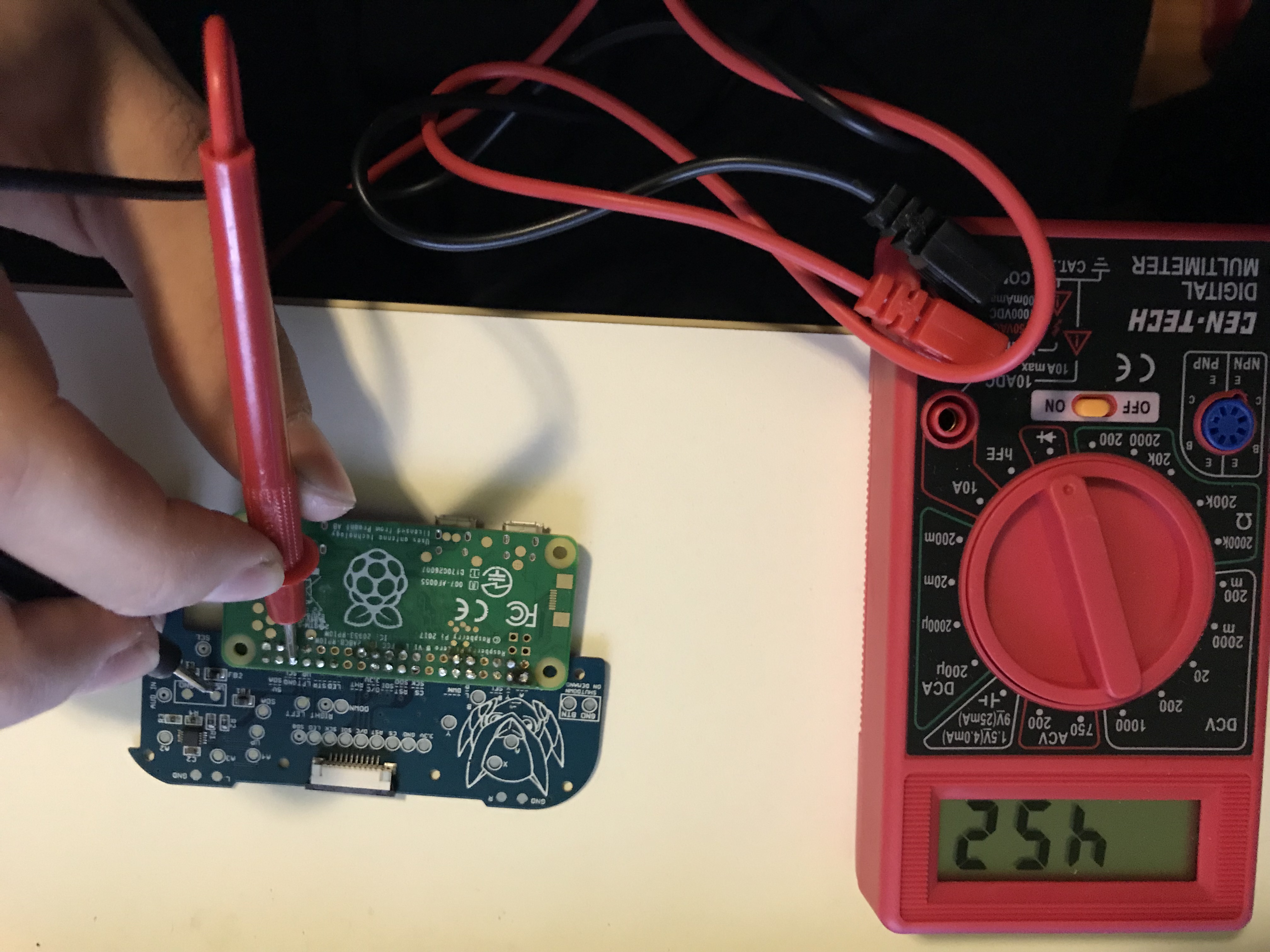

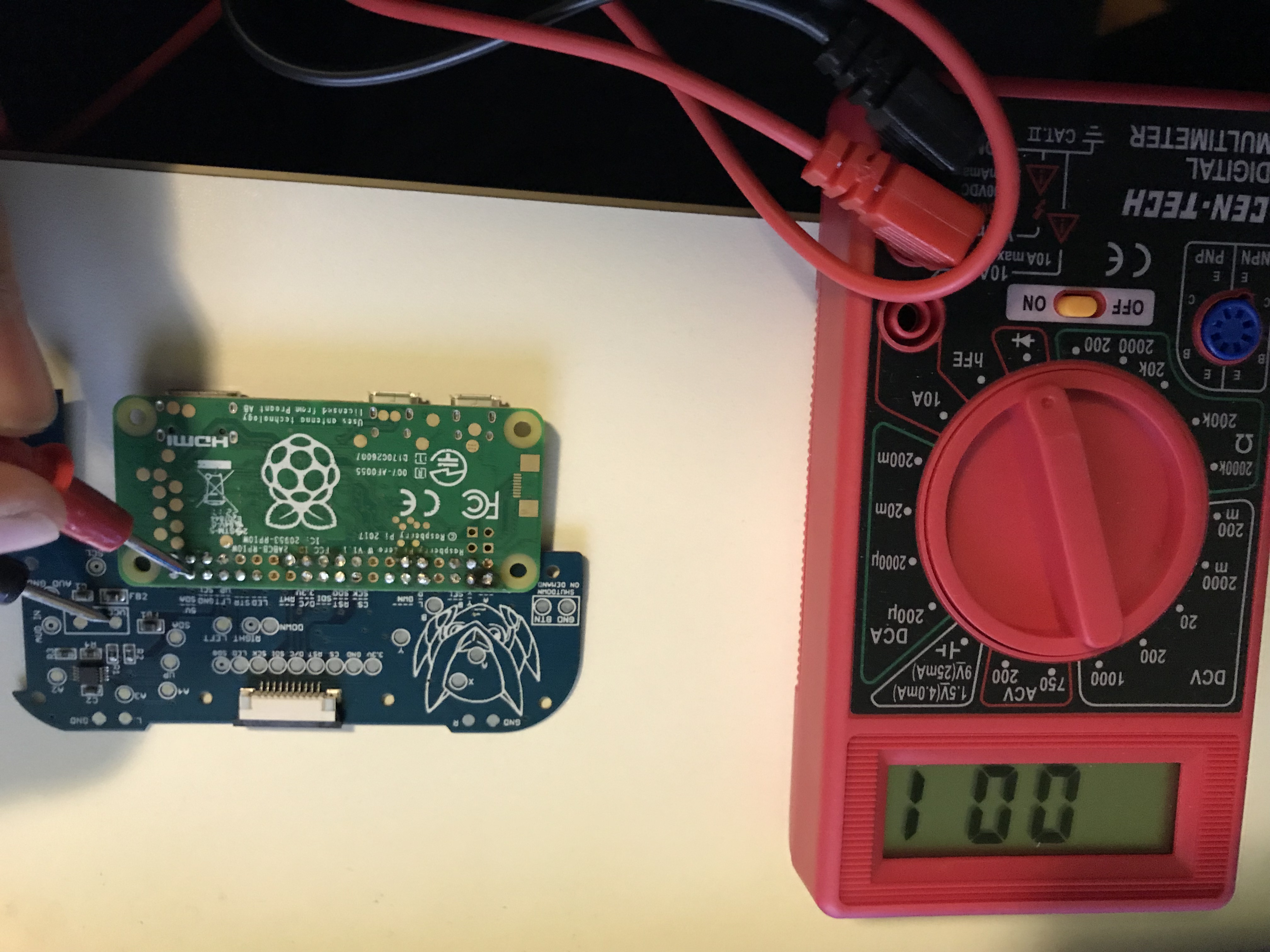

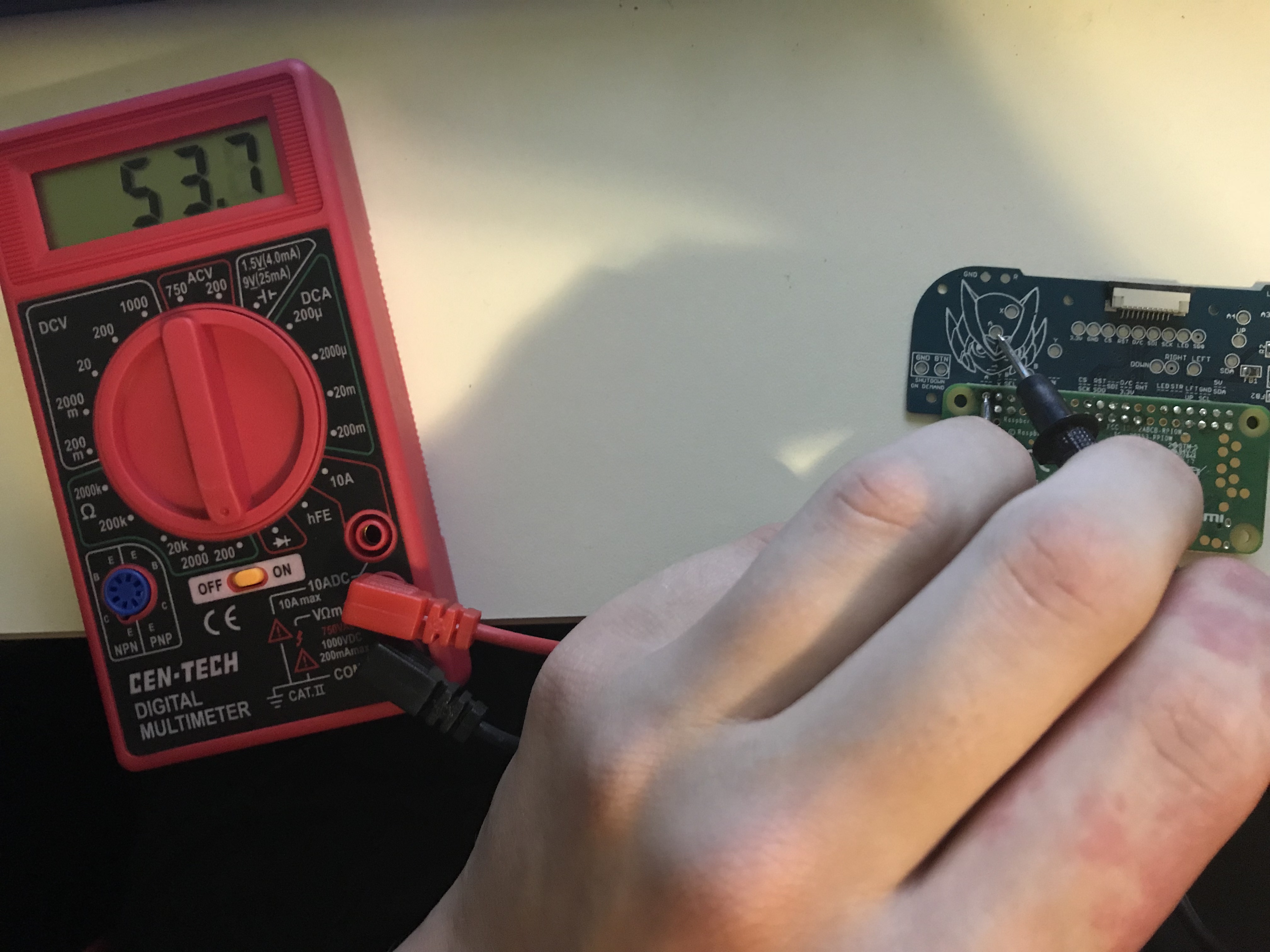

I changed it to the right setting and this is what I got. Except for the A and GND everything read as 1. A is 30, but from GND on the pi to VCC on the board it is 453. Plus 5v to VCC is 1. I dont think I have verry good connections on the board.

[Helder]

Those High Numbers means there is some continuity but not solid connection when the numbers are low like that last picture 001 then it's a solid connection. the A isn't looking that bad but it's not a 100% solid connection, the GND and VCC having those high numbers is ok too as I get about the same readings on mine.

Those mean that they are connected in a way but usually through a decoupling capacitor which is fine, if it was low numbers then that is a concern. Now that you know how to check things out go and see if GND is touching the 3.3v line/GPIO and also see what else the GND might be touching, remember if the numbers are high then it's usually fine.

[Shade]

I checked all the pins, but nothing was connected to GND. 3.3v and GND had 1700 so they arent connected. Could it be that I damaged the rasberry pi while soldering? If so, how can I remove it, and what soldering iron would you recomend I use when soldering the next pi to the board?
P.S. thanks for walking me through all this.

[Shade]

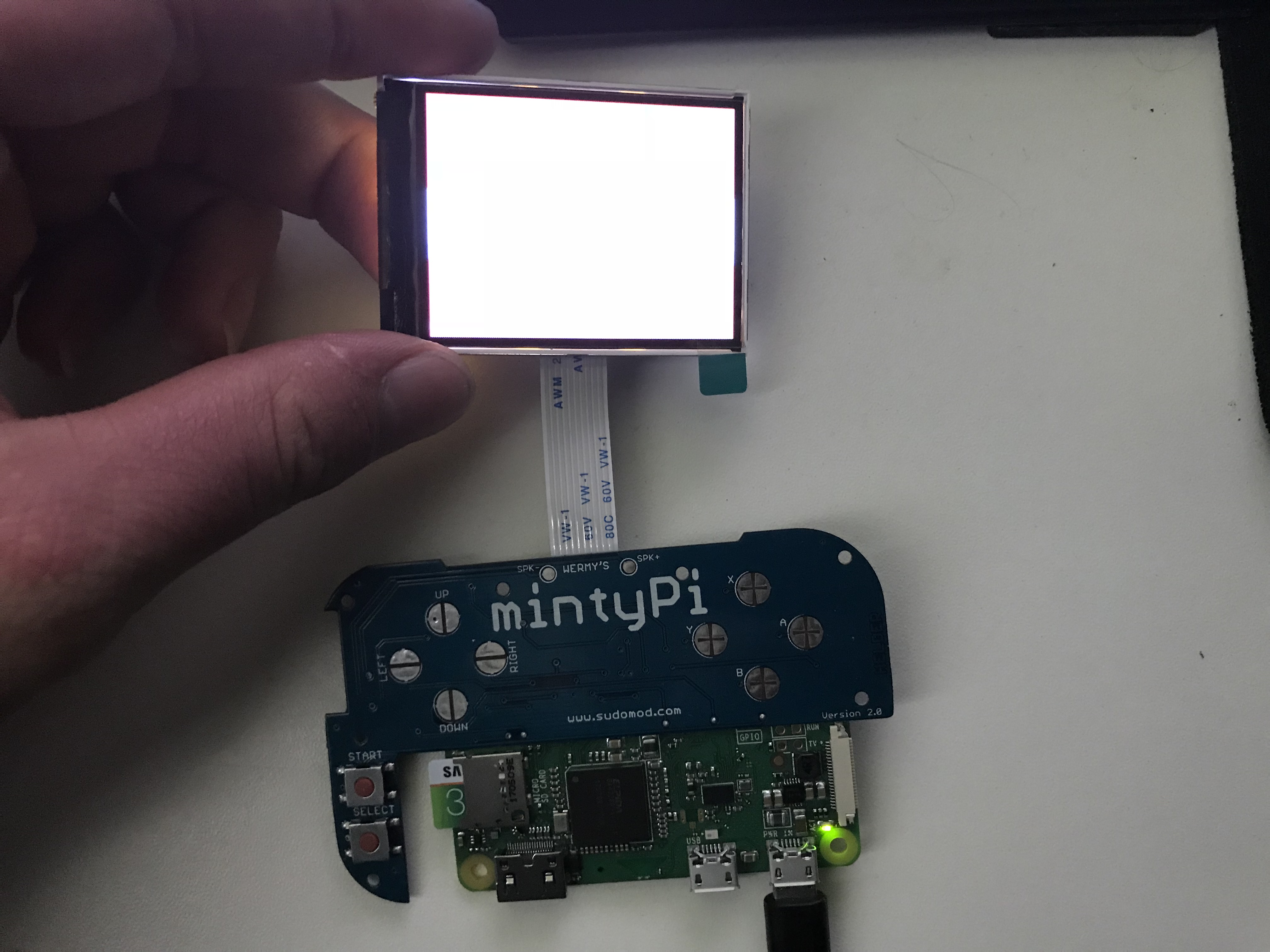

ITS WORKING!!! I swaped sd cards and pluged it in and it powered up. I was really worried i damaged the rasberry pi there.
