Wiring Diagram: mintyPi controller PCB

Having trouble with your mintyPi build? Post your questions here!
User avatar
djbriane
Posts: 61
Joined: Mon Sep 12, 2016 10:34 am
Has thanked: 92 times
Been thanked: 58 times

Wiring Diagram: mintyPi controller PCB

Post by djbriane » Sat Jun 24, 2017 12:04 pm

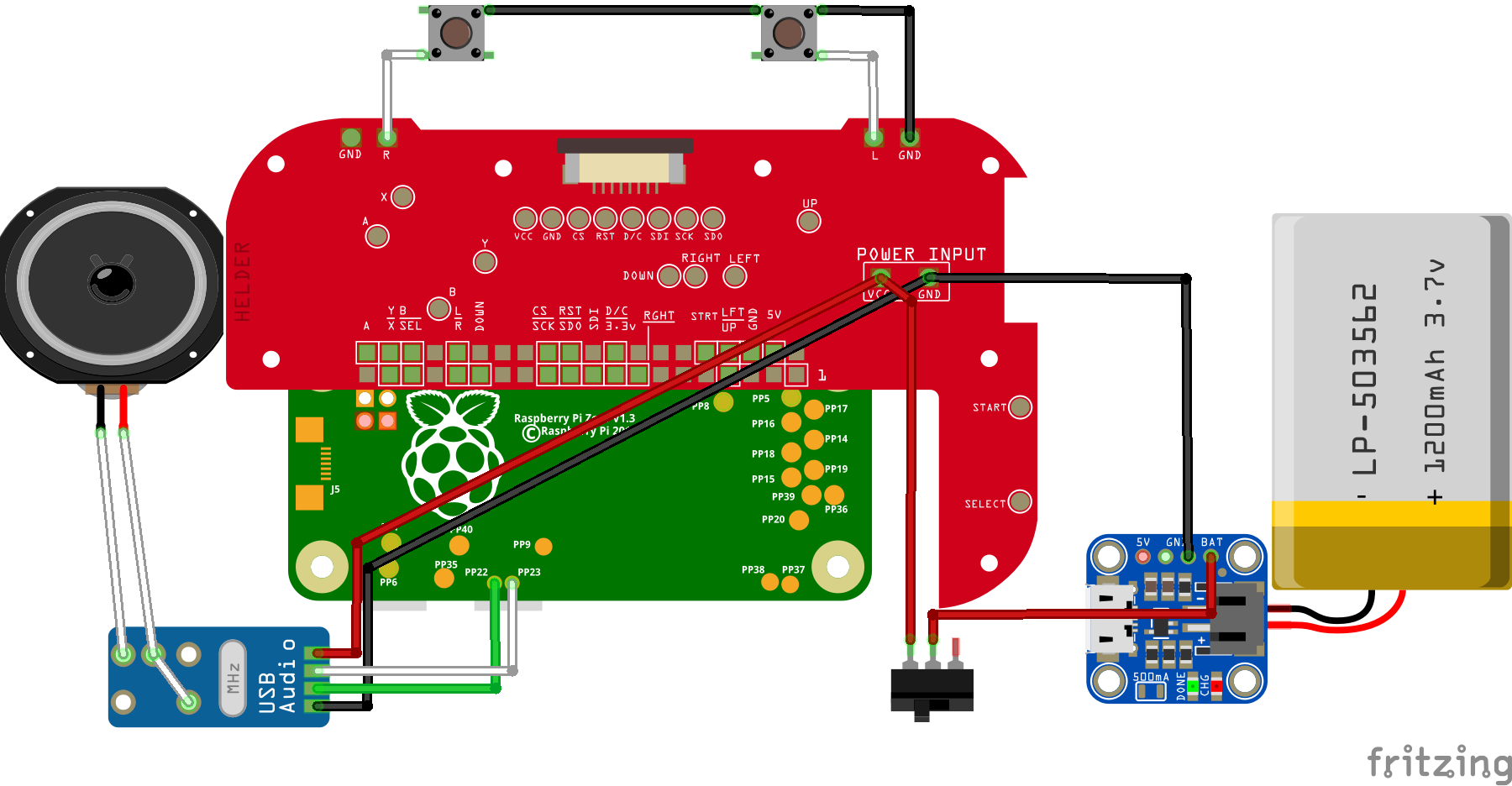

Here is the final wiring diagram based on Wermy's guide for anyone who wants a full picture of what connects to what. One thing to note is the Raspberry Pi actually sits ABOVE the controller PCB, but for some reason Fritzing doesn't allow me order the components in that way (if anyone knows why, please PM me!).

mintyPi Controller PCB Wiring Diagram
mintypi-wiring-v1-final.fzz.zip
(142.74 KiB) Downloaded 254 times
Last edited by djbriane on Thu Jul 20, 2017 9:07 am, edited 4 times in total.

User avatar
wermy
Site Admin
Posts: 1341
Joined: Tue May 03, 2016 8:51 pm
Has thanked: 612 times
Been thanked: 1318 times
Contact:

Re: [WIP] Wiring Diagram: mintyPi controller PCB

Post by wermy » Tue Jul 18, 2017 9:14 am

Thanks again for doing this. :) The only things I'd tweak are powering the USB sound card from the button PCB (connected to the same power input pads). The way you have it will work, but you need less wires to reach the button PCB pads. I also found that the resistors weren't really necessary. :)

User avatar
djbriane
Posts: 61
Joined: Mon Sep 12, 2016 10:34 am
Has thanked: 92 times
Been thanked: 58 times

Re: [WIP] Wiring Diagram: mintyPi controller PCB

Post by djbriane » Tue Jul 18, 2017 10:53 am

wermy wrote:
Tue Jul 18, 2017 9:14 am
Thanks again for doing this. :) The only things I'd tweak are powering the USB sound card from the button PCB (connected to the same power input pads). The way you have it will work, but you need less wires to reach the button PCB pads. I also found that the resistors weren't really necessary. :)
Updated the diagram to match your guide - let me know if anything looks incorrect!

User avatar
Kyran
Posts: 37
Joined: Mon Apr 24, 2017 10:58 am
Has thanked: 16 times
Been thanked: 4 times

Re: Wiring Diagram: mintyPi controller PCB

Post by Kyran » Wed Jul 19, 2017 8:28 am

I can't seem to upload a pic from my phone, but anyways, is there a reason my pi won't boot/power up? The screen is receiving power through the pcb but not the pi and I'm not sure why, I've got everything soldered as depicted above and it even works when I powered the board during the testing stage of wermys guide but after putting the rest together(twice now) my screen is the only thing that gets power(Not white, it's a black screen but can see the back light come on)
The Pi Guy #retromod_customs

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2678
Joined: Thu May 05, 2016 8:33 am
Location: Fall River, MA
Has thanked: 1376 times
Been thanked: 3038 times

Re: Wiring Diagram: mintyPi controller PCB

Post by Helder » Wed Jul 19, 2017 1:30 pm

Upload pictures to a website like postimg.org and then post the links here to the images. Also this has what to do with the wiring diagram? You need to stick to your thread or make a new one with your problems instead of posting this everywhere. It's likely a bridge or a broken solder connection from the Pi to the PCB, are you testing continuity like Wermy did in the video to each test pad?
My Sale Threads:

Retro PSU, 3.5A output!


Chat with me and other members


Don't contact me about obtaining my board files (as you will not get them). Don't contact me about any of my boards if they are sold out, they will be restocked as soon as I can get them.


Don't support thieves like ckliang who copied my AIO to resell and is now cloning the mintyPi, support the original creators and not the thieves!

User avatar
dryja123
Posts: 1008
Joined: Tue May 09, 2017 5:34 pm
Location: Central NJ
Has thanked: 226 times
Been thanked: 527 times

Re: Wiring Diagram: mintyPi controller PCB

Post by dryja123 » Wed Jul 19, 2017 9:56 pm

I think the wiring for the R button is wrong. You have the wire going from the button to the R pad but the leg That you are connected to is also sharing the common ground with L.

User avatar
HoolyHoo
Posts: 714
Joined: Sat Jul 09, 2016 9:34 pm
Has thanked: 198 times
Been thanked: 710 times

Re: Wiring Diagram: mintyPi controller PCB

Post by HoolyHoo » Thu Jul 20, 2017 6:09 am

dryja123 wrote:
Wed Jul 19, 2017 9:56 pm
I think the wiring for the R button is wrong. You have the wire going from the button to the R pad but the leg That you are connected to is also sharing the common ground with L.
This is true.

R pad wire should be connected to one of those two bottom pins on that switch.

User avatar
djbriane
Posts: 61
Joined: Mon Sep 12, 2016 10:34 am
Has thanked: 92 times
Been thanked: 58 times

Re: Wiring Diagram: mintyPi controller PCB

Post by djbriane » Thu Jul 20, 2017 9:08 am

dryja123 wrote:
Wed Jul 19, 2017 9:56 pm
I think the wiring for the R button is wrong. You have the wire going from the button to the R pad but the leg That you are connected to is also sharing the common ground with L.
Good catch! Fixed it and attached an updated image/fritzing file.

Thanks!

User avatar
wermy
Site Admin
Posts: 1341
Joined: Tue May 03, 2016 8:51 pm
Has thanked: 612 times
Been thanked: 1318 times
Contact:

Re: Wiring Diagram: mintyPi controller PCB

Post by wermy » Thu Jul 20, 2017 9:09 am

Hah, I happened to load the page after you fixed it but just before you replied, @djbriane. I was sitting here looking at the diagram going "that looks right to me... What are they talking about?"

Nice catch guys. :)

User avatar
Lphillimore
Posts: 983
Joined: Sat Jan 07, 2017 7:03 pm
Location: Perth, WA
Has thanked: 780 times
Been thanked: 512 times

Re: Wiring Diagram: mintyPi controller PCB

Post by Lphillimore » Tue Jul 25, 2017 9:25 am

While most are obvious, what does Pad1 connect to?

Post Reply
