MintyPi V3 Half Dead Screen

Post by KillFace » Thu May 09, 2019 4:45 pm

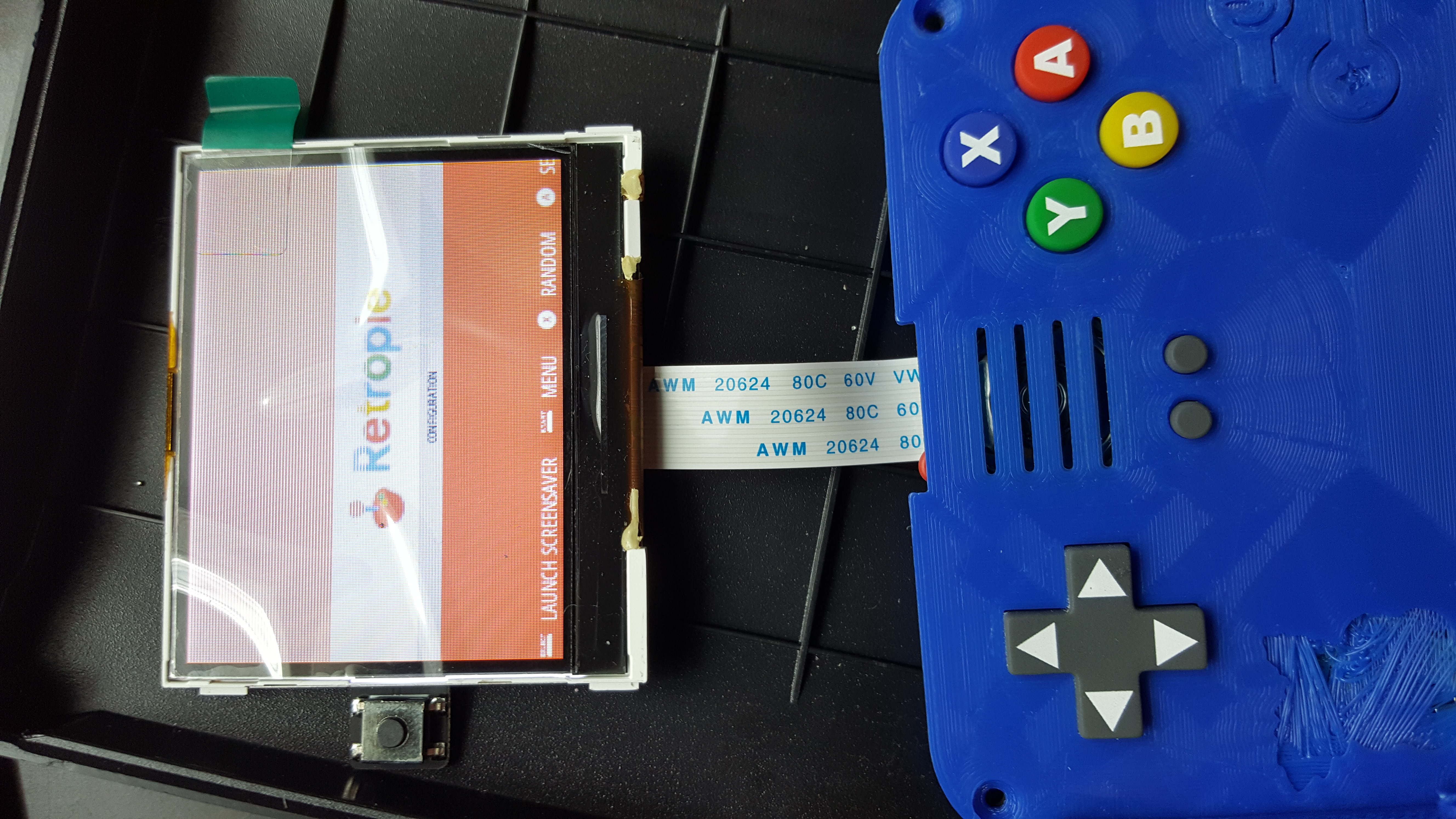

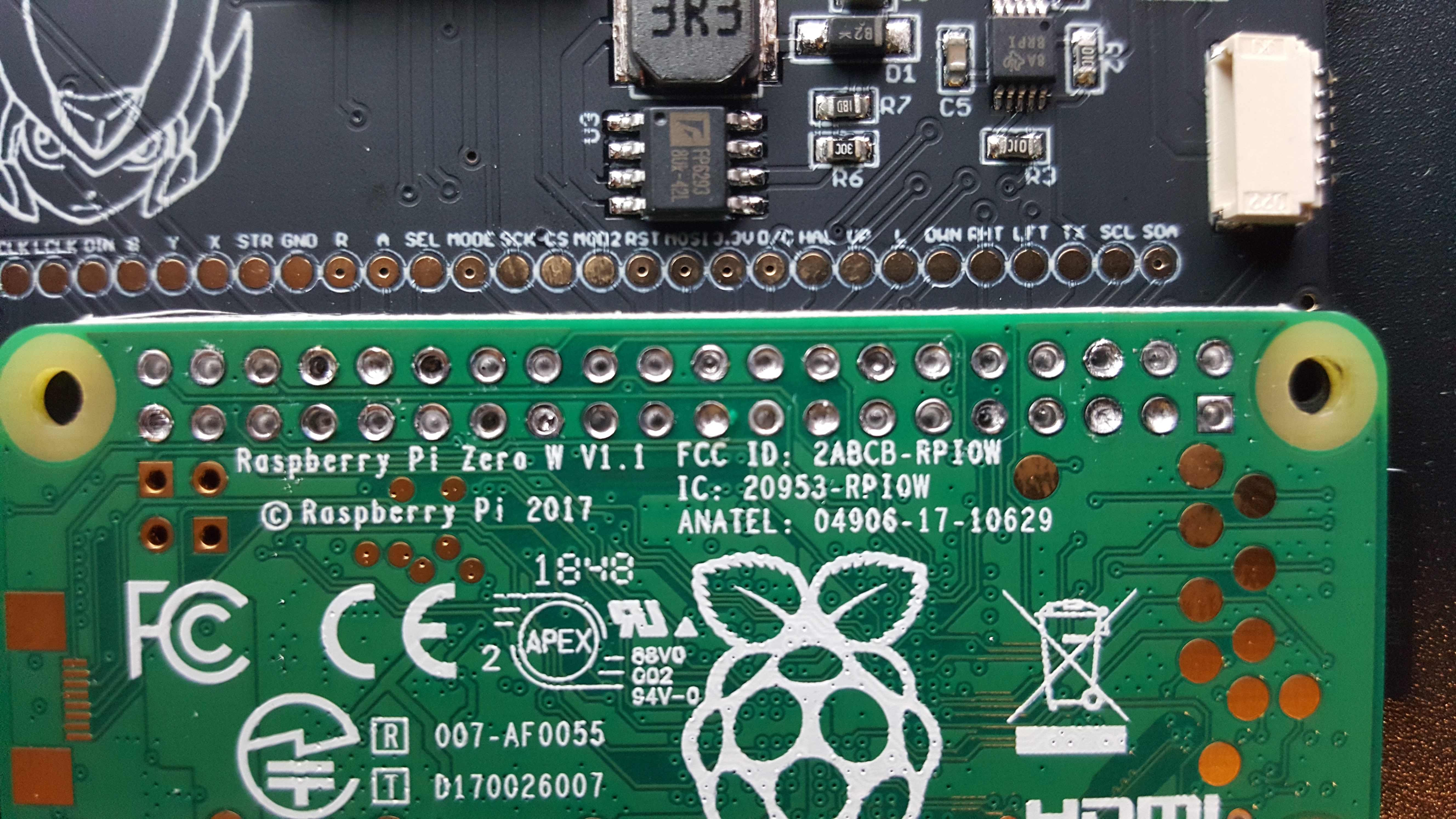

I was in the home stretch when I tripped and fell face first into this issue. Everything was coming together nicely until I connected my board (w/ soldered pi attached) to the battery and charging board. Upon connections I was greeted with a nasty image on the screen, the top half was lines and the bottom half was fine. The screen worked perfectly when plugged into the wall before attaching the battery, but even now after unplugging the battery and using wall power the image is no good. I am attaching pictures of the problem as well as pictures of my soldering (successfully tested continuity many times). Any thoughts?
Attachments

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2968
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1457 times
Been thanked: 3110 times

Re: MintyPi V3 Half Dead Screen

Post by Helder » Thu May 09, 2019 5:01 pm

Looks like it might be a bad LCD cable, try to put a little pressure (emphasis on little) on the black part near the bottom where there is the yellow ribbon folded there. Run your finger slowly across the black area to see if it improves the image then post back.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.


Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.

User avatar
KillFace
Posts: 11
Joined: Mon Jan 16, 2017 8:57 pm
Has thanked: 6 times
Been thanked: 2 times

Re: MintyPi V3 Half Dead Screen

Post by KillFace » Thu May 09, 2019 7:29 pm

No such luck. After gently moving my finger back and forth across the black section at the bottom of the screen there were no changes.

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2968
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1457 times
Been thanked: 3110 times

Re: MintyPi V3 Half Dead Screen

Post by Helder » Thu May 09, 2019 11:18 pm

Ok then send it back and I'll replace it but package it well so it doesn't arrive cracked.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.


Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.

User avatar
KillFace
Posts: 11
Joined: Mon Jan 16, 2017 8:57 pm
Has thanked: 6 times
Been thanked: 2 times

Re: MintyPi V3 Half Dead Screen

Post by KillFace » Fri May 10, 2019 8:44 am

Will do. Would I be correct in assuming that I can ship it to the return address on the package you sent?

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2968
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1457 times
Been thanked: 3110 times

Re: MintyPi V3 Half Dead Screen

Post by Helder » Fri May 10, 2019 7:22 pm

KillFace wrote:
Fri May 10, 2019 8:44 am
Will do. Would I be correct in assuming that I can ship it to the return address on the package you sent?
Yes use that address also include your name and info on the screen so I know who it's from.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.


Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.

User avatar
KillFace
Posts: 11
Joined: Mon Jan 16, 2017 8:57 pm
Has thanked: 6 times
Been thanked: 2 times

Re: MintyPi V3 Half Dead Screen

Post by KillFace » Sun May 12, 2019 12:58 pm

All set you should have it by tomorrow (Monday).

Cozmikpcs
Posts: 6
Joined: Fri May 10, 2019 8:03 pm
Been thanked: 2 times

Re: MintyPi V3 Half Dead Screen

Post by Cozmikpcs » Mon May 27, 2019 12:14 am

I am having a similar issue, the screen worked well during the earlier stages of assembly (testing while following wermys video). Now during the home stretch the screen image is all screwy. Any help would be greatly appreciated


User avatar
Helder
Trailblazer
Trailblazer
Posts: 2968
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1457 times
Been thanked: 3110 times

Re: MintyPi V3 Half Dead Screen

Post by Helder » Mon May 27, 2019 7:10 am

Cozmikpcs wrote:
Mon May 27, 2019 12:14 am

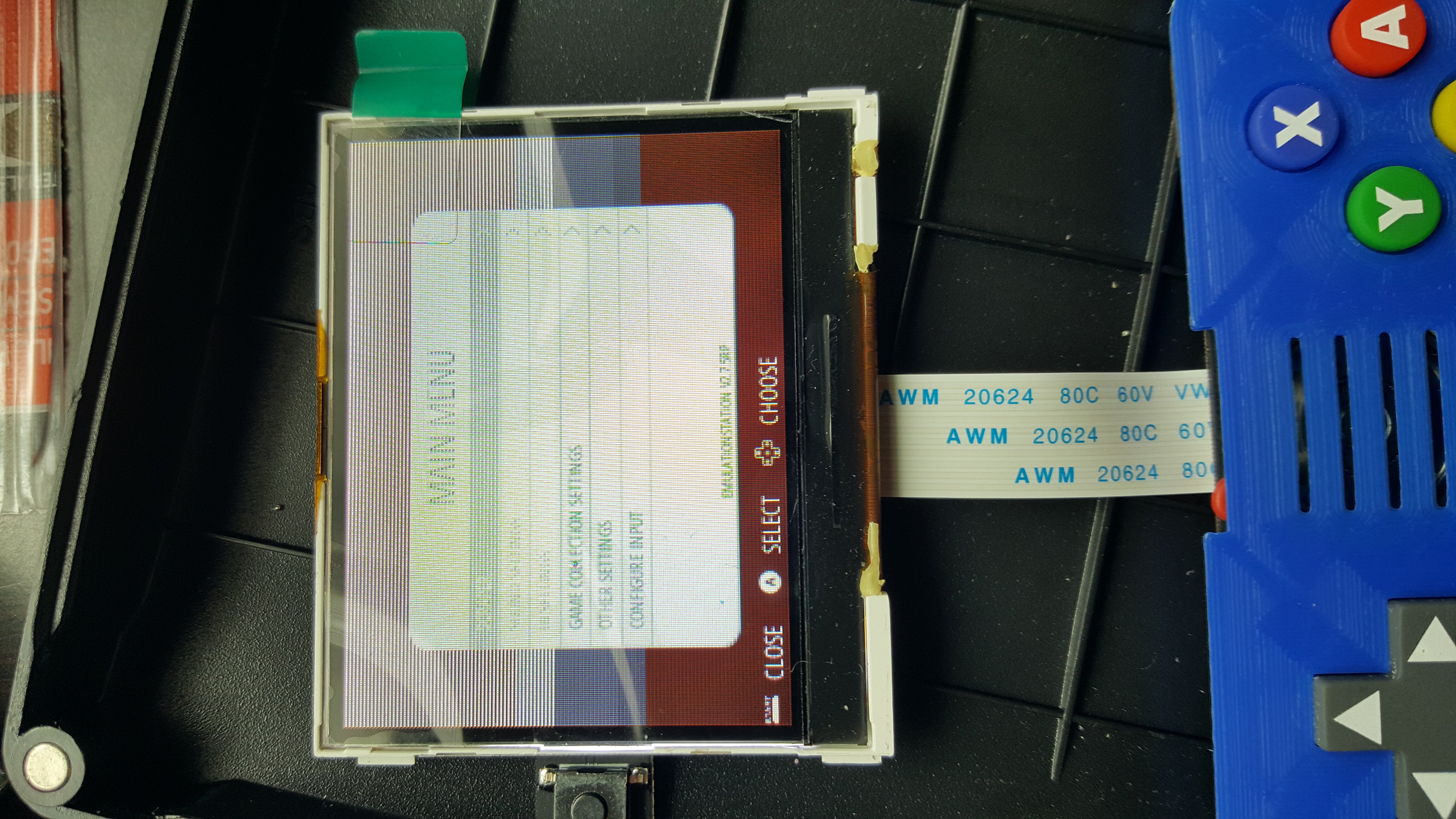

20190527_155454.jpgI am having a similar issue, the screen worked well during the earlier stages of assembly (testing while following wermys video). Now during the home stretch the screen image is all screwy. Any help would be greatly appreciated
If it was working fine then I can only assume you dropped it at some point or something else happened to make it be like it shows in the image.
