[For Sale] 4 Button and 2 Button Soft Silicone Back Button PCB

Post by HoolyHoo » Thu Feb 01, 2018 4:51 pm

I have about 15 of each of these back button boards that use the nice, soft silicone buttons. You get that silicone membrane feel without the hassle of using button wells or membranes. The boards mount to the back shell of the GB case and use the existing case screw mounts. Note, that you won't be able to use a cartridge holder with these but you can still use a dummy cartridge. This should work with Kites board but I haven't tested 100% yet and will confirmation soon on this.

There are two versions, one for two button (L1 and R1) and one for four button (L1, R1, L2 and R2) setups. What I have available to ship as a kit in the 4 button version is the 4 button PCB, 4 soft silicone switches, 4 3d printed inserts for caps, 2 lower posts 3d printed washers, and drill guide. The inserts are placed inside the caps which require an easy modification. The inserts take away any slop in the buttons so there is no rattle with the buttons. The washers are provided so trimming the lower cartridge posts are not necessary. I do not have the caps or screws available unfortunately but are readily available from various suppliers (Ebay, AliExpress, Banggood, Amazon) very cheaply. Sorry about that. The silicone buttons come unsoldered but are very easy to place. If you need me to do it, just PM me.

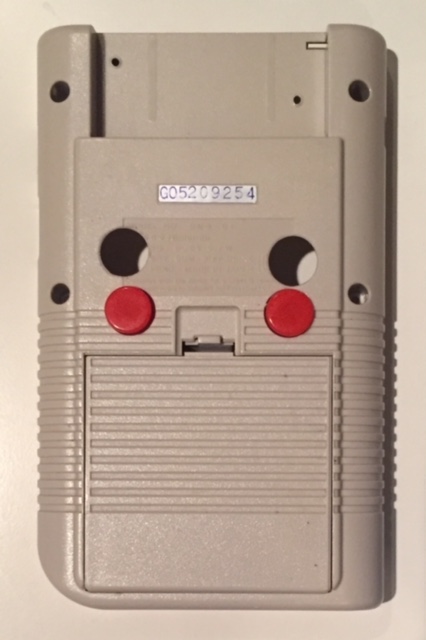

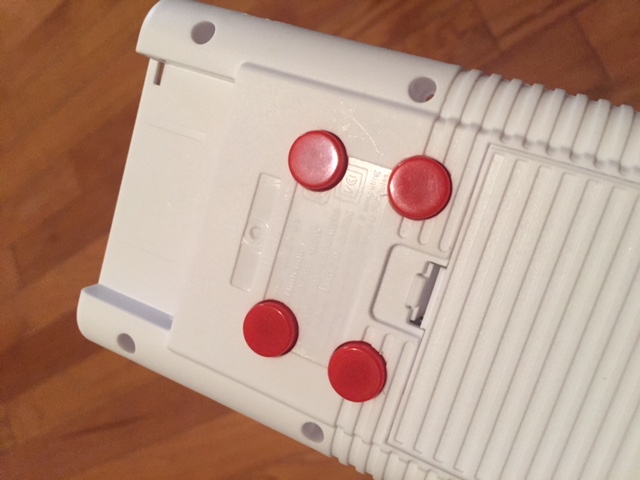

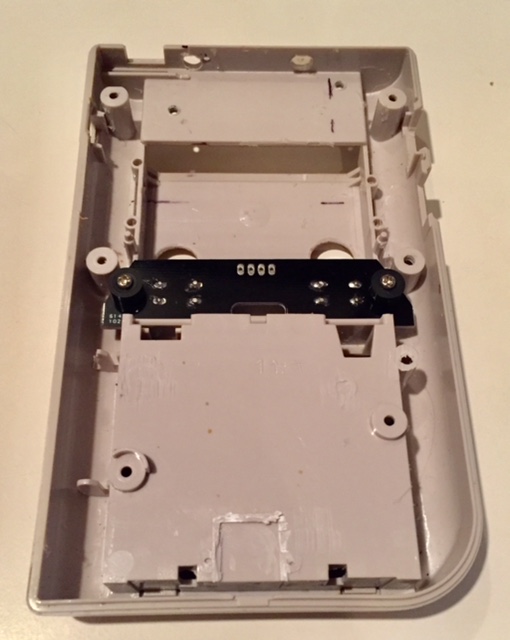

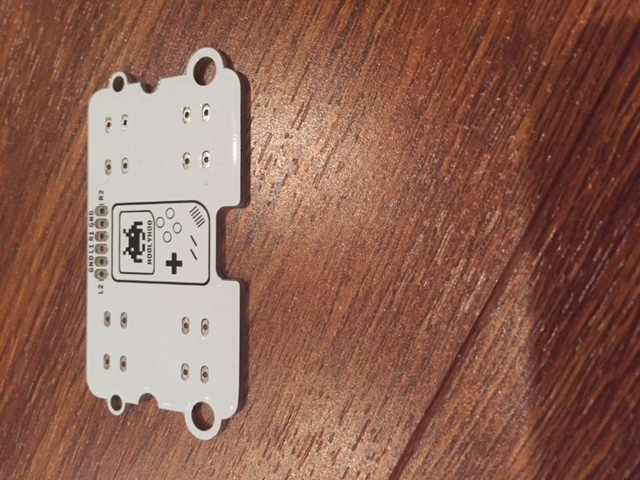

Here are some images of the two setups.
2 .jpg
2 .jpg (77.64 KiB) Viewed 3738 times

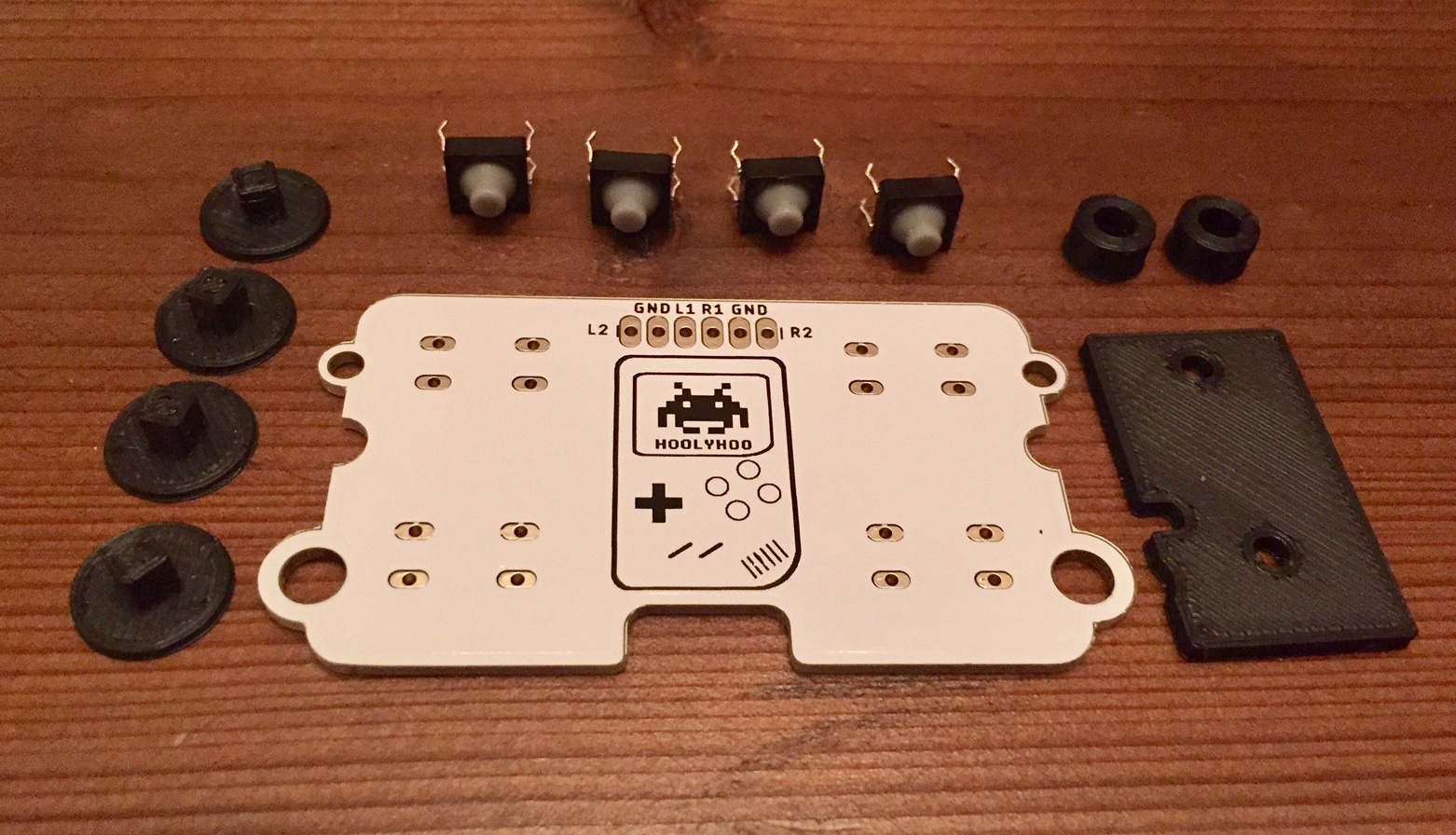

This is what I can ship now with the four button setup. Like I said earlier, I have a limited supply so first come first serve. Here is what I would ship.
The two button is similar with only the needed parts for that setup.

The 4 button board would be $15 plus $3.50 shipping US with tracking or $5.00 International with no tracking.

The 2 button board would be $12 plus $3.50 shipping US with tracking or $5.00 International with no tracking
.

Since I have a limited supply, please PM your PayPal email and I will invoice you that way I don't oversell what I don't have. Please include whether you live in the US or are international so I can invoice the proper shipping amount.
As always thanks and Happy Modding!

Echsman
Posts: 15
Joined: Tue Aug 08, 2017 6:05 pm
Has thanked: 25 times
Been thanked: 3 times

Re: [For Sale] 4 Button and 2 Button Soft Silicone Back Button PCB

Post by Echsman » Sat Feb 03, 2018 2:19 am

Hello.

Looks like I will be placing an order come next Friday...

User avatar
shalkith
Posts: 7
Joined: Wed Jan 31, 2018 1:50 pm

Re: [For Sale] 4 Button and 2 Button Soft Silicone Back Button PCB

Post by shalkith » Mon Feb 05, 2018 11:13 am

This looks great!!

jealouskain
Posts: 8
Joined: Sat Sep 23, 2017 2:25 pm
Has thanked: 3 times
Been thanked: 3 times

Re: [For Sale] 4 Button and 2 Button Soft Silicone Back Button PCB

Post by jealouskain » Tue Feb 13, 2018 7:47 am

Got my order, totally awesome, as usual.
It is so easy to drill and place the PCB inside the shell.

Really nice work on these!

Echsman
Posts: 15
Joined: Tue Aug 08, 2017 6:05 pm
Has thanked: 25 times
Been thanked: 3 times

Re: [For Sale] 4 Button and 2 Button Soft Silicone Back Button PCB

Post by Echsman » Tue Feb 13, 2018 12:14 pm

I received my order and am now tearing into my project.

I thankee.

luisv
Posts: 1
Joined: Tue Feb 13, 2018 8:03 pm
Has thanked: 1 time

Re: [For Sale] 4 Button and 2 Button Soft Silicone Back Button PCB

Post by luisv » Sat Feb 17, 2018 9:37 am


User avatar
HoolyHoo
Posts: 722
Joined: Sat Jul 09, 2016 9:34 pm
Has thanked: 200 times
Been thanked: 716 times

Re: [For Sale] 4 Button and 2 Button Soft Silicone Back Button PCB

Post by HoolyHoo » Sat Feb 17, 2018 9:51 am

luisv wrote:
Sat Feb 17, 2018 9:37 am
Hey Hooly.

Does these button caps work with this kit's buttons?:

https://www.ebay.com/itm/Round-A24-Key- ... 2345153427
https://www.aliexpress.com/item/20PCS-L ... 88473.html
Yes, those are the ones the inserts provided are for. I’ve made another thread with some more information to where you will also be able to use original GB caps :D

https://www.sudomod.com/forum/viewtopic.php?f=38&t=5248

User avatar
shalkith
Posts: 7
Joined: Wed Jan 31, 2018 1:50 pm

Re: [For Sale] 4 Button and 2 Button Soft Silicone Back Button PCB

Post by shalkith » Tue Feb 20, 2018 3:32 pm

HoolyHoo wrote:
Sat Feb 17, 2018 9:51 am
luisv wrote:
Sat Feb 17, 2018 9:37 am
Hey Hooly.

Does these button caps work with this kit's buttons?:

https://www.ebay.com/itm/Round-A24-Key- ... 2345153427
https://www.aliexpress.com/item/20PCS-L ... 88473.html
Yes, those are the ones the inserts provided are for. I’ve made another thread with some more information to where you will also be able to use original GB caps :D

https://www.sudomod.com/forum/viewtopic.php?f=38&t=5248
Hey man. I ordered this 4 button board and it should be in the mail today. I thought I was able to use the DMG Buttons for this with the 3d printed parts. I suppose I may have been mistaken. Can you show more details on how the buttons all line up in this?
