[FOR-SALE] Universal Button L1, L2, R1, R2 Back Button PCB and Silicone Buttons (OPEN)

Post by HoolyHoo » Fri Feb 16, 2018 5:17 pm

Available Now!!

Hey guys, great news!!! I have received the PCB's and all is looking fantastic.

As a reminder, these PCB's are made for those who like the back button placement of L1, R1, L2, and R2. The board is designed without any glue needed and no 3D printed bracket for mounting and installation. The best part is that you get that soft membrane push feel without the actual membranes thanks to the included soft silicone buttons, no loud clicks like in regular tact switches. Installation could not be easier.

The caps that can be used are either the 12mm tactile caps or the DMG caps that come with aftermarket cases or other suppliers. The choice is yours. Only thing required is to drill proper size holes. I was also on the fence on whether to have the L2, R2 buttons vertical to L1,R1 or slightly diagonal (L2, R2 spaced closer). I came up with a solution on the PCB to where the user can decide on that placement (See Picture). Thats a win! Finally this board can also be used for only L1, R1 setups if you decide to forgo L2, R2. Simply just don't make the holes or install the buttons. :D I will also include an L-Shaped washer that serves a dual purpose of holding down the PCB and also acting as a spacer for Kite's USB/HDMI daughter board if your using his PCB. What that means, no soldering needed of his spacers. L-Shaped washer will still be used if your not using his PCB.

Included with your order will be:
* Universal PCB with Built-In Drill Guide
* 4 Soft Silicone Buttons
* DMG or 12mm Cap Inserts (Specify on Checkout)
* Left Washer and Right L-Shaped Washer



Whats not included:
* Screws
* Button Caps

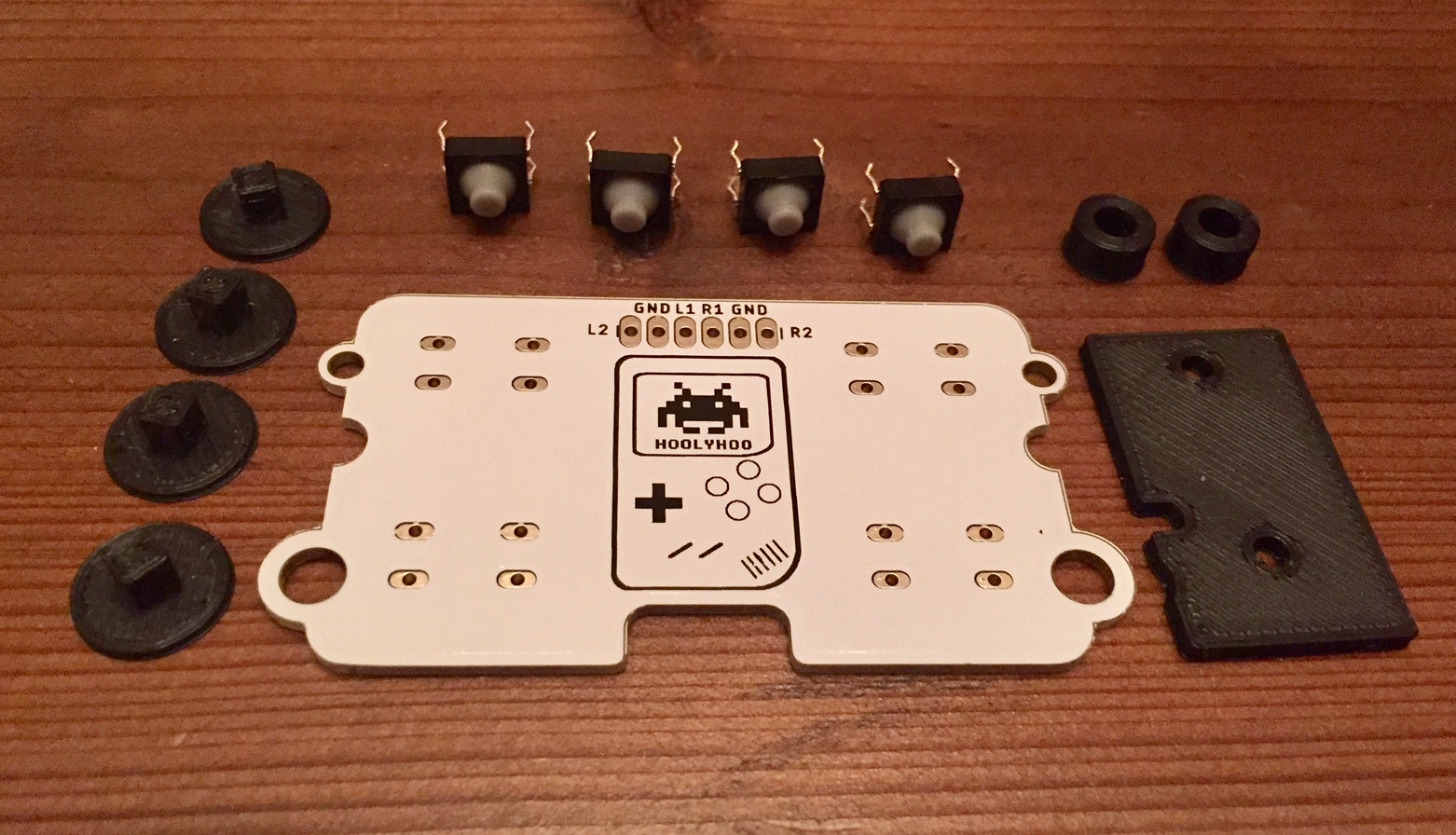

Here are some pictures of the new board and cap inserts.
Price will be $15 plus $5 shipping. Shipping to US will include tracking number. All others will not have tracking info.

Order Link:
Universal PCB, Soft Buttons, 3D Parts for DMG Caps

Universal PCB, Soft Buttons, 3D Parts for 12mm Caps

Thanks as always for your interest! :D


I have kept the original thread below for reference.
Original ThreadShow
Hey guys, some may remember that I had offered a PCB for the back buttons with the soft silicone buttons that do not require any 3d bracket to mount or require the silicone membranes to get that original Gameboy button feel. Here is the original thread:

https://sudomod.com/forum/viewtopic.php?f=38&t=5103

I originally had only done one run of these PCB's as I just had a bunch left over after creating it for my own build. I have received so much positive feedback that I have decided to order another run to supply the demand as I have ran out. So hopefully thats good news for those who like and want an easy back button setup without the hassle. But wait... there's more!

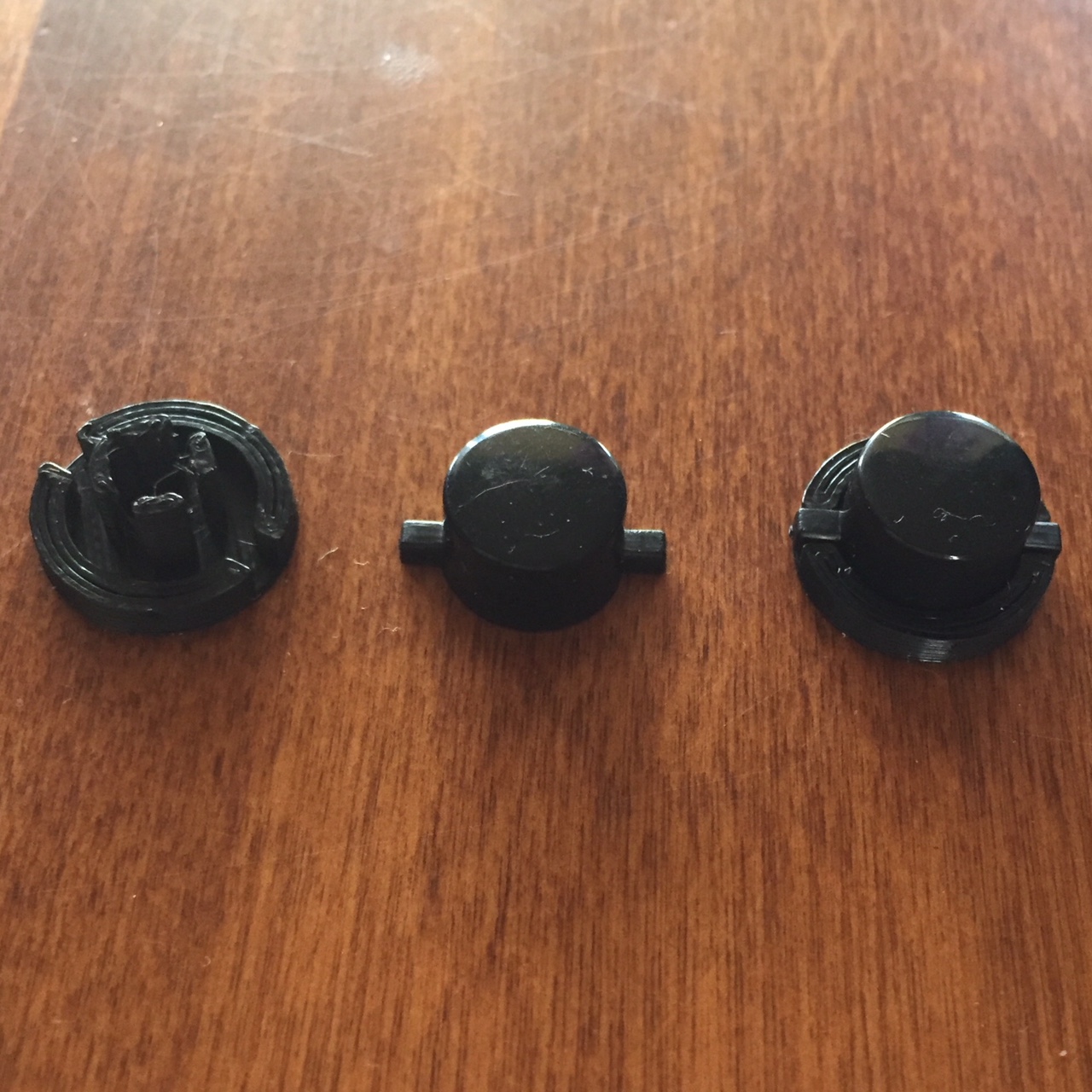

I originally created the PCB to be used with 12mm caps since I like the bigger buttons. I provided the inserts needed to be used with those caps but then it occurred to me that there is no reason why we can't use the original Gameboy buttons as well. So I created an insert for the Gameboy DMG buttons as well. Here is a snapshot of the insert for those.
What this means is the same PCB can be used with 12mm caps, or original DMG buttons and can be used with a two button configuration or a 4 button one. All you need to do is make the right size hole and number for the caps you want to use. The combinations are totally up to the end user with one simple no hassle easily mountable PCB. Heck you could even combine dmg and 12mm caps if you felt adventurous, haha.

I have received Kites CS and can confirm that it works with Kites board perfectly. The only thing to keep in mind, like with all back buttons in this area, the cartridge slot cannot be used but you can still use a dummy cartridge.

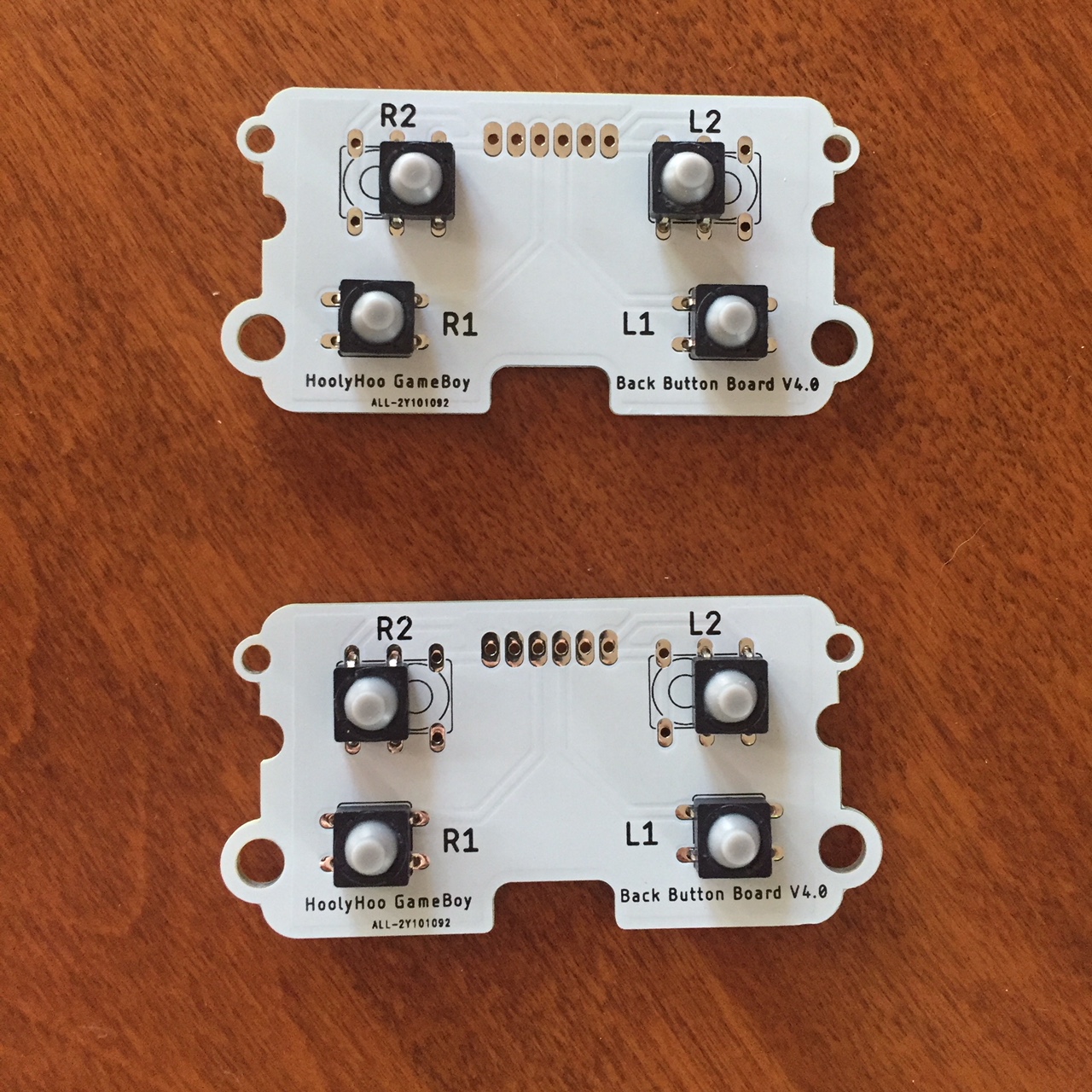

Here is a picture of the PCB and also the mounted buttons.
I am placing a poll at the top of this thread to get a feel of how many to order and also I am considering placing the top two buttons (L2,R2) a bit closer to each other in order to stagger them a bit from them being vertical to L1 and R1. Would like to know your thoughts.

I will include with the kit, the PCB, the cap inserts of your choice, a drill guide to make the holes in the proper location and the mounting washers. I do not include the buttons or screws needed. I cannot stress how easy these are to mount and how similar they feel to the original GB buttons that use the membranes.

Thanks guys! I should have these pretty soon after I get a feel from the feedback and the poll. :D
