Resin printed GBZ/GB CM3 brackets

Post by arvellon_nerd » Sun Jul 19, 2020 11:44 am

I am currently trying to make a GBZ out of Kite's Circuit Sword Lite, and eventually make a proper GB CM3.

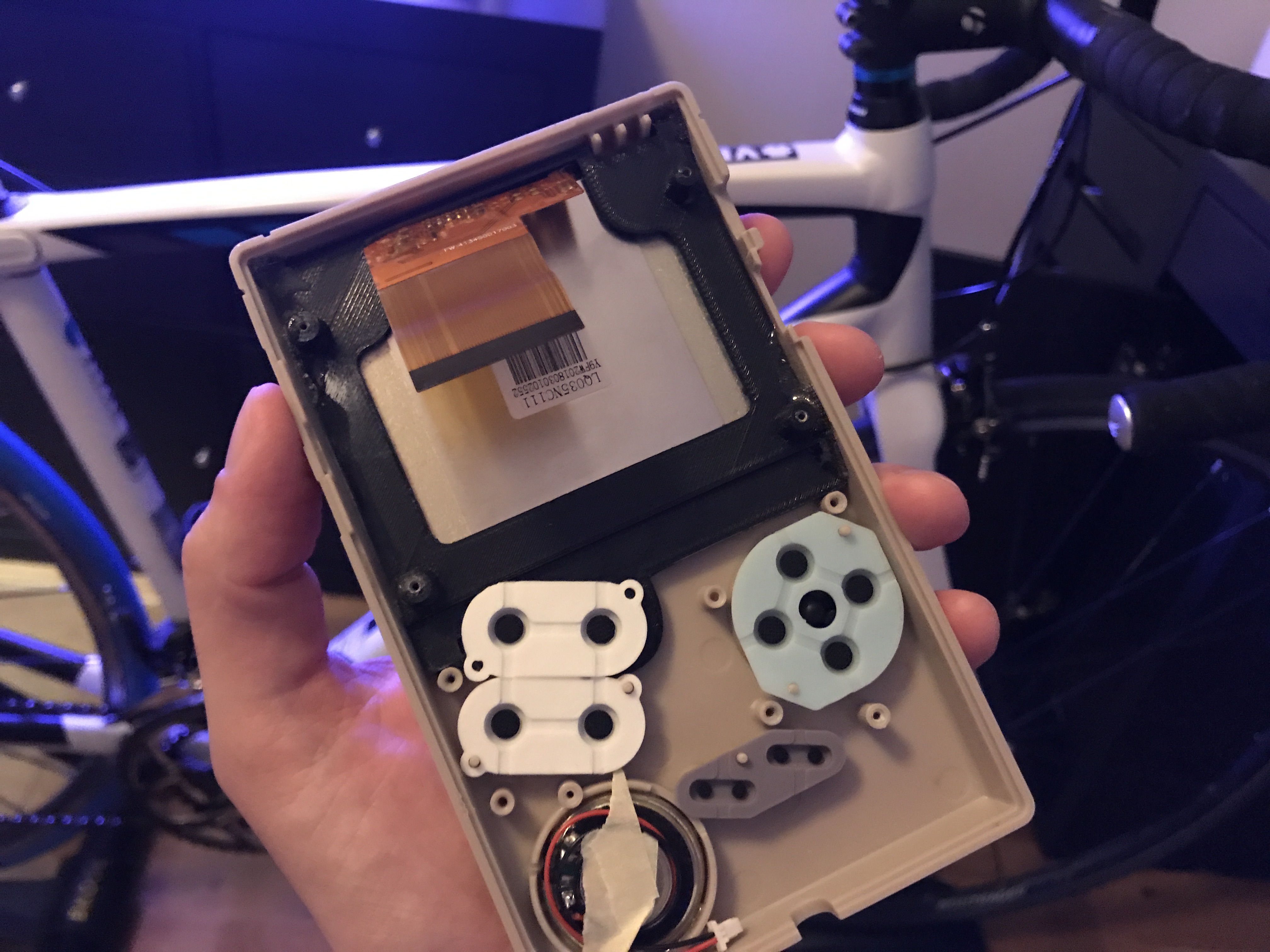

But I hate that I have to glue everything to the case and thusly making the LCD a one way use. I will attach a photo on my old GB CM3 case, a case that now won’t fit a GBZ build due to the bracket being too large.

And I do not like the wells and other parts that I have 3D printed due to the layers intervening with the buttons.

So, it there anybody out there sitting on some nice designs from a resin printer, or laser cut brackets?
Attachments
//Joh(a)n
