Going mad cartridge wiring

Post by CicciOPiK » Sun Jun 05, 2016 10:46 am

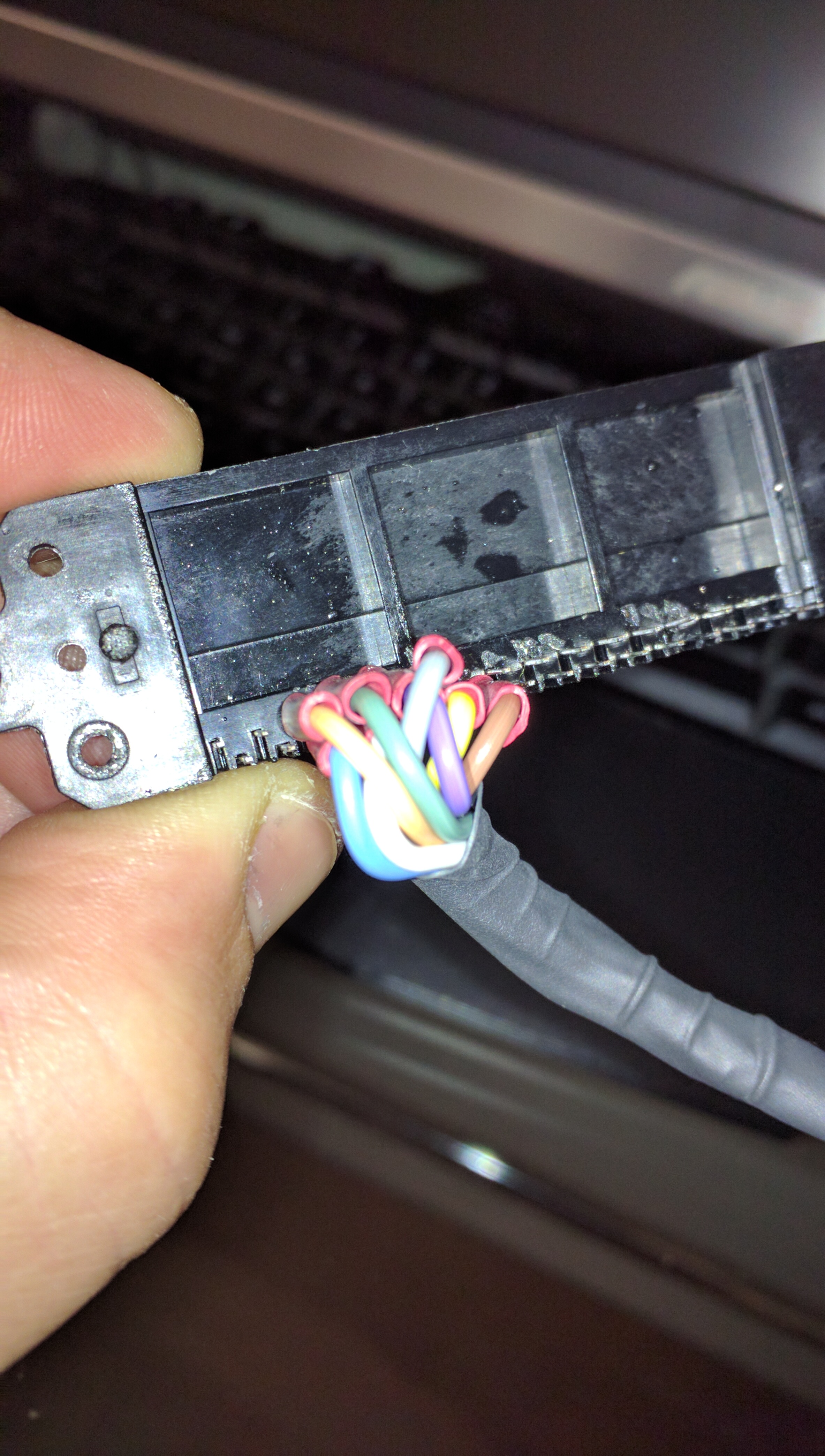

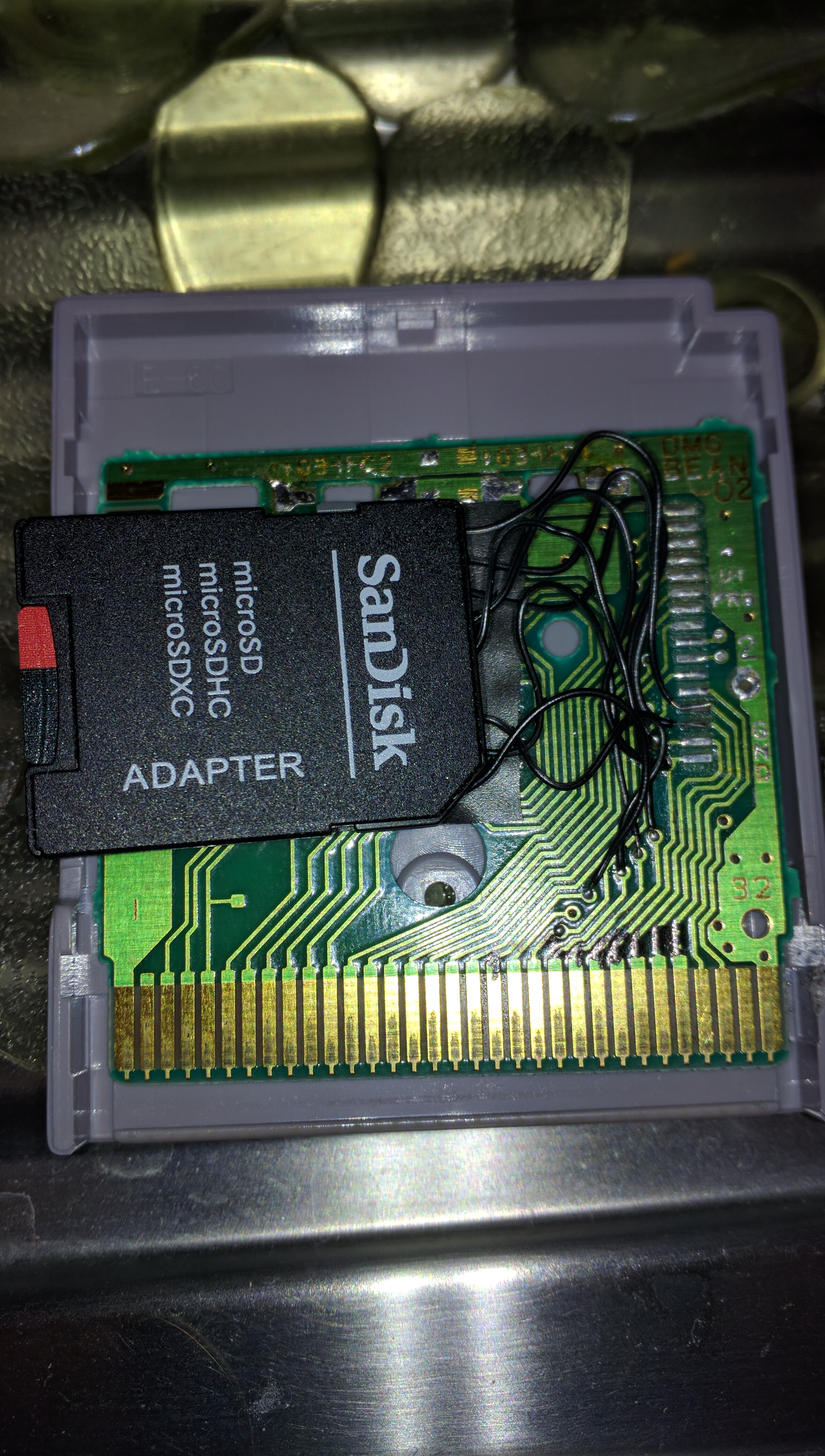

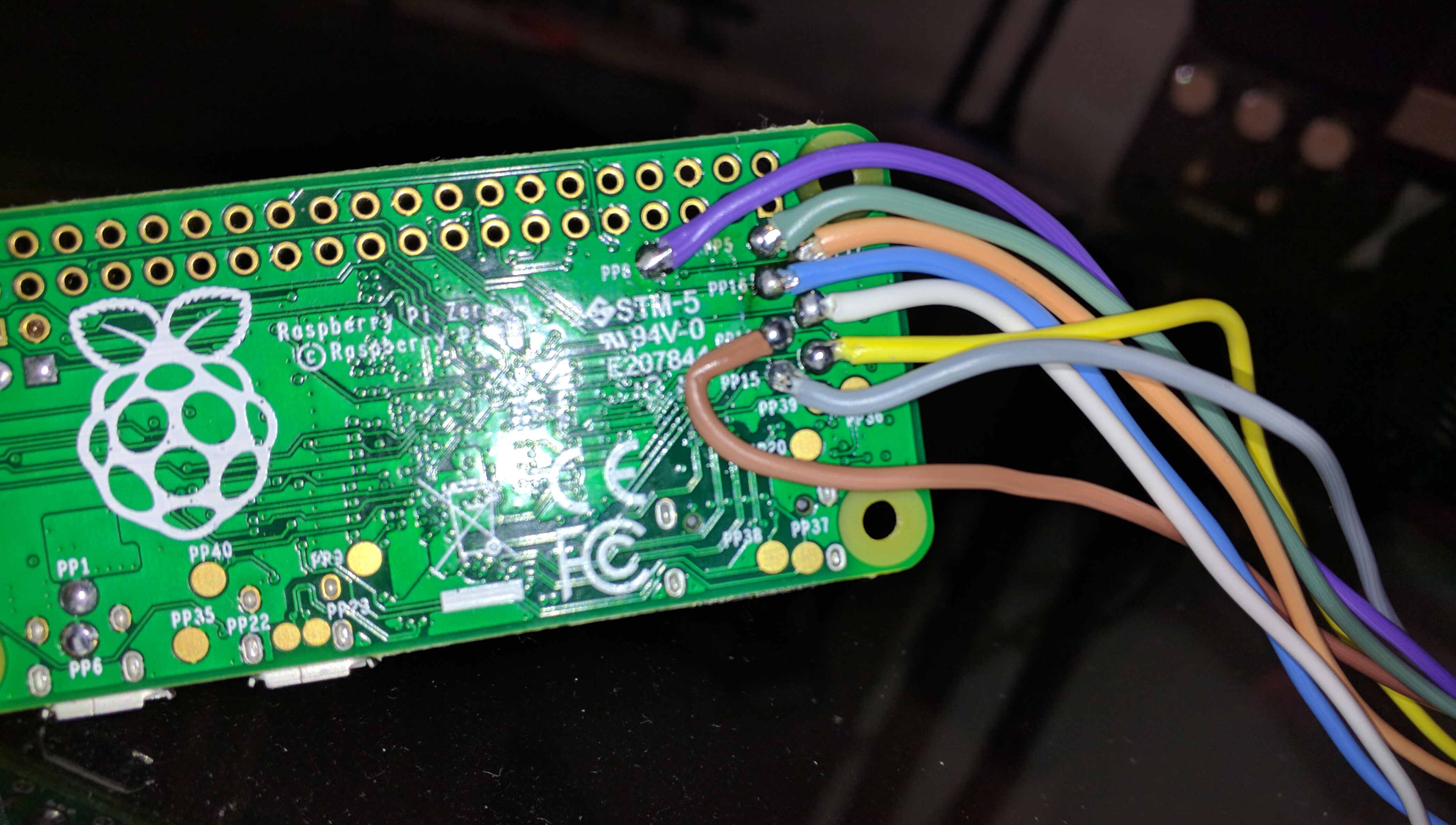

Hi guys i'seriously going mad, don't know what i'm doing wrong, here some pic... Hope you can help me... Don't know why it doesn't function. Gnd not connected is number 3. @wermy... Ur help is needed :mrgreen:
Attachments
Orange 8, blues 7, green 6, white 5, violet 4, yellow 1, grey 2, brown 9 (numeric reference to SD pinout)
Last edited by CicciOPiK on Sun Jun 05, 2016 12:55 pm, edited 2 times in total.
Top
CicciOPiK
Posts: 23
Joined: Sat May 21, 2016 1:32 am
Has thanked: 11 times
Been thanked: 1 time

Re: Going mad cartridge wiring

Post by CicciOPiK » Sun Jun 05, 2016 11:04 am

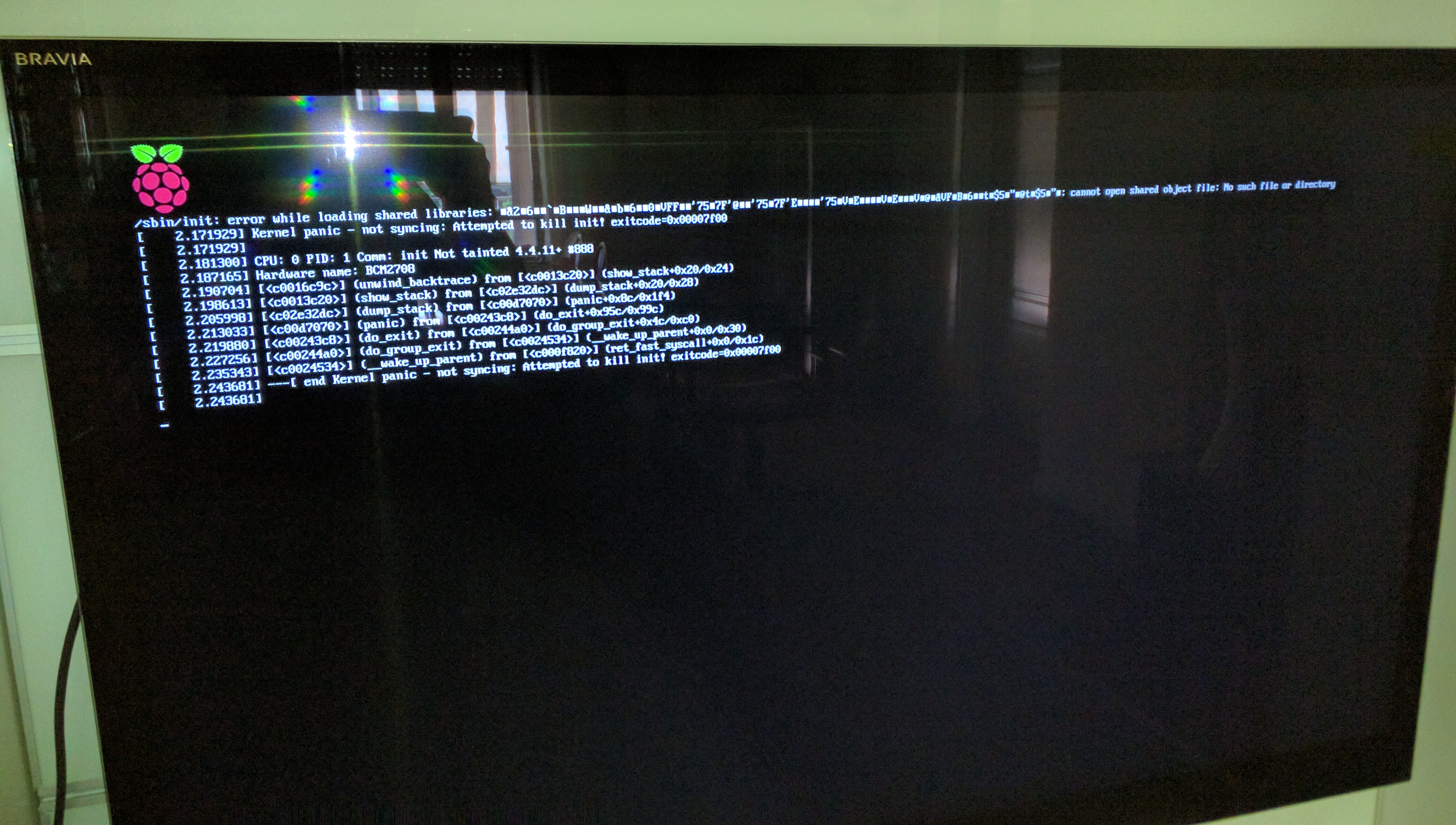

When i start it up with connected cartridge no signs of life, when i power on with SD in original socket gives me this...
Attachments
Top
User avatar
wermy
Site Admin
Posts: 1346
Joined: Tue May 03, 2016 8:51 pm
Has thanked: 620 times
Been thanked: 1322 times
Contact:
Contact wermy

Re: Going mad cartridge wiring

Post by wermy » Sun Jun 05, 2016 1:04 pm

Weird... did you try re-flashing your card? I got some read errors off and on when I wired mine up but that was fixed when I added some shielding, and it always worked when I put the card in the original SD card reader.
Top
User avatar
DirtyBullets
Posts: 137
Joined: Tue May 17, 2016 4:05 pm
Location: Lowestoft, UK
Has thanked: 5 times
Been thanked: 42 times
Contact:
Contact DirtyBullets

Re: Going mad cartridge wiring

Post by DirtyBullets » Sun Jun 05, 2016 2:33 pm

i had similar problems before but turned out some of the tracers was using the same as other pins, check to make sure you have no short.
Top
CicciOPiK
Posts: 23
Joined: Sat May 21, 2016 1:32 am
Has thanked: 11 times
Been thanked: 1 time

Re: Going mad cartridge wiring

Post by CicciOPiK » Sun Jun 05, 2016 3:41 pm

wermy wrote:Weird... did you try re-flashing your card? I got some read errors off and on when I wired mine up but that was fixed when I added some shielding, and it always worked when I put the card in the original SD card reader.
Probably the error is for rude shutdowns cause i'm Tryin and probably i damaged some files.... For connections do u think i did it right? Giving a look to photos i mean... :mrgreen:
Top
User avatar
DirtyBullets
Posts: 137
Joined: Tue May 17, 2016 4:05 pm
Location: Lowestoft, UK
Has thanked: 5 times
Been thanked: 42 times
Contact:
Contact DirtyBullets

Re: Going mad cartridge wiring

Post by DirtyBullets » Sun Jun 05, 2016 4:58 pm

need to see the reverse side to be able to check to make sure its not going anywhere else. have a look at my project and see how i did it...http://www.sudomod.com/forum/viewtopic.php?f=9&t=236
Top
CicciOPiK
Posts: 23
Joined: Sat May 21, 2016 1:32 am
Has thanked: 11 times
Been thanked: 1 time

Re: Going mad cartridge wiring

Post by CicciOPiK » Mon Jun 06, 2016 8:23 am

@wermy is possibile that i've done wrong connections into the CART pcb... Can u give a rapid look at the photos?
Top
User avatar
wermy
Site Admin
Posts: 1346
Joined: Tue May 03, 2016 8:51 pm
Has thanked: 620 times
Been thanked: 1322 times
Contact:
Contact wermy

Re: Going mad cartridge wiring

Post by wermy » Mon Jun 06, 2016 8:41 am

CicciOPiK wrote:@wermy is possibile that i've done wrong connections into the CART pcb... Can u give a rapid look at the photos?
Can you post a picture of the other side of your SD card?
Top
CicciOPiK
Posts: 23
Joined: Sat May 21, 2016 1:32 am
Has thanked: 11 times
Been thanked: 1 time

Re: Going mad cartridge wiring

Post by CicciOPiK » Mon Jun 06, 2016 8:48 am

wermy wrote:
CicciOPiK wrote:@wermy is possibile that i've done wrong connections into the CART pcb... Can u give a rapid look at the photos?
Can you post a picture of the other side of your SD card?

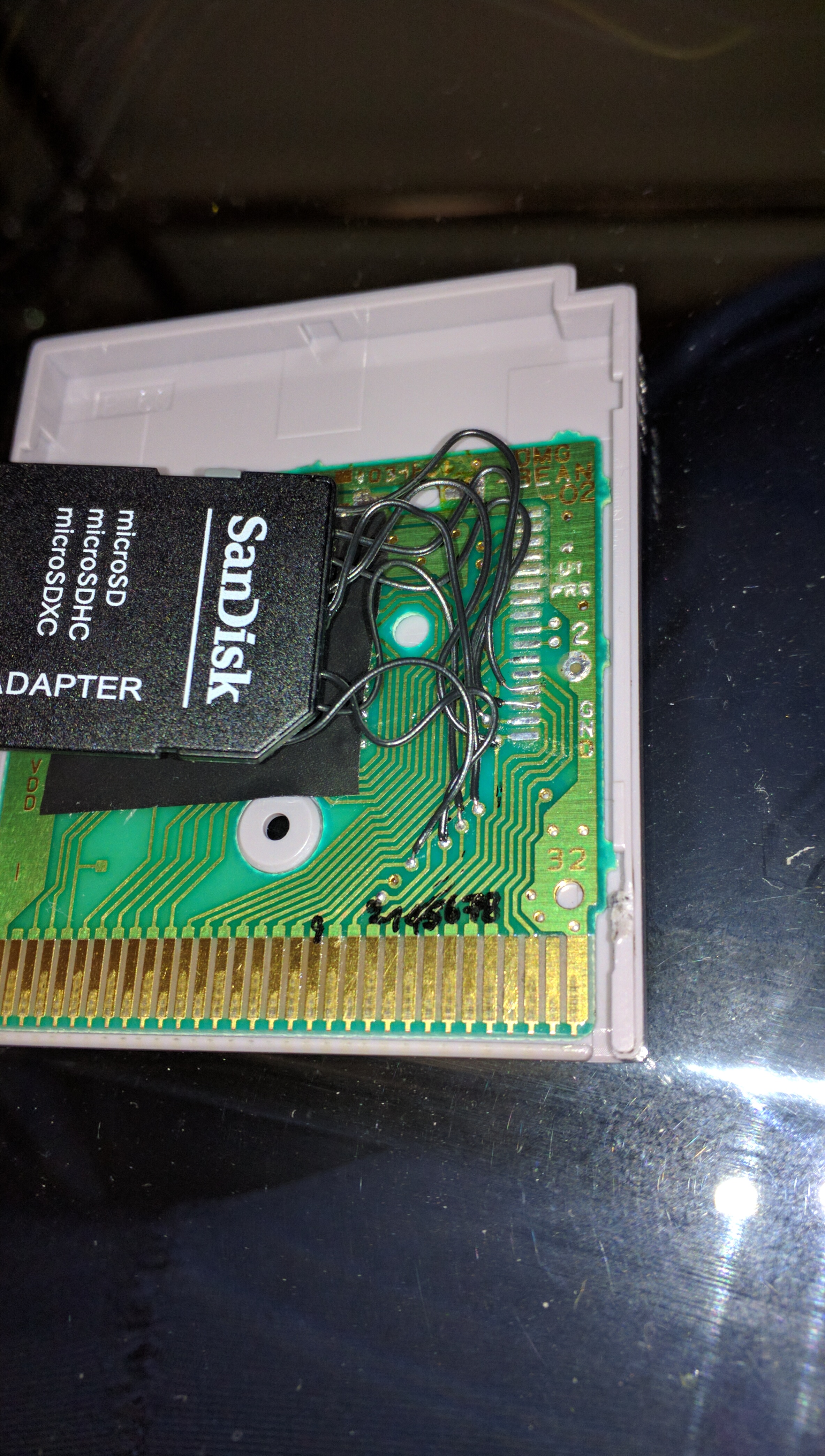

Here it is, ty :D
Attachments
Top
User avatar
wermy
Site Admin
Posts: 1346
Joined: Tue May 03, 2016 8:51 pm
Has thanked: 620 times
Been thanked: 1322 times
Contact:
Contact wermy

Re: Going mad cartridge wiring

Post by wermy » Mon Jun 06, 2016 8:51 am

CicciOPiK wrote:
wermy wrote:
CicciOPiK wrote:@wermy is possibile that i've done wrong connections into the CART pcb... Can u give a rapid look at the photos?
Can you post a picture of the other side of your SD card?
Here it is, ty :D
Sorry, I meant the underside of the sd card adaptor itself, so I can see which SD card pins go where.
Top
