Stuck with wiring

[HuisKoe]

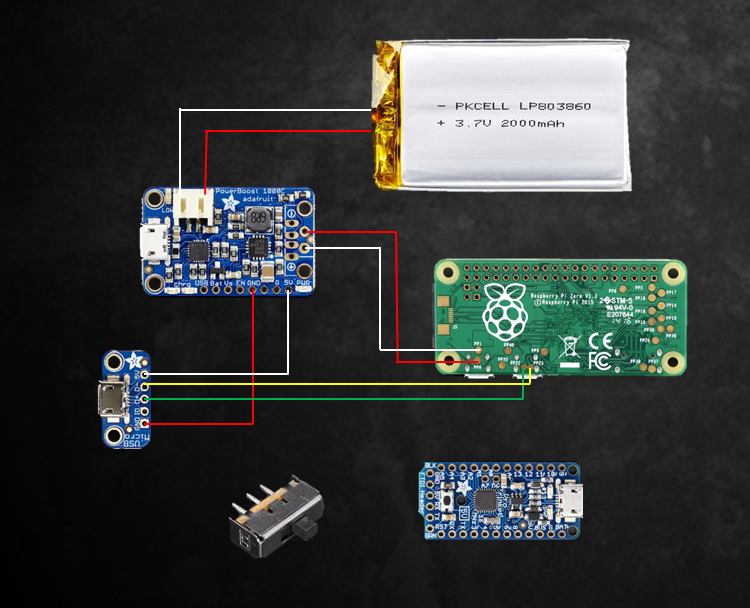

I'm trying to build a Gameboy Zero (Haven't bought any part) but I'm stuck with my wiring diagram, How do I need to hook up the power switch and the Pro Trinket. This is what I have so far https://i.gyazo.com/30f940ccfa60d1007ea ... 74d6a6.png
(I don't need / want sound)

For a screen I need a 2.8'' one, this is the best / cheapest one I found so far: http://www.neosecsolutions.com//product ... 298cdd8085

Every suggestion will be appreciated!
Also if you have a suggestion about using other parts just tell me.


Edit 1: Improved the wiring: https://gyazo.com/51e456473fd46dd7738f02726dfa51d0.png

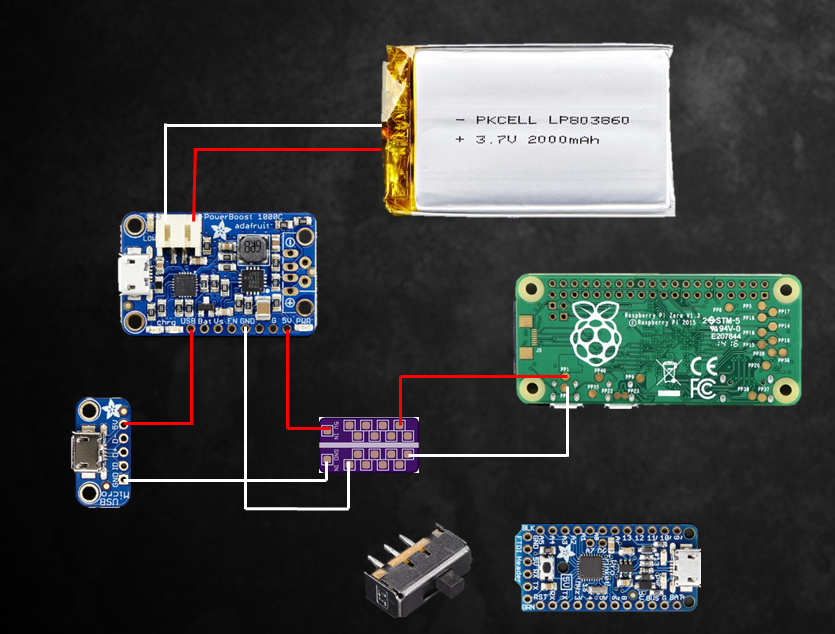

Edit 2: Added a ground wire: https://i.gyazo.com/b2d6a183caf9d998fa6 ... 4a2b7d.png

[jellybelly]

check this thread out loads of wiring guides here http://www.sudomod.com/forum/viewtopic.php?f=22&t=1179

your data wires from the pi go to a usb hub not the micro usb

the micro usb take power from the USB and GND

the the 5v and G go to the pi or a power strip

hth

[HuisKoe]

check this thread out loads of wiring guides here http://www.sudomod.com/forum/viewtopic.php?f=22&t=1179

your data wires from the pi go to a usb hub not the micro usb

the micro usb take power from the USB and GND

the the 5v and G go to the pi or a power strip

hth

Thanks, I have improved the wiring

[jellybelly]

Check the link I showed with the wiring diagram

Yours is not correct

[HuisKoe]

Check the link I showed with the wiring diagram

Yours is not correct

I added a ground wire
https://gyazo.com/b2d6a183caf9d998fa62c079bc4a2b7d.png
