Helder v2.2 - what's wrong with my wiring

Post by Tron » Thu Jan 26, 2017 2:35 pm

Hi guys,

I've been pulling my hair out with my build.

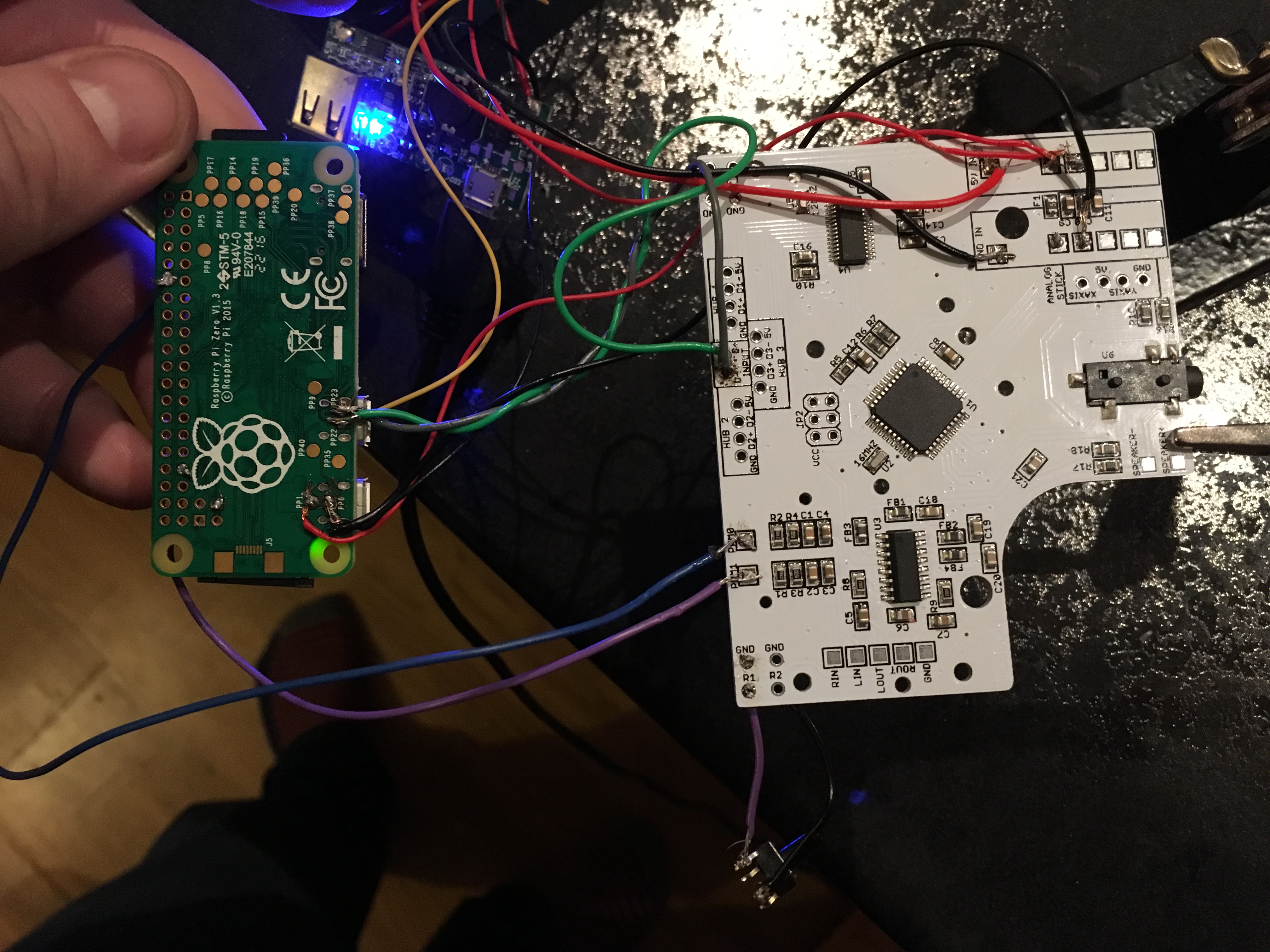

I've got everything wired up as Helder's wiring diagram for the v2.2. The pi and screen load up and get me to the welcome page but I can't get any buttons to register.

I've included a pic of my wiring (I know it's messy sorry). Am I missing something in the wiring, so I need to program the board?????

Any help guys?
Attachments

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2985
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1459 times
Been thanked: 3114 times

Re: Helder v2.2 - what's wrong with my wiring

Post by Helder » Thu Jan 26, 2017 2:50 pm

Twist the usb wires and also be sure PP22 and PP23 are not touching the Ground pad right next to each point. Use a multimeter to be sure the wires aren't grounded.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.


Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.

User avatar
Tron
Posts: 26
Joined: Sat Aug 13, 2016 1:20 pm
Has thanked: 8 times
Been thanked: 2 times

Re: Helder v2.2 - what's wrong with my wiring

Post by Tron » Thu Jan 26, 2017 3:12 pm

Helder wrote:Twist the usb wires and also be sure PP22 and PP23 are not touching the Ground pad right next to each point. Use a multimeter to be sure the wires aren't grounded.
Thanks for coming back to me so quickly.

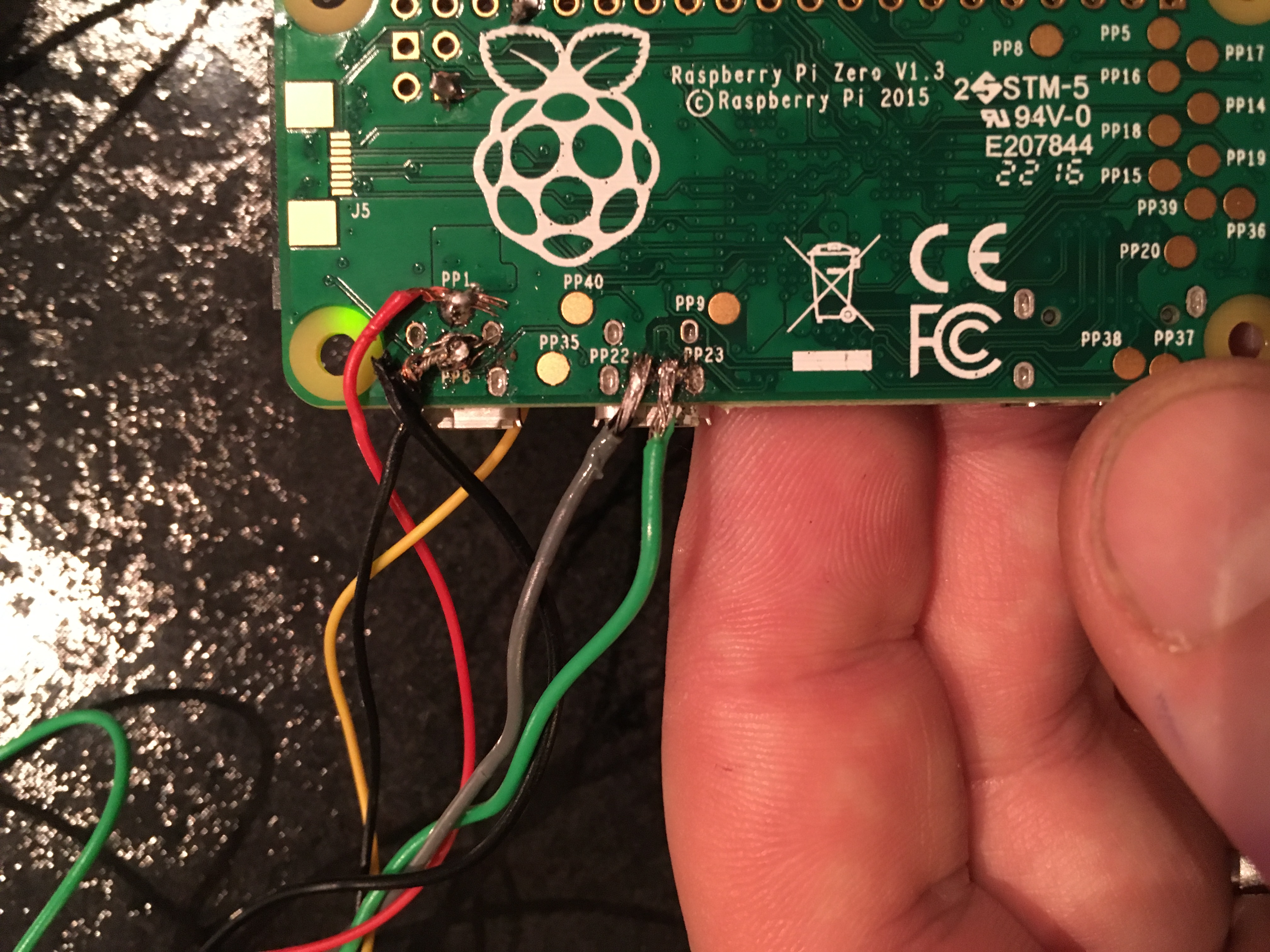

I don't have a multi meter but have twisted he wires and attached a close up of the USB connection, doesn't look to me making contact with ground.

The power side is working great the controls are just dead, I wired a tactile switch to R1 to try that but no joy.

Any other ideas?

Thanks for your help
Pi wiring

User avatar
144TECH
Posts: 325
Joined: Fri Jan 06, 2017 7:30 am
Location: Amsterdam
Has thanked: 256 times
Been thanked: 71 times

Re: Helder v2.2 - what's wrong with my wiring

Post by 144TECH » Thu Jan 26, 2017 3:36 pm

Wow, the green wire seems to touch the Ground, the hole next to it.
you should remove the wires, and strip them, then tin them, and snip them off nice and short, now theres to much unisolated wire sticking out, this can cause them to touch each other.
If it doesnt work thereafter, you need to adjust with usb speed settings.
When you re-solder the wires, just tip the pads until they melt, and then shove the wire in the melted tinpad, this prevents the isolation of the wire beeing pulled back due the heat.

You should get it more like this: Image and take caution that there is a space between the yellow lines.
good Luck
Last edited by 144TECH on Thu Jan 26, 2017 4:08 pm, edited 4 times in total.
* Very Rare * GBZ 640x480 v3 Stock Looks 6000MAH
http://www.sudomod.com/forum/viewtopic.php?f=43&t=4863

User avatar
Tron
Posts: 26
Joined: Sat Aug 13, 2016 1:20 pm
Has thanked: 8 times
Been thanked: 2 times

Re: Helder v2.2 - what's wrong with my wiring

Post by Tron » Thu Jan 26, 2017 3:57 pm

144TECH wrote:Wow, the green wire seems to touch the Ground, the hole next to it.
you should remove the wires, and stip them, then tin them, and snip them off nice and short, now theres to much unisolated wire sticking out, this can cause them to touch each other.
If it doesnt work thereafter, you need to adjust with usb speed settings.
When you re-solder the wires, just tip the pads until they melt, and them shove the wire in the melted tinpad, this prevents the isolation of the wire beeing pulled back due the heat.

You should get it more like this: http://pho.to/AbFDr and take caution that there is a space between the yellow lines.
good Luck
Thanks Tech I'll give it another go

User avatar
144TECH
Posts: 325
Joined: Fri Jan 06, 2017 7:30 am
Location: Amsterdam
Has thanked: 256 times
Been thanked: 71 times

Re: Helder v2.2 - what's wrong with my wiring

Post by 144TECH » Thu Jan 26, 2017 4:01 pm

Should do the trick, or else you will get support from someone here :mrgreen:
* Very Rare * GBZ 640x480 v3 Stock Looks 6000MAH
http://www.sudomod.com/forum/viewtopic.php?f=43&t=4863

User avatar
Tron
Posts: 26
Joined: Sat Aug 13, 2016 1:20 pm
Has thanked: 8 times
Been thanked: 2 times

Re: Helder v2.2 - what's wrong with my wiring

Post by Tron » Thu Jan 26, 2017 6:08 pm

Helder wrote:Twist the usb wires and also be sure PP22 and PP23 are not touching the Ground pad right next to each point. Use a multimeter to be sure the wires aren't grounded.
Ok so I've de soldered everything and resoldered to a new pi zero and still have the same problem.

I found a multimeter I checked the impedance between ground and the two USB pads before soldering, then soldered on the two USB wires and get the same level of impedance so I'm not making a connection to ground.

I've also twisted the wires as tight as possible.

After all of the above I still have the same problem.

Is it possible that there is something up with the AIO board?

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2985
Joined: Thu May 05, 2016 8:33 am
Location: Rogers, AR
Has thanked: 1459 times
Been thanked: 3114 times

Re: Helder v2.2 - what's wrong with my wiring

Post by Helder » Thu Jan 26, 2017 11:53 pm

Tron wrote:
Helder wrote:Twist the usb wires and also be sure PP22 and PP23 are not touching the Ground pad right next to each point. Use a multimeter to be sure the wires aren't grounded.
Ok so I've de soldered everything and resoldered to a new pi zero and still have the same problem.

I found a multimeter I checked the impedance between ground and the two USB pads before soldering, then soldered on the two USB wires and get the same level of impedance so I'm not making a connection to ground.

I've also twisted the wires as tight as possible.

After all of the above I still have the same problem.

Is it possible that there is something up with the AIO board?
Hook up the board to a pc using a usb cable and see if the pc shows the hub and arduino controller.
Chat with me and other members On Discord

Don't contact me about obtaining my board files (as you will not get them). If my Boards or PCB Kits are sold out, they will be restocked as soon as I can get them and there is demand for them. You can join the mailing list on my Website to be notified when they are available.


Helder's Game Tech Website

We will not support any cloned work so don't come to us with technical issues to resolve, go talk to the cloner for help.

User avatar
144TECH
Posts: 325
Joined: Fri Jan 06, 2017 7:30 am
Location: Amsterdam
Has thanked: 256 times
Been thanked: 71 times

Re: Helder v2.2 - what's wrong with my wiring

Post by 144TECH » Fri Jan 27, 2017 11:20 am

Do you have a Powerboost 1000 ?
* Very Rare * GBZ 640x480 v3 Stock Looks 6000MAH
http://www.sudomod.com/forum/viewtopic.php?f=43&t=4863

User avatar
Tron
Posts: 26
Joined: Sat Aug 13, 2016 1:20 pm
Has thanked: 8 times
Been thanked: 2 times

Re: Helder v2.2 - what's wrong with my wiring

Post by Tron » Fri Jan 27, 2017 5:07 pm

144TECH wrote:Do you have a Powerboost 1000 ?
No I'm running off a banggood powerboost.

The pi and screen are booting up fine from the power strip in the AIO board
