Hi all,
I followed this project, and because i didn't want to destroy the board, i created my own pcb buttons board.

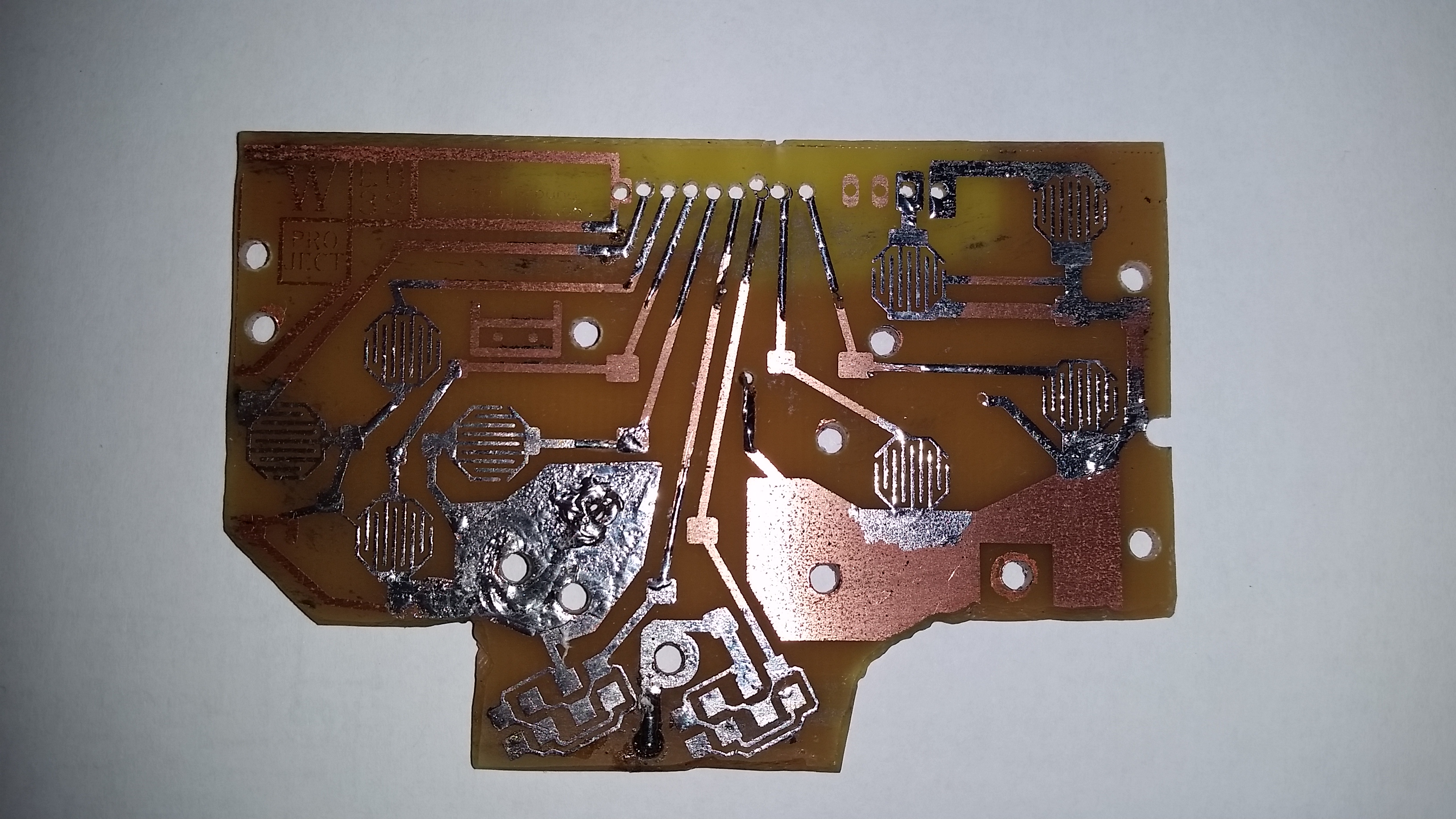

I attached a picture. and the PDF File to print and ech your own board.
If you want, i can attach the Eagle .brd design.
I am no expert in eagle, and i have to admit i inspired allot from Common Ground PCB.
Common Ground Gameboy Buttons (X and Y included)
Common Ground Gameboy Buttons (X and Y included)
- Attachments
-
- Front PCB4.zip
- (25.17 KiB) Downloaded 251 times
-
- 20160519_111111.jpg (1.87 MiB) Viewed 2574 times
