Helder's AIO 2.2 PWM1 pad broke off

[tsmed06]

While putting solder on the PWM1 pad, the pad come off. Apparently I turned my soldering iron up without realizing it. The question is, am I SOL on this or is there a work around?

[Lphillimore]

Should be able to fix this. I did the same on 2 of the volume potentiometer pads.

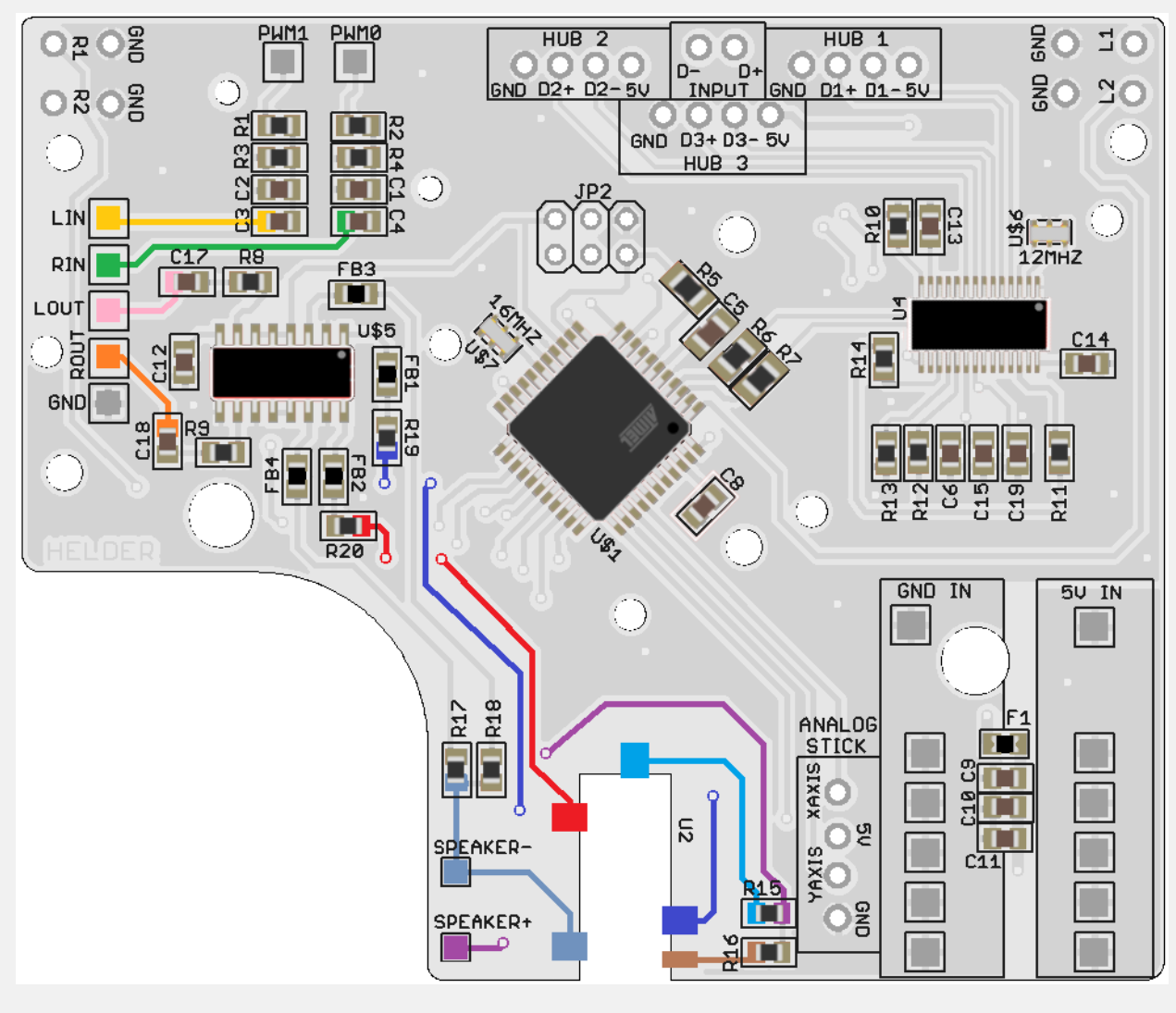

@helder sent me the below with the audio traces so I just followed them and soldered directly to the relevant components.

Same would apply to PWM pads see below:
