Testing a new 3.5” 640x480 IPS DPI LCD

General GBZ-related chat goes here. Share ideas, tips and tricks, or ask questions that don't fit into the hardware/software help forums.
User avatar
tinkerBOY
Posts: 700
Joined: Tue May 30, 2017 4:00 am
Has thanked: 293 times
Been thanked: 199 times

Testing a new 3.5” 640x480 IPS DPI LCD

Post by tinkerBOY » Thu Aug 29, 2019 3:27 am

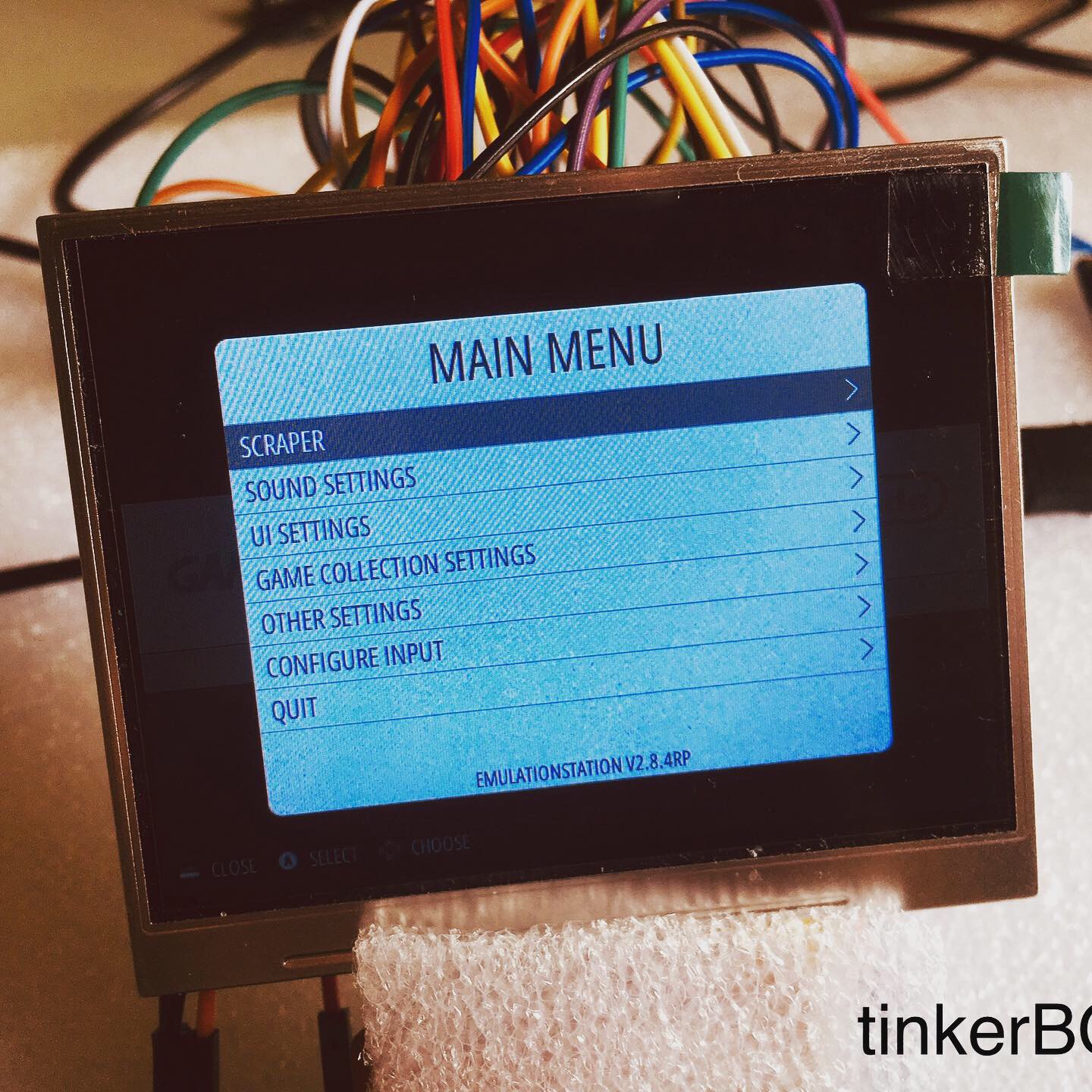

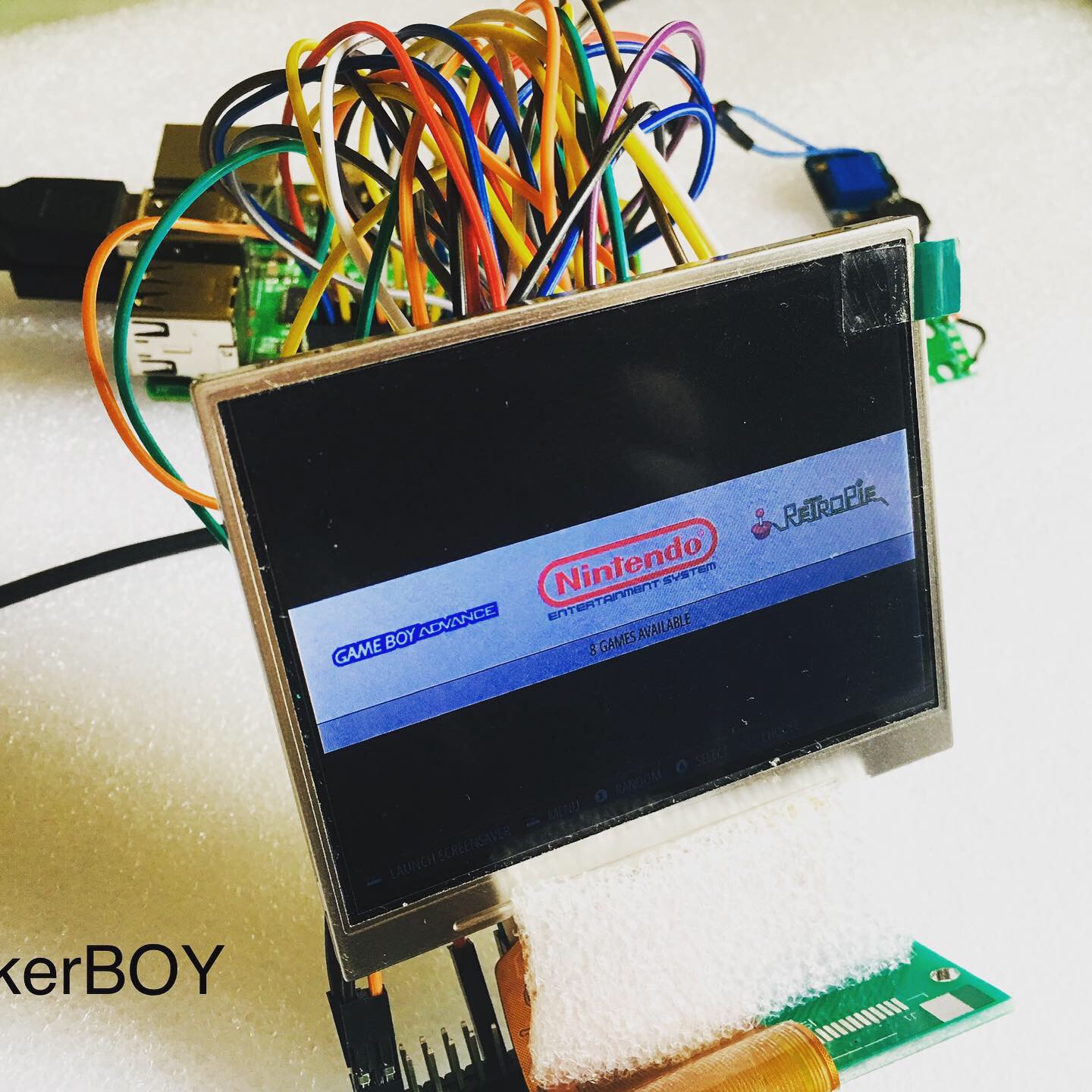

Im super super excited to test this beauty! It’s a new 3.5” 640x480 IPS LCD. It’s super sharp and clear. These photos i took from my iPhone doesn’t really do justice.
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
Bad_Robot
Posts: 1
Joined: Thu Aug 29, 2019 4:52 am

Re: Testing a new 3.5” 640x480 IPS DPI LCD

Post by Bad_Robot » Thu Aug 29, 2019 4:55 am

Nice !
54 pins ? compatible with your DPI adapter ?

User avatar
tinkerBOY
Posts: 700
Joined: Tue May 30, 2017 4:00 am
Has thanked: 293 times
Been thanked: 199 times

Re: Testing a new 3.5” 640x480 IPS DPI LCD

Post by tinkerBOY » Thu Aug 29, 2019 5:55 am

Bad_Robot wrote:
Thu Aug 29, 2019 4:55 am
Nice !
54 pins ? compatible with your DPI adapter ?
Yes 54 pins and works great with my dpi adapter.
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
GigaCat
Posts: 34
Joined: Wed Jun 19, 2019 1:21 pm
Location: Phoenix, AZ
Has thanked: 18 times
Been thanked: 15 times

Re: Testing a new 3.5” 640x480 IPS DPI LCD

Post by GigaCat » Thu Aug 29, 2019 12:21 pm

Ooh, that is sexy.

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2774
Joined: Thu May 05, 2016 8:33 am
Location: Fall River, MA
Has thanked: 1408 times
Been thanked: 3075 times

Re: Testing a new 3.5” 640x480 IPS DPI LCD

Post by Helder » Thu Aug 29, 2019 11:58 pm

Won't work for too long, the built in MCU that initializes the screen will be removed going on in the latest batches. An MCU will be needed to make it work if you get the newer ones.
My Sale Threads:

Retro PSU, 3.5A output!


Chat with me and other members


Don't contact me about obtaining my board files (as you will not get them). Don't contact me about any of my boards if they are sold out, they will be restocked as soon as I can get them.


Don't support thieves like ckliang who copied my AIO to resell and is now cloning the mintyPi, support the original creators and not the thieves!

User avatar
tinkerBOY
Posts: 700
Joined: Tue May 30, 2017 4:00 am
Has thanked: 293 times
Been thanked: 199 times

Re: Testing a new 3.5” 640x480 IPS DPI LCD

Post by tinkerBOY » Fri Aug 30, 2019 8:05 pm

Helder wrote:
Thu Aug 29, 2019 11:58 pm
Won't work for too long, the built in MCU that initializes the screen will be removed going on in the latest batches. An MCU will be needed to make it work if you get the newer ones.
Hi Helder! Any reason why the builtin MCU will be removed?
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
tinkerBOY
Posts: 700
Joined: Tue May 30, 2017 4:00 am
Has thanked: 293 times
Been thanked: 199 times

Re: Testing a new 3.5” 640x480 IPS DPI LCD

Post by tinkerBOY » Sat Aug 31, 2019 5:50 pm

If it’s for Raspberry Pi then you can just initialize the lcd via spi like what the Pimoroni Hyperpixel is doing.
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
Sushi
Posts: 97
Joined: Sat Jul 23, 2016 8:17 am
Location: East USA
Has thanked: 4 times
Been thanked: 34 times

Re: Testing a new 3.5” 640x480 IPS DPI LCD

Post by Sushi » Mon Sep 02, 2019 3:05 pm

Sorry, but not telling us where you're getting these is illegal...

User avatar
tinkerBOY
Posts: 700
Joined: Tue May 30, 2017 4:00 am
Has thanked: 293 times
Been thanked: 199 times

Re: Testing a new 3.5” 640x480 IPS DPI LCD

Post by tinkerBOY » Mon Sep 02, 2019 5:57 pm

Sushi wrote:
Mon Sep 02, 2019 3:05 pm
Sorry, but not telling us where you're getting these is illegal...
Haha.. There’s a few of these 640x480 lcd on Alibaba. I bought mine from https://eurotechnology.m.en.alibaba.com ... s_minisite.
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
Helder
Trailblazer
Trailblazer
Posts: 2774
Joined: Thu May 05, 2016 8:33 am
Location: Fall River, MA
Has thanked: 1408 times
Been thanked: 3075 times

Re: Testing a new 3.5” 640x480 IPS DPI LCD

Post by Helder » Mon Sep 02, 2019 11:49 pm

The manufacturer claims it's for stability but more than likely it's to save on cost and manufacturing defects due to the MCU being soldered to the ribbon.

I doubt this is going to work without an MCU to initialize it through it's SPI pins.
My Sale Threads:

Retro PSU, 3.5A output!


Chat with me and other members


Don't contact me about obtaining my board files (as you will not get them). Don't contact me about any of my boards if they are sold out, they will be restocked as soon as I can get them.


Don't support thieves like ckliang who copied my AIO to resell and is now cloning the mintyPi, support the original creators and not the thieves!

Post Reply

Who is online

Users browsing this forum: No registered users and 1 guest
