Post by Retrohead95 » Sat May 14, 2016 10:23 pm

Hey everyone so I decided to tackle the Pi Gameboy. I'm 20 but have been soldering since I was 14 so the soldering isn't a problem. The only thing I'm worried about is keeping everything together to upgrade later and wiring it correctly. I'm guessing I'll have to go through a few iterations or small steps to get it where I want it to be.

I also got the pi 3 but after discovering its tendency to overheat and its heavy power consumption I decided to go to the pi 2. I have all the parts I need except the teensy, battery, power switch, breadboard and the pi 2. After seeing adafruits expensive shipping I have a hard time convincing myself to get it.

I cut my x and y buttons in my last case and surprisingly I had the exact dremel bit for cutting the buttons so all I did was mark the buttons and dremel. I did however manage to mess up the back when dremeling it to fit my r and l buttons so I ordered a new case. I got my housing from eBay and it came on the same day as @kitch-bent s 4 button PCB board, clear screen cover and buttons.

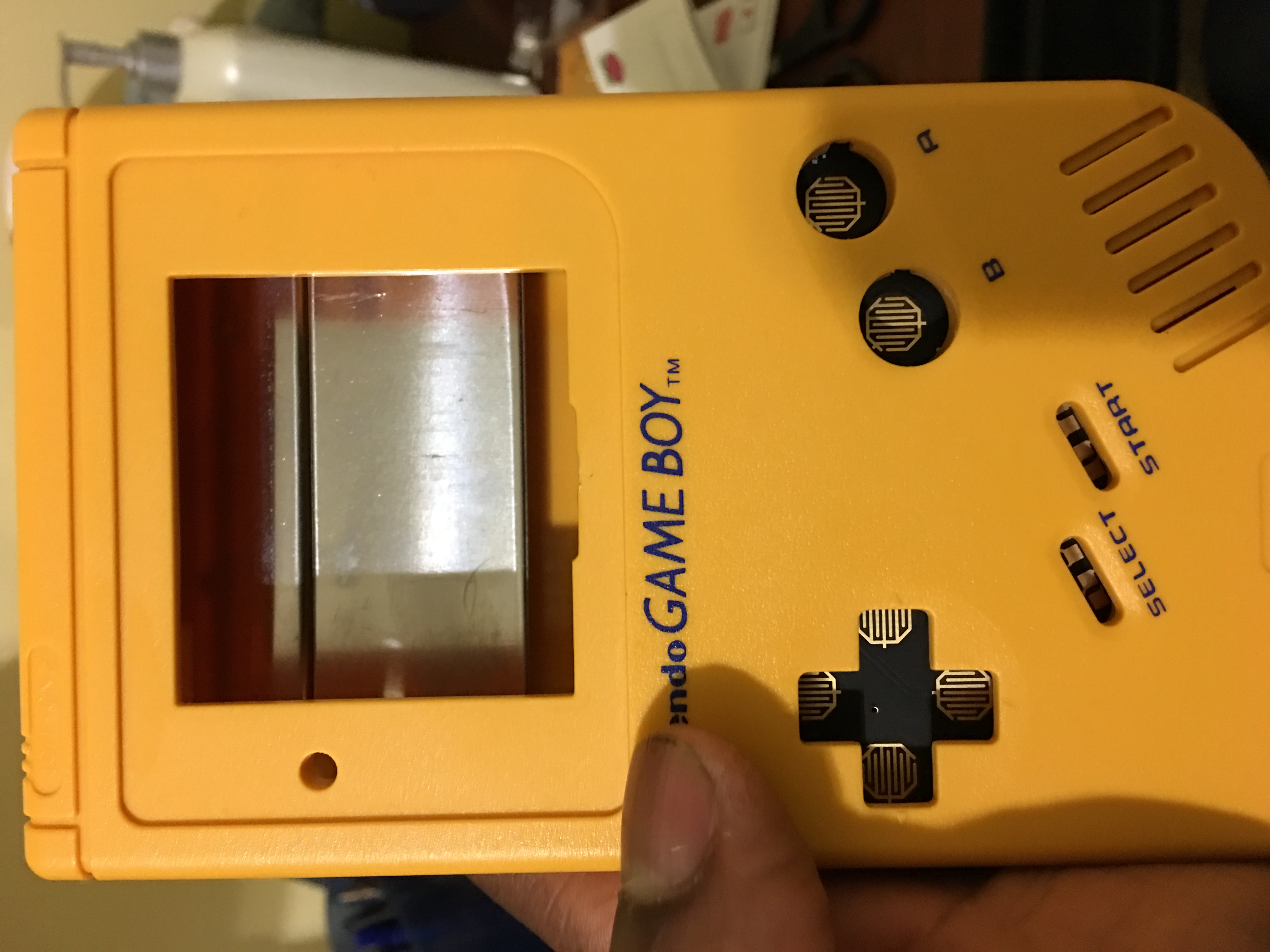

Here's what it looks like
I plan on dremeling the hole for the x and y buttons tomorrow so I'll see how that goes.

User avatar
Kilren
Posts: 574
Joined: Wed May 11, 2016 4:40 pm
Location: Washington, USA
Has thanked: 35 times
Been thanked: 84 times

Re: Retroheads GB2

Post by Kilren » Sat May 14, 2016 11:40 pm

Retrohead95 wrote:I plan on dremeling the hole for the x and y buttons tomorrow so I'll see how that goes.
I like the yellow case. I saw a semi-transparent green one the other day I might try doing a build in later just because it looks fun.

Are you super comfortable with the dremel? Unless you're doing a lot of woodworking or other heavy router work, they can be tricky. If you have access to a drill, it is a safer method for holes that have to constantly be seen. Just always start with either a pilot hole or a punch.

Now if you are comfortable with a dremel, have fun. I'm excited to see your build in the yellow submarine.

Retrohead95
Posts: 80
Joined: Thu May 05, 2016 6:00 pm
Has thanked: 3 times
Been thanked: 4 times

Re: Retroheads GB2

Post by Retrohead95 » Sat May 14, 2016 11:53 pm

Kilren wrote:
Retrohead95 wrote:I plan on dremeling the hole for the x and y buttons tomorrow so I'll see how that goes.
I like the yellow case. I saw a semi-transparent green one the other day I might try doing a build in later just because it looks fun.

Are you super comfortable with the dremel? Unless you're doing a lot of woodworking or other heavy router work, they can be tricky. If you have access to a drill, it is a safer method for holes that have to constantly be seen. Just always start with either a pilot hole or a punch.

Now if you are comfortable with a dremel, have fun. I'm excited to see your build in the yellow submarine.
Thanks man I'll keep you posted. I'm relatively comfortable using the dremel now. I used it on my last case and cut the x and y holes perfectly, Only thing that I'm worried about is cutting the L and R buttons like chiz did in the back which is what ruined my last housing :(. The trick that I use is start small and increase the size gradually. Then use the low setting on it. I also put my left hand on one end, hang it half way off the table and use my right hand to dremel. Been working great so far.

Retrohead95
Posts: 80
Joined: Thu May 05, 2016 6:00 pm
Has thanked: 3 times
Been thanked: 4 times

Re: Retroheads GB2

Post by Retrohead95 » Tue May 17, 2016 12:02 am

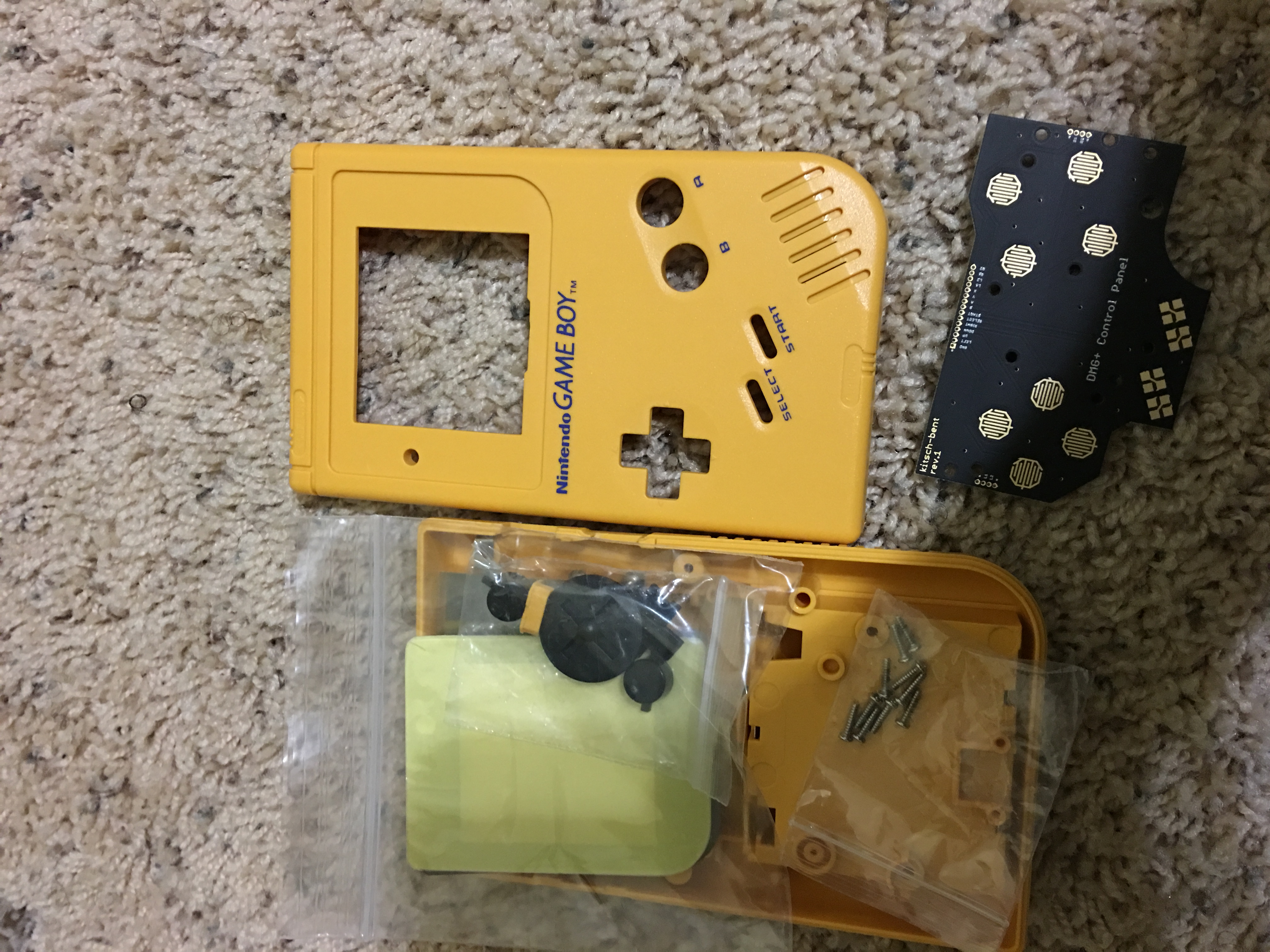

Decided to work on the front of the housing today. I also decided to go with the pi zero since I'll mostly be isn't this for Gameboy and Super Nintendo Roms. Now back to the housing. I Checked and @kitsch-Ben s controller board fits perfectly.
You can see here where I messed up on my original housing. Was rushing it and my dremel battery died twice during this.

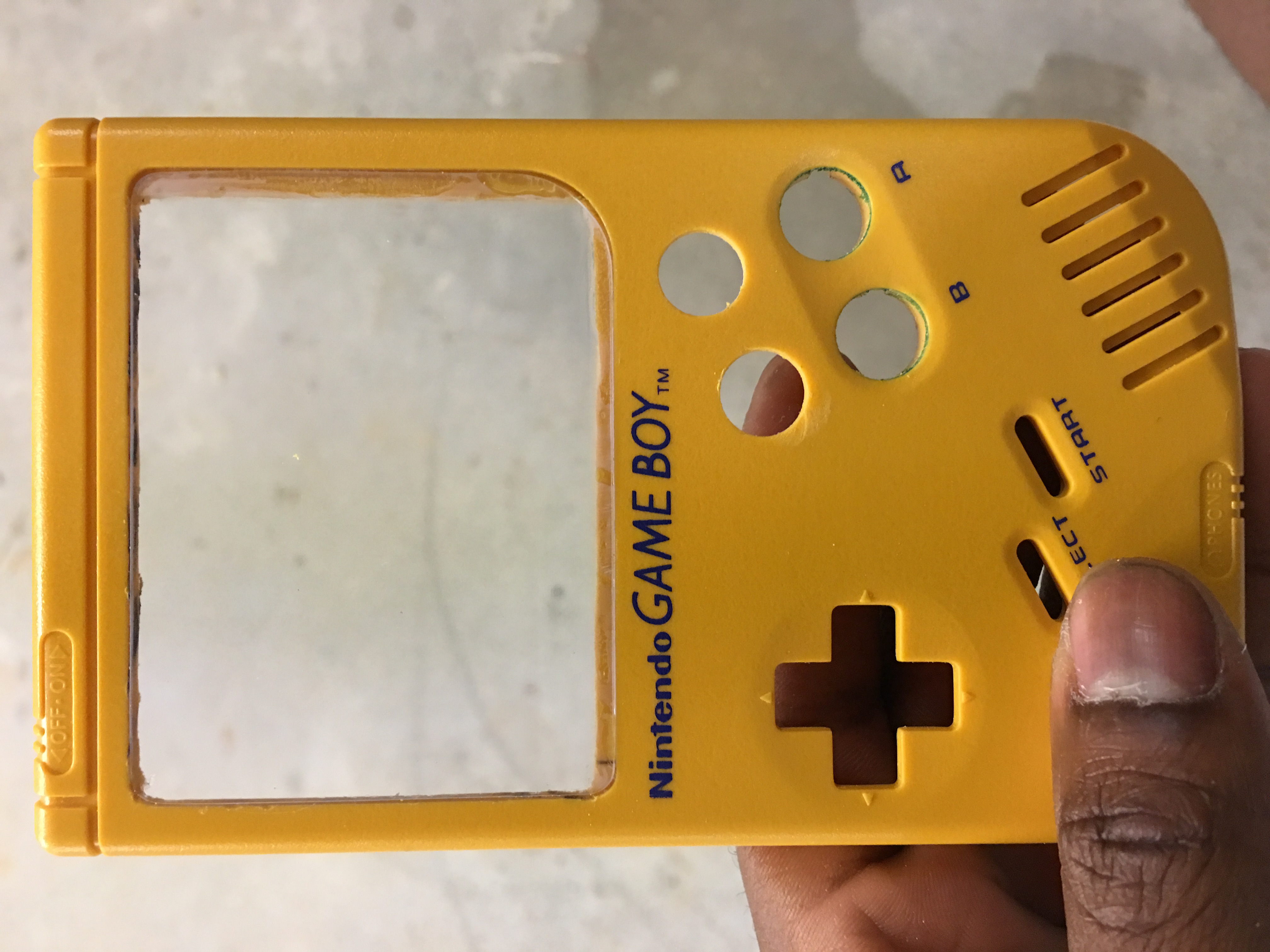

Dremeled the holes for the x and y buttons and they fit perfectly. Dremel battery died 3 times lol. I have no idea how it dies so fast, it's not even 2 months old.
Dremeled the screen area. Not exactly happy with how it came out. There's also a clear screen protector that I got from @kitsch-Ben on there as well but it's kinda hard to see. I'll probably take the protector off and sand down some more of the bezel to get it looker cleaner.
I've been trying to get the snes silicone button pads to fit but have had no luck. Guess I'll try to modify it some more to get it to fit since I don't like how the buttons feel without the pads. I also added button wells but I'll take pictures as soon as I start working on the case again.

User avatar
crispy_tofu
Posts: 340
Joined: Thu May 05, 2016 1:51 am
Location: Australia
Been thanked: 5 times

Re: Retroheads GB2

Post by crispy_tofu » Tue May 17, 2016 12:45 am

Looking good! What's with your dremel battery though? :D

Retrohead95
Posts: 80
Joined: Thu May 05, 2016 6:00 pm
Has thanked: 3 times
Been thanked: 4 times

Re: Retroheads GB2

Post by Retrohead95 » Tue May 17, 2016 3:47 am

crispy_tofu wrote:Looking good! What's with your dremel battery though? :D
Lol. It's probably laying on the desk dead as we speak.

Retrohead95
Posts: 80
Joined: Thu May 05, 2016 6:00 pm
Has thanked: 3 times
Been thanked: 4 times

Re: Retroheads GB2

Post by Retrohead95 » Tue May 17, 2016 4:38 pm

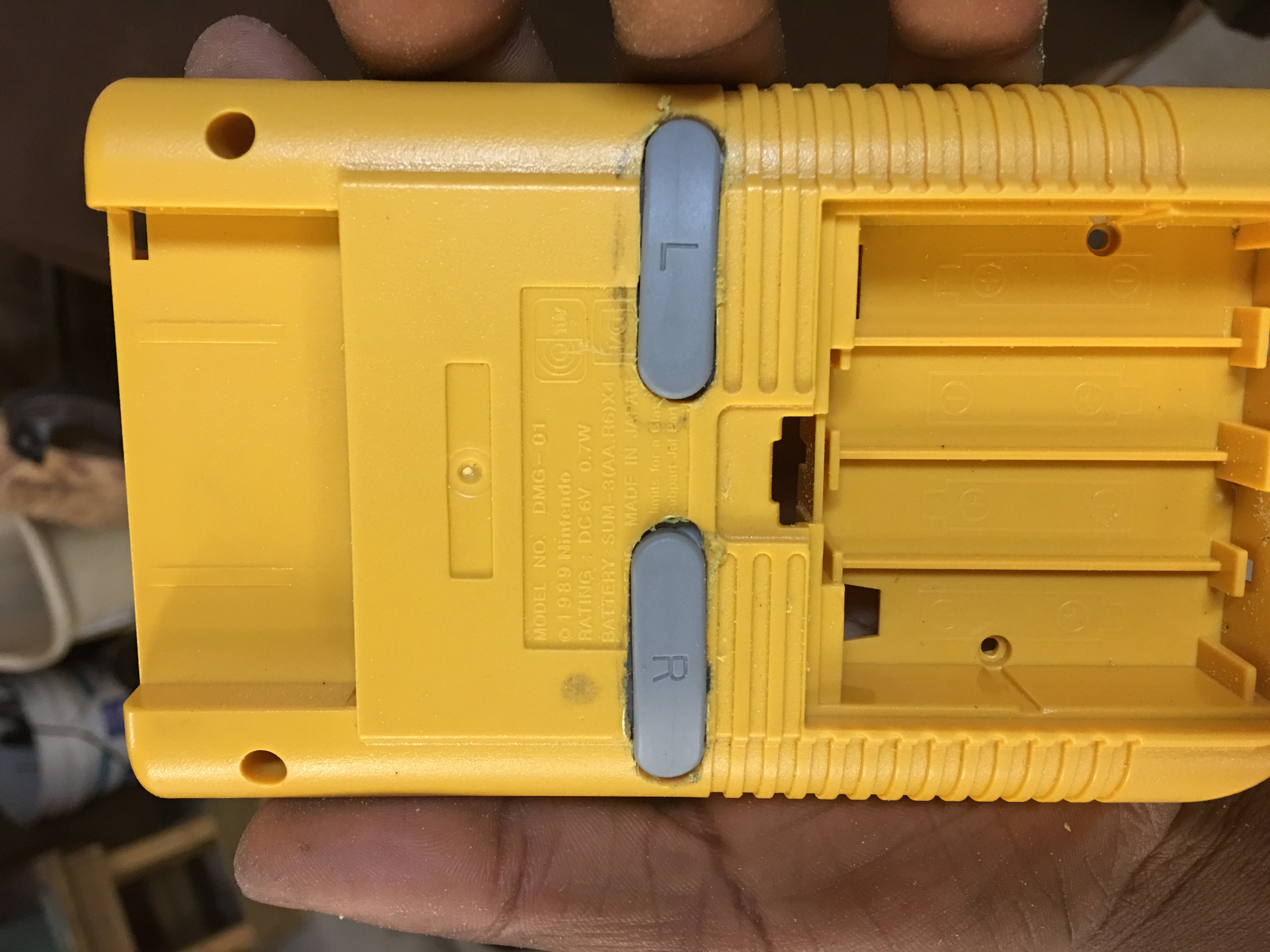

Well I managed to ruin the back of this case too trying to get the l and r button holes. Guess I'll have to order a different housing and just using the rear screw hole tactile switches like @wermy did :(

User avatar
crispy_tofu
Posts: 340
Joined: Thu May 05, 2016 1:51 am
Location: Australia
Been thanked: 5 times

Re: Retroheads GB2

Post by crispy_tofu » Tue May 17, 2016 5:13 pm

That doesn't look too bad, what's wrong with it? :|

Raquor
Posts: 9
Joined: Thu May 12, 2016 2:00 pm
Has thanked: 4 times

Re: Retroheads GB2

Post by Raquor » Tue May 17, 2016 5:23 pm

I agree with crispy_tofu, the back looks okay to me, maybe try adding a slight angle to the hole to "pretty" it up a bit?

User avatar
DirtyBullets
Posts: 137
Joined: Tue May 17, 2016 4:05 pm
Location: Lowestoft, UK
Has thanked: 5 times
Been thanked: 42 times
Contact:

Re: Retroheads GB2

Post by DirtyBullets » Tue May 17, 2016 5:28 pm

If there are some gaps then why not make it even better by adding some LED's and let it glow rings around the buttons? :geek:
