LPs Third GBZ(W)

Post by Lphillimore » Tue Mar 21, 2017 6:03 pm

So i skipped posting my second build.

Maybe ill add some pics. Its 95% done anyway.

This is my 3rd build. Another Pi Zero, this time the new 'W' version. (EDIT: Killed it so just standard Pi Zero)

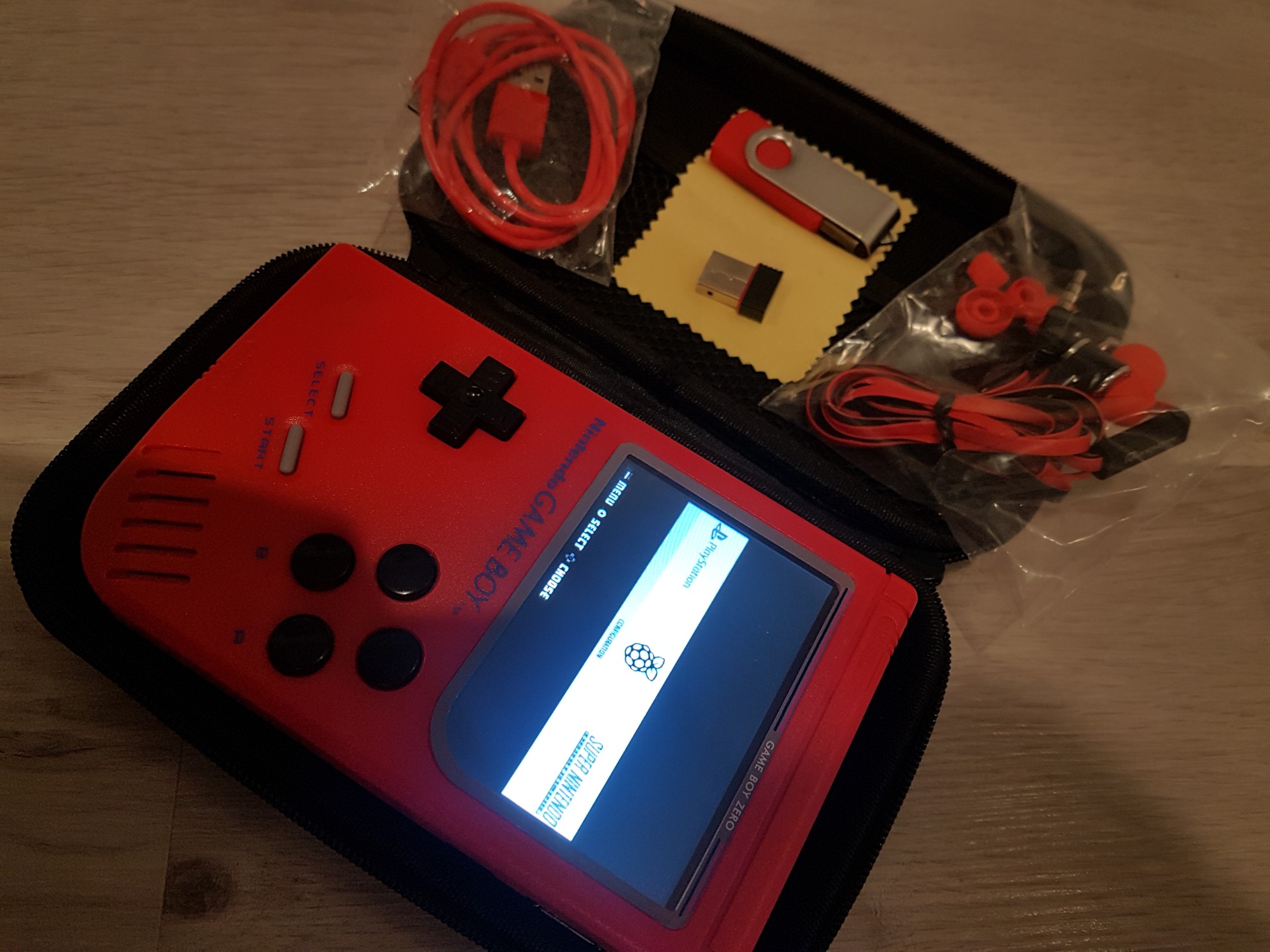

Here it is complete:

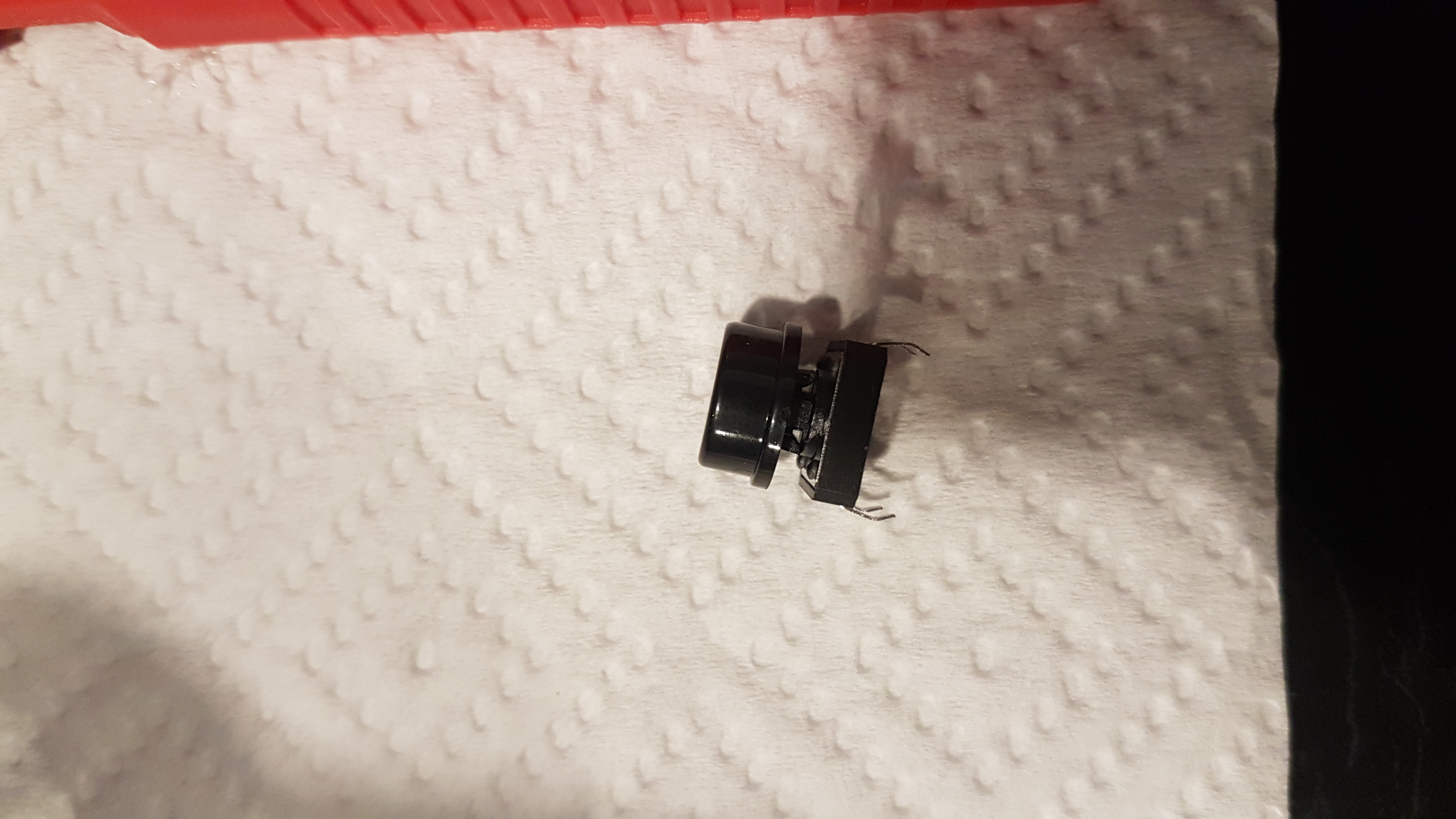

Really wanted to review the L and R buttons and hadn't seen anything I was happy with. Found these however and they work great:

http://www.ebay.com.au/itm/391279999425

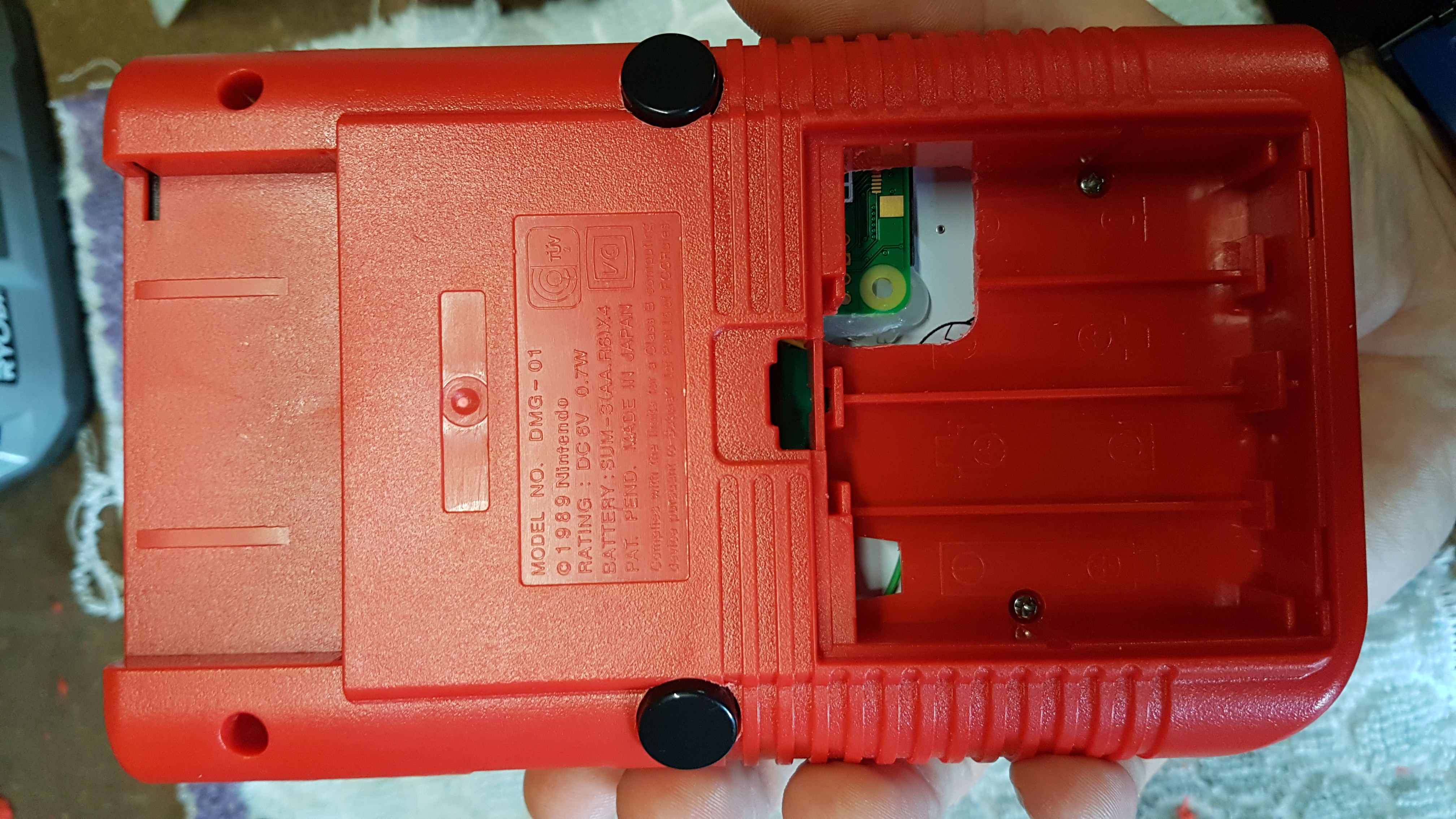

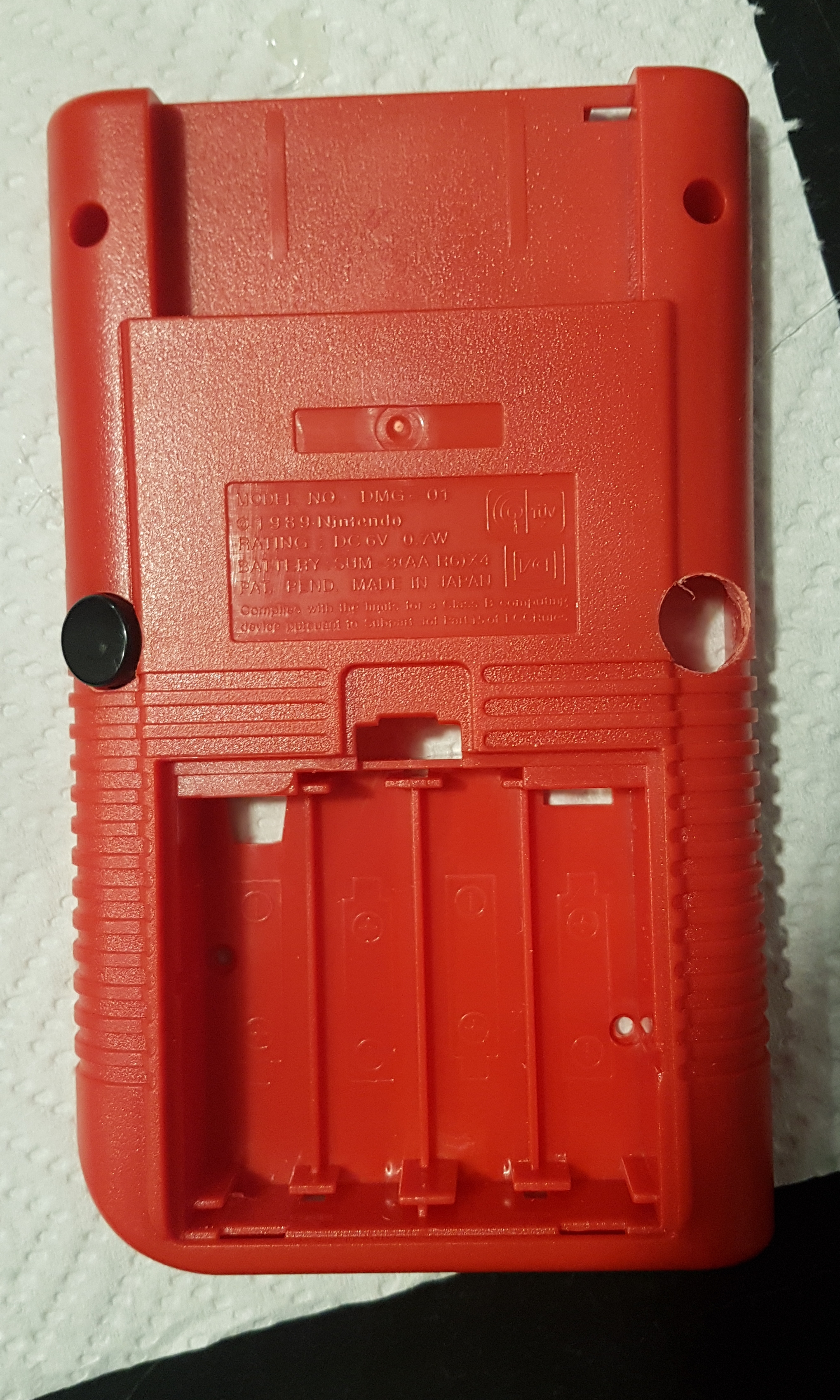

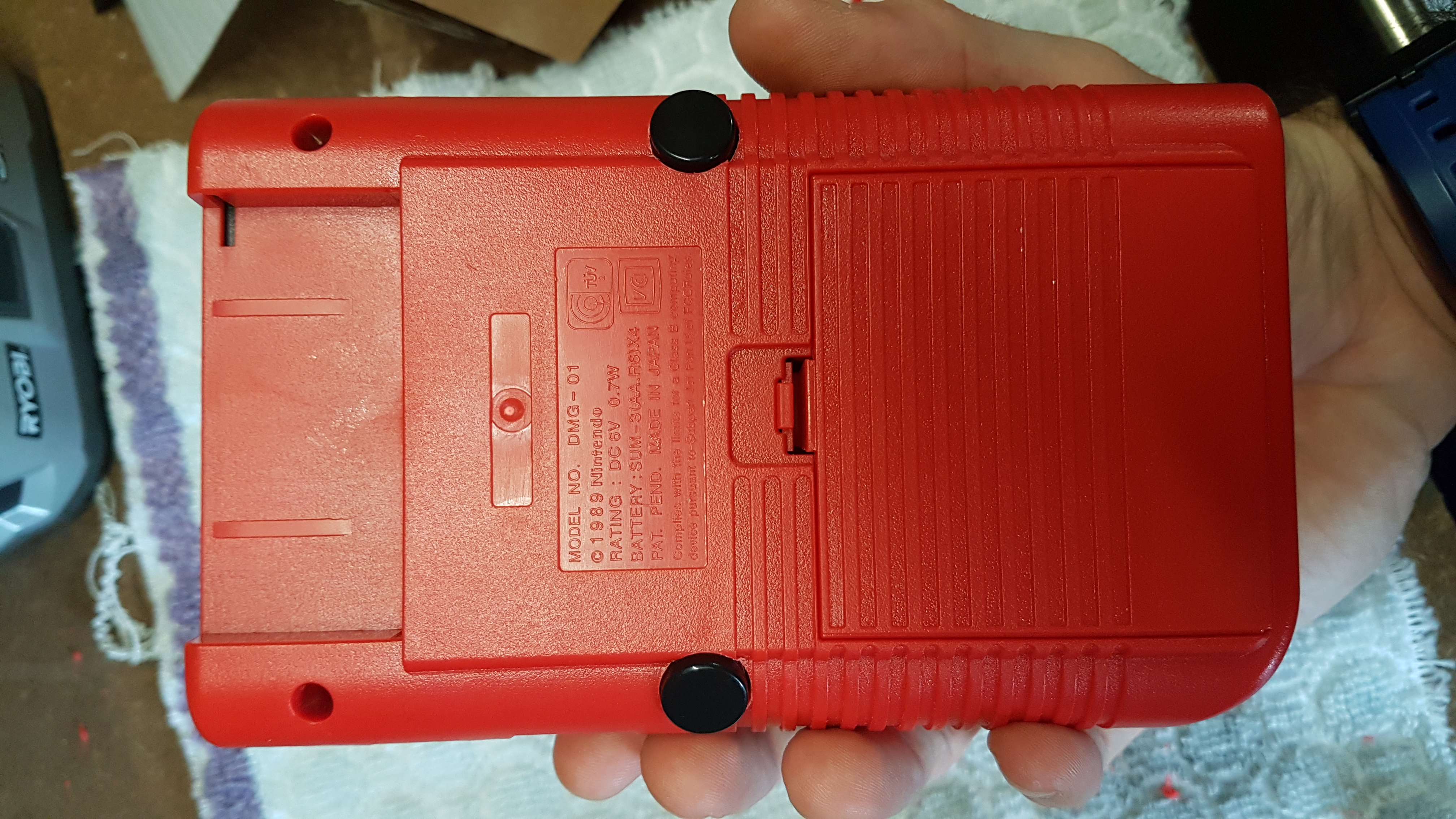

Used the same drill bit for drilling the button holes and it was pretty much perfect:
SpoilerShow

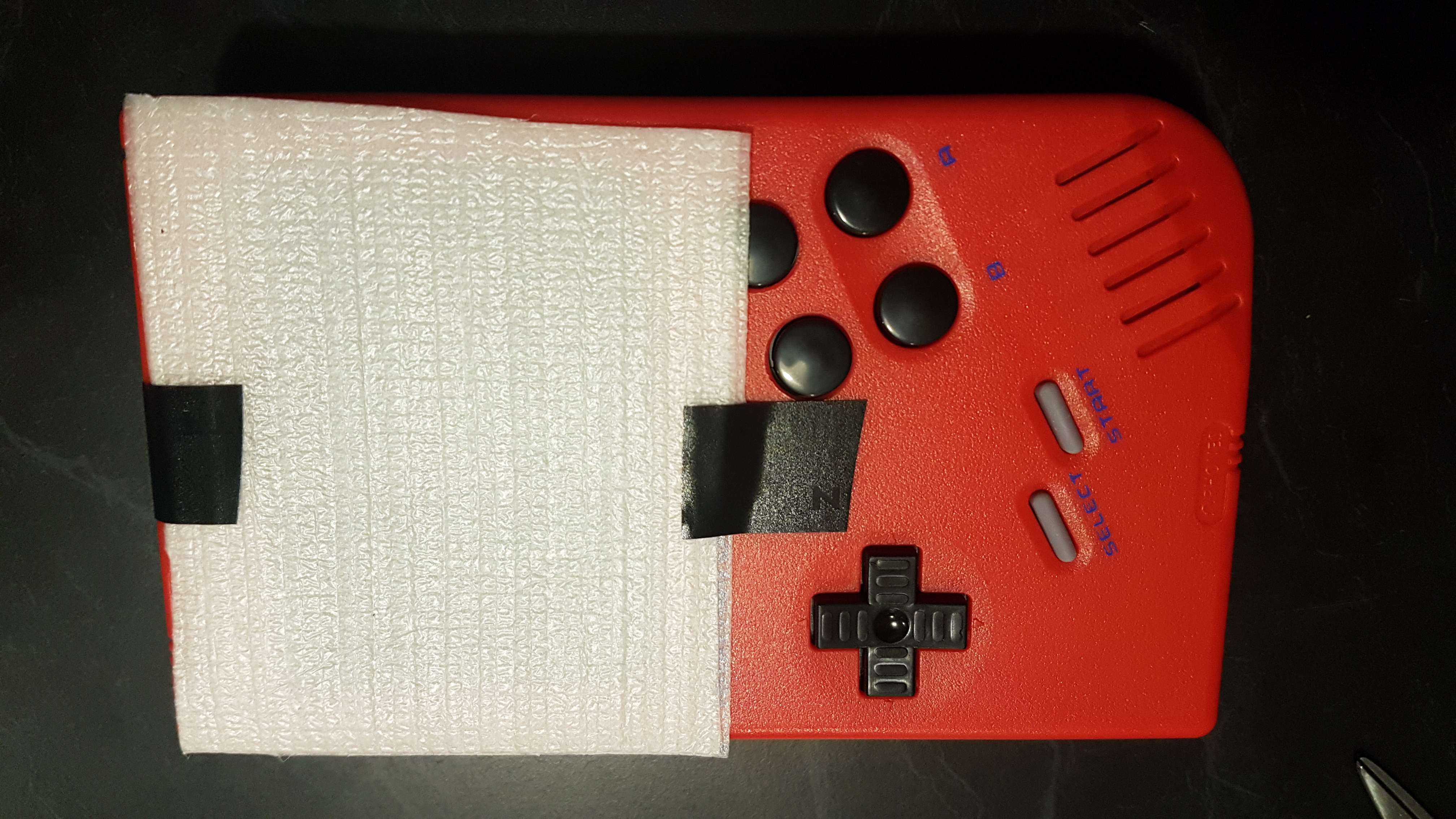

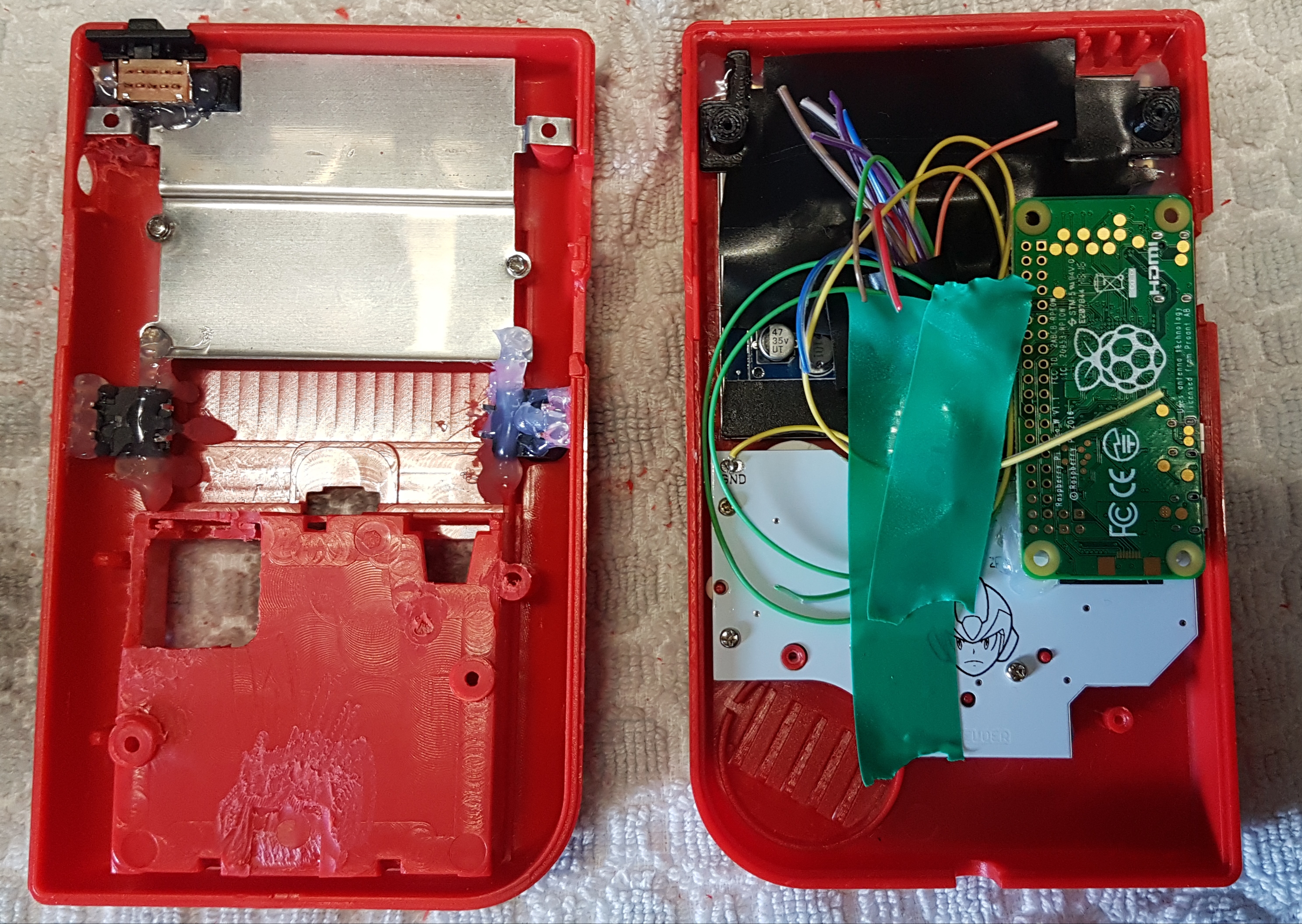

Also flying through this build. Already have screen mounted, PCB wired, Pi mounted, power switch is in and both L and R Buttons.

Of course the case has also been dremmel'd.

Bit more to go but nice and clean so far.
SpoilerShow
SpoilerShow
SpoilerShow
Last edited by Lphillimore on Tue Jul 18, 2017 9:50 am, edited 3 times in total.

User avatar
yogurtcup
Posts: 84
Joined: Tue Dec 06, 2016 5:43 pm
Has thanked: 19 times
Been thanked: 36 times

Re: LPs Third GBZ(W)

Post by yogurtcup » Tue Mar 21, 2017 8:11 pm

Ooh, might give those buttons a try when I can the chance to make my GBZ
mintyPi splash screens: viewtopic.php?f=30&t=2802

Brandonmel
Posts: 153
Joined: Wed Jan 18, 2017 1:08 pm
Has thanked: 13 times
Been thanked: 8 times

Re: LPs Third GBZ(W)

Post by Brandonmel » Wed Mar 22, 2017 10:17 am

Please post more of the build

User avatar
VeteranGamer
Posts: 1729
Joined: Thu Jan 26, 2017 11:12 am
Location: London, UK
Has thanked: 514 times
Been thanked: 898 times

Re: LPs Third GBZ(W)

Post by VeteranGamer » Wed Mar 22, 2017 11:14 am

Looks good so far...

Really interested to see how it all comes together...

I looked at these caps but was unsure how fixing them would work out especially the 12x12 based on the curve of the case...


http://s.aliexpress.com/eiqM77BZ

http://s.aliexpress.com/ErUr2QNr

http://s.aliexpress.com/u67vQZBV


But I like it so far, keep up the great work

User avatar
Lphillimore
Posts: 989
Joined: Sat Jan 07, 2017 7:03 pm
Location: Perth, WA
Has thanked: 791 times
Been thanked: 516 times

Re: LPs Third GBZ(W)

Post by Lphillimore » Wed Mar 22, 2017 4:51 pm

Brandonmel wrote:Please post more of the build
Will get some more posts on shortly. Just started working on the USB hub, Bangood powerboost etc.

User avatar
Lphillimore
Posts: 989
Joined: Sat Jan 07, 2017 7:03 pm
Location: Perth, WA
Has thanked: 791 times
Been thanked: 516 times

Re: LPs Third GBZ(W)

Post by Lphillimore » Wed Mar 22, 2017 4:54 pm

VeteranGamer wrote:Looks good so far...

Really interested to see how it all comes together...

I looked at these caps but was unsure how fixing them would work out especially the 12x12 based on the curve of the case...


http://s.aliexpress.com/eiqM77BZ

http://s.aliexpress.com/ErUr2QNr

http://s.aliexpress.com/u67vQZBV


But I like it so far, keep up the great work
I pretty much drilled the hole centrally but angled the buttons in slightly to follow the curve of the case. Gluing them in was tricky as the lip on the button cap needs to stay inside the case. Was just precise and Careful with the hot glue :mrgreen:

Will post more of the inside and progress shortly.

User avatar
rodocop
Posts: 1653
Joined: Mon Aug 22, 2016 3:14 pm
Location: Saskatchewan
Has thanked: 597 times
Been thanked: 589 times

Re: LPs Third GBZ(W)

Post by rodocop » Thu Mar 23, 2017 9:13 am

I bought those same buttons, but I never did use them since they took so long to ship and I got them after i was done. It's nice to know they work. I might be tempted to swap out my small tactile switches.

User avatar
Lphillimore
Posts: 989
Joined: Sat Jan 07, 2017 7:03 pm
Location: Perth, WA
Has thanked: 791 times
Been thanked: 516 times

Re: LPs Third GBZ(W)

Post by Lphillimore » Fri Mar 24, 2017 3:57 am

A few more pics on progress:

Have cut the hole to allow the Pi to fit and case to close.

Will wire PCB to Leonardo Pro this weekend and test.
Last edited by Lphillimore on Fri Mar 24, 2017 8:08 am, edited 6 times in total.

User avatar
Eccho
Posts: 235
Joined: Mon Nov 28, 2016 5:35 am
Has thanked: 86 times
Been thanked: 105 times

Re: LPs Third GBZ(W)

Post by Eccho » Fri Mar 24, 2017 5:00 am

Exactly what I was looking for. Thank you.

User avatar
Lphillimore
Posts: 989
Joined: Sat Jan 07, 2017 7:03 pm
Location: Perth, WA
Has thanked: 791 times
Been thanked: 516 times

Re: LPs Third GBZ(W)

Post by Lphillimore » Fri Mar 24, 2017 11:09 am

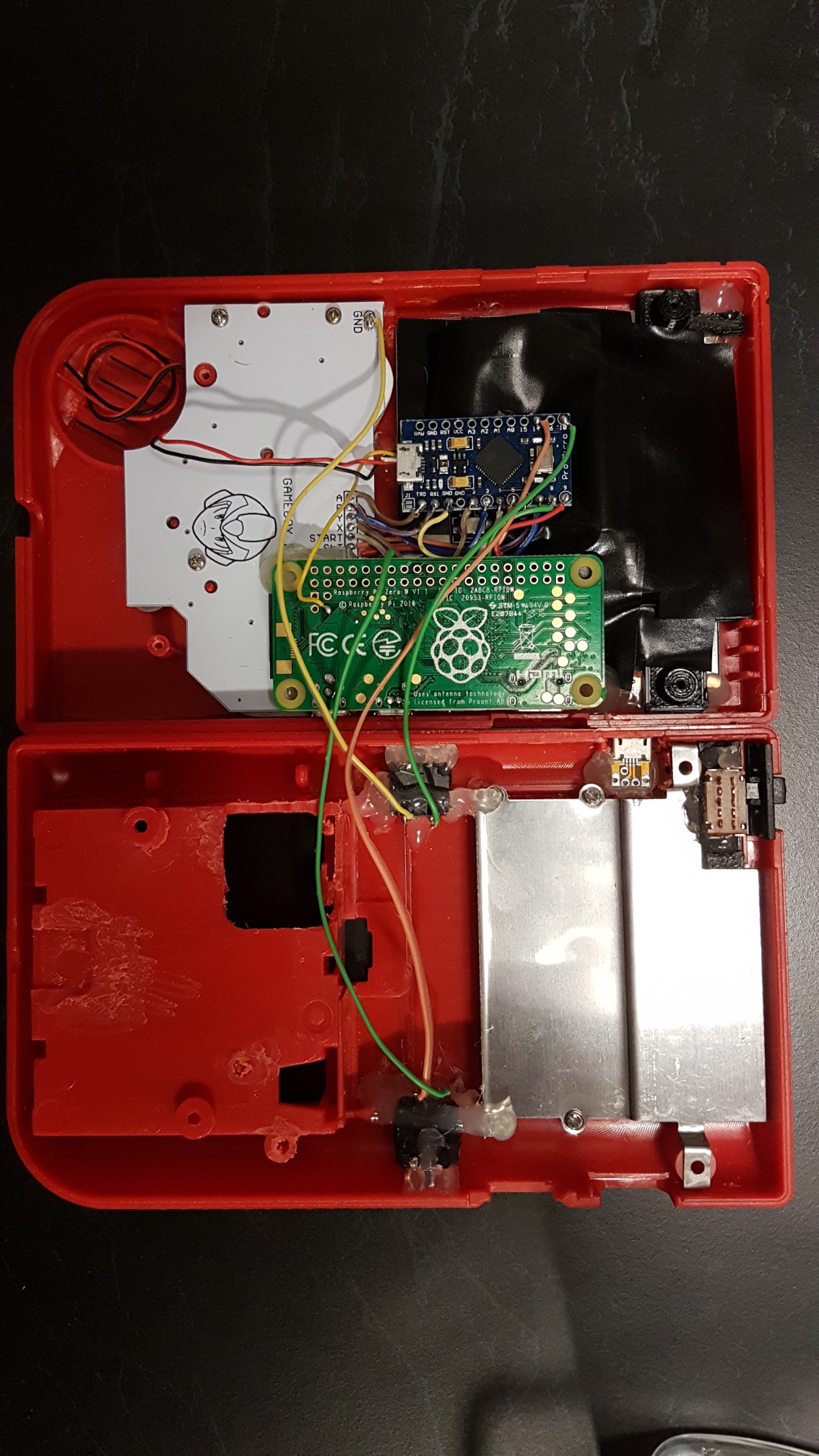

Wired up the Leonardo this evening and tested. All working nicely. Plugged it into my original GBZ and added as an additional controller.

Thanks to @sotasystems for this, first Leonardo ive used and the guide was spot on.

My setup is standard with L1 and R1 for this build.
Last edited by Lphillimore on Mon Mar 27, 2017 7:37 am, edited 1 time in total.
