Robochris' build #1.

Post by Robochris » Wed Apr 19, 2017 5:52 pm

Special thanks to wermy, helder, rxbrad, and everyone else I got advice and inspiration from.

I'll spare you the build list. You've seen it all by now. Lol.

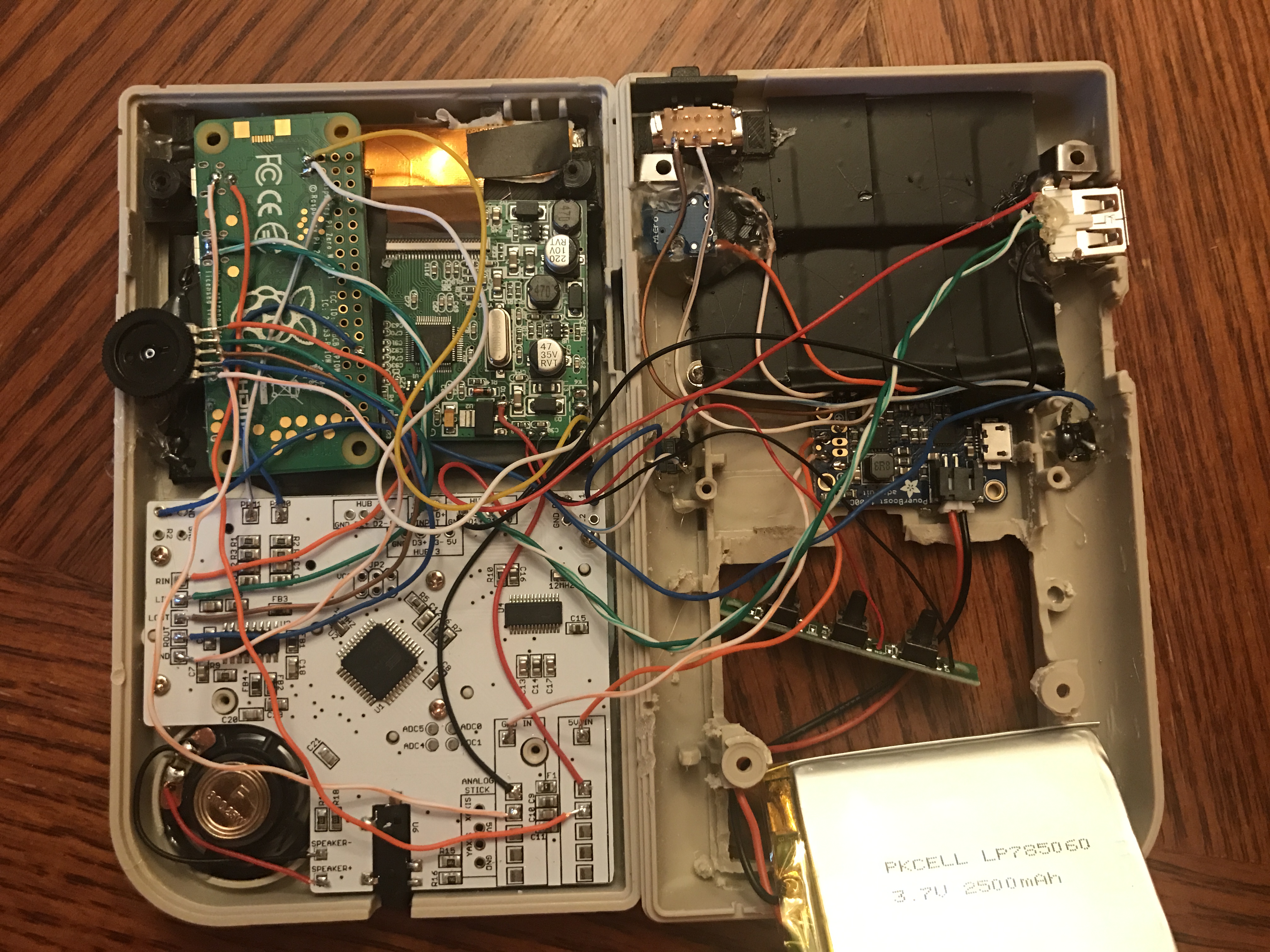

I didn't deviate too much from wermys build or do anything special. I did experiment with a few 3d printed brackets I found on Thingiverse but still ended up using wermys design.

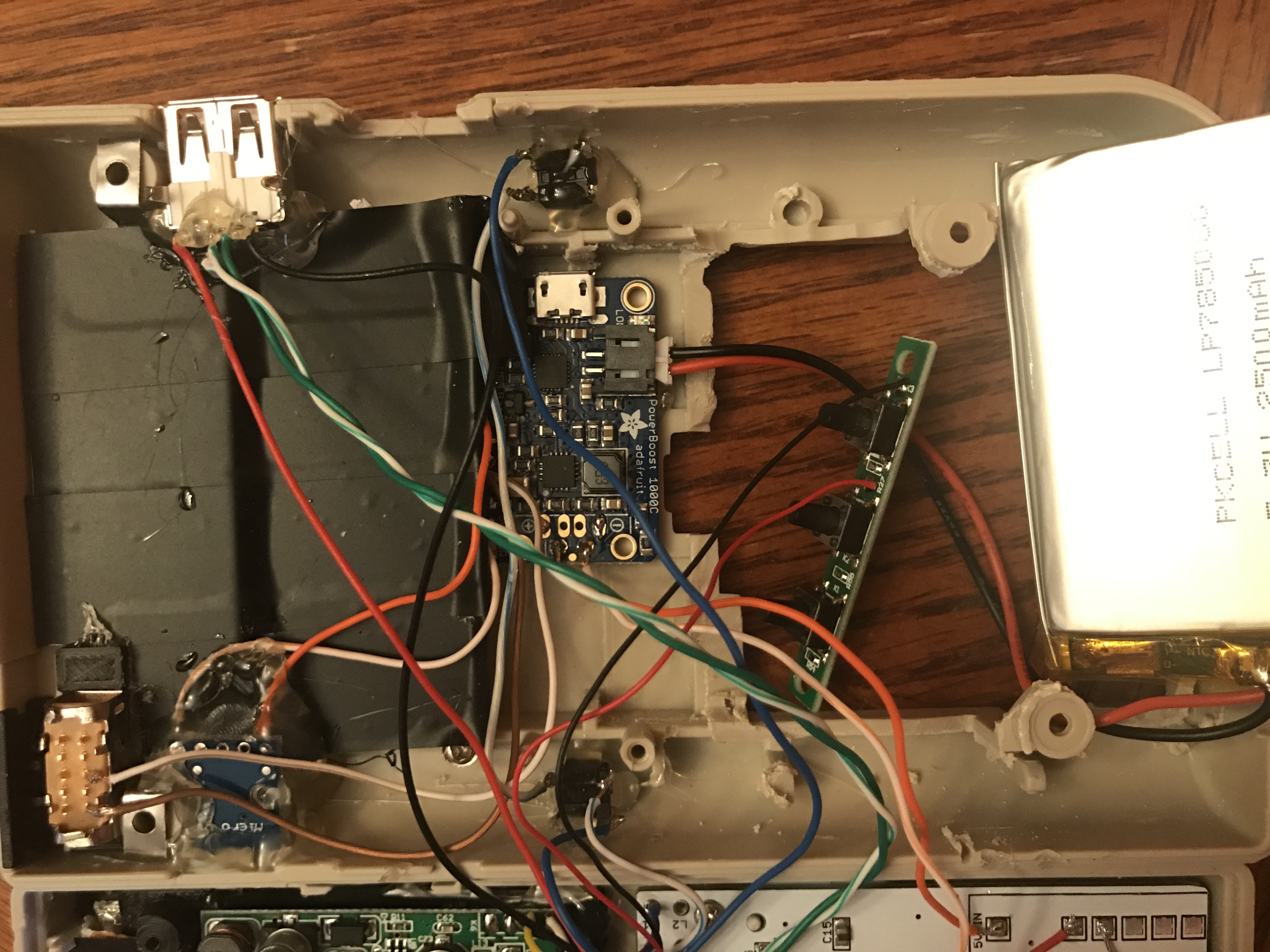

I had to flip the button wells and shim to raise the X/Y button height to my liking. And put the powerboost in the cartridge slot so the leds glow thru.

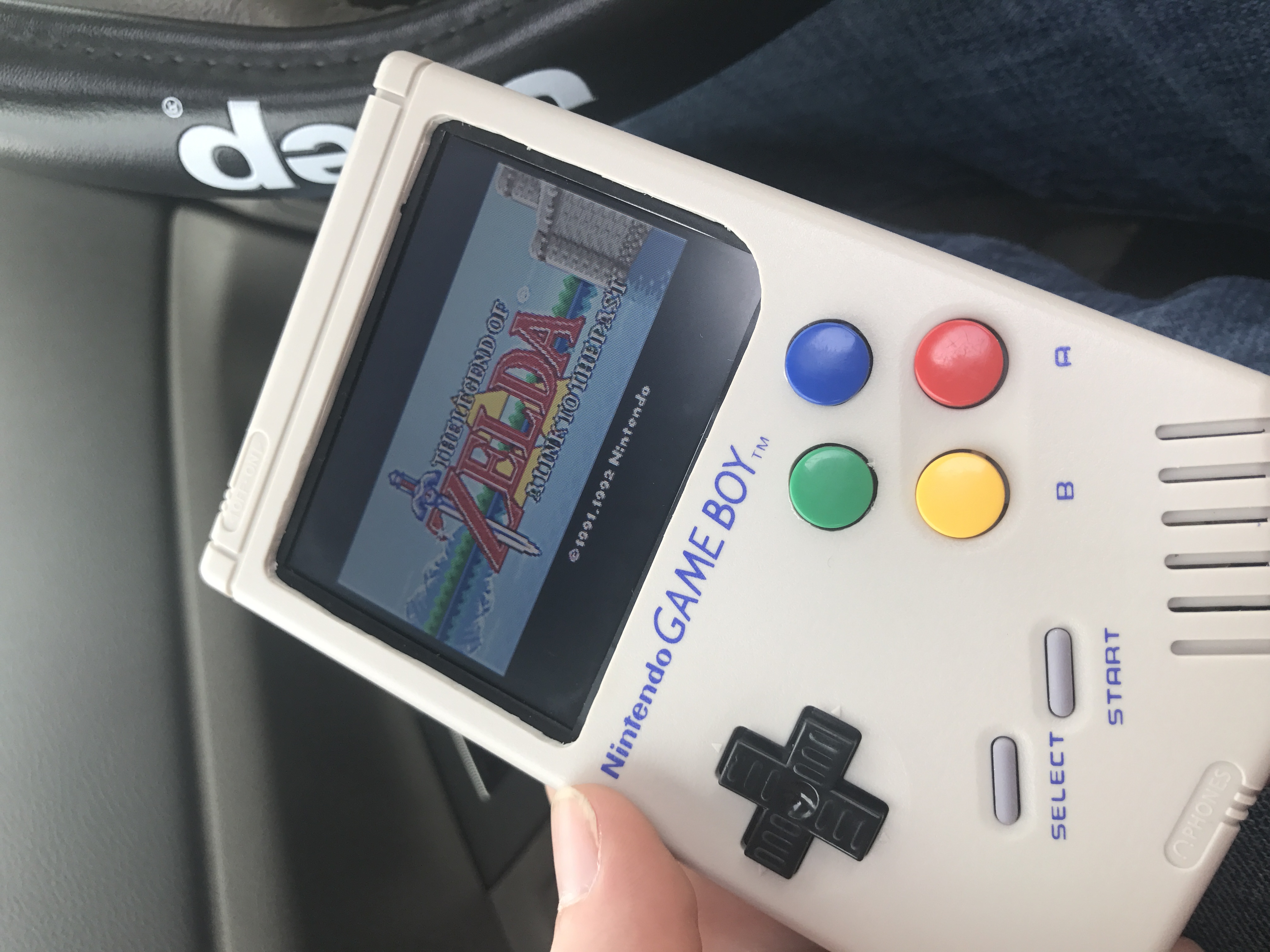

Variant 8 BW screen and I left out the cartridge reader for simplicity.
