[tinkerBOY] Game Boy 3 - RPi3 and DPI screen in 24-bit mode [COMPLETED]

Show off your completed Game Boy Zero, or post your build logs here!
Post Reply
User avatar
tinkerBOY
Posts: 702
Joined: Tue May 30, 2017 4:00 am
Has thanked: 294 times
Been thanked: 200 times

[tinkerBOY] Game Boy 3 - RPi3 and DPI screen in 24-bit mode [COMPLETED]

Post by tinkerBOY » Thu Oct 26, 2017 3:03 am

I've been wanting to do a Pi3 build for a while now and i thought i have already gained enough experience since my pi zero build to do it. Also, i was not satisfied with the screens i used on my composite and hdmi build. They're alright though. I don't like seeing 'AV1' or 'HDMI' or 'KEDEI' on the startup screen. But i wanted the best of both screens like the composite's speed and hdmi's clarity. So i think DPI is the answer.

So here are features i wish to accomplish with this build:
1. DPI screen in 24-bit mode.
2. Fan and heatsink for the Raspberry Pi 3
3. ..

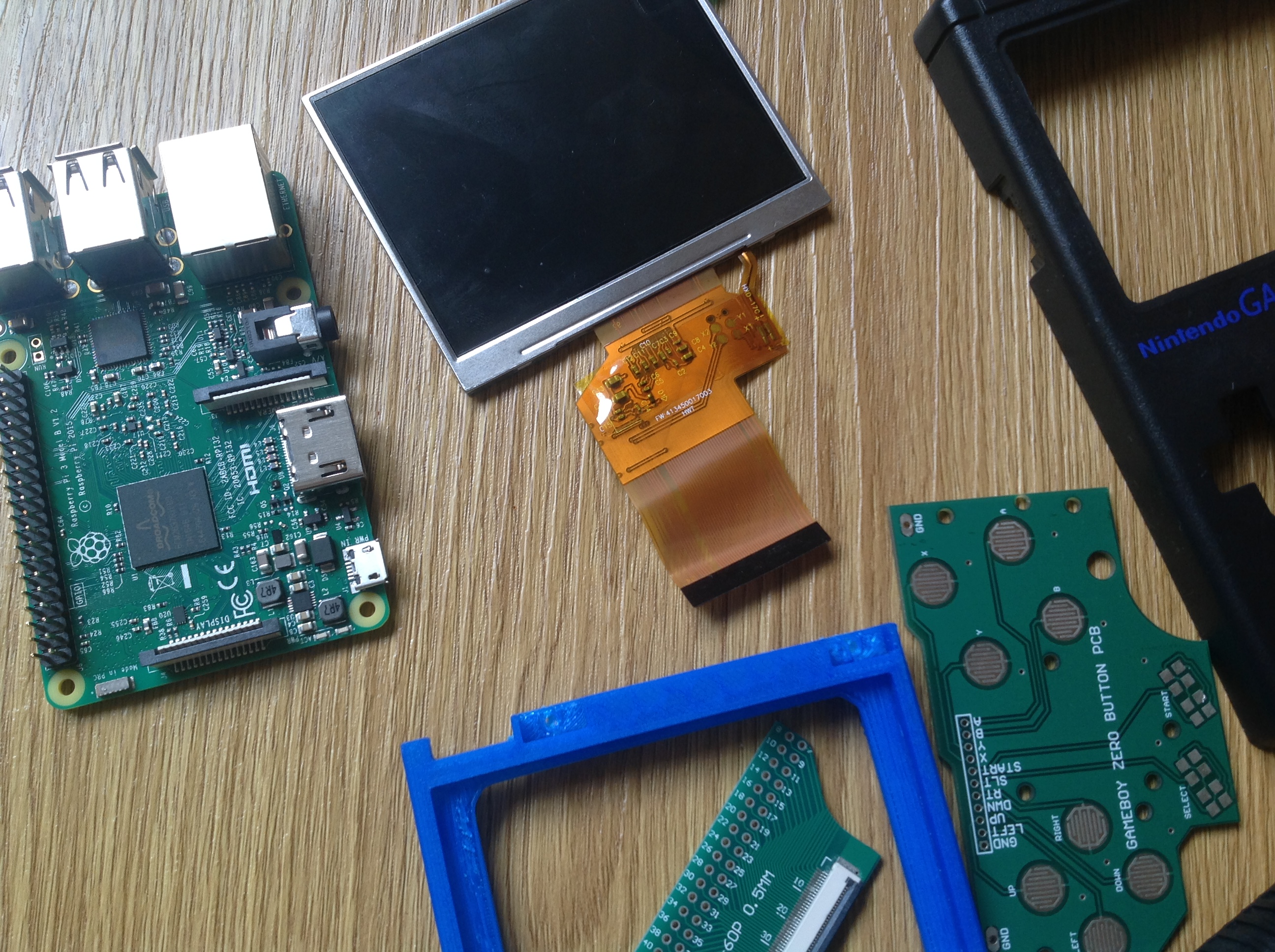

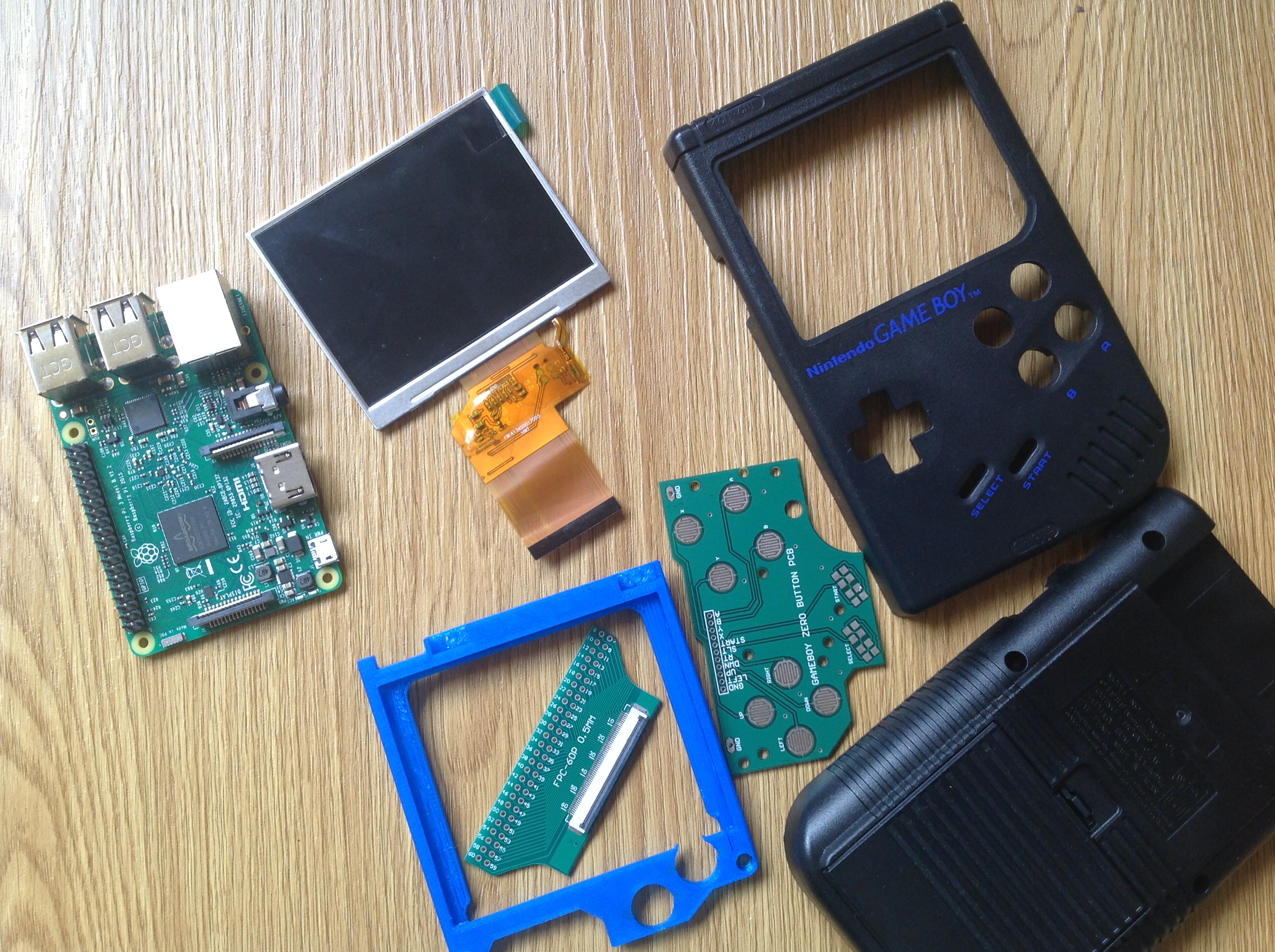

Parts to start withShow
So, that's it for now. I will update this thread as i go on.
Last edited by tinkerBOY on Mon Jan 01, 2018 8:46 pm, edited 3 times in total.
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
Xero
Posts: 30
Joined: Mon Jun 26, 2017 6:44 am
Has thanked: 1 time
Been thanked: 13 times

Re: [tinkerBOY] Game Boy Three - RPi3 and DPI screen in 24-bit mode [WIP]

Post by Xero » Thu Oct 26, 2017 4:42 am

Wicked, last build was great, excited to see this one of yours.

User avatar
tinkerBOY
Posts: 702
Joined: Tue May 30, 2017 4:00 am
Has thanked: 294 times
Been thanked: 200 times

Re: [tinkerBOY] Game Boy Three - RPi3 and DPI screen in 24-bit mode [WIP]

Post by tinkerBOY » Thu Oct 26, 2017 5:39 pm

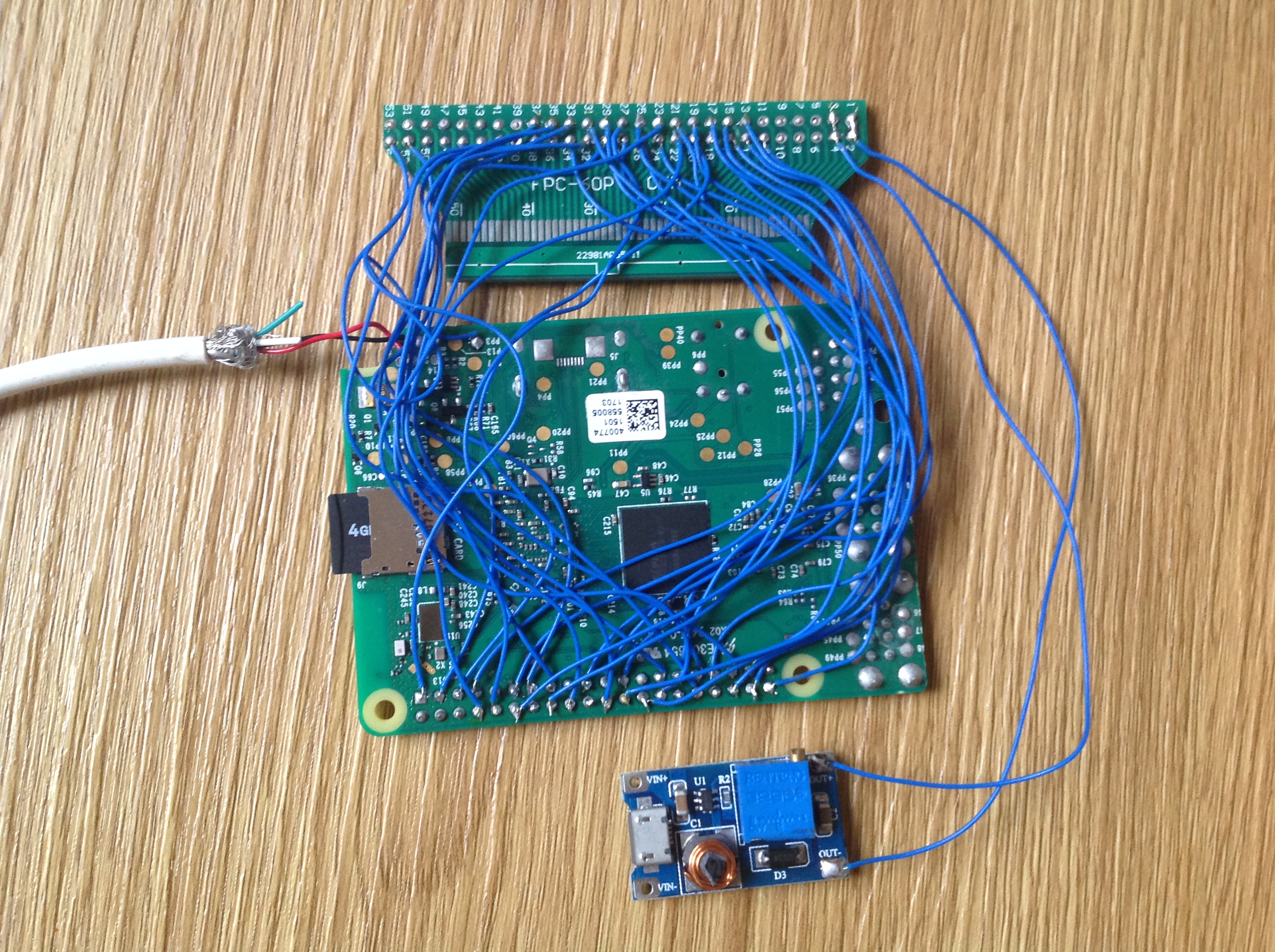

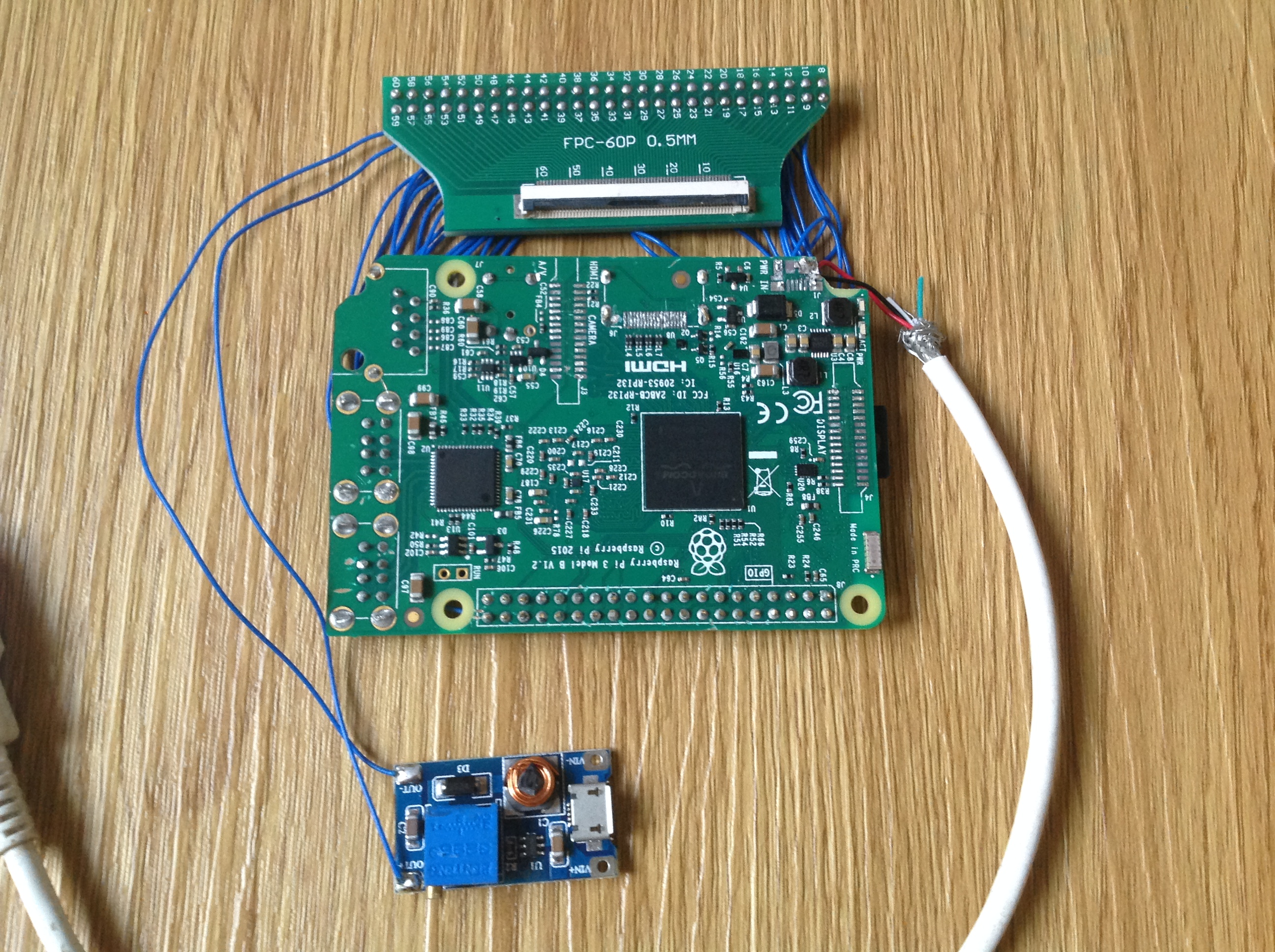

Update: I have soldered the wires from the fpc adapter to the stripped Pi3.
Stripped Pi3Show

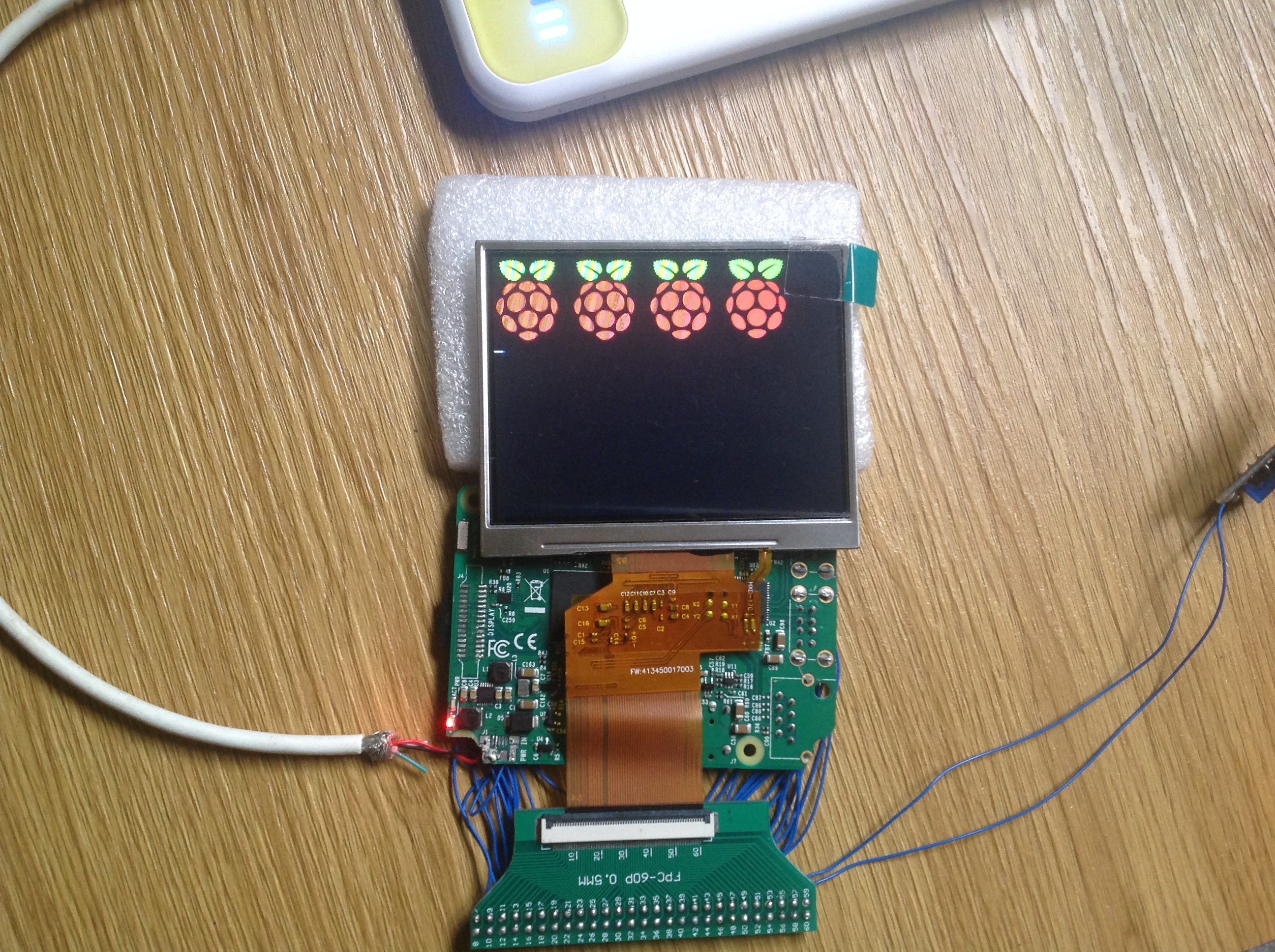

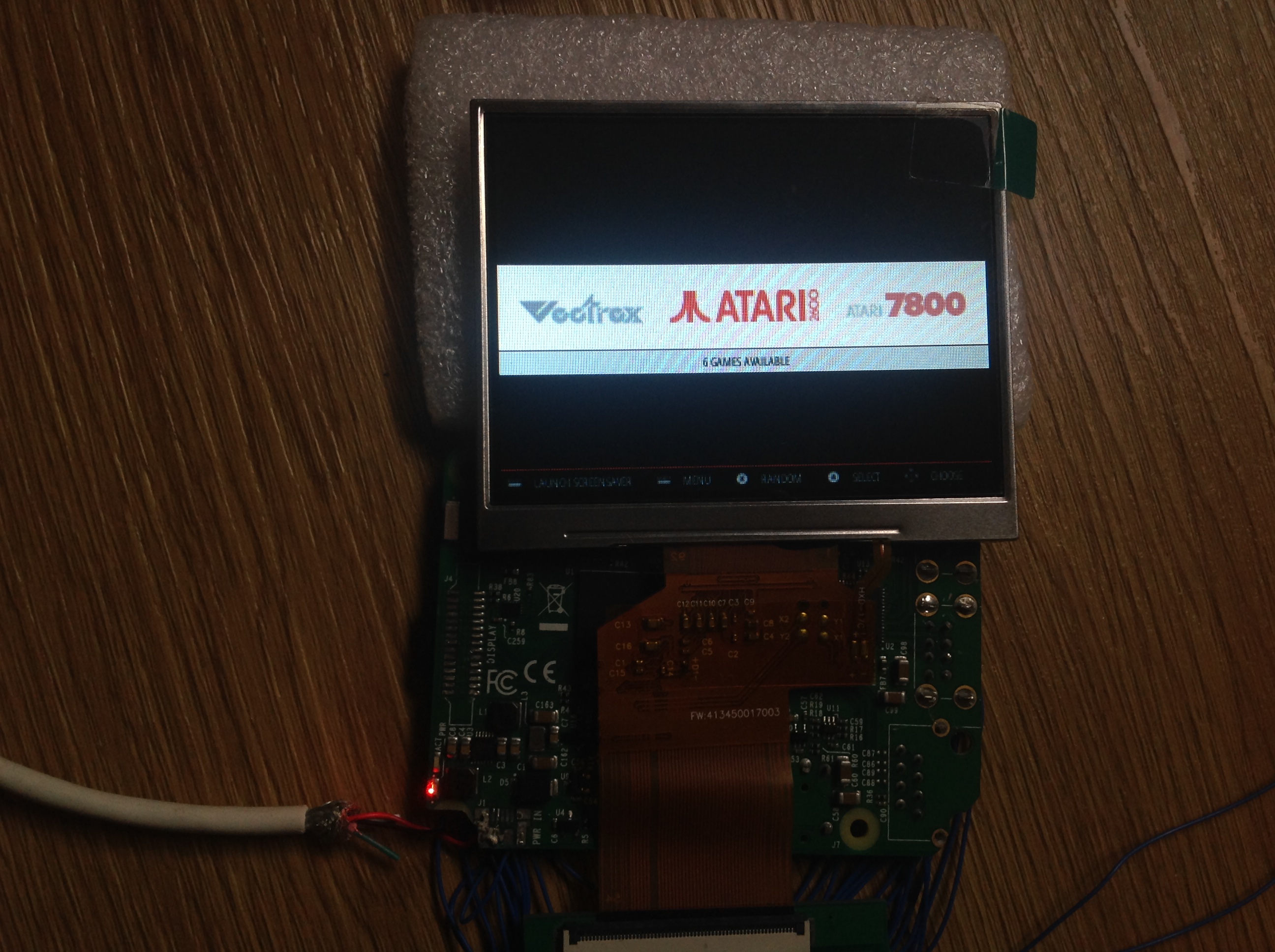

Now it's time to test the screen via DPI mode. I'm using a dc-dc boost converter for the LCD's backlight.

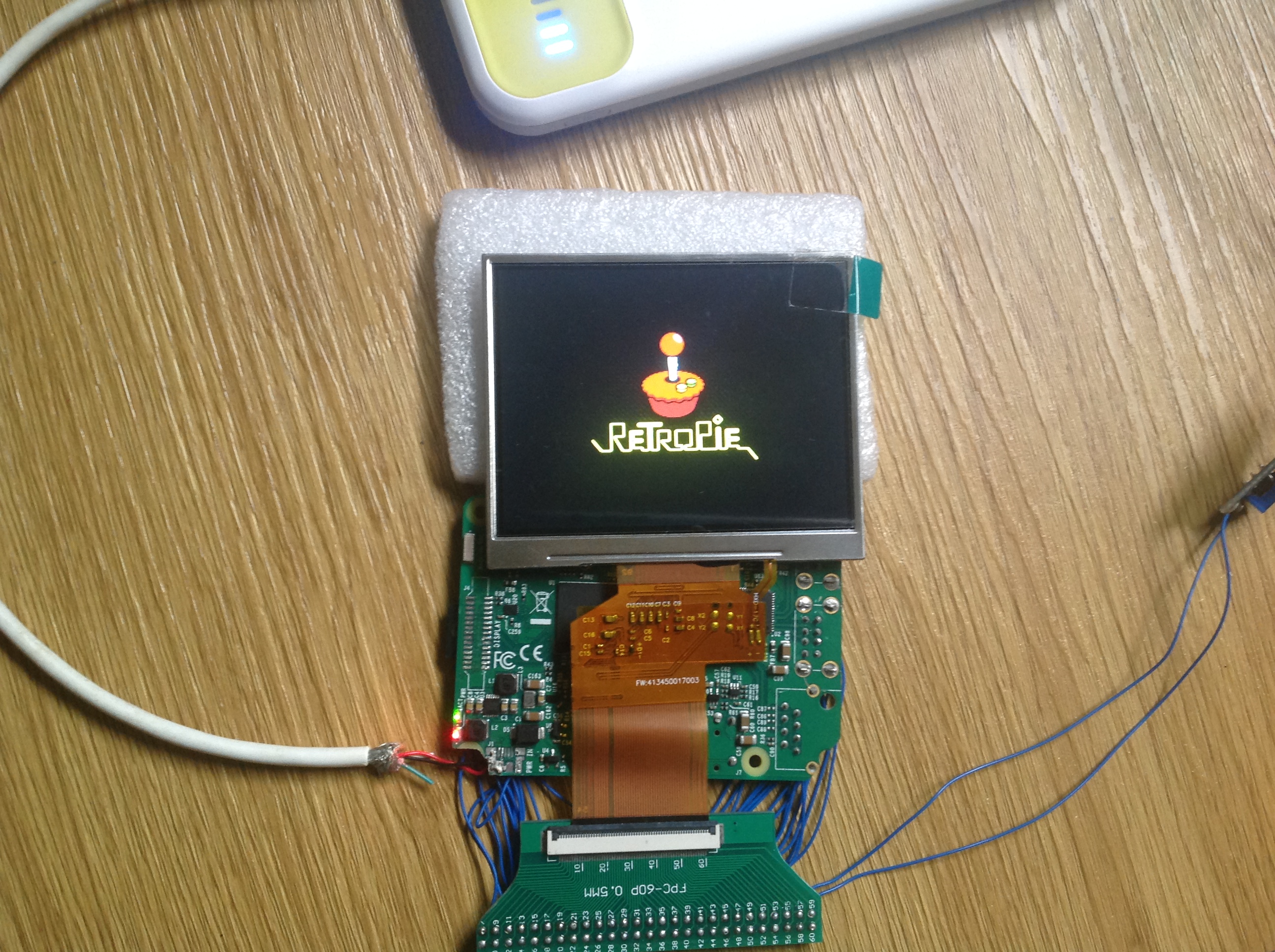

It works!Show
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
YaYa
Posts: 1719
Joined: Mon Jun 26, 2017 12:42 pm
Location: brittany - France
Has thanked: 871 times
Been thanked: 688 times
Contact:

Re: [tinkerBOY] Game Boy Three - RPi3 and DPI screen in 24-bit mode [WIP]

Post by YaYa » Thu Oct 26, 2017 7:28 pm

Thumb up !
Follow me on instagram Image

User avatar
moooarcuuuus
Posts: 232
Joined: Tue Jul 04, 2017 1:28 am
Has thanked: 2 times
Been thanked: 94 times

Re: [tinkerBOY] Game Boy Three - RPi3 and DPI screen in 24-bit mode [WIP]

Post by moooarcuuuus » Thu Oct 26, 2017 11:13 pm

What monitor is that?
Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep... Game Over

User avatar
YaYa
Posts: 1719
Joined: Mon Jun 26, 2017 12:42 pm
Location: brittany - France
Has thanked: 871 times
Been thanked: 688 times
Contact:

Re: [tinkerBOY] Game Boy Three - RPi3 and DPI screen in 24-bit mode [WIP]

Post by YaYa » Thu Oct 26, 2017 11:17 pm

It looks like kite’s monitor, search this model number - LQ035NC111

Am i wrong ti kerboy ?
Follow me on instagram Image

User avatar
tinkerBOY
Posts: 702
Joined: Tue May 30, 2017 4:00 am
Has thanked: 294 times
Been thanked: 200 times

Re: [tinkerBOY] Game Boy Three - RPi3 and DPI screen in 24-bit mode [WIP]

Post by tinkerBOY » Thu Oct 26, 2017 11:22 pm

YaYa wrote:
Thu Oct 26, 2017 11:17 pm
It looks like kite’s monitor, search this model number - LQ035NC111

Am i wrong ti kerboy ?
Yes it's the same lcd. I bought it on aliexpress for $8.

Datasheet at http://aitendo3.sakura.ne.jp/aitendo_da ... 5NC111.pdf
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
tinkerBOY
Posts: 702
Joined: Tue May 30, 2017 4:00 am
Has thanked: 294 times
Been thanked: 200 times

Re: [tinkerBOY] Game Boy Three - RPi3 and DPI screen in 24-bit mode [WIP]

Post by tinkerBOY » Fri Oct 27, 2017 6:58 pm

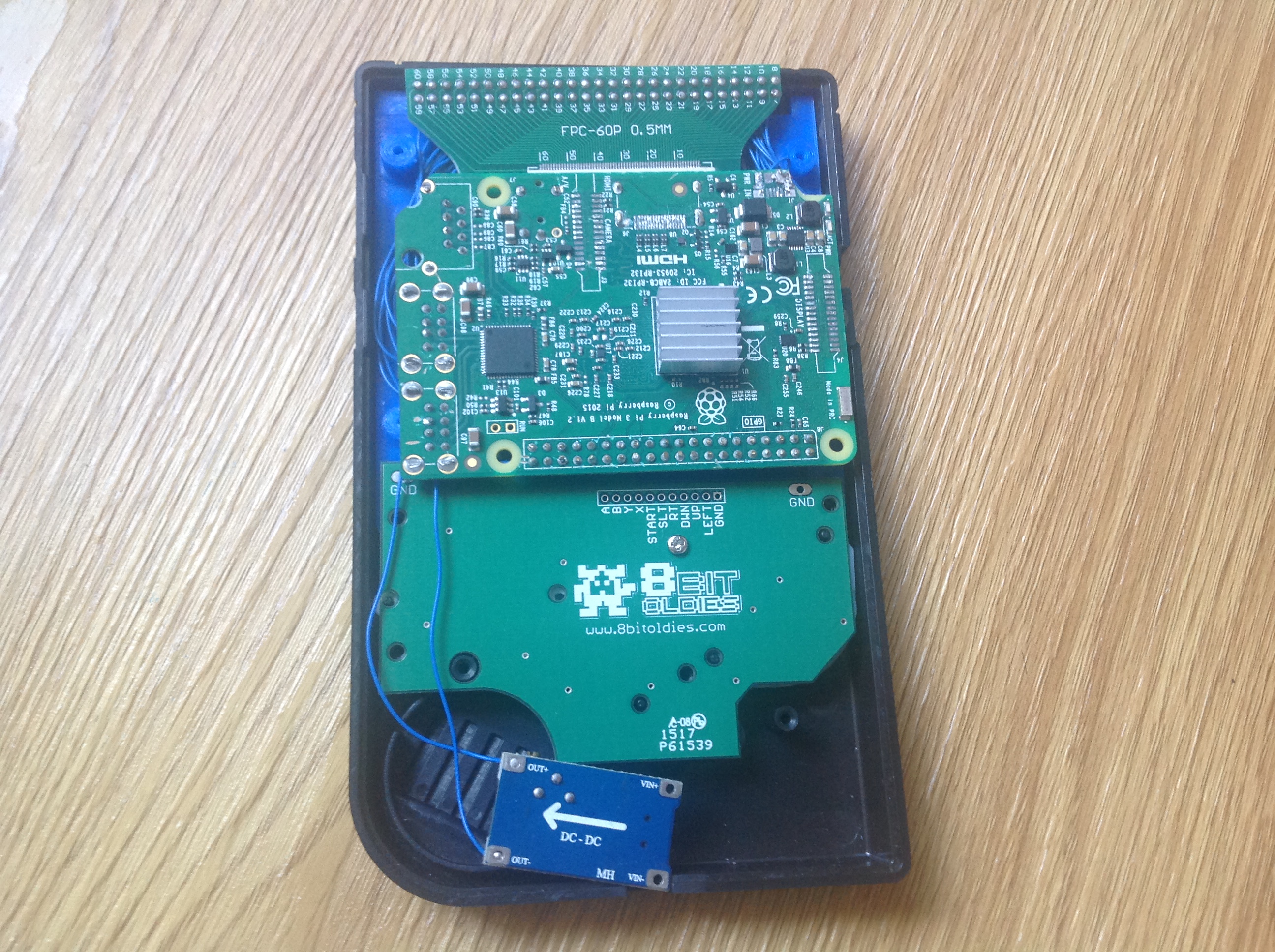

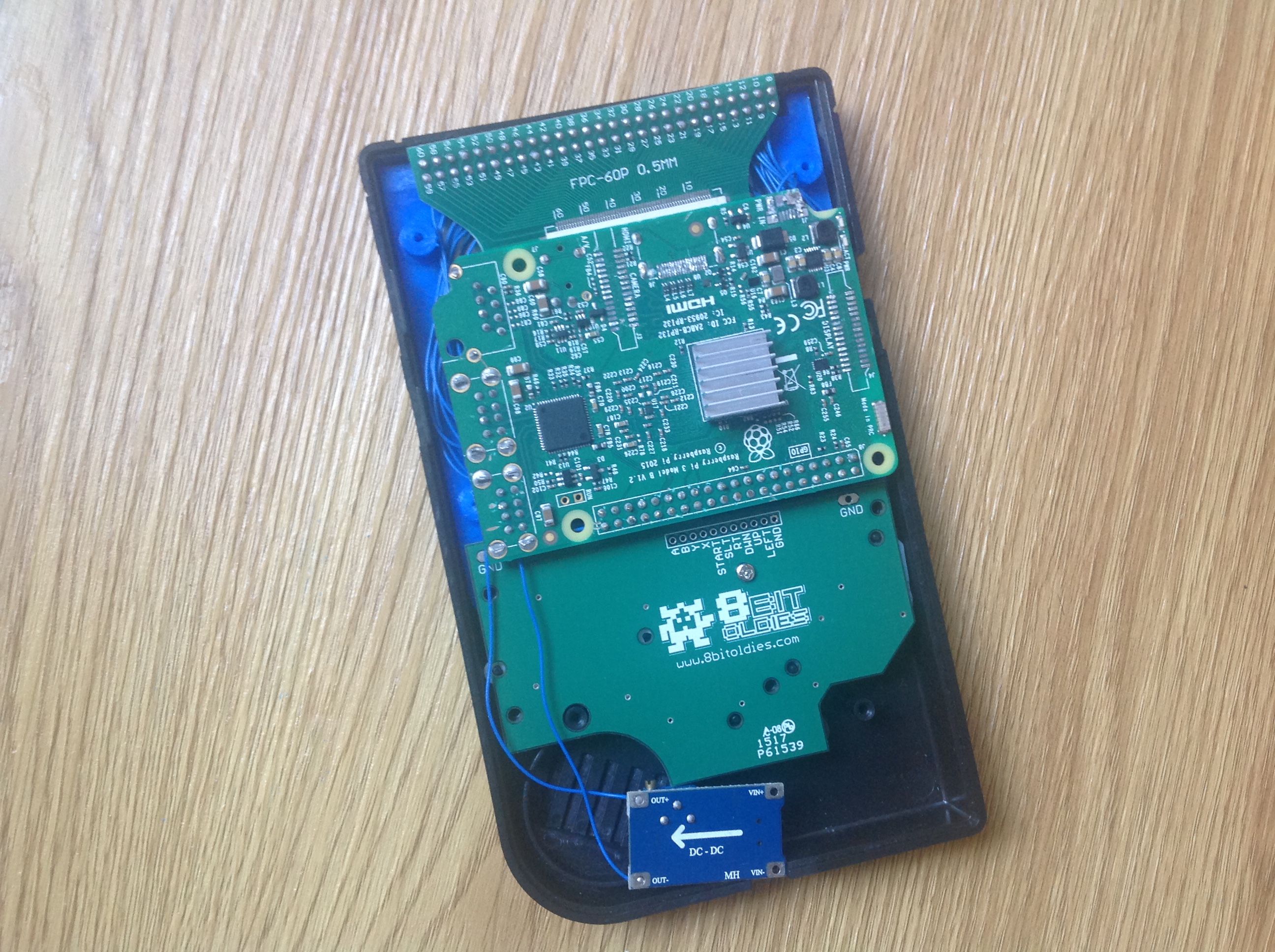

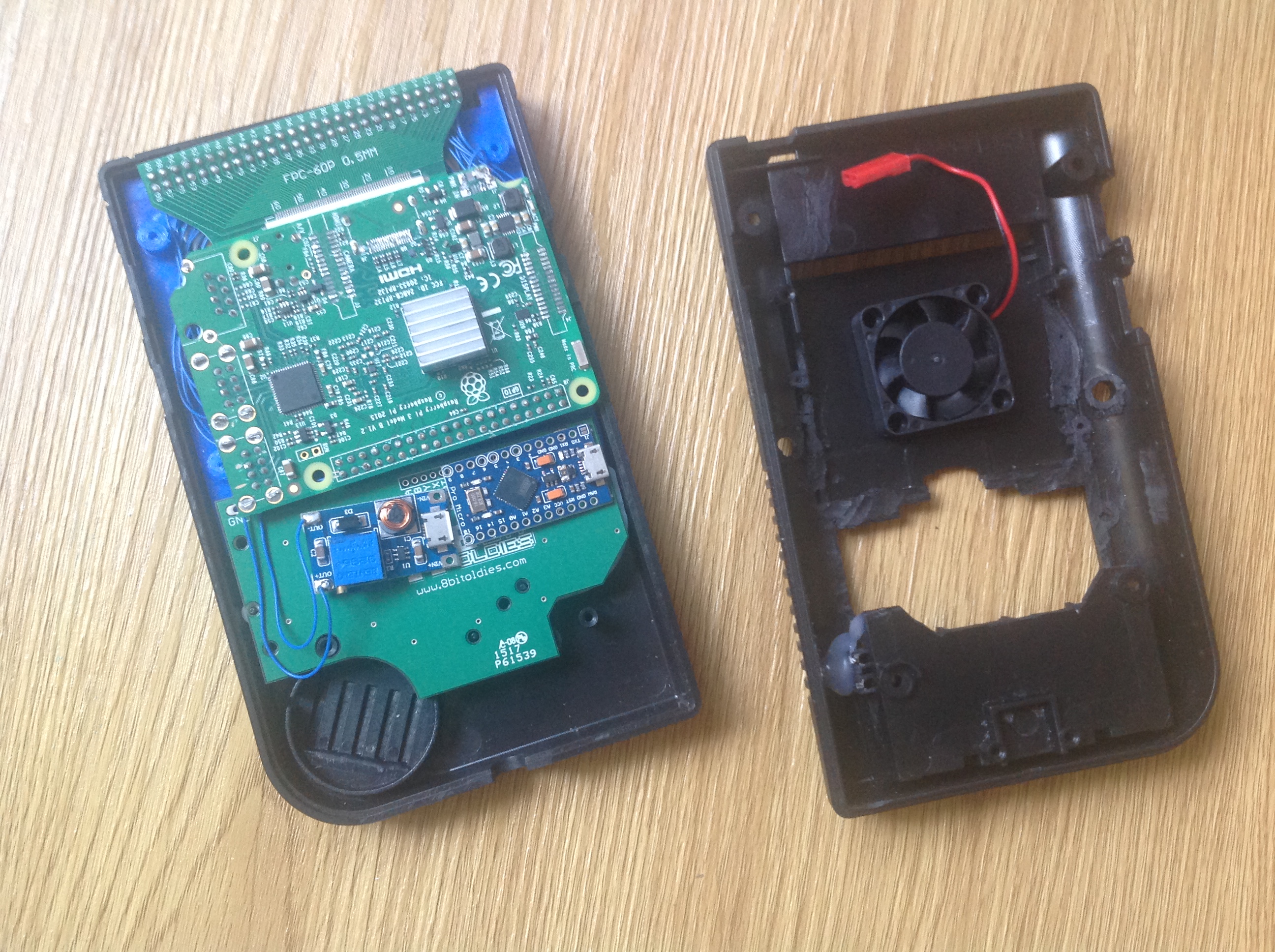

Update: Both the pi3 and the fpc adapter fits perfectly on top of the screen inside the front case with the sdcard slot accessible from the usual "contrast" area of the gb case. By fitting the pi3 inside the front case makes more space in the rear case for the fan and other later components to be added.
Test fitting pi3, fpc, adapter, booster, pro microShow
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
Hex
Posts: 113
Joined: Tue Aug 16, 2016 12:10 am
Has thanked: 12 times
Been thanked: 47 times

Re: [tinkerBOY] Game Boy Three - RPi3 and DPI screen in 24-bit mode [WIP]

Post by Hex » Sun Oct 29, 2017 4:23 pm

Any difference in quality between composite and DPI?
Sent from 20,000 leagues under the sea

My Cardboard GBZ build : http://www.sudomod.com/forum/viewtopic.php?f=9&t=2851

EmulationStation optimization for Pi Zero : http://www.sudomod.com/forum/viewtopic.php?f=8&t=2922

User avatar
tinkerBOY
Posts: 702
Joined: Tue May 30, 2017 4:00 am
Has thanked: 294 times
Been thanked: 200 times

Re: [tinkerBOY] Game Boy Three - RPi3 and DPI screen in 24-bit mode [WIP]

Post by tinkerBOY » Sun Oct 29, 2017 4:35 pm

Hex wrote:
Sun Oct 29, 2017 4:23 pm
Any difference in quality between composite and DPI?
Kite has a good explanation on viewtopic.php?f=43&t=2813&p=31420&hilit ... ect#p31420
