ReBirth of my first(ugly to different)

Post by Golddeenoh » Fri Jan 05, 2018 7:29 pm

I made a Gameboy zero almost 2 years ago and it was rough for a first attempt. I have worked on that one to make something different that may not be what most would expect.

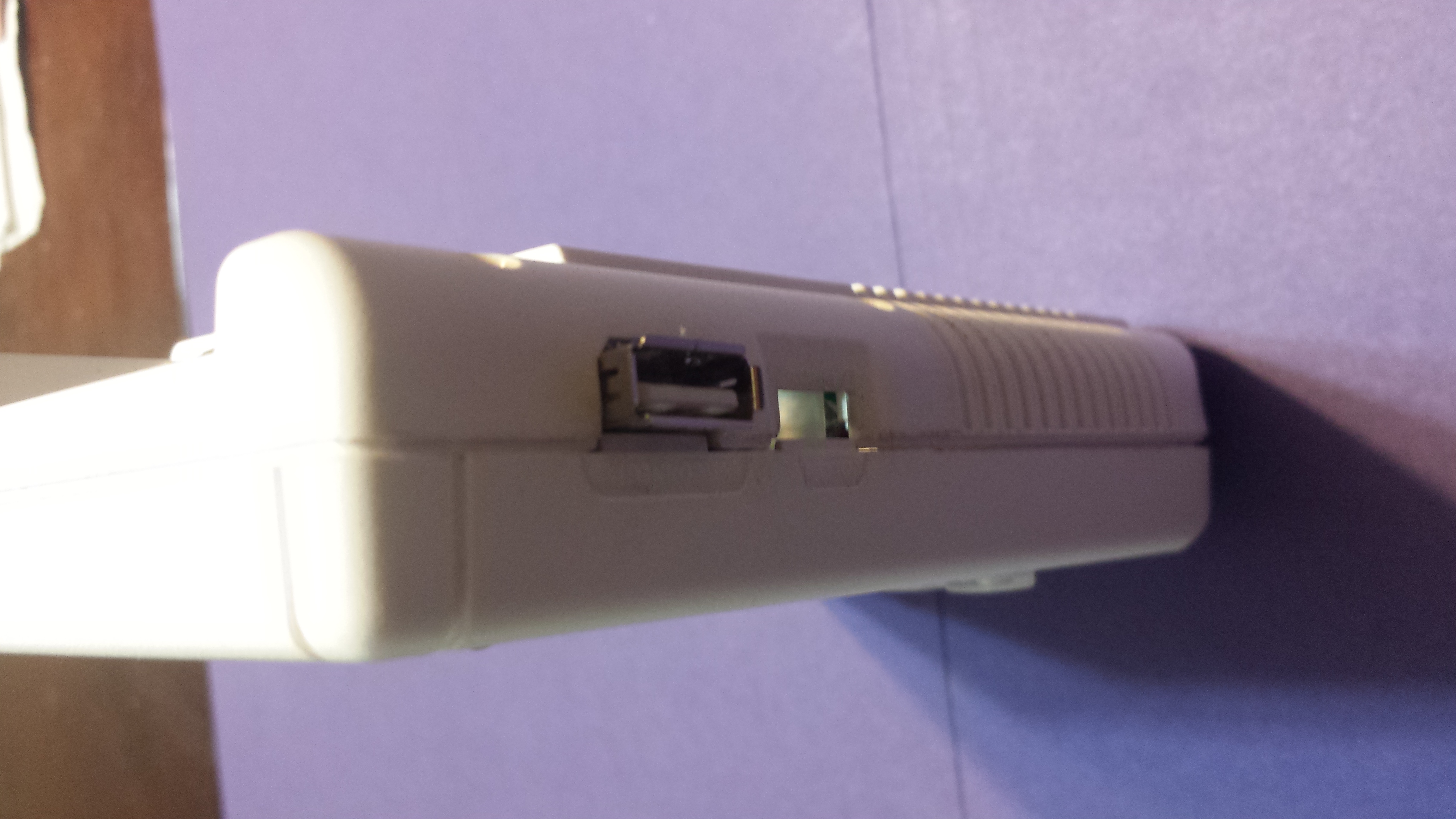

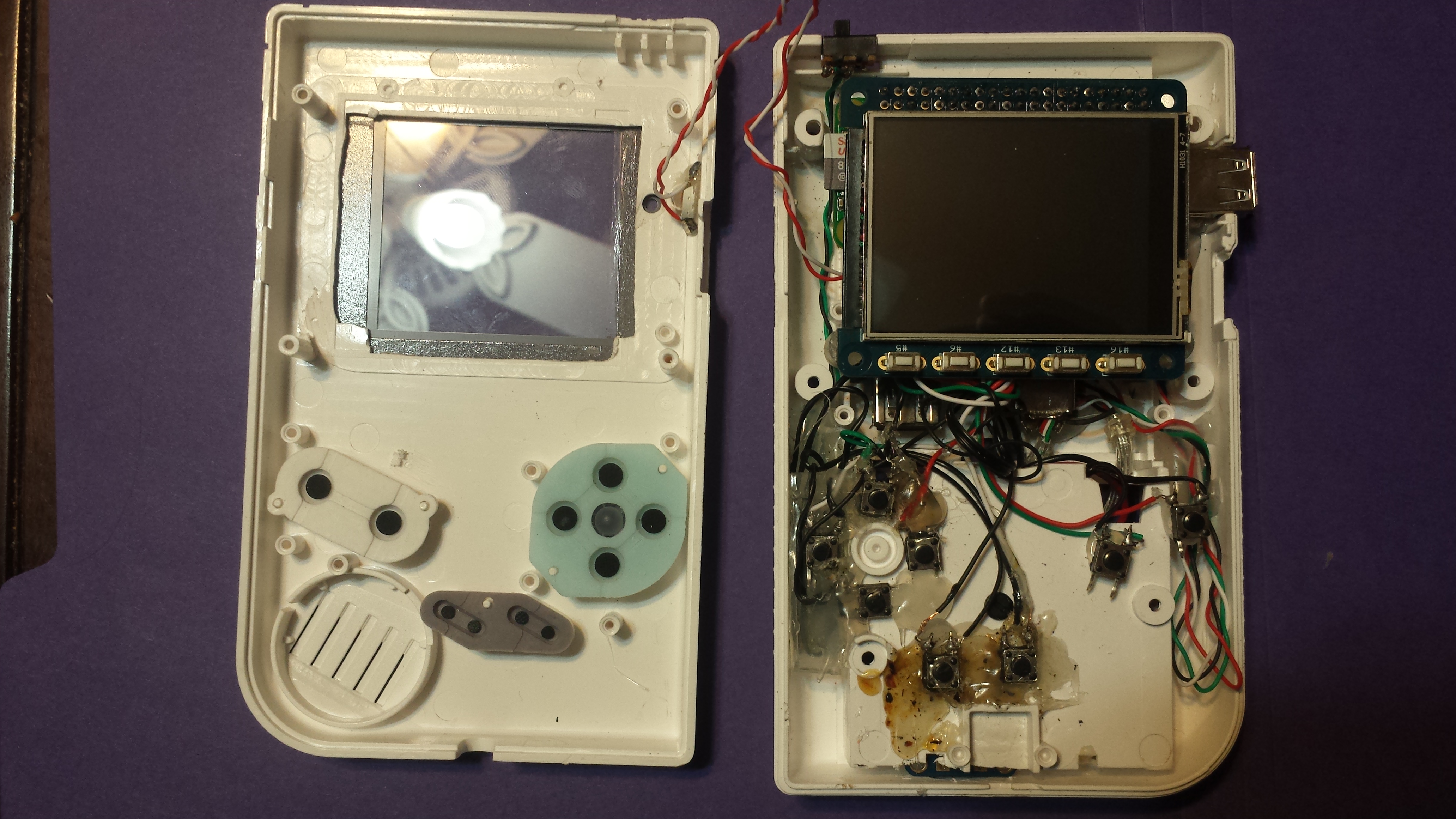

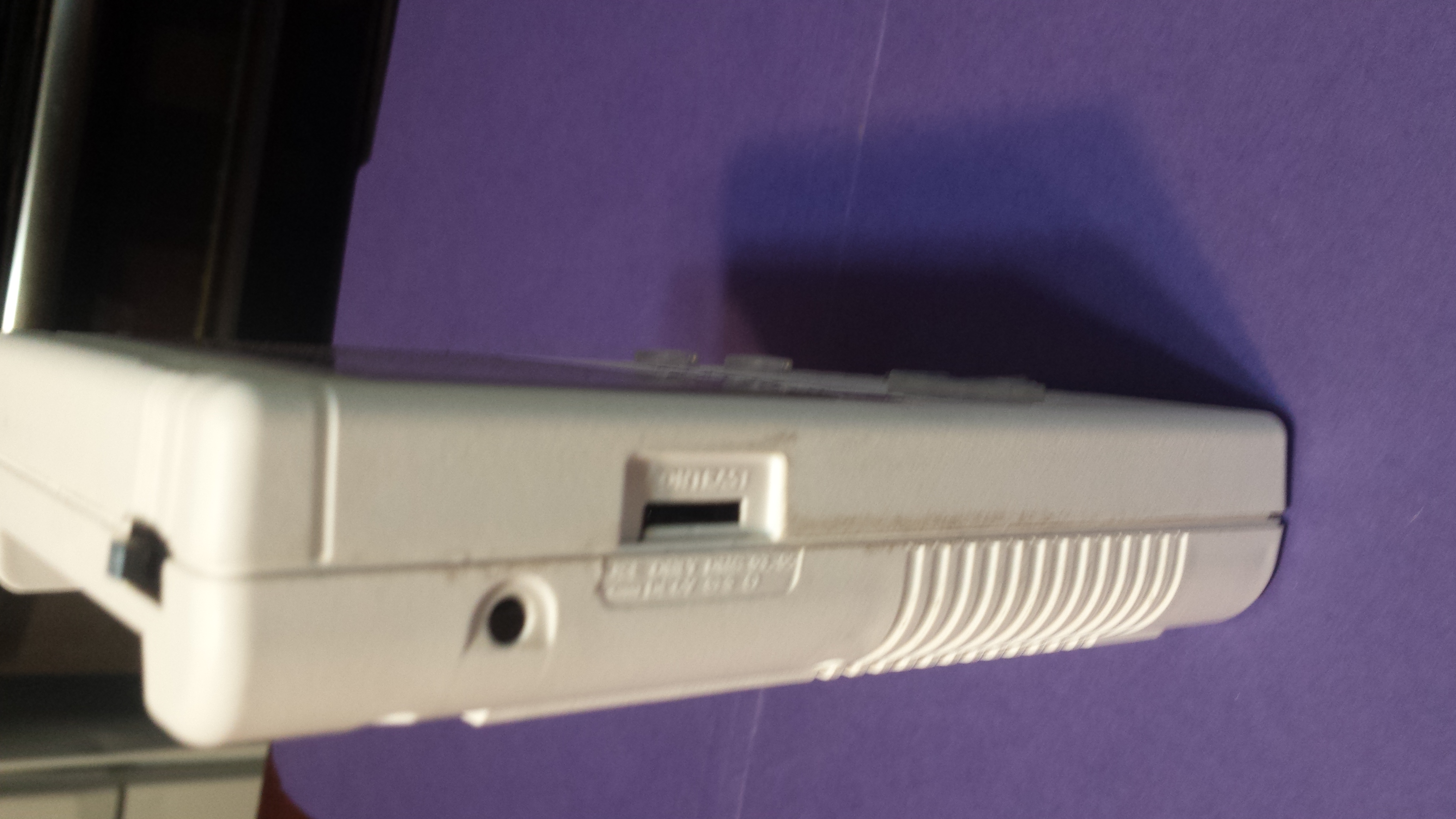

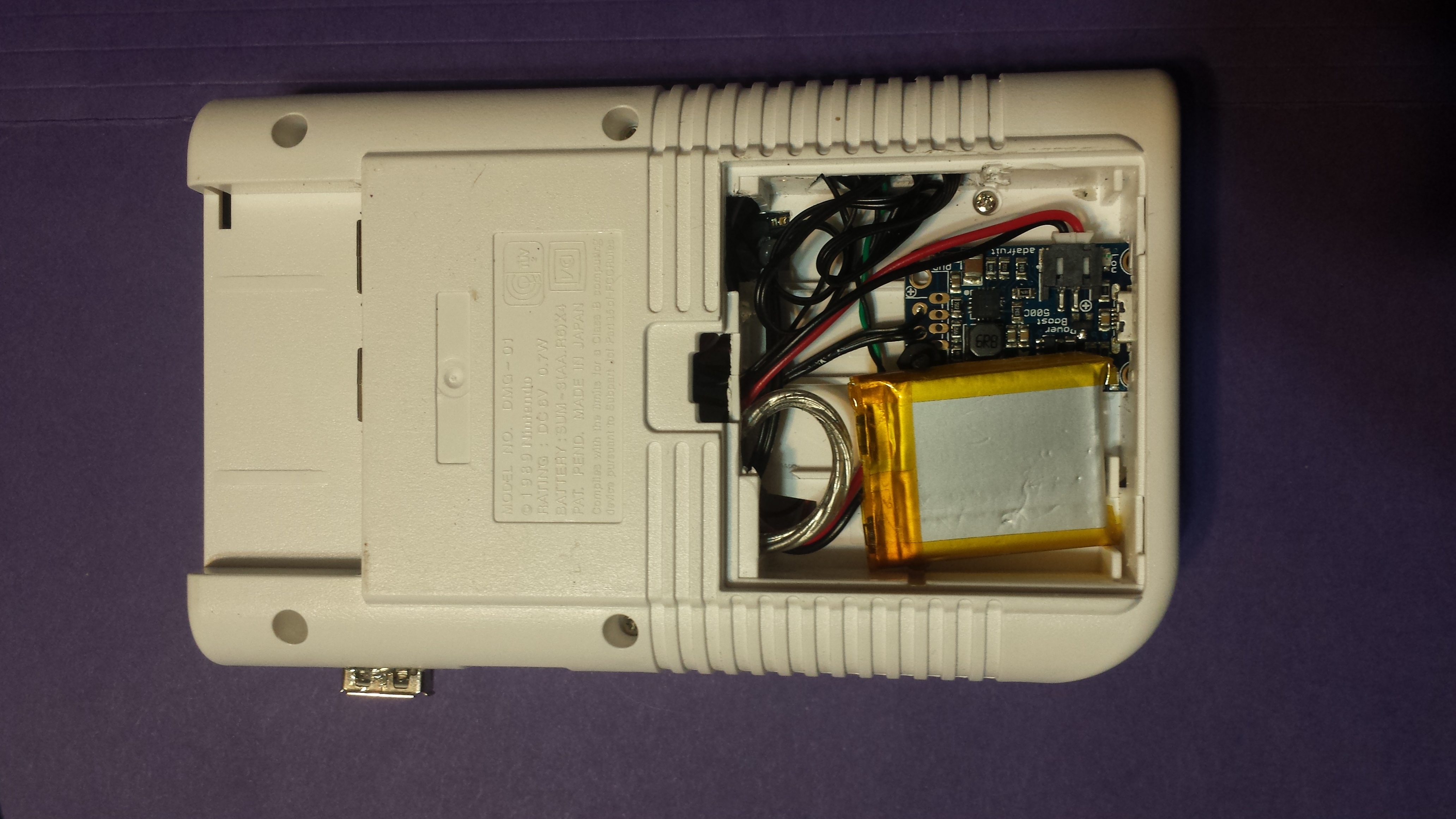

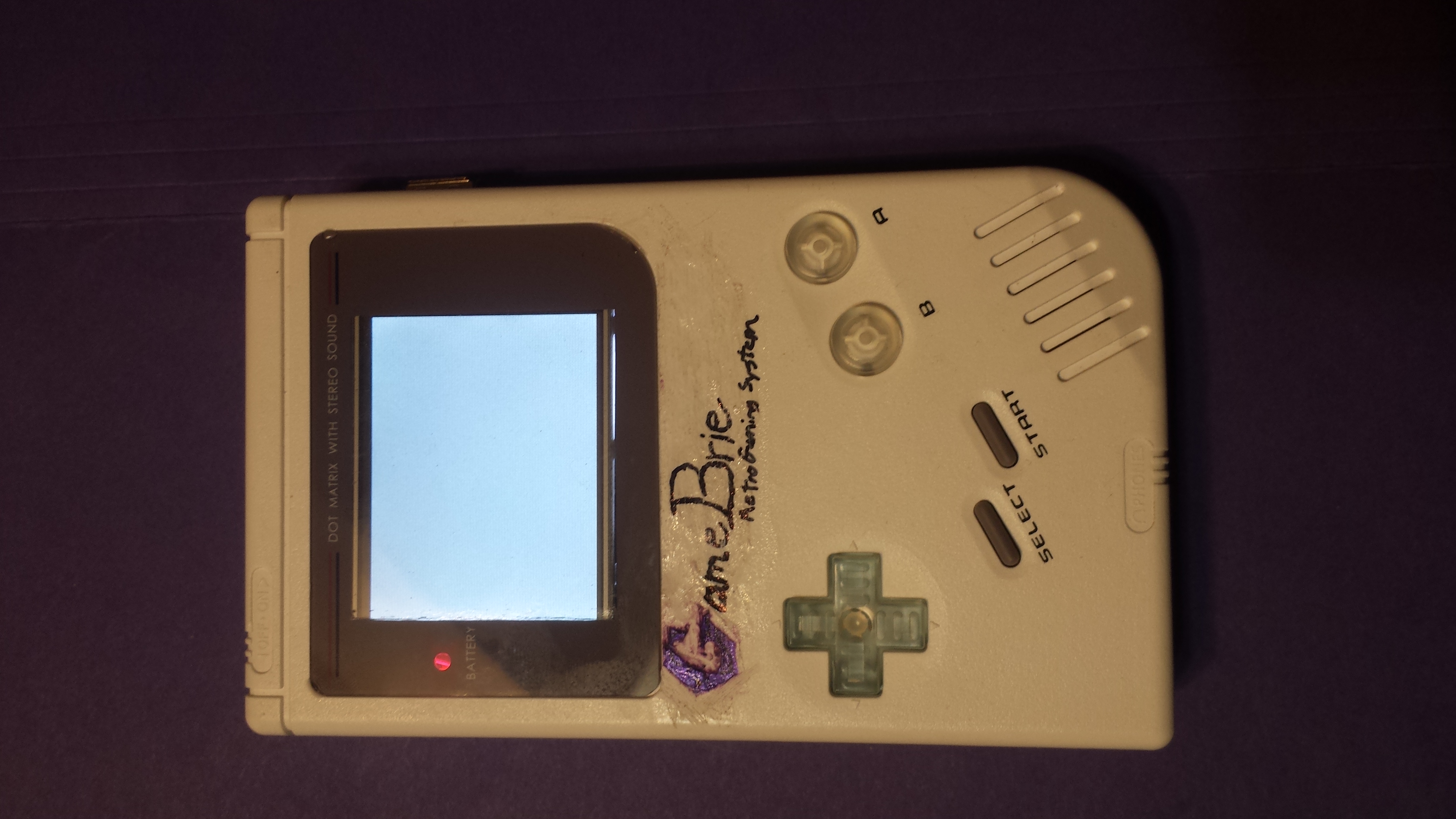

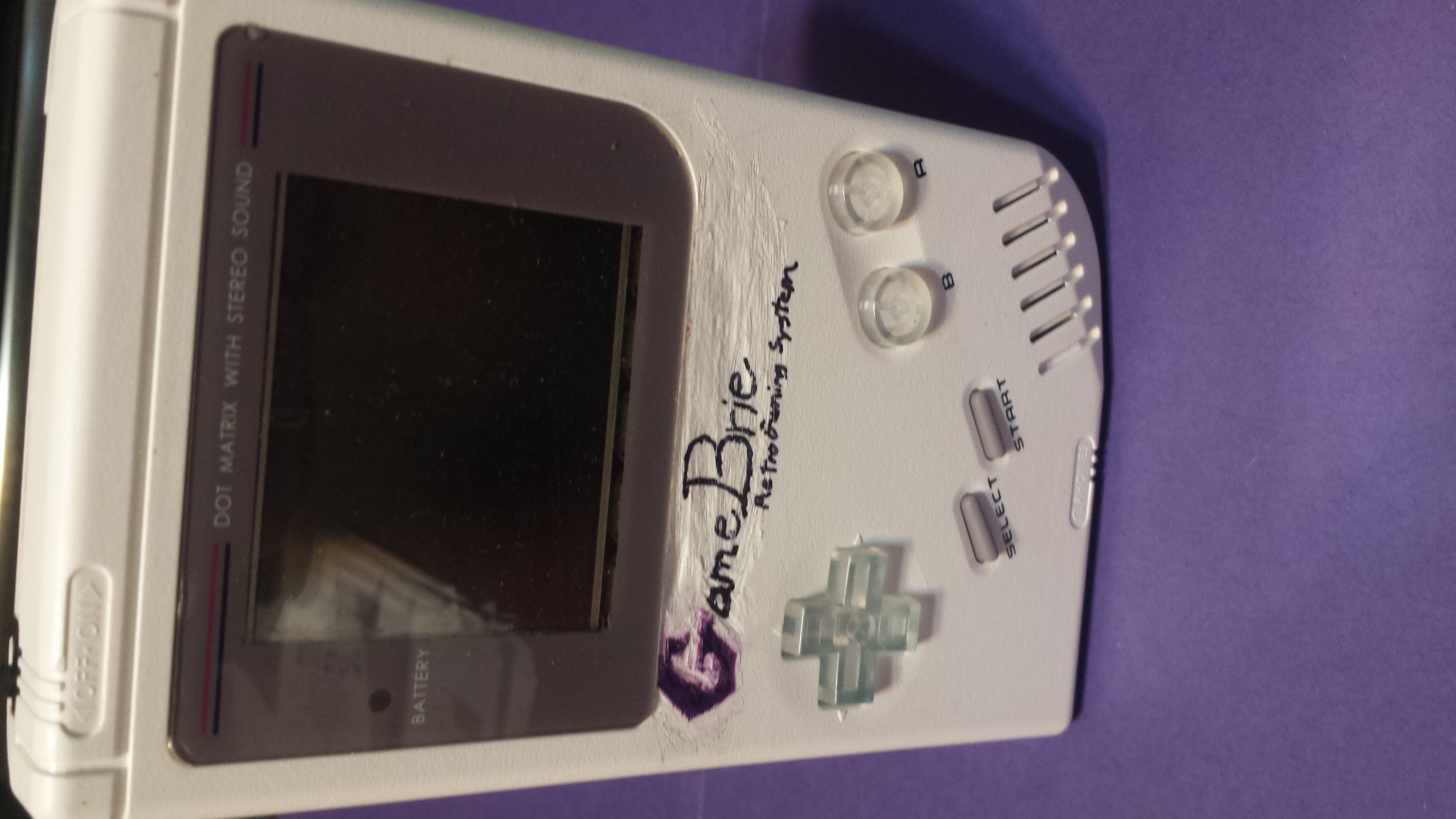

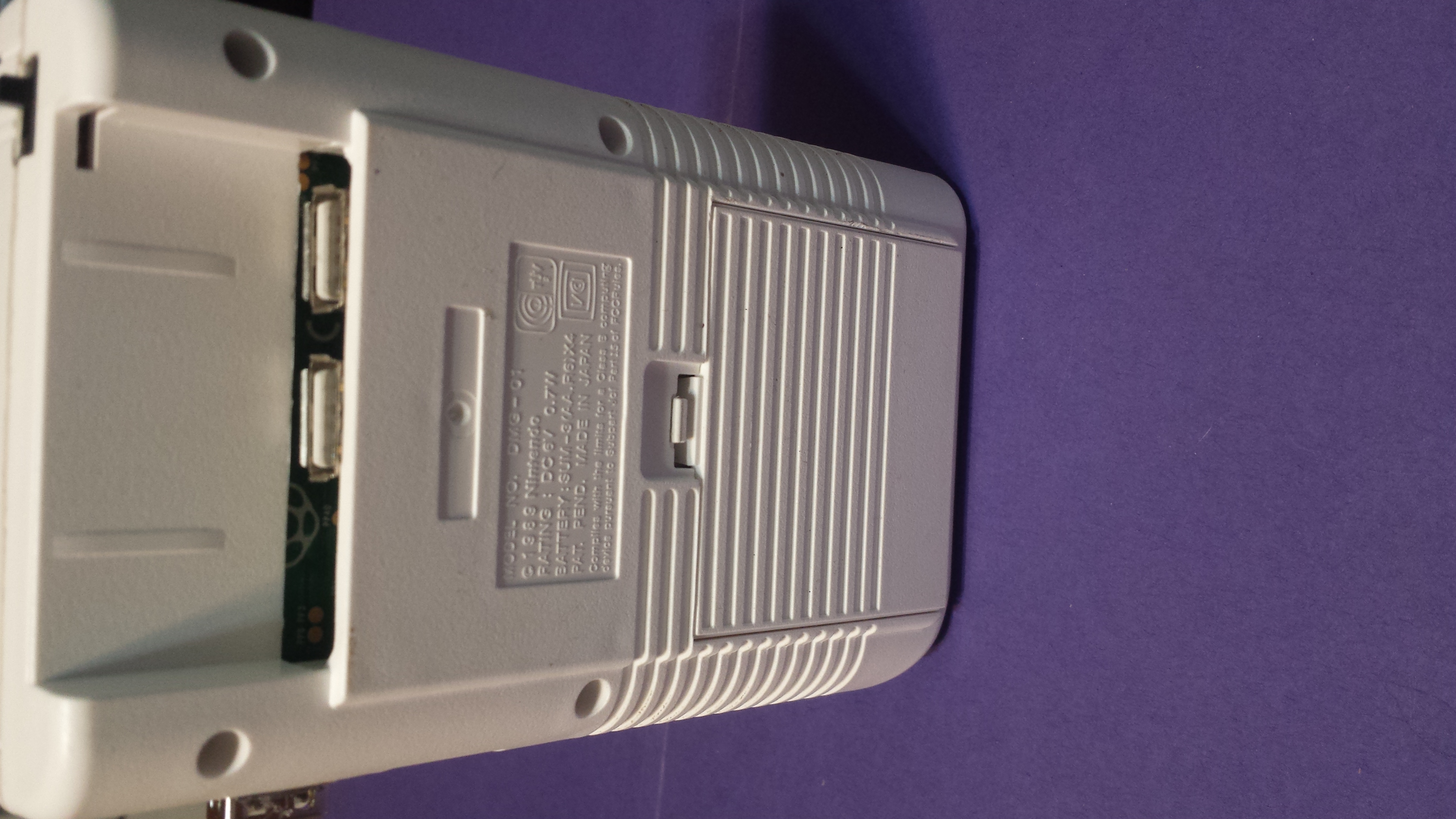

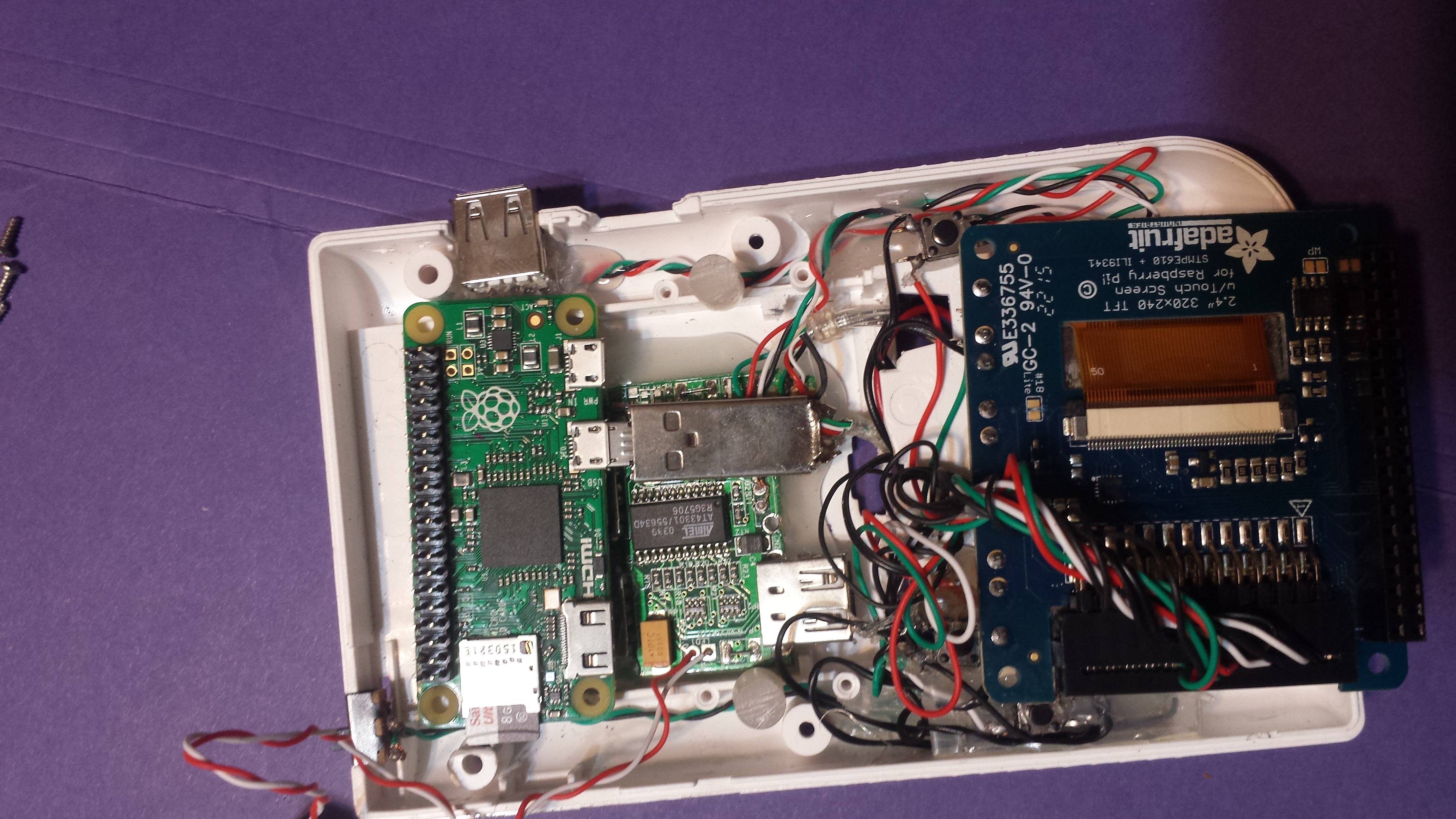

First the original first attempt. completely analog buttons and a 2.4" TFT. No Audio.
Attachments
20160416_113637.mp4
(5.47 MiB) Downloaded 35 times
Last edited by Golddeenoh on Mon Jan 08, 2018 1:18 pm, edited 1 time in total.

Golddeenoh
Posts: 27
Joined: Tue Dec 05, 2017 12:29 pm
Has thanked: 9 times
Been thanked: 1 time

Re: ReBirth of my first

Post by Golddeenoh » Fri Jan 05, 2018 7:32 pm

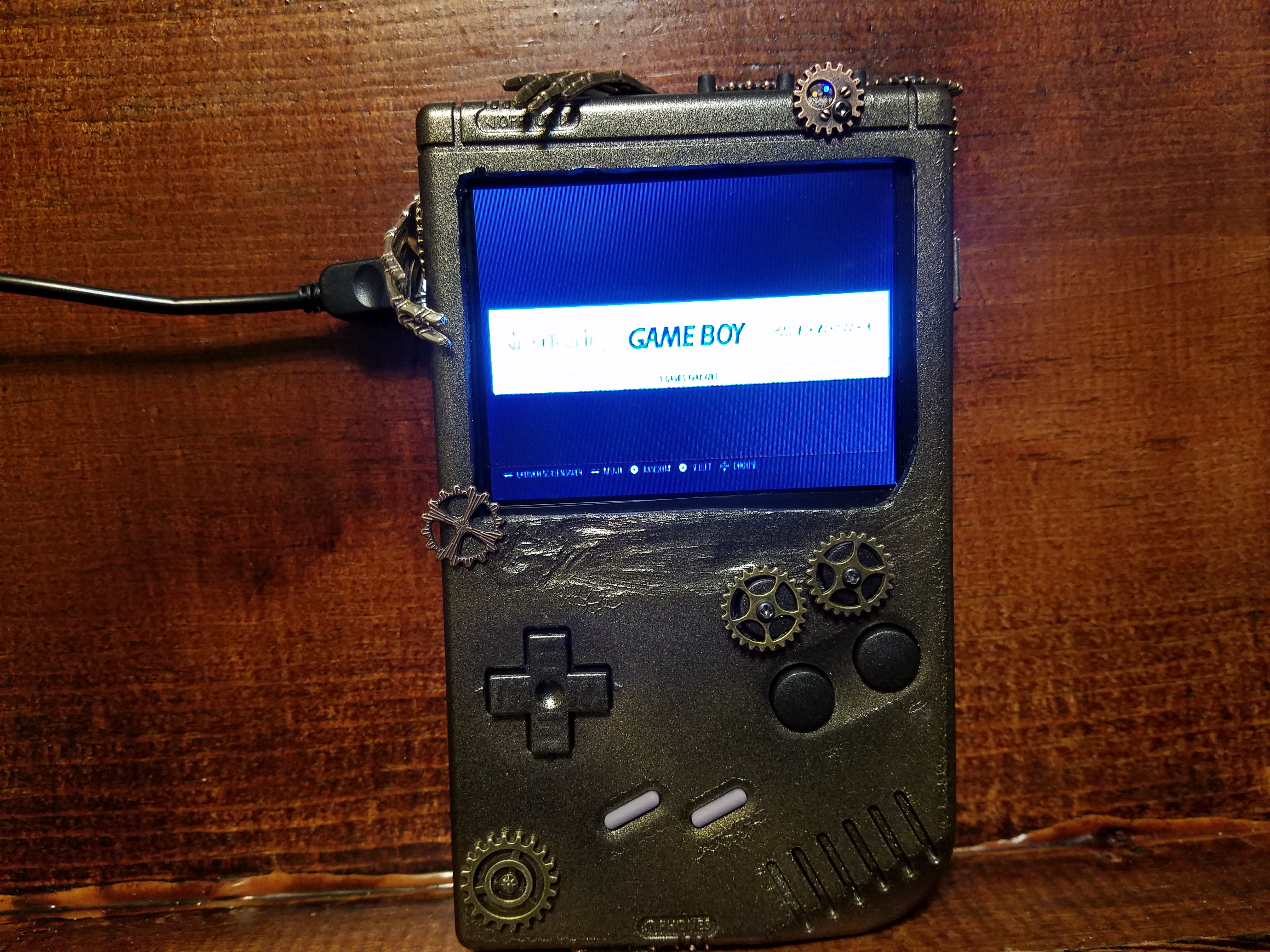

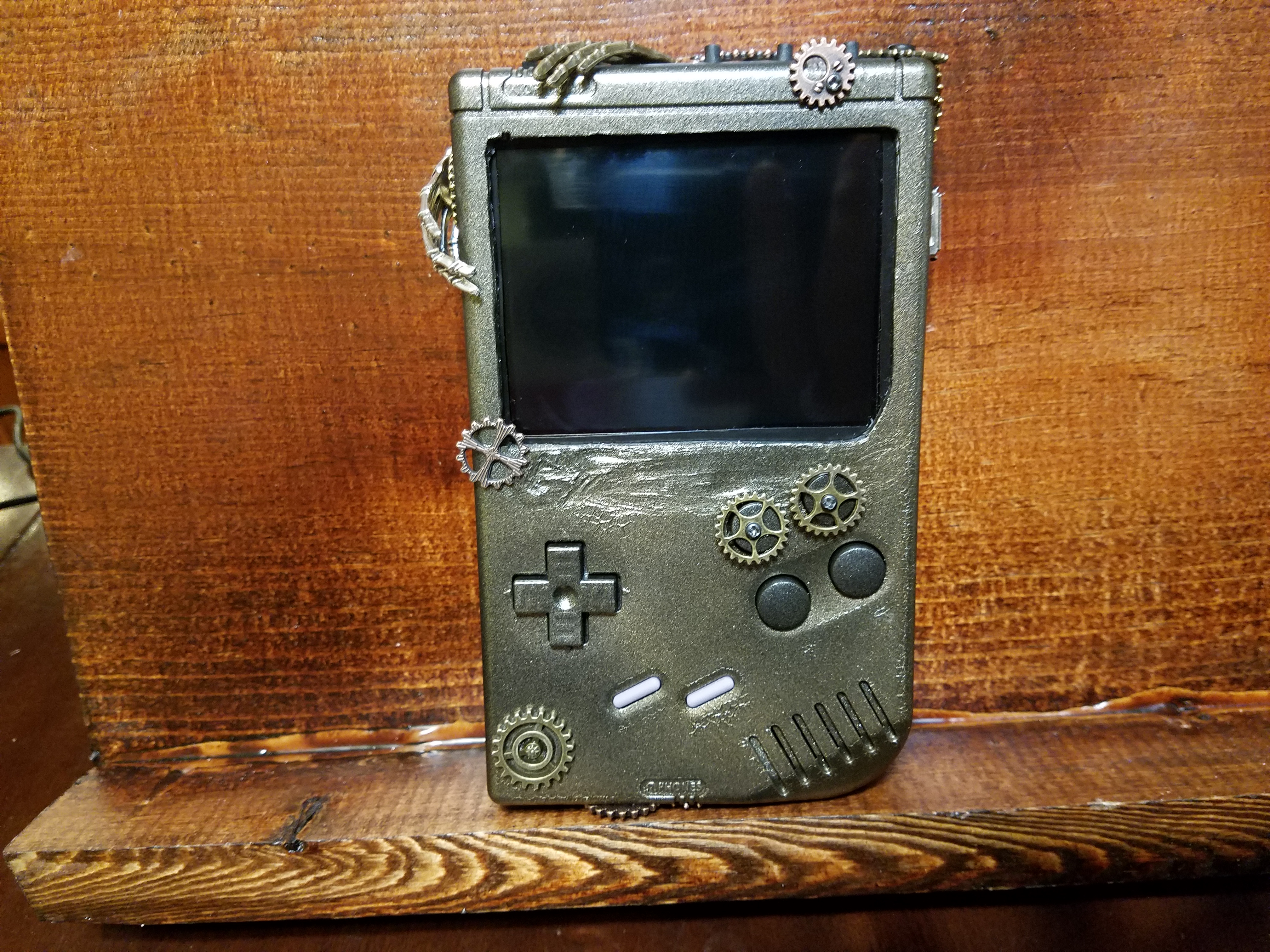

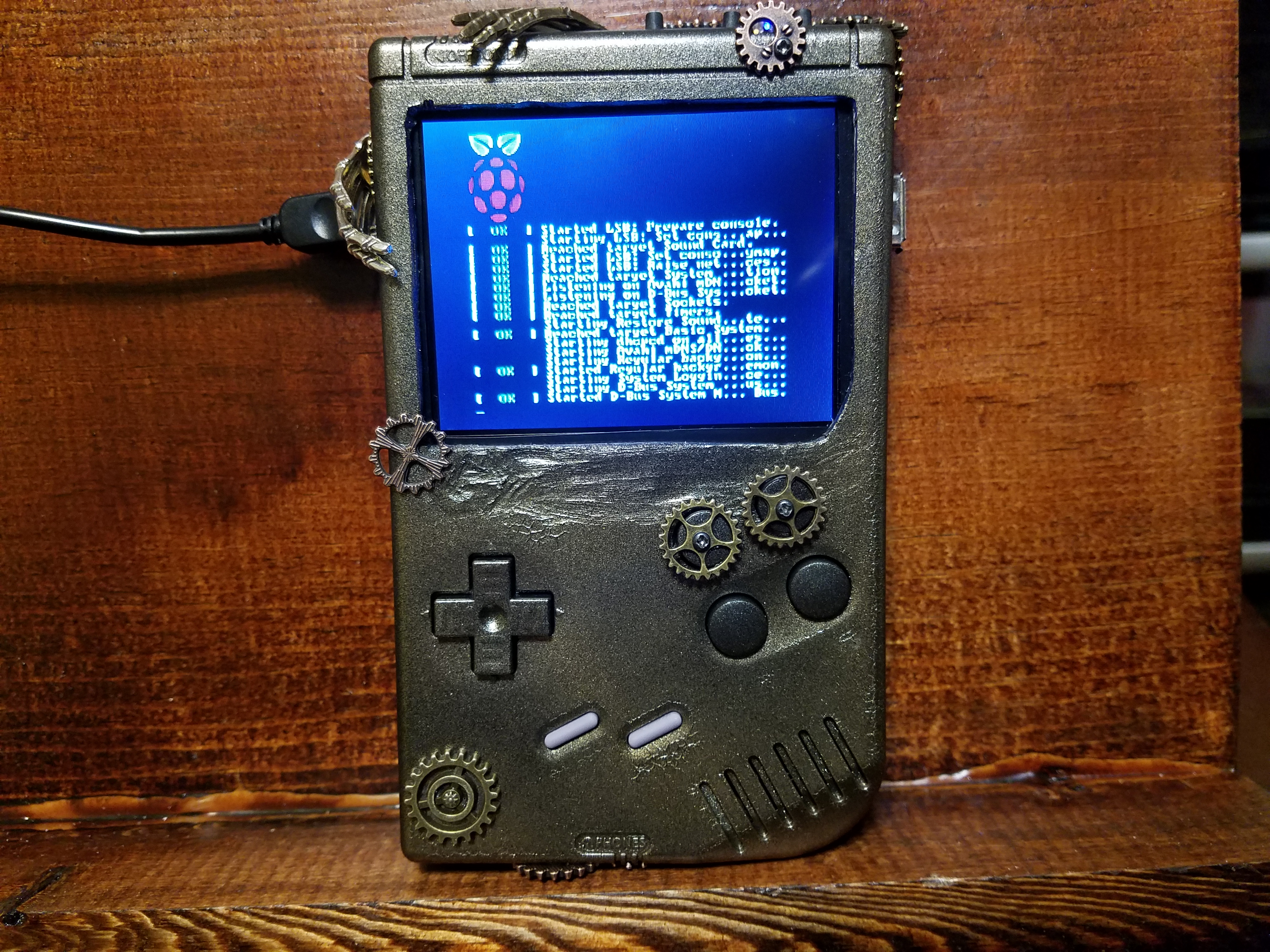

Now for my Steam punk inspired recreation of the original case.

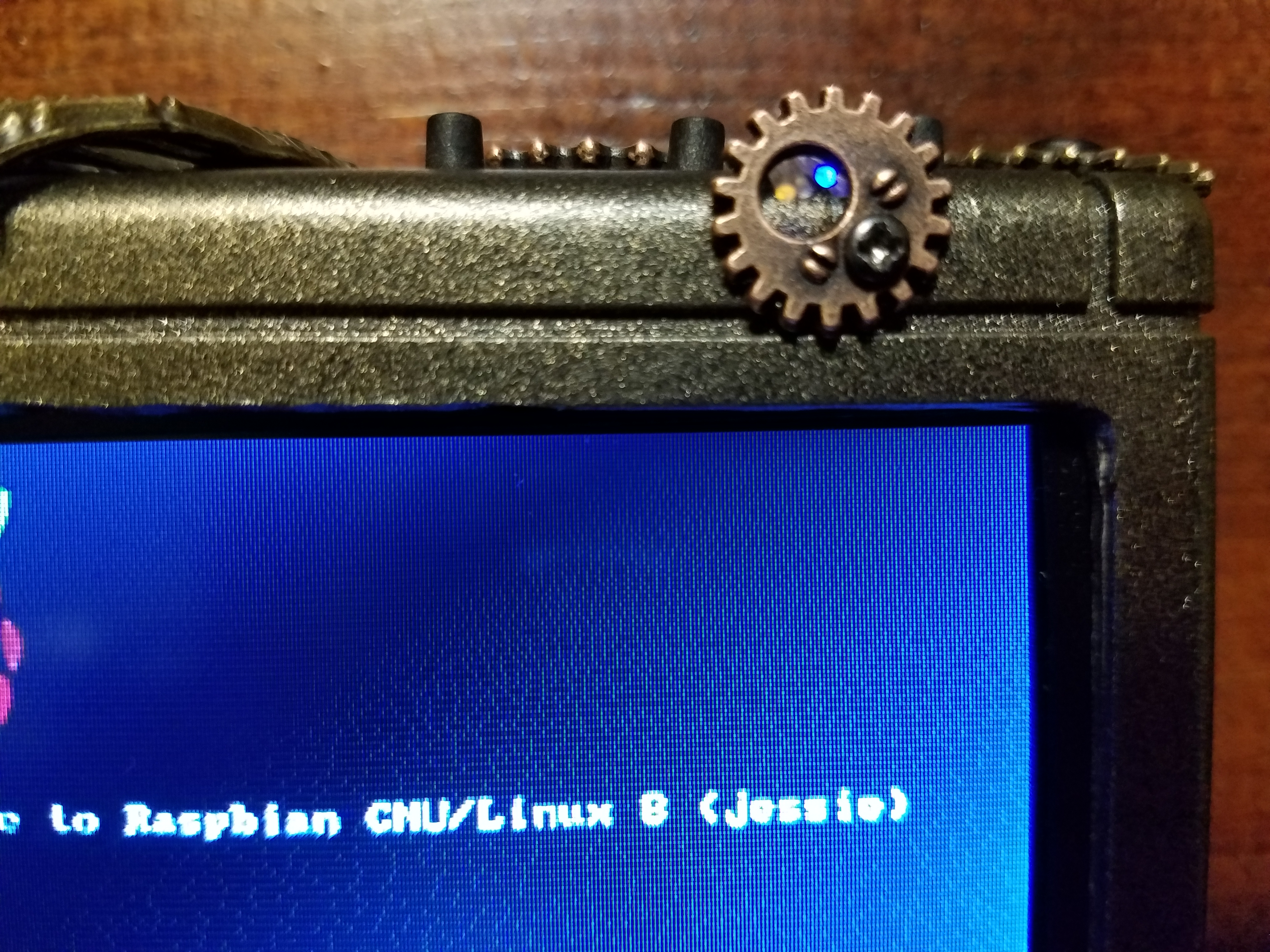

This time with a 3.5" screen, common ground PCB, more inputs, and fiber optic battery indicator.(charged, charging, On, Low) The case was in rough shape but I went with a more well used appearance.
Attachments

User avatar
GordoPie
Posts: 10
Joined: Mon Oct 10, 2016 2:08 pm
Location: Pacific Northwest
Has thanked: 23 times
Been thanked: 6 times

Re: ReBirth of my first

Post by GordoPie » Fri Jan 05, 2018 10:11 pm

I'm just going to leave this here...

https://youtu.be/TFCuE5rHbPA

User avatar
Thump52
Posts: 111
Joined: Fri Feb 03, 2017 7:34 am
Has thanked: 7 times
Been thanked: 27 times

Re: ReBirth of my first

Post by Thump52 » Sat Jan 06, 2018 8:00 am

Definitely different, and I like, good job.
Gus 8-)

User avatar
144TECH
Posts: 325
Joined: Fri Jan 06, 2017 7:30 am
Location: Amsterdam
Has thanked: 256 times
Been thanked: 71 times

Re: ReBirth of my first

Post by 144TECH » Sat Jan 06, 2018 1:10 pm

LoL , It looks kinda steampunk hehe... first i was like omg, what did he do.. but after scrolling down i was surprised :mrgreen:
* Very Rare * GBZ 640x480 v3 Stock Looks 6000MAH
http://www.sudomod.com/forum/viewtopic.php?f=43&t=4863

Golddeenoh
Posts: 27
Joined: Tue Dec 05, 2017 12:29 pm
Has thanked: 9 times
Been thanked: 1 time

Re: ReBirth of my first

Post by Golddeenoh » Sat Jan 06, 2018 5:32 pm

Yea the starting point on this one was rough. the hands and gears on the top turn and the ones on the right top corner actual turn and lock the case together while the hands help hold and align the case. the only glued gears are the ones that don't offer a screw location, and ones on the bottom that go around the head phone jack. the ones in the X and Y Buttons turn the buttons and are off center so that they can either interlock or miss.

Probably should have found or made some sort of diffuser for the fiber optics so that the pin point for the light wasn't so small.
