GameBoyMaster's GBZ Build (WIP)

[GameBoyMaster]

So Hi, I recently started making a GBZ and I decided I'd like to document it, hope you guys like it

First I'd like to show what I did with my case

SpoilerShow

WhatsApp Image 2018-01-15 at 2.24.26 PM(2).jpeg (233.92 KiB) Viewed 5107 times

I did the front X and Y buttons, since they were super marked up at my local home depot and wasn't gonna order one on amazon I had to
drill the holes slowly but I'm happy how It came out, although I wrecked my case the first time around the lip for my screen looks ok...

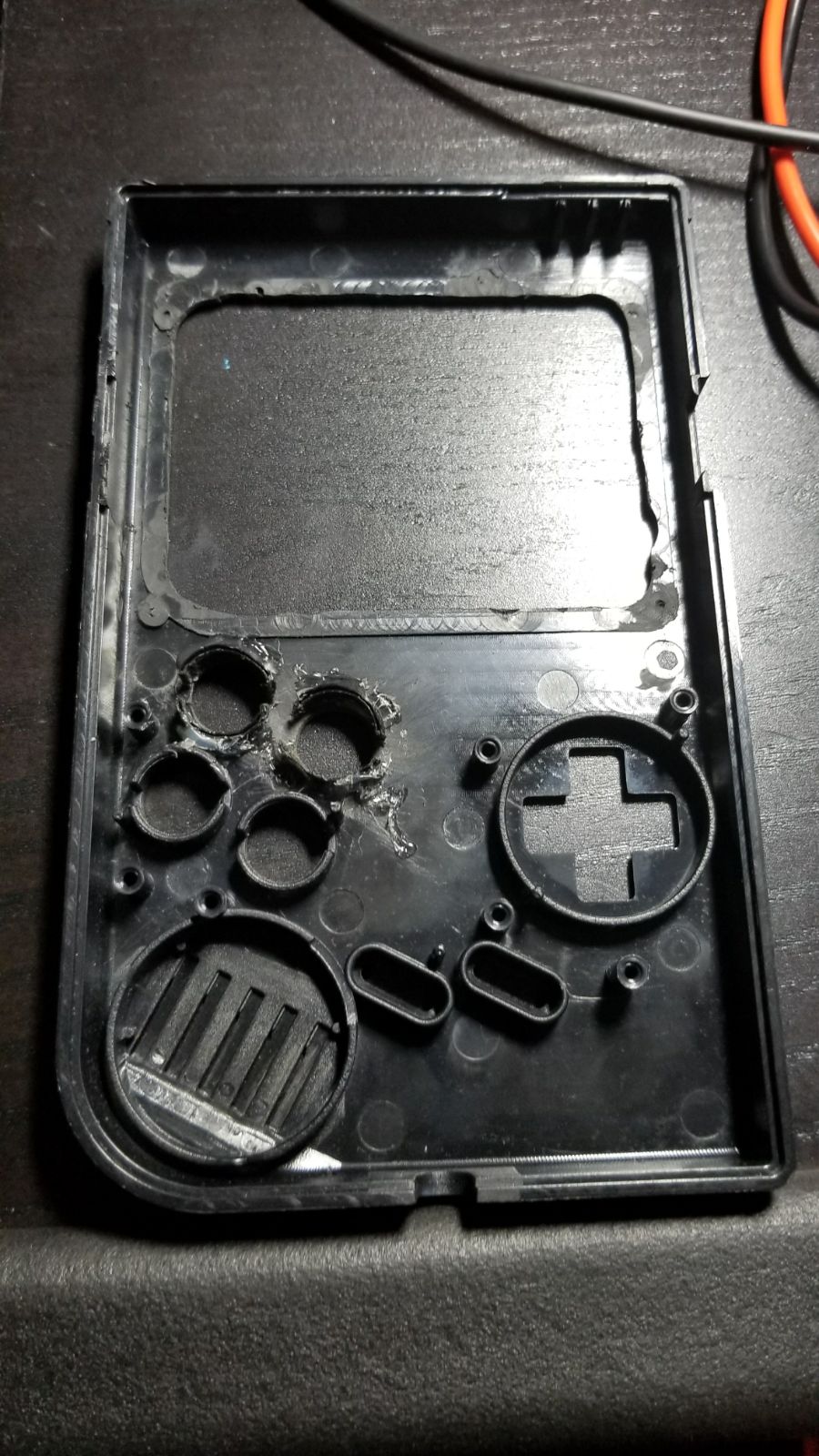

So next the inside of my case, I've haven't done anything like gluing the screen but I have added by 3d printed button wells with some hot glue

WhatsApp Image 2018-01-15 at 2.24.26 PM(1).jpeg (242.89 KiB) Viewed 5107 times

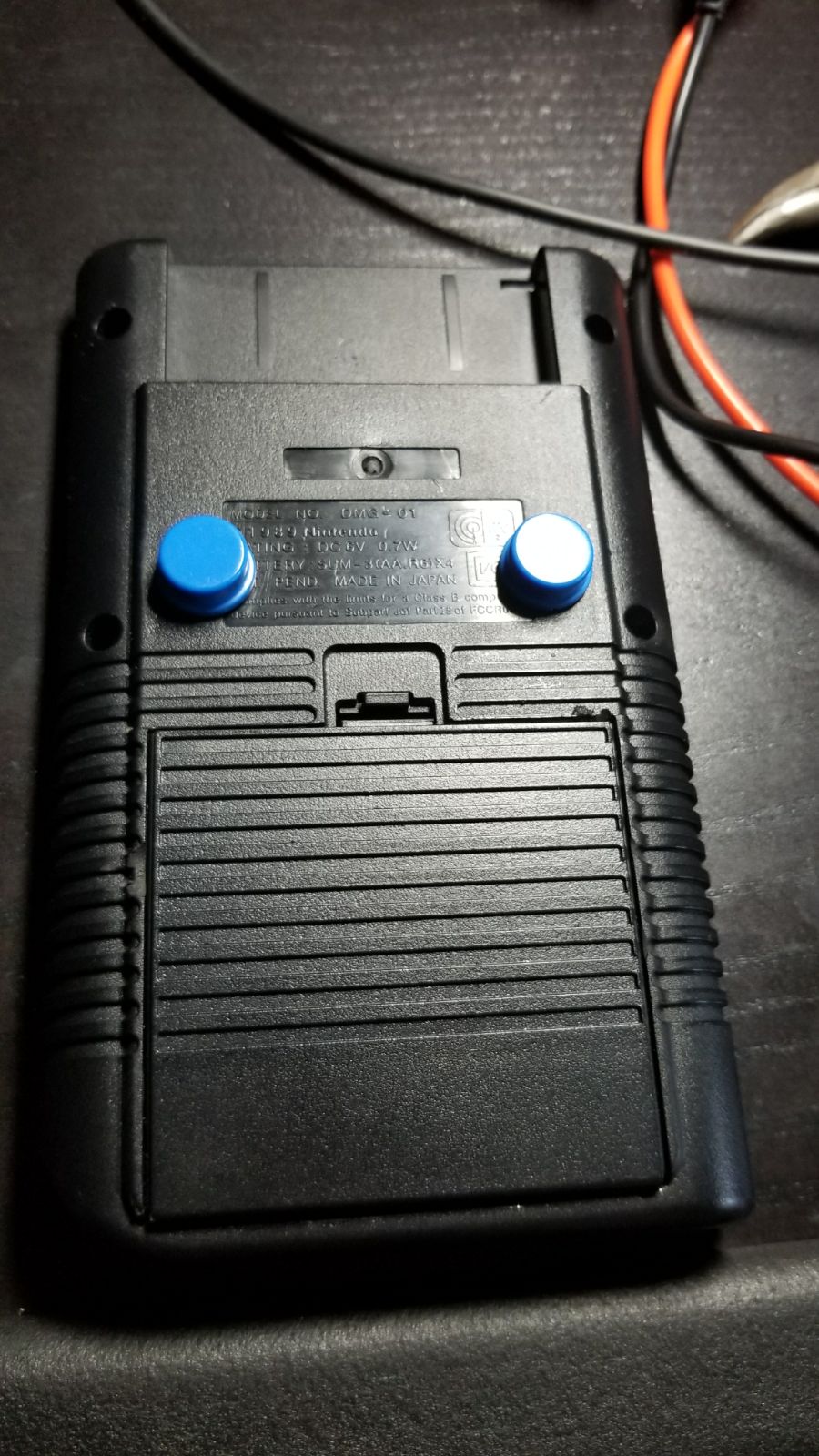

Now It's time for the back of the case

WhatsApp Image 2018-01-15 at 2.24.26 PM(3).jpeg (237.08 KiB) Viewed 5107 times

Here instead of going with the tactile buttons some people use and put in the screw posts I decided to you use buttons similar to those that rodocop uses

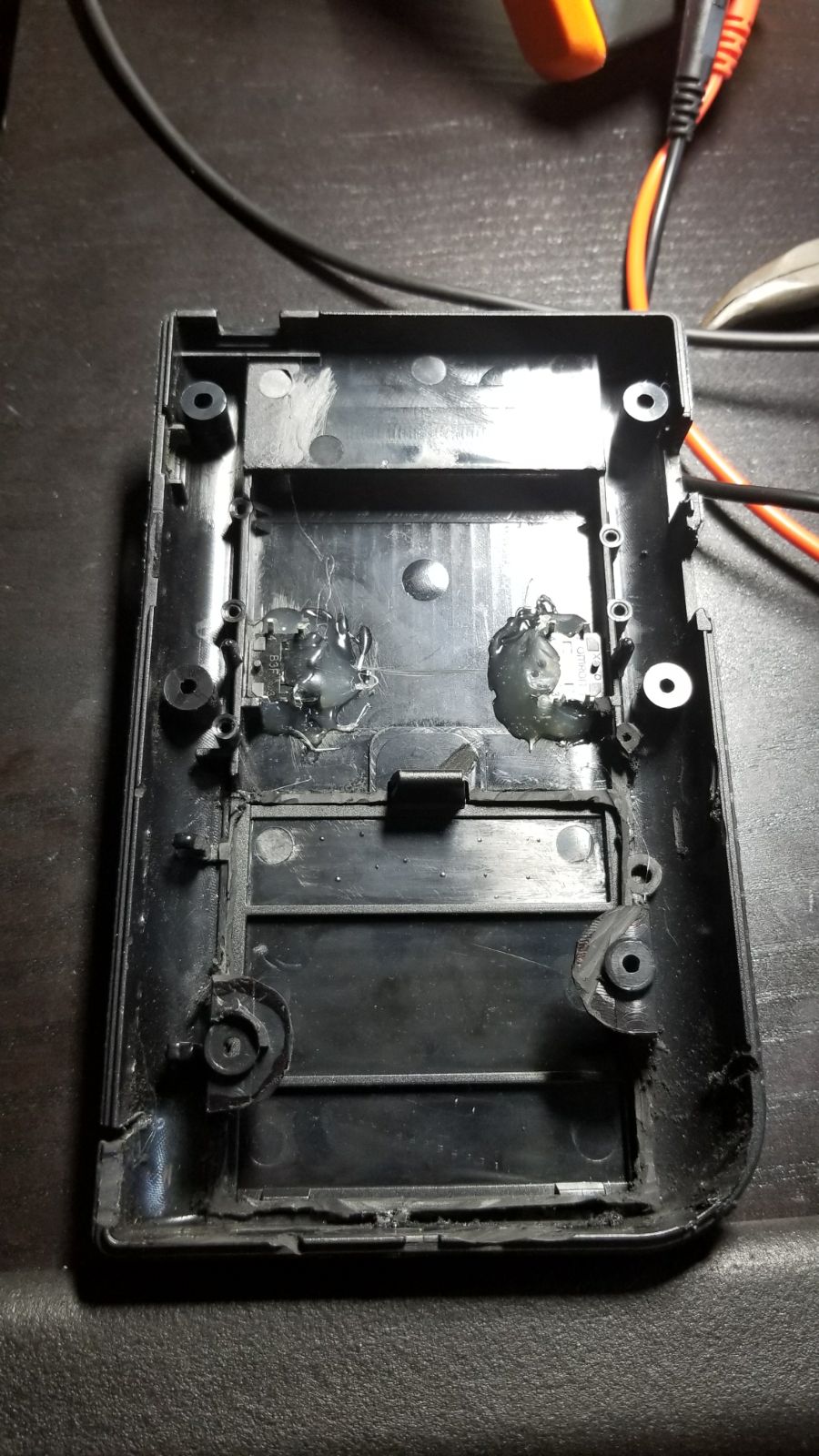

Finally here is the glue job

WhatsApp Image 2018-01-15 at 2.24.26 PM.jpeg (227.95 KiB) Viewed 5107 times

It's nothing special but it's done the job for me and I've stress tested it and they're not going anywhere

I'll probably do an update the second I add my screen and helder's PCB

[Sushi]

The images don't show up for me. Try uploading them as files, then placing them inline.

I look forwards to seeing your progress!

[GameBoyMaster]

The images don't show up for me. Try uploading them as files, then placing them inline.
I look forwards to seeing your progress!

Thanks, It worked for me

[GameBoyMaster]

So hi I've done what I said in the first part which is:
[list=]
Add the Screen
Glue It
Make sure my pi is working fine
Add the mobo
Wire the USB Ports
[/list]

So although I've done all of these things my gamepad dosen't work so I'm basicly stuck for now I'll try tomorrow when I have more time in the day

[spoiler=Images & Details]
[attachment=0]5.jpeg[/attachment]
It looks quite messy but I haven't gotten my gamepad to be recognised in retropie and the USB port although powering my externall controller does not seam to be receiving data

Also you may notice that the soldering is nice and celan, that's because I got a good iron
[/spoiler]

I guess thanks for anyone who's read this

Let's hope I can finish this one

[GameBoyMaster]

Ok, quick update I have swapped my pi zero for a pi zero w and it's fine; more updates coming soon
