My Kites Circuit Sword “KITANA” build

Post by Juanje » Thu Feb 15, 2018 3:46 pm

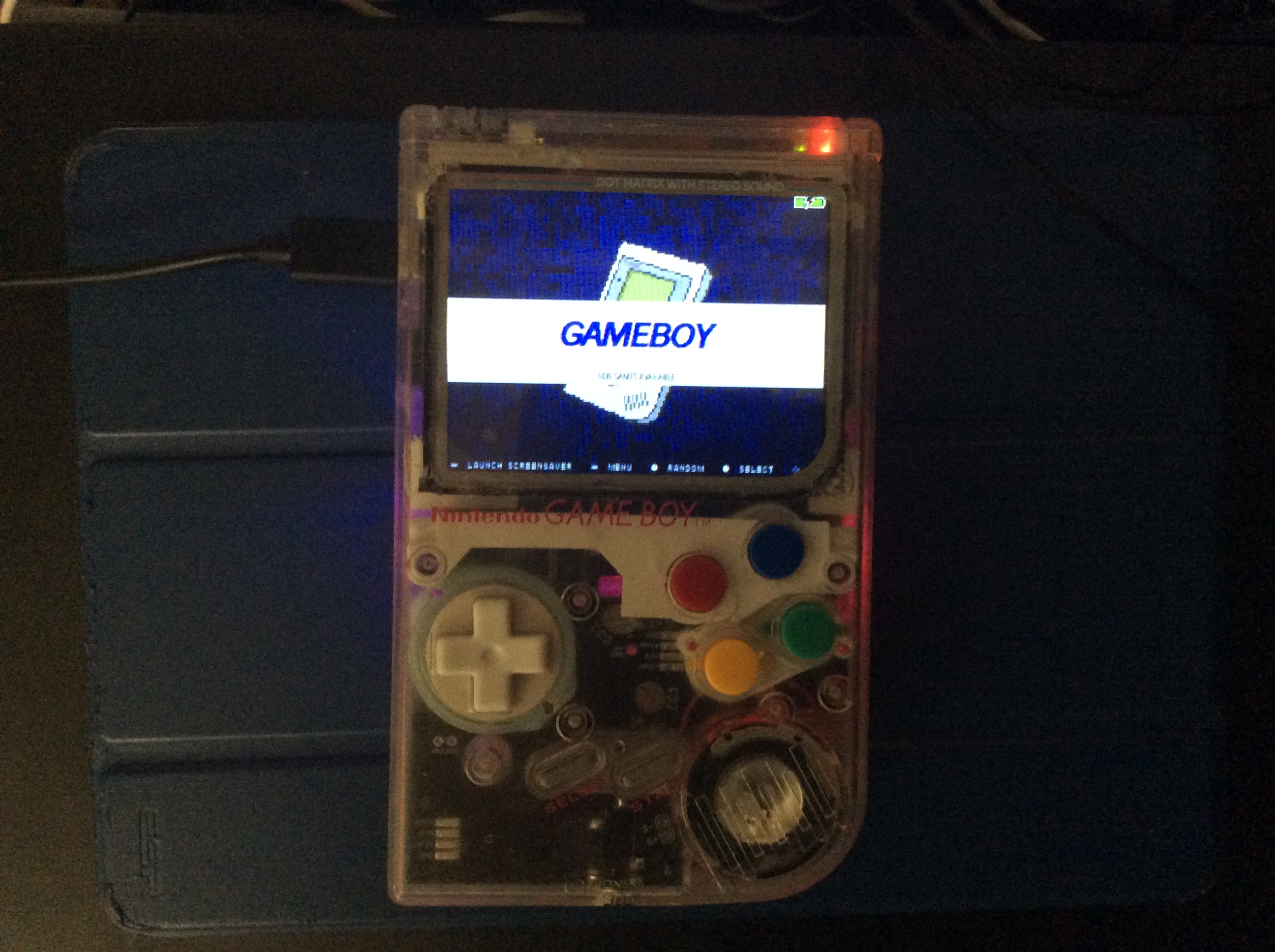

I received my sword today and this is the result
———______———-______———-

****Hardware****
SpoilerShow
- Kites Circuit Sword “Kitana” with all the cables and extra PCBs
- DMG-01 Original case housing transparent clear
- Kites Screen included in Kitana pack
- Ebay GameboyZero style cristal screen with plastic protector
- Jellybellys Ebay stick border screen “Dot Matrix with Stereo Sound” grey
- Soldering iron, soldering paste, soldering material with quality
- Desoldering Pump
- Hot glue
- Gorilla Epoxi
- Double sided tape
- KAPTON Tape Tons of KAPTON tape, LOL( joking)
- Ebay 4 SNES colour style buttons for DMG-01
- Ebay white DMG-01digital pad
- Ebay DMG-01 rubber pads
- EBay battery 4000 mah that fits DMG-01 batteries enclosure
- EBay jst 2-pin ph silicone cable
- EBay brackets
- Ebay Veco 28 mm Speaker
- Dremel with different headers
- Anti-static gloves
- Anti-static wrist
- Scalpel
- Scissors
- Cutting surface and Soldering surface
- EBay transparent green Everdrive Cartridge
- Custom stickers in Cartridge, serial number, and battery
- Tactile rear button
- Quality Multimeter
- 64 GB MicroSD Toshiba EXCERIA UHS-1 U3 Class 10
- PC Computer with Ubuntu/Linux,with Internet connection to download Custom Image Retropie that Kite uploaded, and software to transfer it to Micro SD.
- Micro Sd to Sd adapter, or Micro Sd to USB
- USB-C cable
- 1.5 A Charger
- Precision tweezers and screwdrivers
- USB keyboard to configure Retropie properly
- A brush to keep clean all the build all the time
- Comfortable gaming chair
- Strong table with many space to work
- Printed instructions of assembly.
- 6 hours sweating

****Pics****
Attachments
Last edited by Juanje on Sat Oct 20, 2018 4:30 pm, edited 33 times in total.

User avatar
VeteranGamer
Posts: 1691
Joined: Thu Jan 26, 2017 11:12 am
Location: London, UK
Has thanked: 490 times
Been thanked: 879 times

Re: My Kites Circuit Sword “KITANA” build

Post by VeteranGamer » Thu Feb 15, 2018 4:10 pm

Juanje wrote:
Thu Feb 15, 2018 3:46 pm
I received my sword today and this is the result
coming along nicely.....

the screen does look a little wonky though, but that could be the photo angle....


NB: i think this is in the wrong section


.


User avatar
Juanje
Posts: 34
Joined: Tue Oct 24, 2017 5:47 pm
Location: Spain
Has thanked: 17 times
Been thanked: 12 times
Contact:

Re: My Kites Circuit Sword “KITANA” build

Post by Juanje » Thu Feb 15, 2018 4:20 pm

VeteranGamer wrote:
Thu Feb 15, 2018 4:10 pm
Juanje wrote:
Thu Feb 15, 2018 3:46 pm
I received my sword today and this is the result
coming along nicely.....

the screen does look a little wonky though, but that could be the photo angle....


NB: i think this is in the wrong section


.

The screen has moved a bit I must correct it, I spent 6 hours, and now Im testing sound, tomorrow the screen wil be aligned, as now it is attached with double side tape, when finished I will apply epoxi

User avatar
VeteranGamer
Posts: 1691
Joined: Thu Jan 26, 2017 11:12 am
Location: London, UK
Has thanked: 490 times
Been thanked: 879 times

Re: My Kites Circuit Sword “KITANA” build

Post by VeteranGamer » Fri Feb 16, 2018 1:48 am

Juanje wrote:
Thu Feb 15, 2018 4:20 pm

The screen has moved a bit I must correct it, I spent 6 hours, and now Im testing sound, tomorrow the screen wil be aligned, as now it is attached with double side tape, when finished I will apply epoxi
my bad....
i had had a feeling it was a work in progress....

looks good so far......

HoolyHoo wrote:
Thu Feb 15, 2018 4:17 pm
Nice work! Moved to show off section.
i still feel this is in the wrong place (IMHO)....
even though its not exactly a Game Boy Zero, its still a Game Boy build....
its gonna/might get overlooked being here (with so much action happening over on the other section)...


.

User avatar
HoolyHoo
Posts: 722
Joined: Sat Jul 09, 2016 9:34 pm
Has thanked: 200 times
Been thanked: 716 times

Re: My Kites Circuit Sword “KITANA” build

Post by HoolyHoo » Fri Feb 16, 2018 2:05 am

VeteranGamer wrote:
Fri Feb 16, 2018 1:48 am
i still feel this is in the wrong place (IMHO)....
even though its not exactly a Game Boy Zero, its still a Game Boy build....
its gonna/might get overlooked being here (with so much action happening over on the other section)...
Yeah, unless we create a Kite CM3 Circuit Sword Gameboy Section it won't exactly fall under any of the current categories :lol:

You are right though so I moved it again, thanks :D

User avatar
Juanje
Posts: 34
Joined: Tue Oct 24, 2017 5:47 pm
Location: Spain
Has thanked: 17 times
Been thanked: 12 times
Contact:

Re: My Kites Circuit Sword “KITANA” build

Post by Juanje » Fri Feb 16, 2018 2:16 am

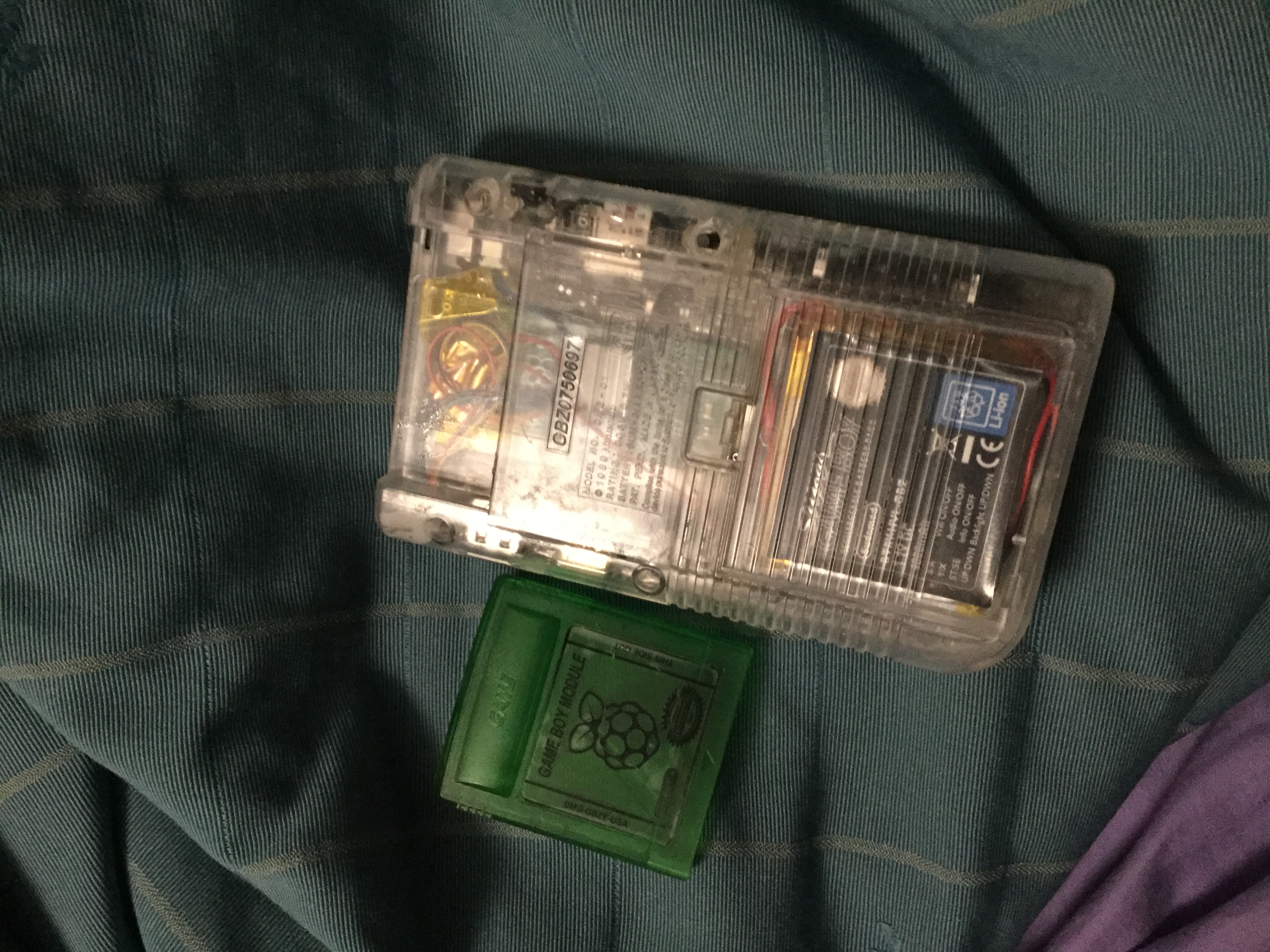

Screen fixed
WiP finished
Imlove this build
Unfortunately, epoxi didnt get transparent in some parts.
Last edited by Juanje on Sat Feb 17, 2018 8:36 pm, edited 2 times in total.

User avatar
YaYa
Posts: 1719
Joined: Mon Jun 26, 2017 12:42 pm
Location: brittany - France
Has thanked: 871 times
Been thanked: 688 times
Contact:

Re: My Kites Circuit Sword “KITANA” build

Post by YaYa » Fri Feb 16, 2018 11:43 am

you can now apply a kitana sticker on the cartridge... so you can really call it kitana :lol:

I have designed this sticker after you called the board Kitana as i had a real big lol after you said that :lol:
Hahaha, all this happened because of you :D
Follow me on instagram Image

User avatar
Juanje
Posts: 34
Joined: Tue Oct 24, 2017 5:47 pm
Location: Spain
Has thanked: 17 times
Been thanked: 12 times
Contact:

Re: My Kites Circuit Sword “KITANA” build

Post by Juanje » Fri Feb 16, 2018 3:13 pm

YaYa wrote:
Fri Feb 16, 2018 11:43 am
you can now apply a kitana sticker on the cartridge... so you can really call it kitana :lol:

I have designed this sticker after you called the board Kitana as i had a real big lol after you said that :lol:
Hahaha, all this happened because of you :D

Amazing,
Simply Amazing!

User avatar
YaYa
Posts: 1719
Joined: Mon Jun 26, 2017 12:42 pm
Location: brittany - France
Has thanked: 871 times
Been thanked: 688 times
Contact:

Re: My Kites Circuit Sword “KITANA” build

Post by YaYa » Fri Feb 16, 2018 3:16 pm

You can find more on this topic :D
