YACSOB - Yet another Circuit Sword (Original) build :)

Post by smoki86 » Tue Feb 20, 2018 7:06 am

Hey there,

there are already a few posts that show how it looks to use the circuit sword for a build, so I am going to make it quick :)

Until it was running it took around 2 hours, another hour today to add the last missing pieces and make adjustments.
I also spent another hour trying to 3d print a few mini buttons for the back board - without success. The current substitute is OK but still doesnt look very nice.

Some noteworthy stuff:
- Used the hotglue trick from the wiki for the status led's - look really nice!
- Put the back button board higher up, easier to reach for me
- Added new mode button
- Added PSP analog stick

EDIT: Something I noticed: I wanted to use original SNES buttons, but they feel too soft/mushy. I added original gameboy buttons from 2 different gb's and it feels so much nicer.

EDIT2: Thanks to kite for his amazing work. I had a few of his previous boards and even got them to work at one point or another. But I abandoned previous attempts because there was still stuff that didn't work like I wanted it to work or something broke while tinkering. This kit is just brilliant. I am done...its perfect and just works Oo

Kite, now I want to go through the same process with the VMU ;)

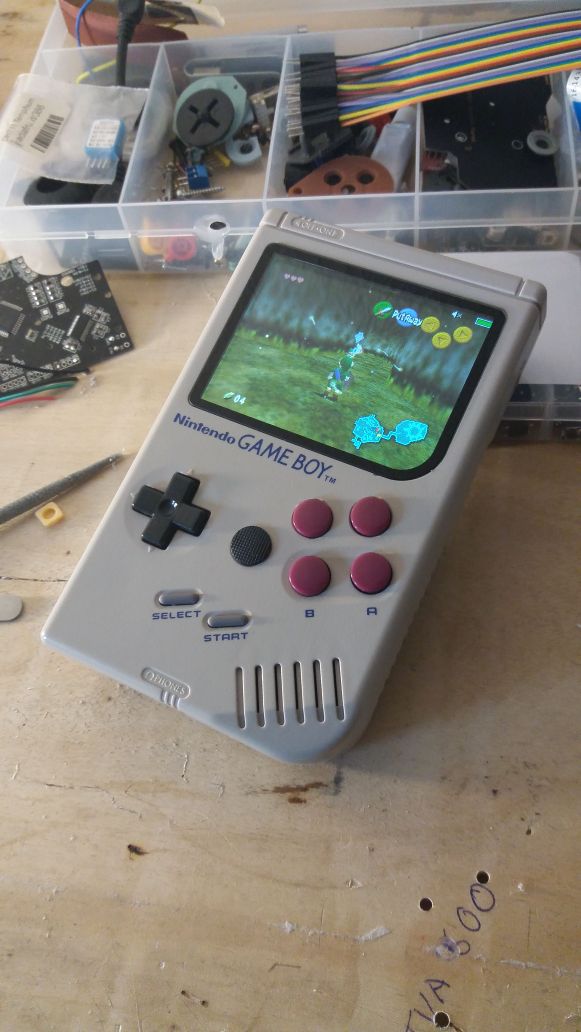

Thats about it, here are the pics :)
Finished with new BackShow
Old BackShow
Last edited by smoki86 on Sun Feb 25, 2018 7:50 am, edited 4 times in total.

User avatar
moooarcuuuus
Posts: 232
Joined: Tue Jul 04, 2017 1:28 am
Has thanked: 2 times
Been thanked: 94 times

Re: YACSB - Yet another Circuit Sword build :)

Post by moooarcuuuus » Tue Feb 20, 2018 7:43 am

I like the topic. :)

The Gb looks very nice. And yes, Kites boards are amazing. Can you post a picture of the buttons?
Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep... Game Over

smoki86
Posts: 97
Joined: Sat Jul 30, 2016 7:45 am
Has thanked: 12 times
Been thanked: 47 times

Re: YACSB - Yet another Circuit Sword build :)

Post by smoki86 » Tue Feb 20, 2018 7:50 am

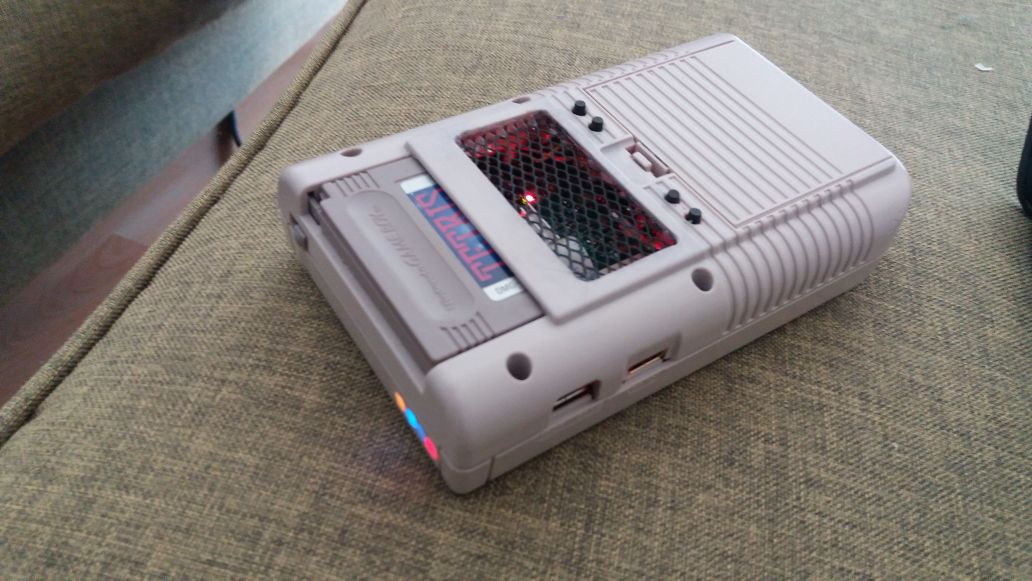

Which buttons? The back buttons? Those are just microswitches soldered to kites back board and accessible through some holes in the back. I glued some rubber button on them, you can see them in the 3. image.
I want to do something better, but while it looks horrible, it works really nice for now.

User avatar
moooarcuuuus
Posts: 232
Joined: Tue Jul 04, 2017 1:28 am
Has thanked: 2 times
Been thanked: 94 times

Re: YACSB - Yet another Circuit Sword build :)

Post by moooarcuuuus » Tue Feb 20, 2018 7:59 am

Ok, thanks for the info.
Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep, Eat, Sleep... Game Over

smoki86
Posts: 97
Joined: Sat Jul 30, 2016 7:45 am
Has thanked: 12 times
Been thanked: 47 times

Re: YACSB - Yet another Circuit Sword build :)

Post by smoki86 » Tue Feb 20, 2018 1:57 pm

Sooo, apparently I do not learn.
I wrote that I tinkered too much and eventually break something.

So, what to do with the ugly back buttons? Sure, make it much worse =D

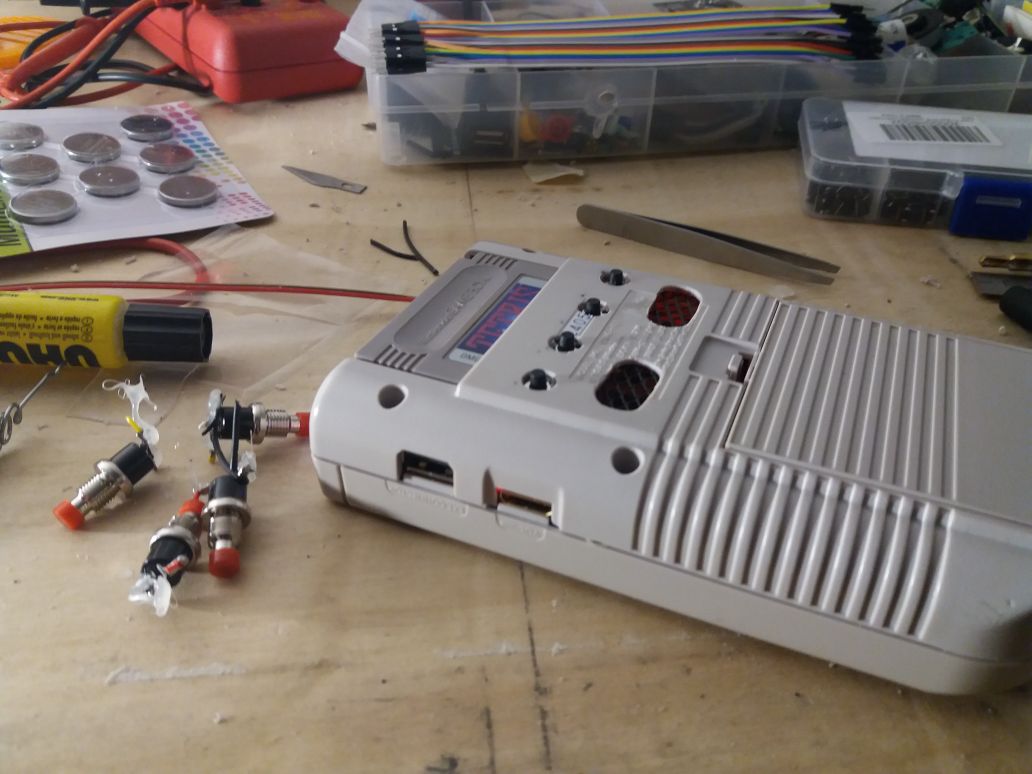

Here is a timelapse:
- find "cool" buttons
- remove old stuff and figure out that the holes are too close together
- make them bigger...apparently that somehow brings them further apart
- nope, now I have two giant holes
- make 4 new holes and use giant holes as ducts...
- install "cool" button and notice that they are entirely unusable
- take everything apart again and install some microswitches into the 4 new holes that are too big for microswitches
- drink glass of wine

and here in pictures:

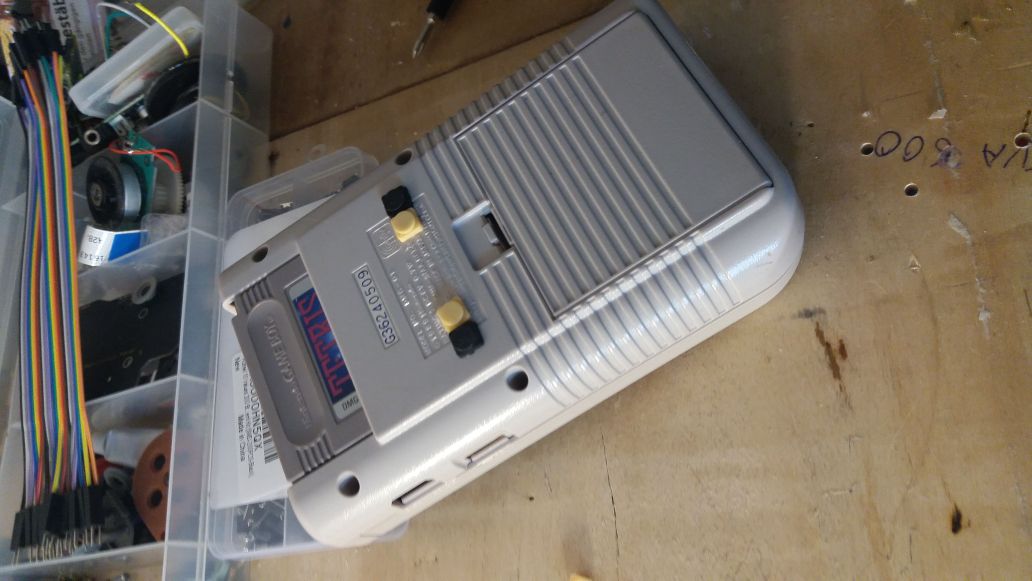

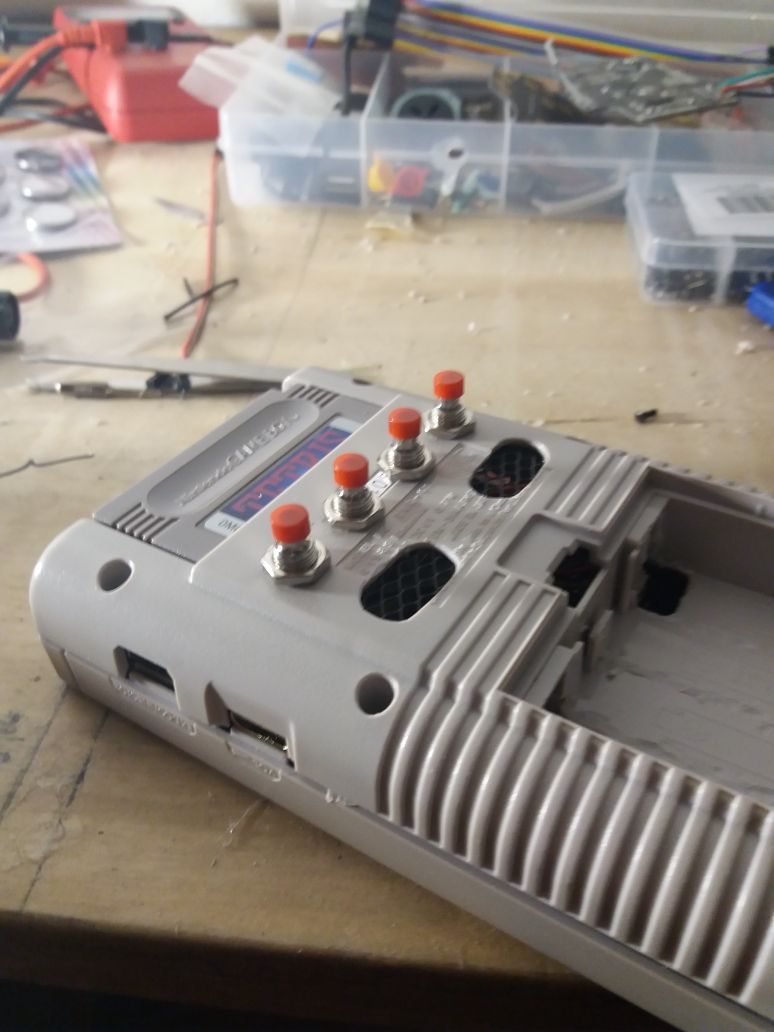

ShowShow
EDIT:
And tomorrow I am going to make it even worse! I think I will remove the entire area that is now covered in holes to install a "window" cut from plexi glass or the metal mesh I used for the ducts and install kites board where it was supposed to go in the first place...

djascher
Posts: 109
Joined: Sat Jan 27, 2018 9:21 pm
Has thanked: 46 times
Been thanked: 19 times

Re: YACSB - Yet another Circuit Sword build :)

Post by djascher » Tue Feb 20, 2018 4:50 pm

Which screen surround did you use?

smoki86
Posts: 97
Joined: Sat Jul 30, 2016 7:45 am
Has thanked: 12 times
Been thanked: 47 times

Re: YACSB - Yet another Circuit Sword build :)

Post by smoki86 » Tue Feb 20, 2018 4:58 pm

I printed Holyhoo's bracket without button wells on my CR10, came out perfect. And two button wells I found in the 3d printing section here.

djascher
Posts: 109
Joined: Sat Jan 27, 2018 9:21 pm
Has thanked: 46 times
Been thanked: 19 times

Re: YACSB - Yet another Circuit Sword build :)

Post by djascher » Tue Feb 20, 2018 5:12 pm

Thanks. I meant the black border around the screen / glass in front of the screen. Which supplier did you go with?

smoki86
Posts: 97
Joined: Sat Jul 30, 2016 7:45 am
Has thanked: 12 times
Been thanked: 47 times

Re: YACSB - Yet another Circuit Sword build :)

Post by smoki86 » Tue Feb 20, 2018 5:24 pm

Ah sorry, this one from Deadpan Robot: Link

smoki86
Posts: 97
Joined: Sat Jul 30, 2016 7:45 am
Has thanked: 12 times
Been thanked: 47 times

Re: YACSB - Yet another Circuit Sword build :)

Post by smoki86 » Wed Feb 21, 2018 5:54 am

OK, saved it....sort of.

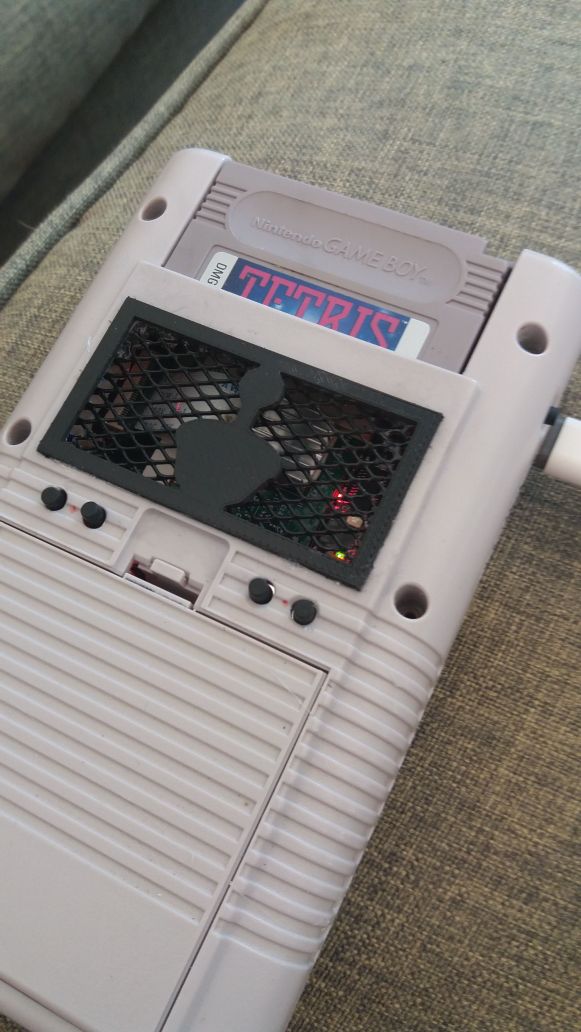

Kites fan arrived today as well so I am just going to pretend that I always wanted to do it like this for the nice view and better cooling ;)
Picture!Show
