Very simple build

Show off your completed Game Boy Zero, or post your build logs here!
Post Reply
User avatar
nexus23k
Posts: 62
Joined: Sat Sep 30, 2017 11:06 am
Has thanked: 23 times
Been thanked: 19 times

Very simple build

Post by nexus23k » Wed Jun 26, 2019 2:44 pm

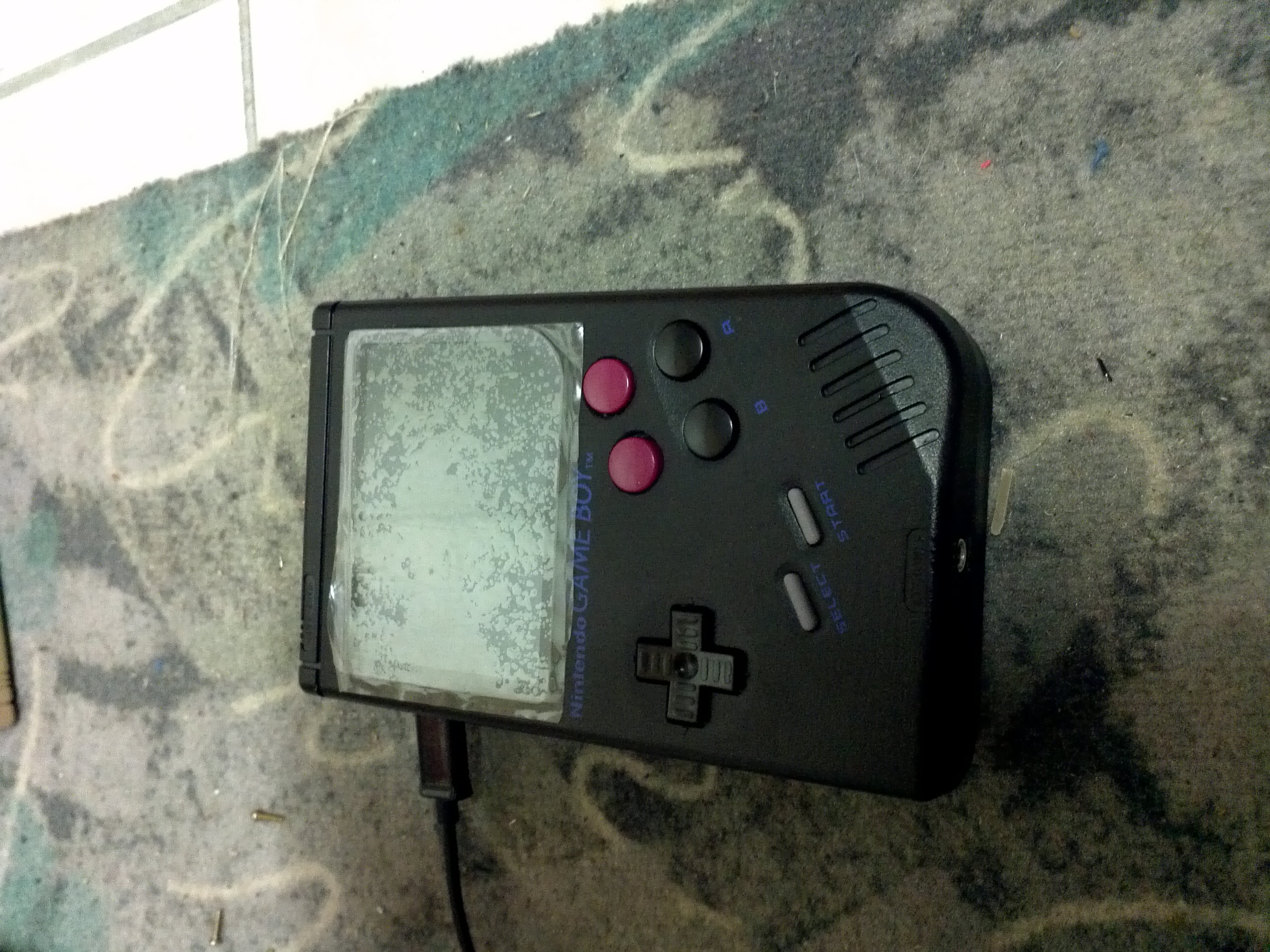

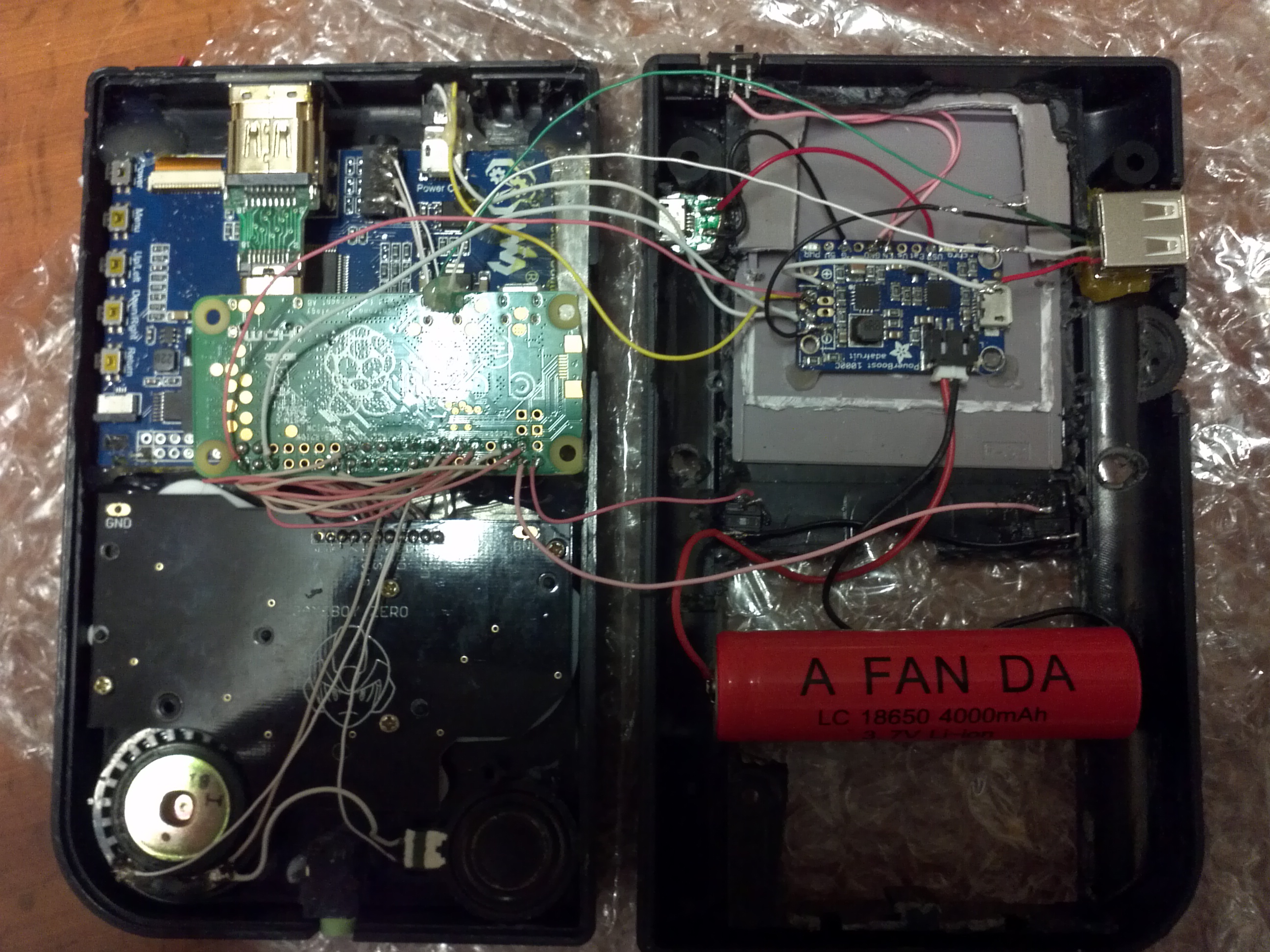

Build a gbz with min. of parts. No volume control, only software, no amp, no usb Hub. Only one usb port. The expensive part was the Hdmi screen but i got it for apple and eg from a user canceld his build.

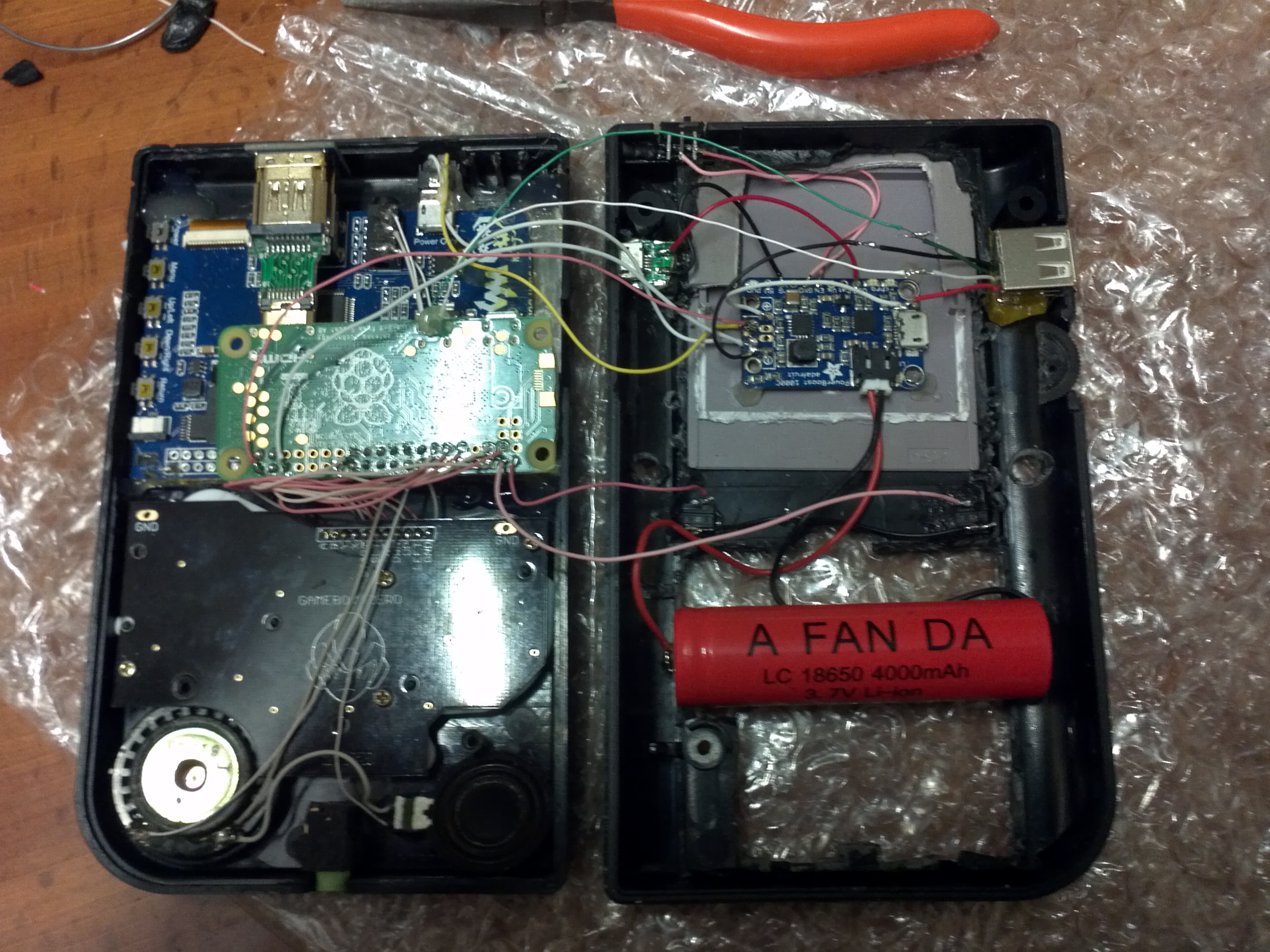

A lot of space for min. 3 more Battery cells.
Attachments

User avatar
tinkerBOY
Posts: 702
Joined: Tue May 30, 2017 4:00 am
Has thanked: 294 times
Been thanked: 200 times

Re: Very simple build

Post by tinkerBOY » Wed Jun 26, 2019 6:29 pm

is the 18650 battery really 4000mah?
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter

User avatar
nexus23k
Posts: 62
Joined: Sat Sep 30, 2017 11:06 am
Has thanked: 23 times
Been thanked: 19 times

Re: Very simple build

Post by nexus23k » Thu Jun 27, 2019 5:59 am

I hope so! ;) Not tested yet. Runntime maybee 4h? What i can say. This lipo was very cheap and 4000mah rather not ;) Was looking for a battery and than comes in my mind. Hey you got a flashlight with a gratis replacement battery. :) Now used in this build. Will test it soon.

undead1
Posts: 2
Joined: Mon Jun 24, 2019 10:12 pm
Has thanked: 1 time
Been thanked: 4 times

Re: Very simple build

Post by undead1 » Thu Jun 27, 2019 6:34 am

Looks like can fit 4 of these 4000mAh 18650 to a whopping 16000mAh :lol: Do not bring on flight!

Looking good and very roomy compared to mine too! Curious on what display is that?

User avatar
nexus23k
Posts: 62
Joined: Sat Sep 30, 2017 11:06 am
Has thanked: 23 times
Been thanked: 19 times

Re: Very simple build

Post by nexus23k » Thu Jun 27, 2019 7:47 am

Thanks! It`s waveshare Hdmi screen. Panel is realy god! Nice color, kontrast to. But illumination (black level) is not so god. Directly compar with Kedei you can see the different. Kedei makes for me the better picture.
Waveshare & GB case need a bit trimmed down to fit the Display in. Yeah! :) 16Ah were nice! ;) The big qustion is now is it true with 4000mah per Cell? ;) will do some Tests soon.
greetings

xaphor
Posts: 23
Joined: Sun May 05, 2019 8:41 am
Has thanked: 2 times
Been thanked: 1 time

Re: Very simple build

Post by xaphor » Sat Jun 29, 2019 9:34 am

What board is that? :)

User avatar
nexus23k
Posts: 62
Joined: Sat Sep 30, 2017 11:06 am
Has thanked: 23 times
Been thanked: 19 times

Re: Very simple build

Post by nexus23k » Sat Jun 29, 2019 8:16 pm

Simple button pcb, no all in one! Use the gpio from pi.
