Hii guys,

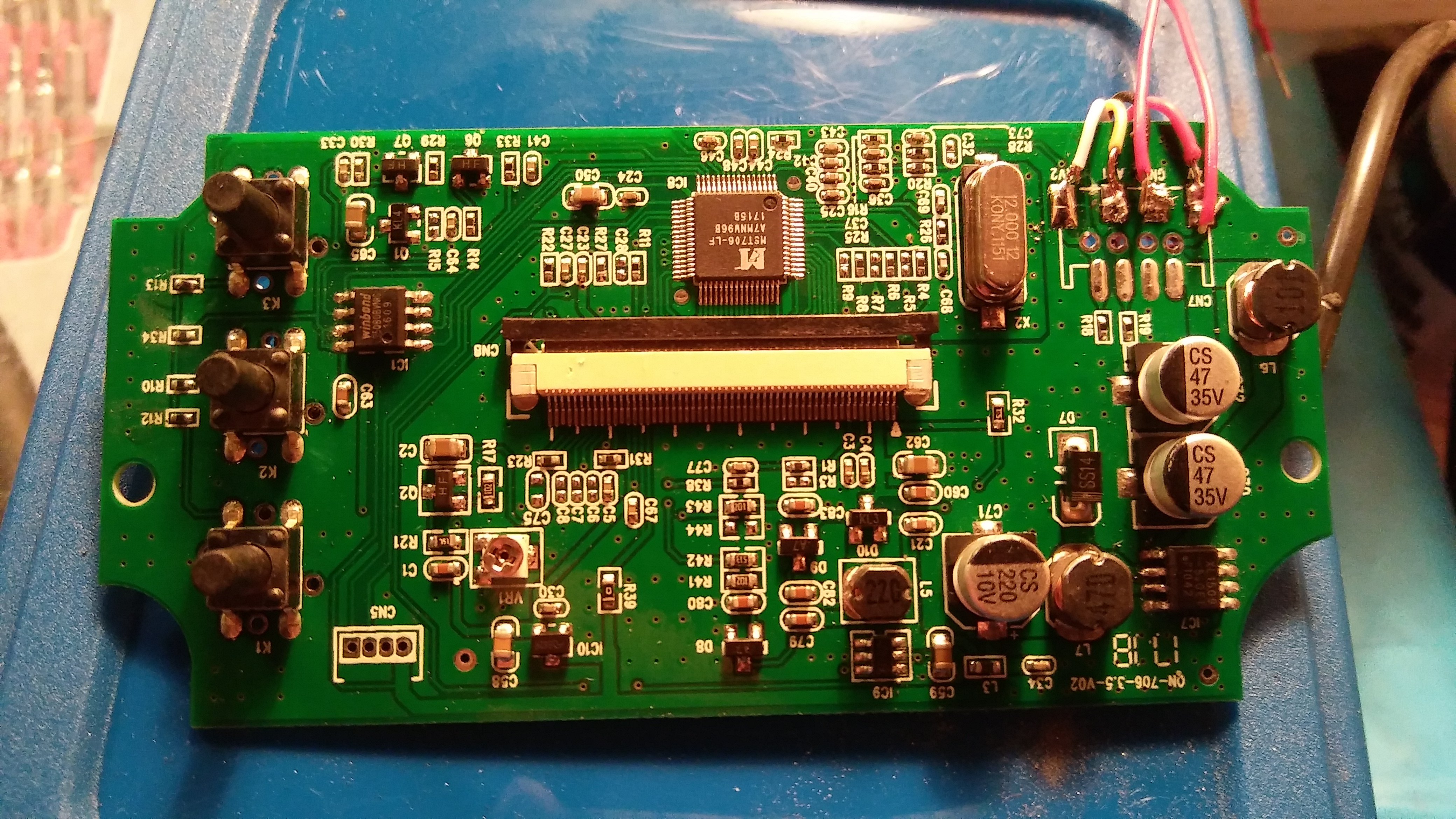

I just got my bw car screen and tear it down
After that i found out that the motherboard is totally diffrend as others.
This is my first like big project and im totaly new to this so my question was is there someone that can help me out making it running 5v on the pi zero?
Need help with bw screen setup!!!
- rodocop
- Posts: 1723
- Joined: Mon Aug 22, 2016 3:14 pm
- Location: Saskatchewan
- Has thanked: 606 times
- Been thanked: 608 times
Re: Need help with bw screen setup!!!
Hmm. Never seen that one. At first I thought it was the same as this. But after looking closer they're different.
http://www.sudomod.com/forum/viewtopic. ... +big#p9241
Search the forum a bit. You might find some info. This thread has lots of screen info too:
http://www.sudomod.com/forum/viewtopic. ... lit=Screen
http://www.sudomod.com/forum/viewtopic. ... +big#p9241
Search the forum a bit. You might find some info. This thread has lots of screen info too:
http://www.sudomod.com/forum/viewtopic. ... lit=Screen
_____________________________________________________
My Minty Pi builds:
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3628
My GBZ builds:
http://www.sudomod.com/forum/viewtopic. ... 813#p50813
My modded DMG-01's:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2696
My NESpi:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2941
My Gaboze Pocaio's
https://sudomod.com/forum/viewtopic.php?f=13&t=6063
My Minty Pi builds:
http://www.sudomod.com/forum/viewtopic.php?f=32&t=3628
My GBZ builds:
http://www.sudomod.com/forum/viewtopic. ... 813#p50813
My modded DMG-01's:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2696
My NESpi:
http://www.sudomod.com/forum/viewtopic.php?f=13&t=2941
My Gaboze Pocaio's
https://sudomod.com/forum/viewtopic.php?f=13&t=6063
- tinkerBOY
- Posts: 710
- Joined: Tue May 30, 2017 4:00 am
- Has thanked: 294 times
- Been thanked: 206 times
Re: Need help with bw screen setup!!!
i suggest you test it first before modding.
Your board looks like its using XL1509, the same dc regulator as mine.

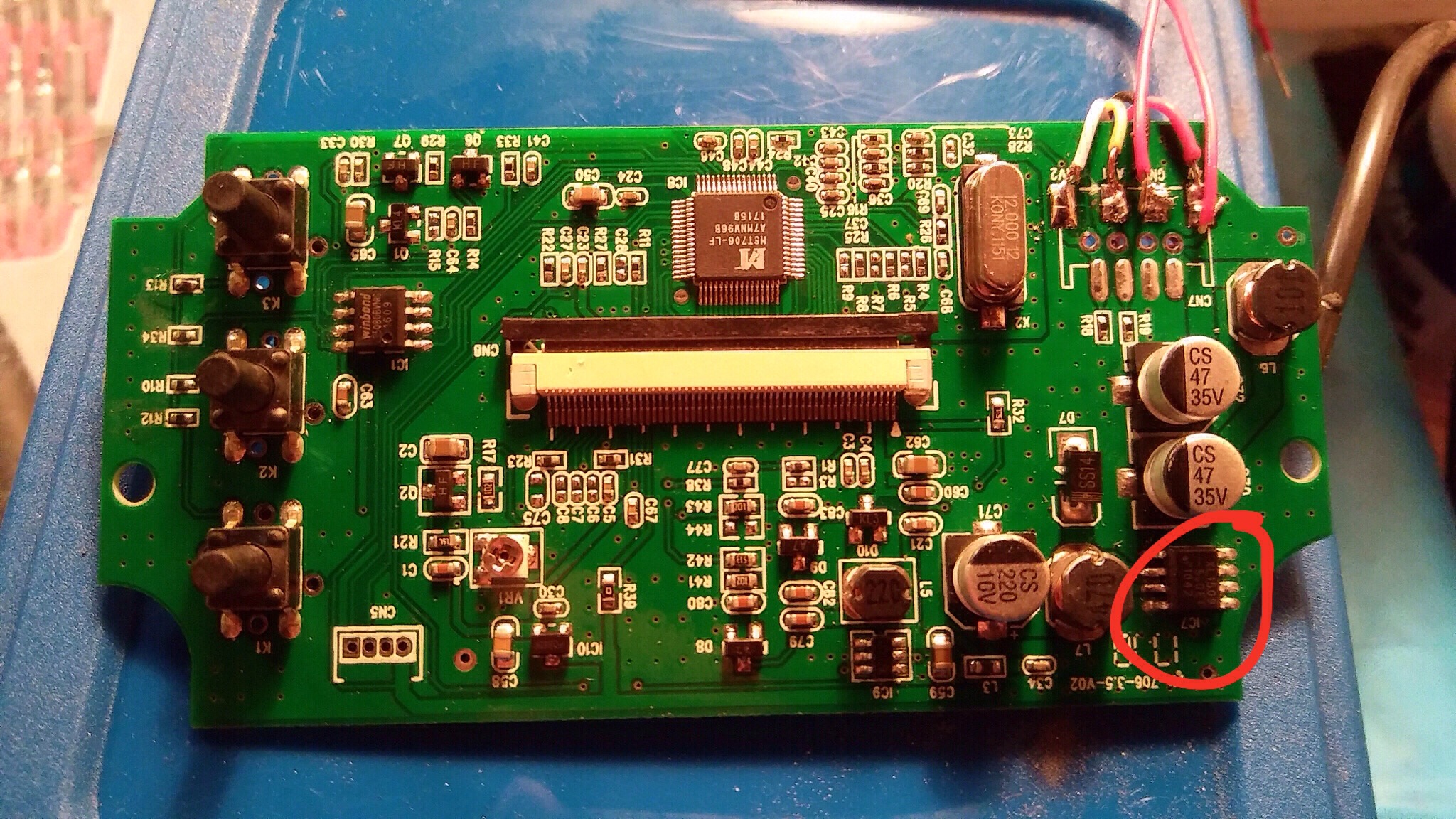

Look for the chip circled here Desolder the positive red wire and directly connect it to PIN 2 of XL1509 chip. After this you can connect a 5v power but NOT 12v.
If you're not sure which one is the pin2, use a multimeter to check for 5v output voltage from each pin of XL1509.
Your board looks like its using XL1509, the same dc regulator as mine.
Look for the chip circled here Desolder the positive red wire and directly connect it to PIN 2 of XL1509 chip. After this you can connect a 5v power but NOT 12v.
If you're not sure which one is the pin2, use a multimeter to check for 5v output voltage from each pin of XL1509.
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter
Re: Need help with bw screen setup!!!
Tried that. the screen blinks ones after that nothing happendszeroboy wrote: ↑Thu Jul 27, 2017 1:08 ami suggest you test it first before modding.
Your board looks like its using XL1509, the same dc regulator as mine.
Look for the chip circled here
Desolder the positive red wire and directly connect it to PIN 2 of XL1509 chip. After this you can connect a 5v power but NOT 12v.
If you're not sure which one is the pin2, use a multimeter to check for 5v output voltage from each pin of XL1509.
- tinkerBOY
- Posts: 710
- Joined: Tue May 30, 2017 4:00 am
- Has thanked: 294 times
- Been thanked: 206 times
Re: Need help with bw screen setup!!!
Did you test it first before modding? Just to make sure it is working.
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter
Re: Need help with bw screen setup!!!
Haha just let it fall while working on it and broke the lcd.
I orderd a new one hopefully it will be a easier motherboard this time
