Help converting to 5v
-
- Posts: 23
- Joined: Sat Aug 05, 2017 10:41 pm
- Has thanked: 8 times

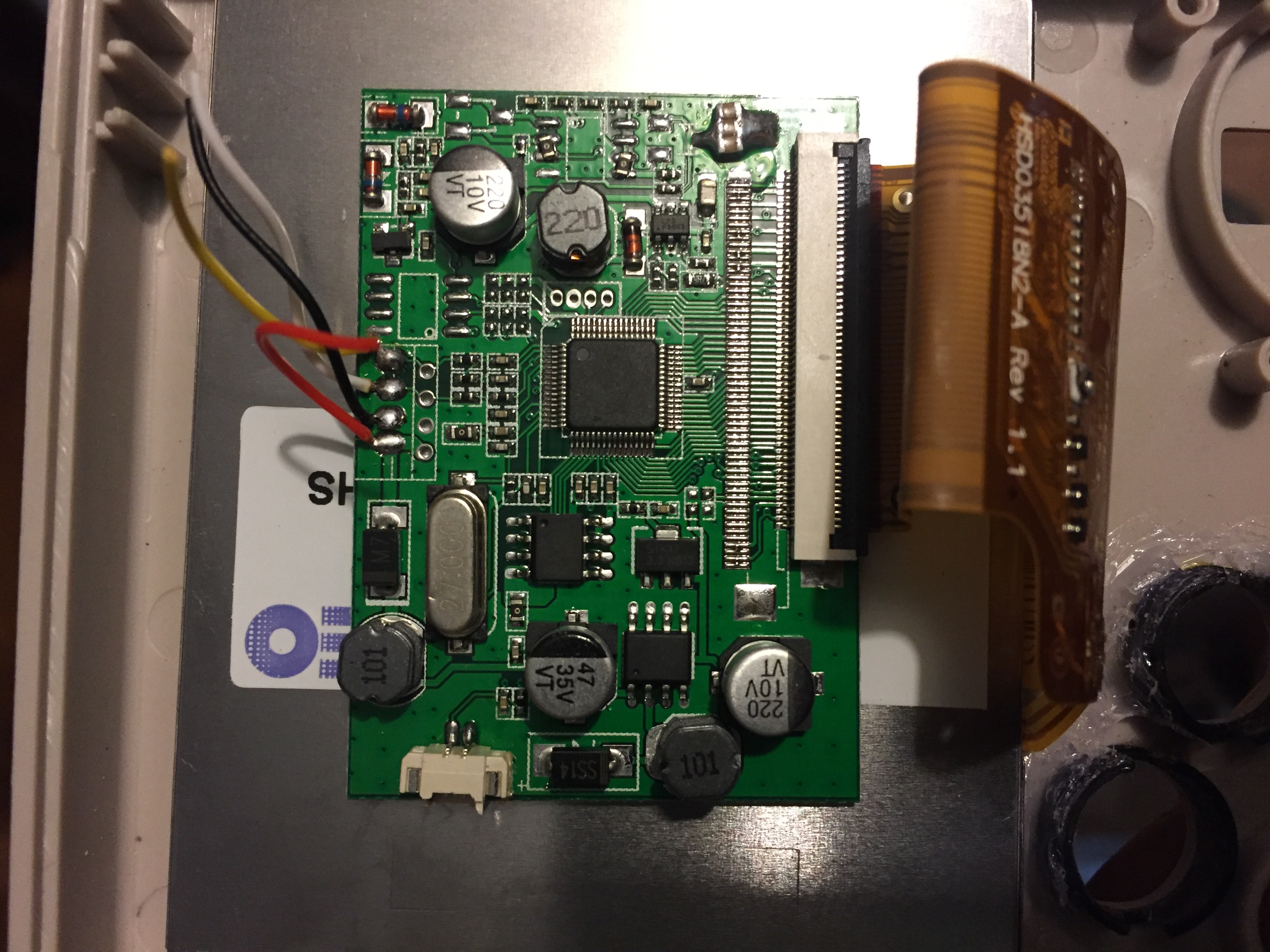

New screen board?
new screen controller board? Did the check to see if it ran off of 5v right out of the box and didn't. I need some help modifying it.
- Attachments
-
- IMG_4372.JPG (1.5 MiB) Viewed 7456 times
-
- Posts: 23
- Joined: Sat Aug 05, 2017 10:41 pm
- Has thanked: 8 times
Re: New screen board?

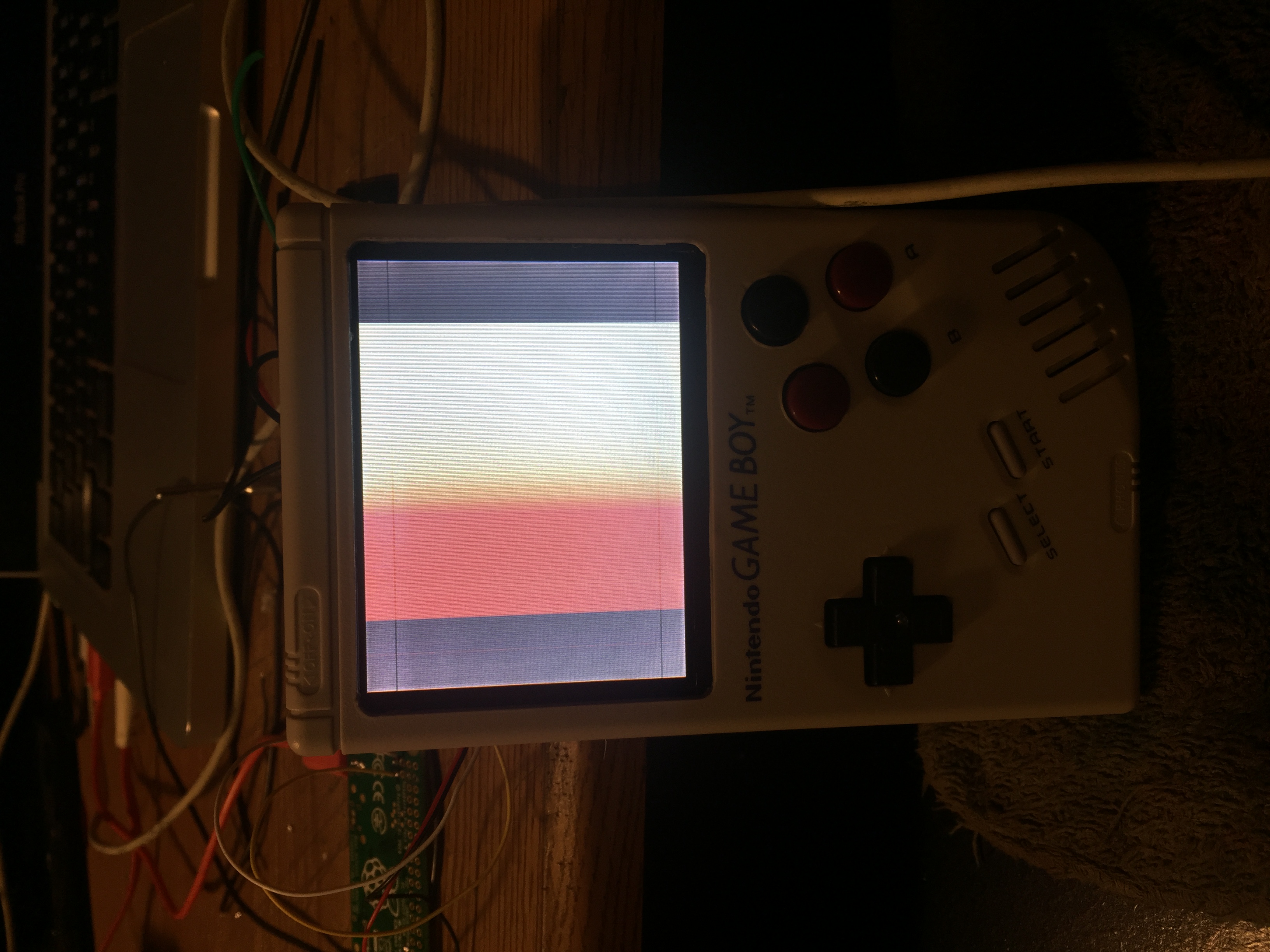

This is what it looks like when powered
- Attachments
-
- IMG_4411.JPG (1.56 MiB) Viewed 7441 times
-
- Posts: 23
- Joined: Sat Aug 05, 2017 10:41 pm
- Has thanked: 8 times
Help converting to 5v
Hey I received a BW screen that is not noted in the wiki can anyone help me?
- Attachments
-
- New board?
- IMG_4372.JPG (1.5 MiB) Viewed 7422 times
- erik_gee
- Posts: 356
- Joined: Thu Jun 16, 2016 12:57 am
- Location: United States
- Has thanked: 137 times
- Been thanked: 193 times
Re: Help converting to 5v
Can you read my the name on the back of that 8 pin chip on the bottom right if the screen ?
GBC AIO kit Sales Thread:https://www.sudomod.com/forum/viewtopic.php?f=38&t=9928
Bunch of different shoulder button kits Sales Thread:viewtopic.php?f=38&t=6233&p=63192#p63192
AIO board for DMG Sales Thread:
viewtopic.php?f=38&t=6431
6 Button Common Ground Board Sales Thread: viewtopic.php?f=38&t=4811
Bunch of different shoulder button kits Sales Thread:viewtopic.php?f=38&t=6233&p=63192#p63192
AIO board for DMG Sales Thread:
viewtopic.php?f=38&t=6431
6 Button Common Ground Board Sales Thread: viewtopic.php?f=38&t=4811
-
- Posts: 23
- Joined: Sat Aug 05, 2017 10:41 pm
- Has thanked: 8 times
Re: Help converting to 5v
on the first 8pin it says -MK 25040AT1G 1646
the second it says -xl1509 -5.081 64037
the second it says -xl1509 -5.081 64037
-
- Posts: 23
- Joined: Sat Aug 05, 2017 10:41 pm
- Has thanked: 8 times
Re: Help converting to 5v
on the first 8pin it says -MK 25040AT1G 1646
the second it says -xl1509 -5.081 64037
-
- Posts: 23
- Joined: Sat Aug 05, 2017 10:41 pm
- Has thanked: 8 times
Re: Help converting to 5v

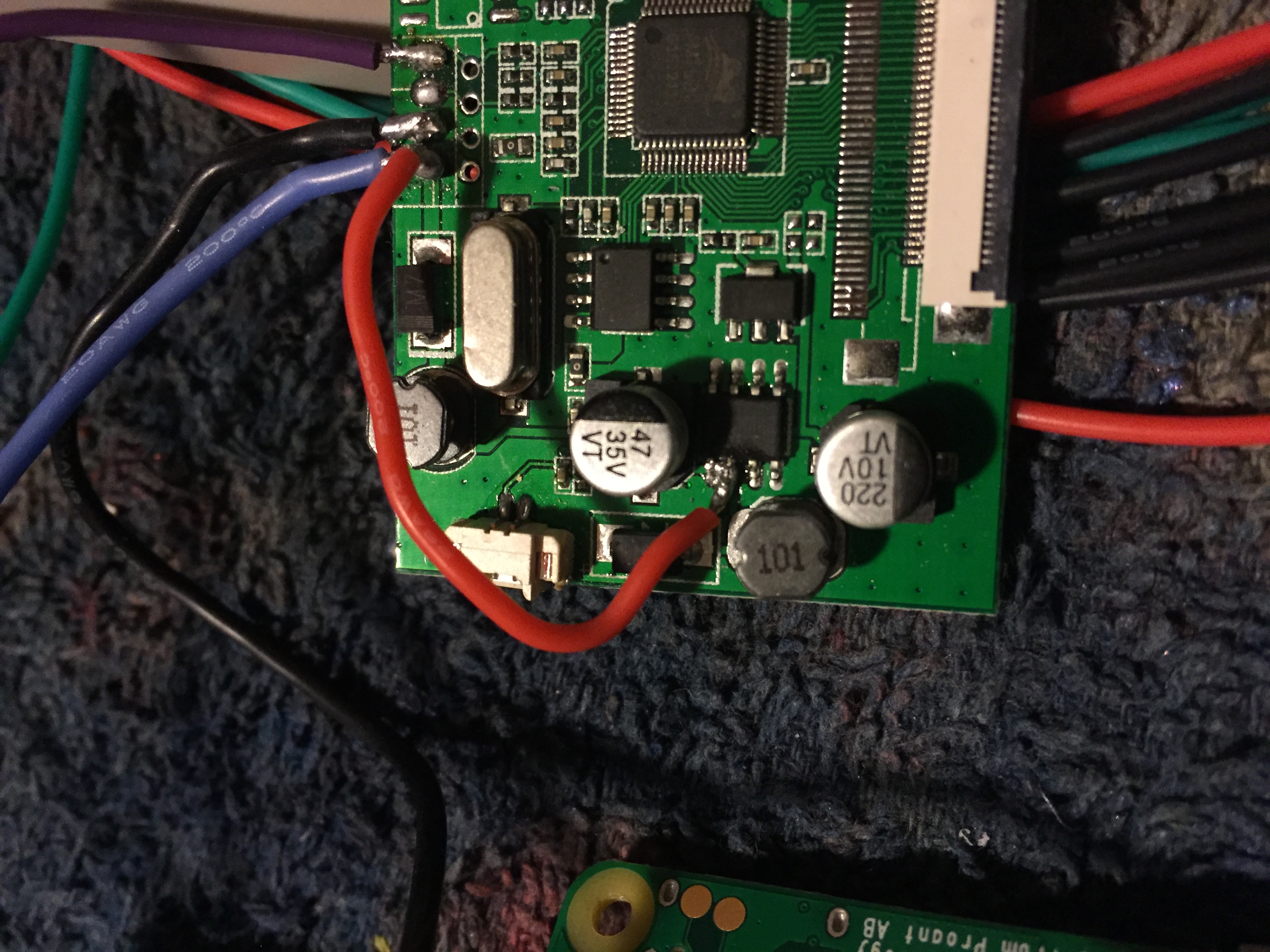

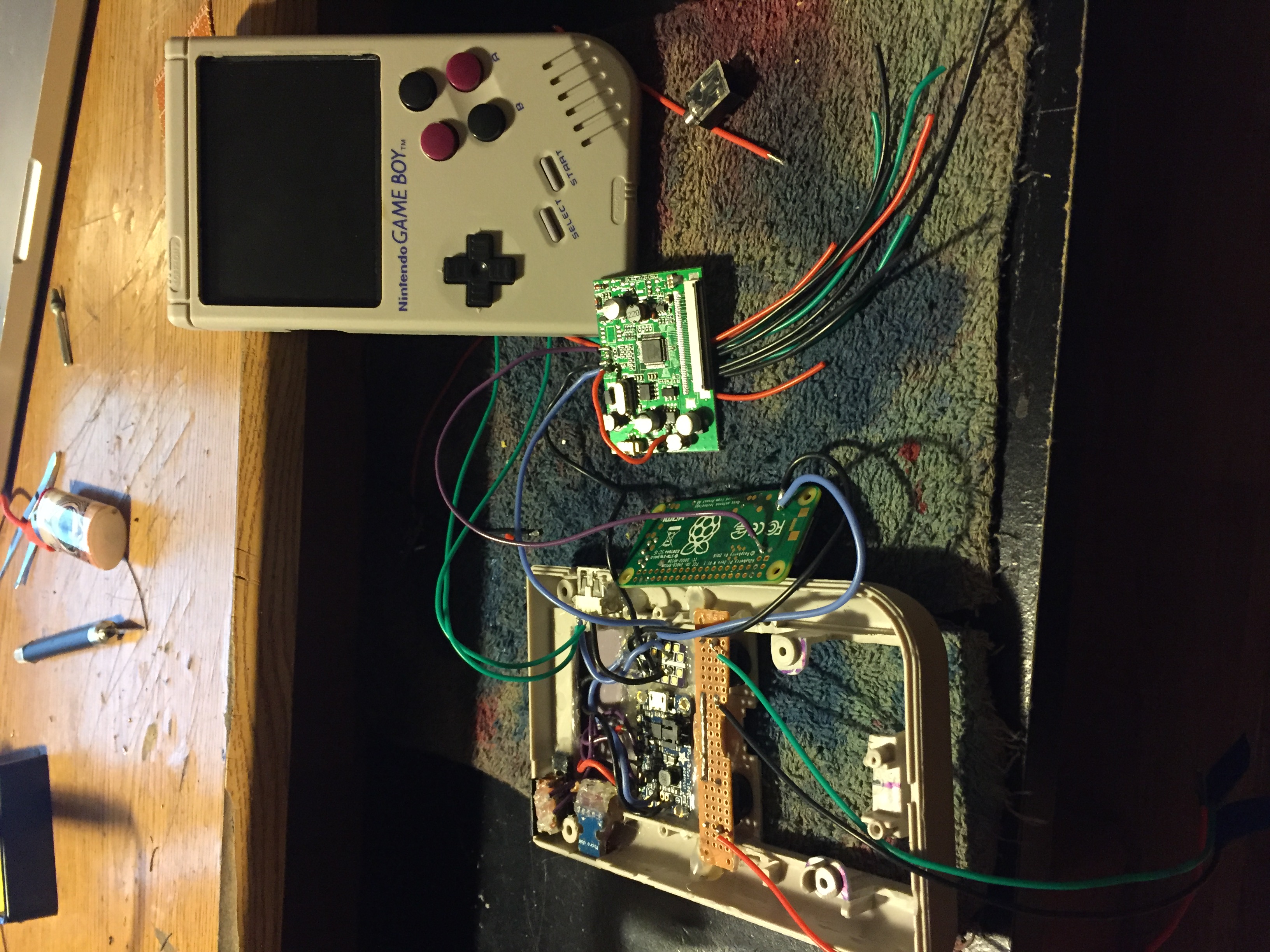

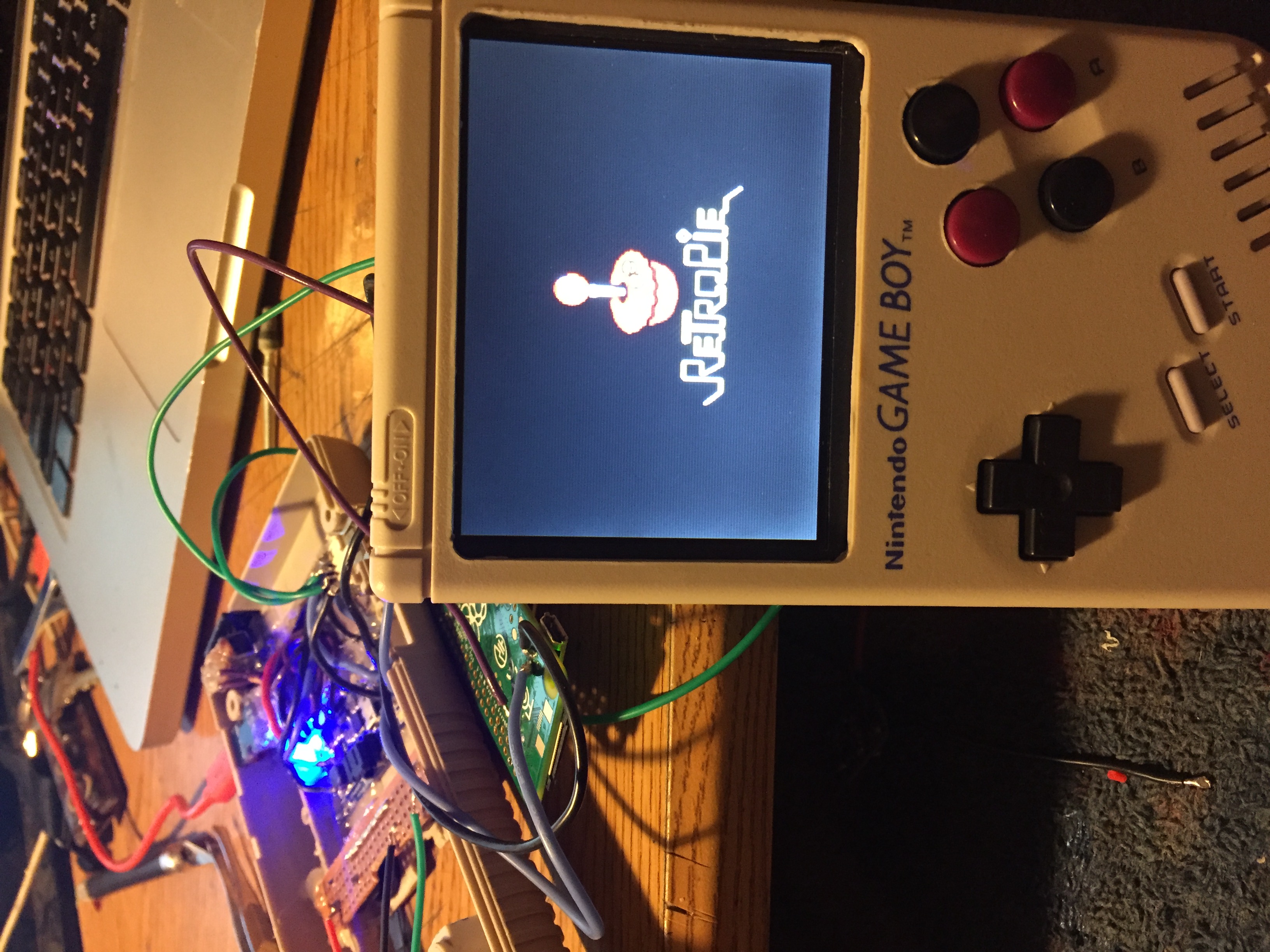

well I got impatient and googled all of the different components of the board and looking at similarities in other boards. I found out that the xl1509 chip is the one to use to get five volts using the second pin. After saying a prayer i decided to plug it up to my pi and power it up and it worked like a charm. Right now it is in a jumper cable format, but i want to run power and ground directly from the second pin and ground side of the xl1509 chip to see if i can correct the graininess of the screen.
-
- Posts: 23
- Joined: Sat Aug 05, 2017 10:41 pm
- Has thanked: 8 times
Re: Help converting to 5v
- Attachments
-
- IMG_4462.JPG (1.52 MiB) Viewed 7285 times
-
- IMG_4460.JPG (1.45 MiB) Viewed 7285 times
-
- IMG_4459.JPG (1.5 MiB) Viewed 7285 times
-
- IMG_4453.JPG (1.6 MiB) Viewed 7285 times
- Maury
- Posts: 37
- Joined: Fri Sep 01, 2017 8:36 am
- Location: Chicago Ill.
- Has thanked: 28 times
- Been thanked: 4 times
Re: Help converting to 5v
You are correct the second pin is the 5v pin.
I would recommend to check all the connection and verified that no cables or solder are touching in any way.
Did you test the monitor before connecting to the PI ?
You get a nice picture at the beginning witch means that you are in the right track.

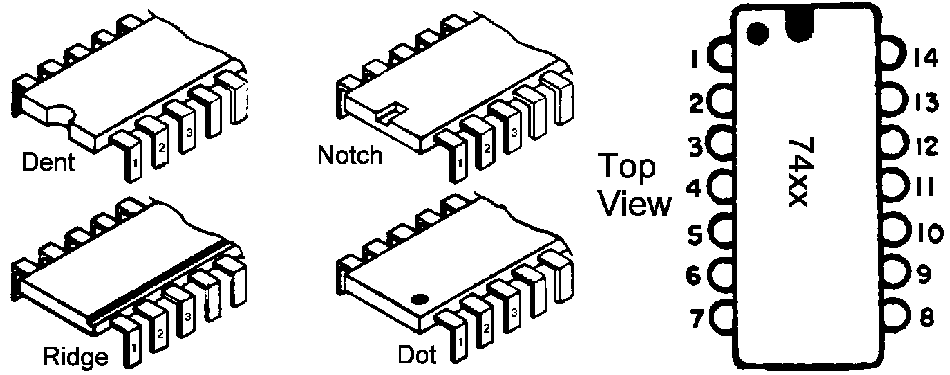

In case anyone else is curious, you rotate the board until the chip is aligned upright (dent, dot or notch at the top, ridge at the bottom) and start counting at the top left and count the pins anti-clockwise:
I would recommend to check all the connection and verified that no cables or solder are touching in any way.
Did you test the monitor before connecting to the PI ?
You get a nice picture at the beginning witch means that you are in the right track.
In case anyone else is curious, you rotate the board until the chip is aligned upright (dent, dot or notch at the top, ridge at the bottom) and start counting at the top left and count the pins anti-clockwise:
- Attachments
-
- icpins.gif (11.66 KiB) Viewed 7273 times
-
- XL1509.gif (21.21 KiB) Viewed 7273 times
