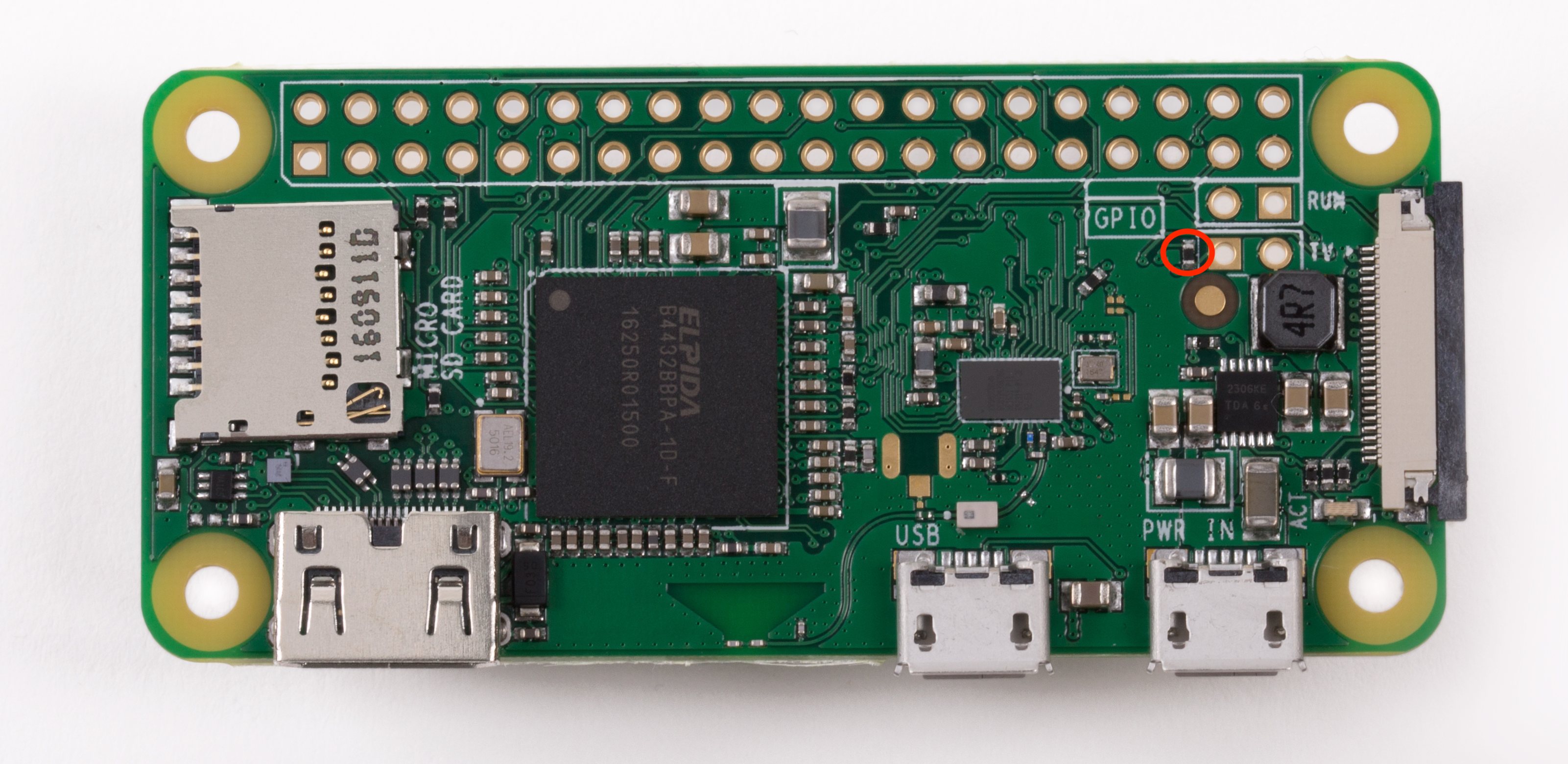

Hi people - as you can tell I can get my Composite display working anymore. It was working fine - I thinks its because I've accidently desoldered a SMD resistor on the board next to the TV out pin. I've got a Raspberrry Pi Zero W bellow is a pic with the resistor in question (I don't have a working camera until my wife gets home - so if you want more info please let me know)
If someone could give me a measurement of this resistor that would be fantastic;
I've tried shorting the pads - with no luck.
Has anyone come across this before ?
Unable to Get Composite Video Anymore - Resistor missing
-
- Posts: 13
- Joined: Sun Feb 12, 2017 12:34 am
- Has thanked: 2 times
- Been thanked: 1 time
- tinkerBOY
- Posts: 710
- Joined: Tue May 30, 2017 4:00 am
- Has thanked: 294 times
- Been thanked: 206 times
Re: Unable to Get Composite Video Anymore - Resistor missing
Just tried measuring it with my multimeter and I get around 15.4 ohm.
