Volume pot turned all the way down but sound still a little loud
- tinkerBOY
- Posts: 710
- Joined: Tue May 30, 2017 4:00 am
- Has thanked: 294 times
- Been thanked: 206 times
Volume pot turned all the way down but sound still a little loud

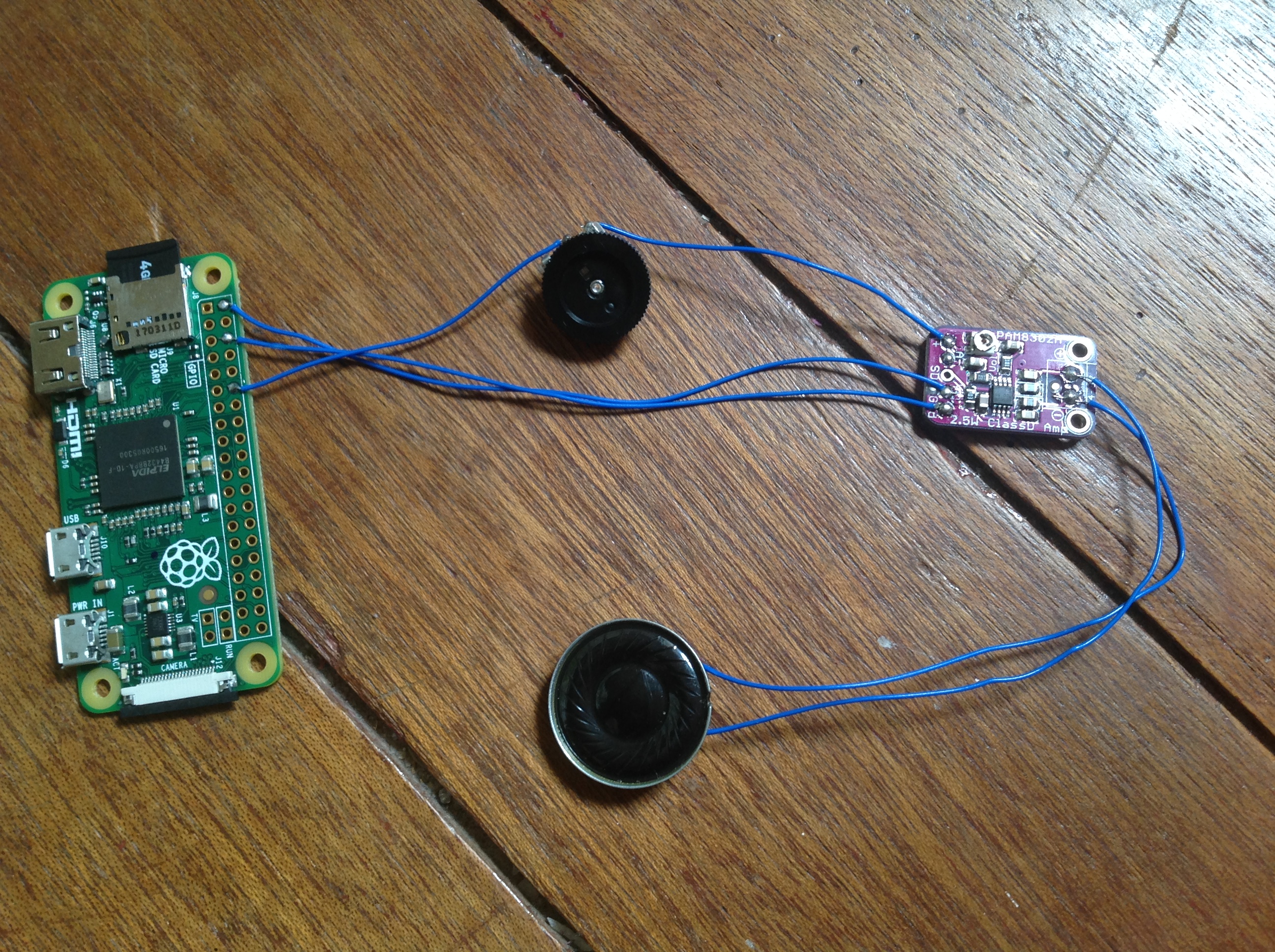

While waiting for the USB sound card i thought i could setup another pi to test/improve the mono PWM audio i used on my first build. This time im using no low/high pass filter. Just the audio amp(PAM8302A) directly connected to the pi zero's GPIO 18. To my surprise it sounded great and can't seem to hear any difference from my first build with filter.
I made another change by placing the volume pot between the pi's gpio18 and the audio amp which i think is a good practice. The only problem is, the sound is still a little loud even if the volume pot is turned all the way down. Maybe im doing it the wrong way. Im not sure.
Any help or input is welcome and will be very much appreciated! Thank you!
Update:
It looks like the PAM8302A doesn't need any filter after all.
I made another change by placing the volume pot between the pi's gpio18 and the audio amp which i think is a good practice. The only problem is, the sound is still a little loud even if the volume pot is turned all the way down. Maybe im doing it the wrong way. Im not sure.
Any help or input is welcome and will be very much appreciated! Thank you!
Update:
It looks like the PAM8302A doesn't need any filter after all.
