Raspberry Pi Zero not displaying anything
Raspberry Pi Zero not displaying anything

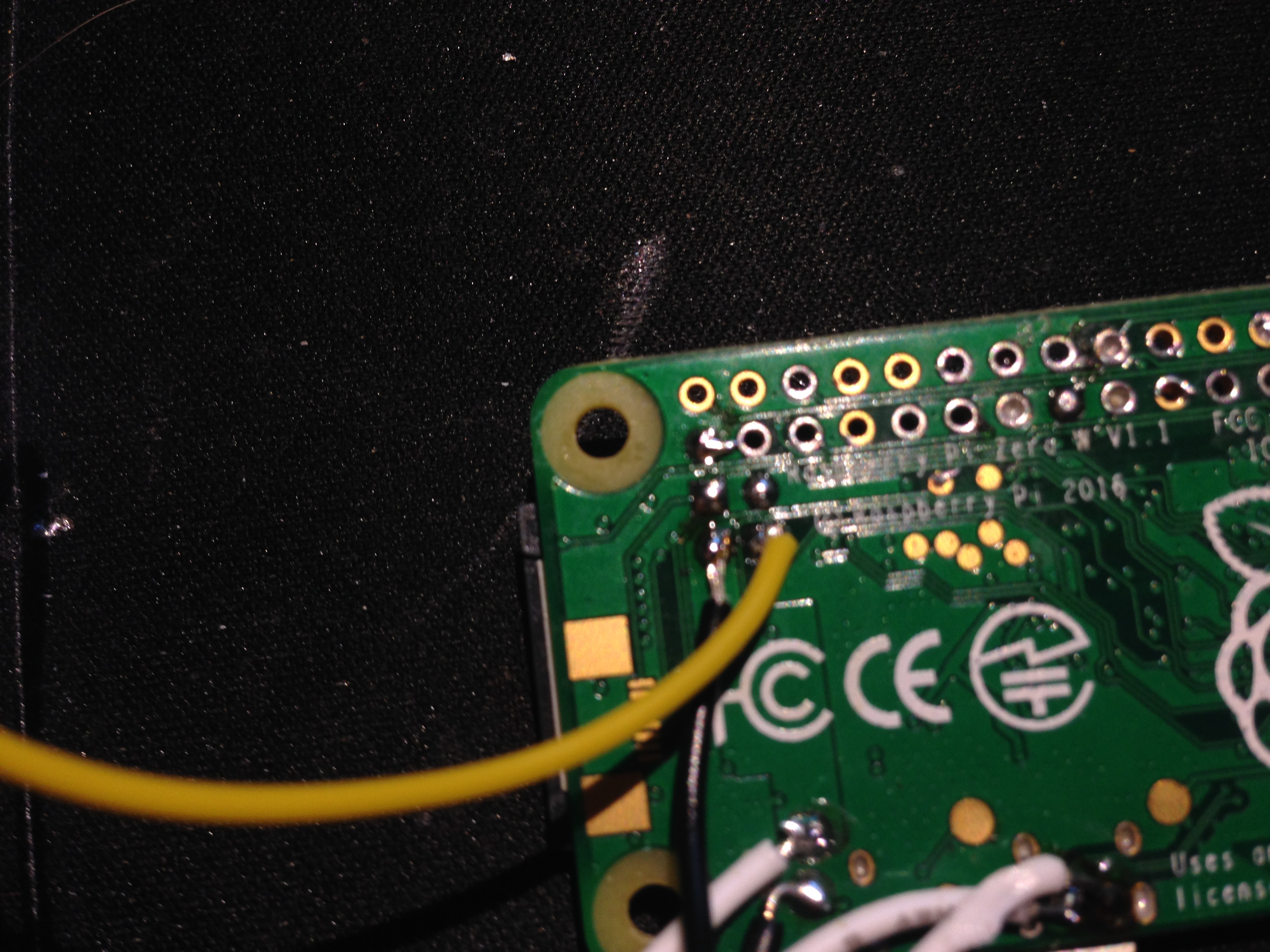

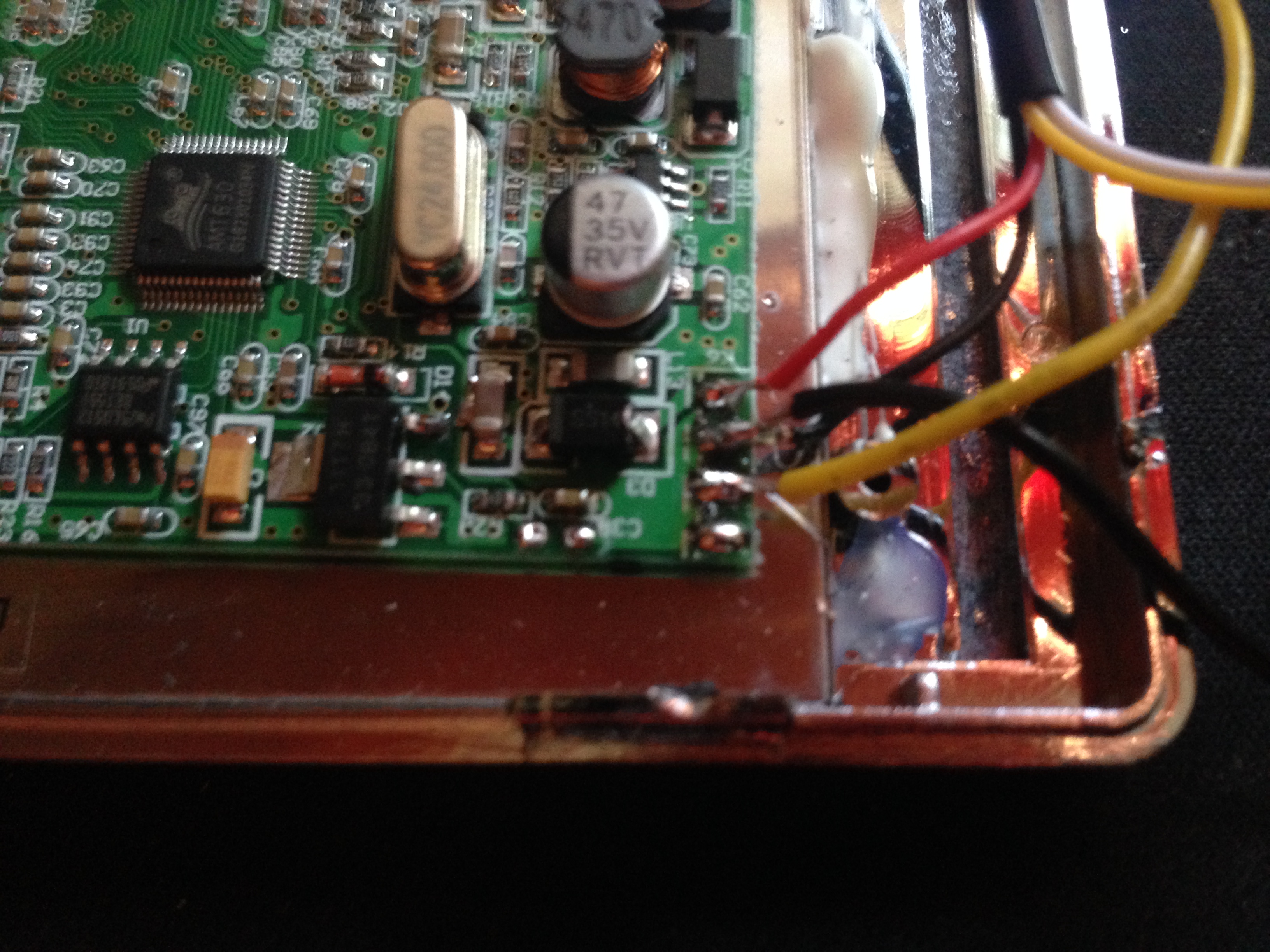

So I ordered a new BW screen from Amazon and tested it to make sure it worked before I took it apart. Now when I go to hook up the Raspberry Pi to it nothing happens. Im assuming that my wiring is done wrong but I can't see anything that is wrong.
I've re-formatted the SD-card and put a new copy of Retropie on it and put NOOBS on another SD-card and nothing happened. The screen is running off of a 12v 1a power cord and the Raspberry Pi is running off of a 5v micro usb cord.- tinkerBOY
- Posts: 710
- Joined: Tue May 30, 2017 4:00 am
- Has thanked: 294 times
- Been thanked: 206 times
Re: Raspberry Pi Zero not displaying anything
What about you connect the pi to an HDMI display first? Do you get a led light when you power on the pi?
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter
Re: Raspberry Pi Zero not displaying anything
Unfortunately I don't have a mini hdmi to hdmi adapter, so I can't test that out. The green led light turns on and kinda flickers and thats about it.
- Maury
- Posts: 37
- Joined: Fri Sep 01, 2017 8:36 am
- Location: Chicago Ill.
- Has thanked: 28 times
- Been thanked: 4 times
Re: Raspberry Pi Zero not displaying anything
I think you have model 8
- Attachments
-

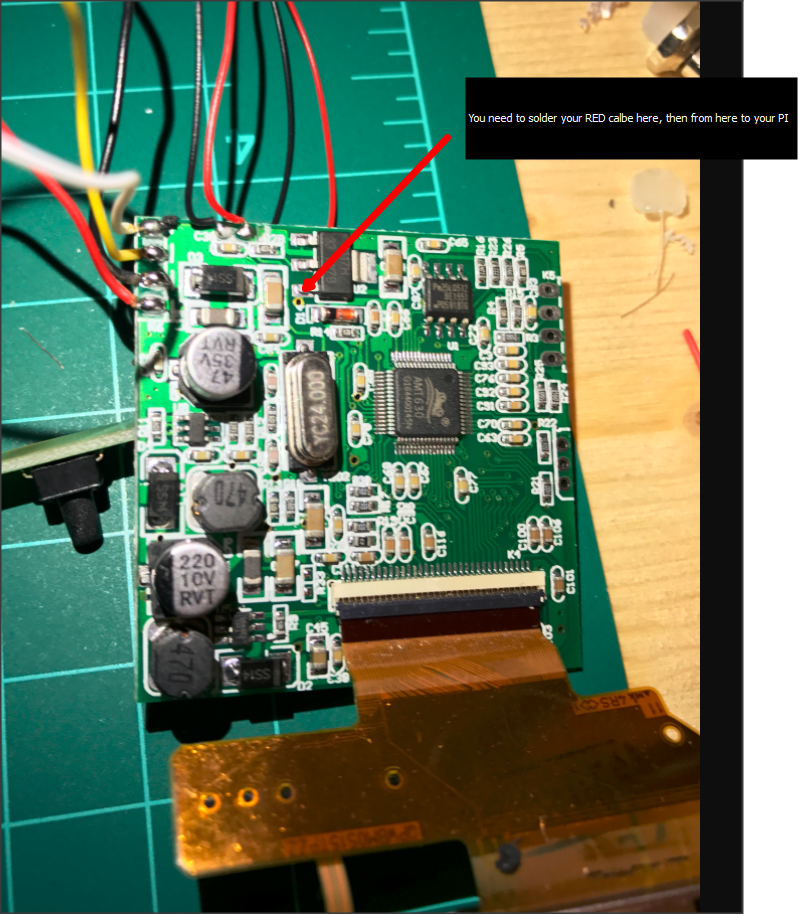

- Snap 2017-09-19 at 10.52.39.png (1012.84 KiB) Viewed 4120 times
-

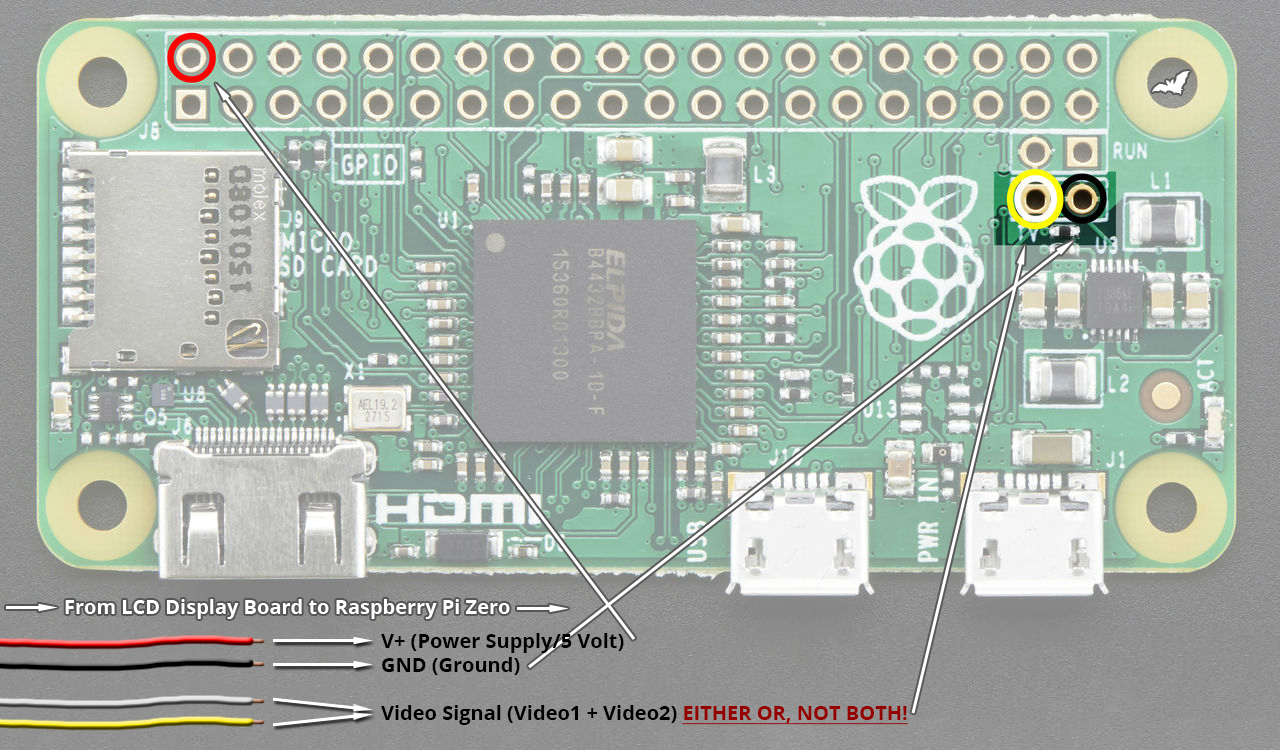

- LCDisplay_Wiring_RPi0.png (1.25 MiB) Viewed 4120 times
