USB Soundcard
USB Soundcard
Hello Guys! I'm working in my Gameboy zero build, but i don't know how to wire up the USB Soundcard. Could someone please send my a diagram how he has done it?

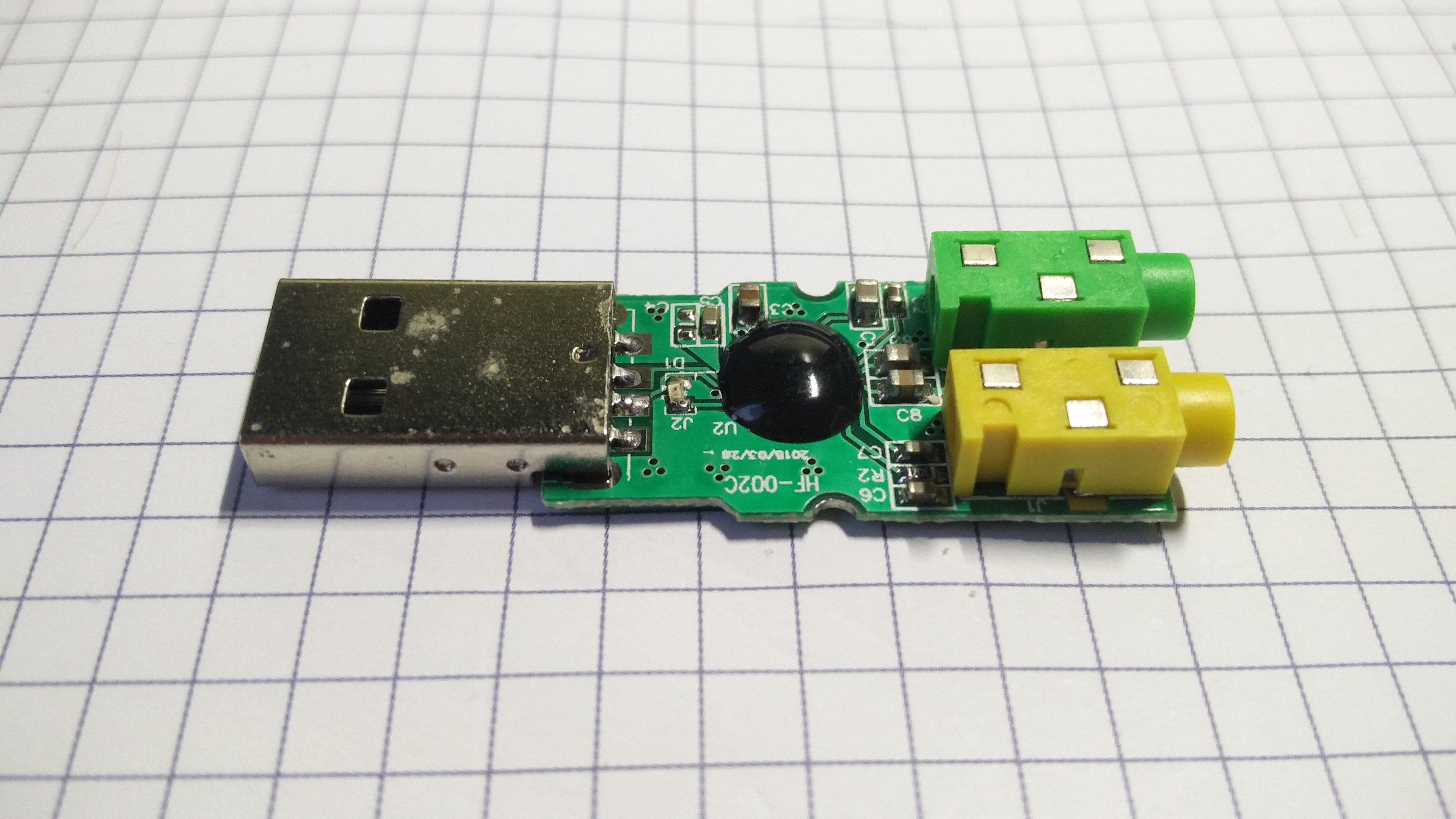

Thats mine- 144TECH
- Posts: 325
- Joined: Fri Jan 06, 2017 7:30 am
- Location: Amsterdam
- Has thanked: 256 times
- Been thanked: 71 times
Re: USB Soundcard
Hi Benny, Welcome @ Sudomod.
I think you should have used the search function first, for example ( viewtopic.php?f=22&t=539 )
Or :
http://www.sudomod.com/forum/search.php ... mit=Search
This should help you on your way connecting the USB sound.
If there is any problem, let us know, also very important, if you fixed everything, please post it here so others can see it too.
Greets 144Tech
I think you should have used the search function first, for example ( viewtopic.php?f=22&t=539 )
Or :
http://www.sudomod.com/forum/search.php ... mit=Search
This should help you on your way connecting the USB sound.
If there is any problem, let us know, also very important, if you fixed everything, please post it here so others can see it too.
Greets 144Tech
* Very Rare * GBZ 640x480 v3 Stock Looks 6000MAH
http://www.sudomod.com/forum/viewtopic.php?f=43&t=4863
http://www.sudomod.com/forum/viewtopic.php?f=43&t=4863
- Lphillimore
- Posts: 993
- Joined: Sat Jan 07, 2017 7:03 pm
- Location: Perth, WA
- Has thanked: 796 times
- Been thanked: 527 times
Re: USB Soundcard
Are you using an amp, too?
For starters you need to carefully remove the USB and jacks. You'll want the pads under the green jack so be careful not to lift them.
I use this Soundcard via an amp. I can send you my wiring if you're struggling to find what you need but as 144Tech says please look around.
For starters you need to carefully remove the USB and jacks. You'll want the pads under the green jack so be careful not to lift them.
I use this Soundcard via an amp. I can send you my wiring if you're struggling to find what you need but as 144Tech says please look around.
