Where to cut the Usbhub (Solved)

[Wheelbite]

Need help with my USBHUB.

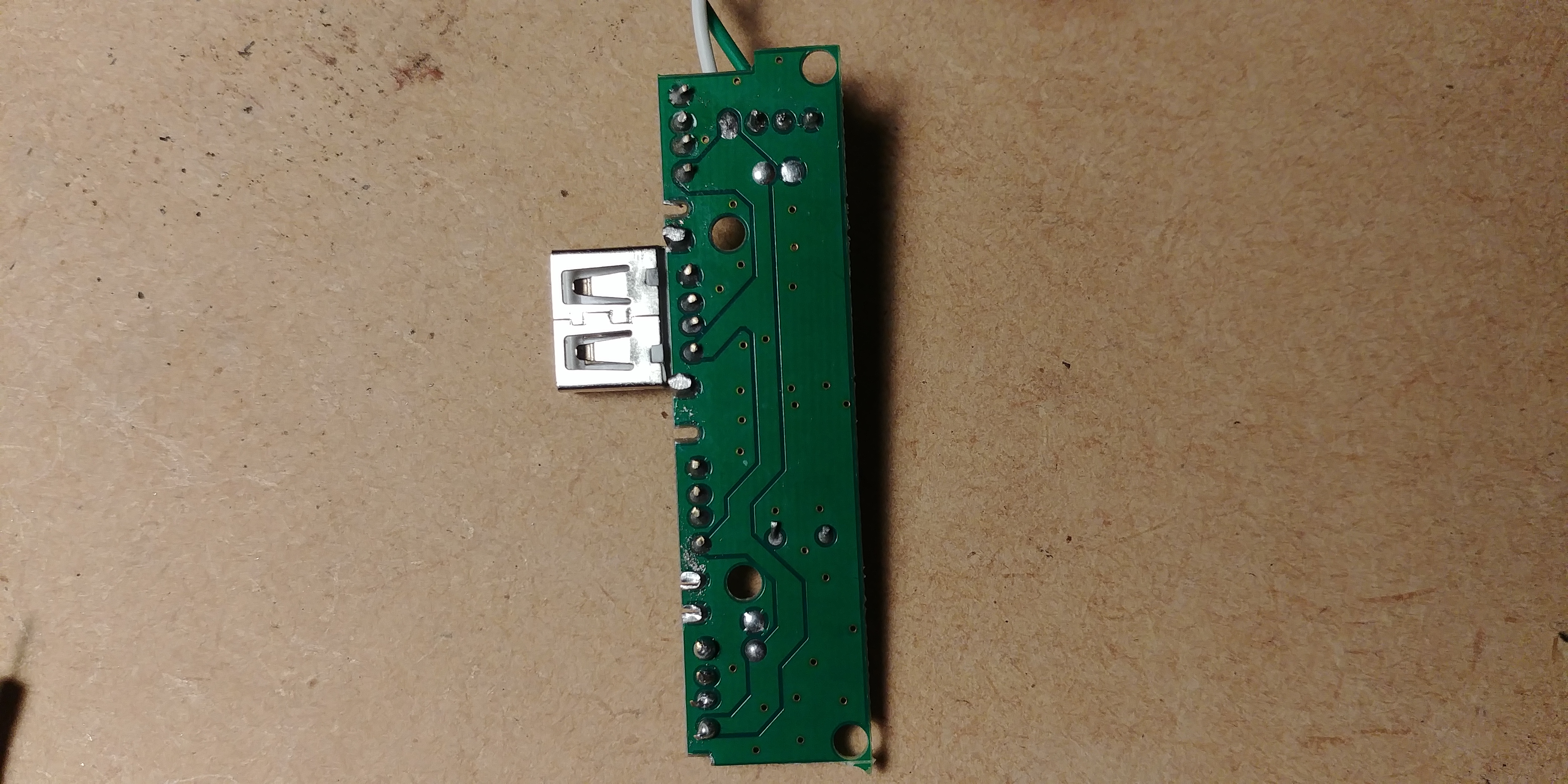

Where can I cut it without losing functions? Need to make it smaller so I can get it to fit inside my GBZ.

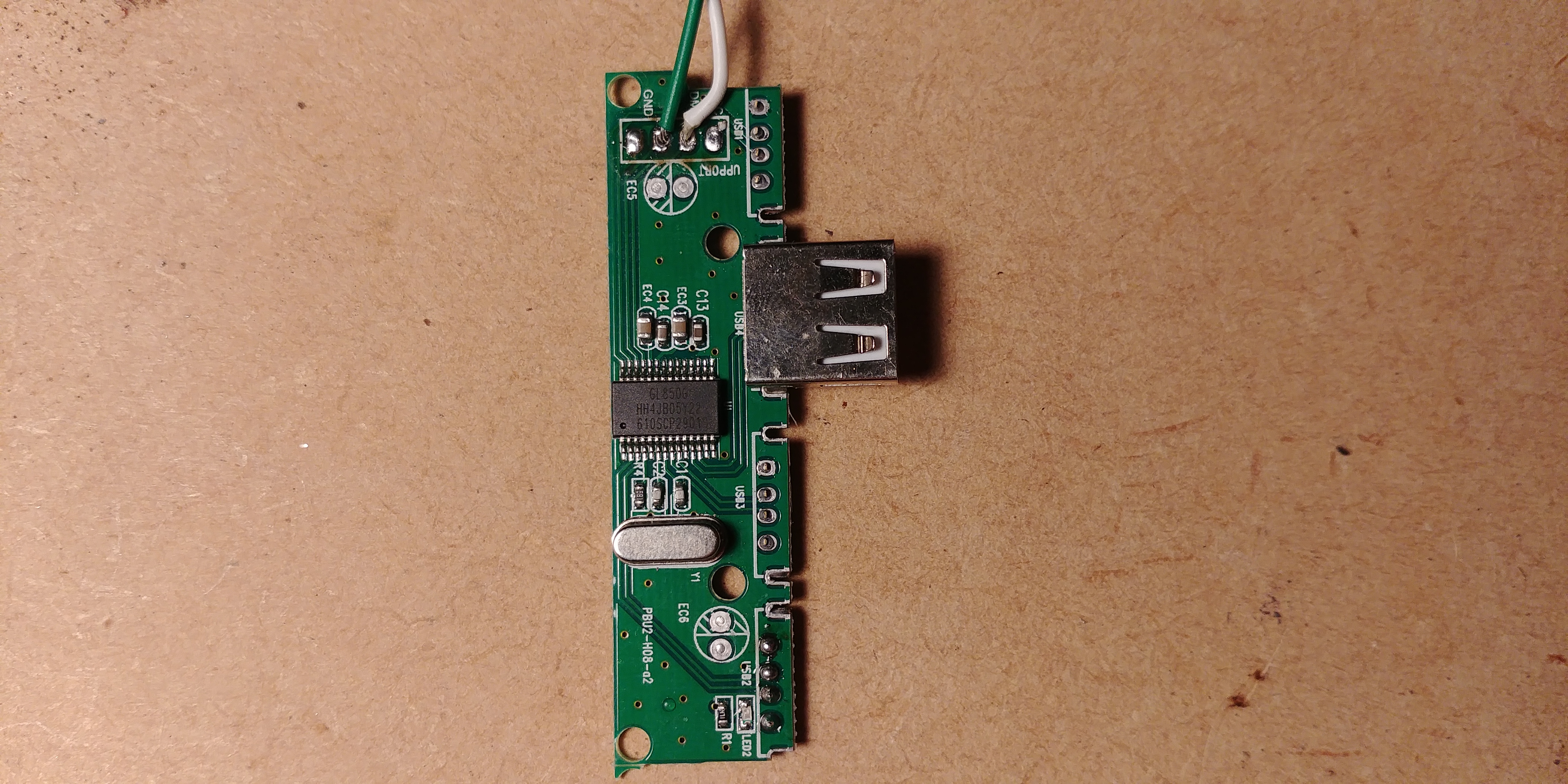

Would like to cut the left *empty* part so the remainings will be following: *empty* *USBFEMALE* *empty*.

Hope I posted in the right place!
Look me up on IG: gameboyzeroswe

Thank you!

[YaYa]

Could you draw a line where you want to cut the board ? Use like paint or photoshop and repost the result here please

[VeteranGamer]

Need help with my USBHUB.

Where can I cut it without losing functions? Need to make it smaller so I can get it to fit inside my GBZ.

Would like to cut the left *empty* part so the remainings will be following: *empty* *USBFEMALE* *empty*.

where ever you cut it your gonna loose function, unless you make the ground continuity again.....
cut it any where around the red line
and to fix the ground, put a jumper between any two points on the ground (blue line)



.

[Wheelbite]

Need help with my USBHUB.

Where can I cut it without losing functions? Need to make it smaller so I can get it to fit inside my GBZ.

Would like to cut the left *empty* part so the remainings will be following: *empty* *USBFEMALE* *empty*.

where ever you cut it your gonna loose function, unless you make the ground continuity again.....
cut it any where around the red line
and to fix the ground, put a jumper between any two points on the ground (blue line)



.

The red line is about where I want too cut it. So after cutting that I can just put a wire where the blue line is?

This was just the kind of answer I was hoping for!
Thank you very much, will try it out soon.

[Wheelbite]

Could you draw a line where you want to cut the board ? Use like paint or photoshop and repost the result here please

Pretty much where VeteranGamer marked it
