Problem with PCB

[marianvdb]

Hello everyone!

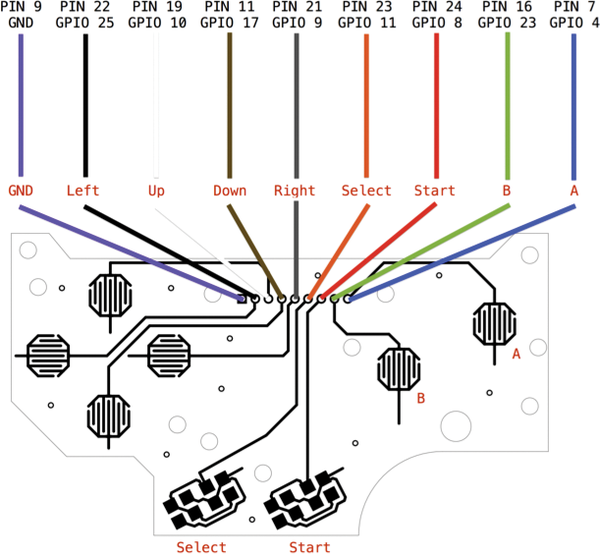

I have a problem with my button PCB. I soldered it straight to the Pi following this diagram:

SpoilerShow

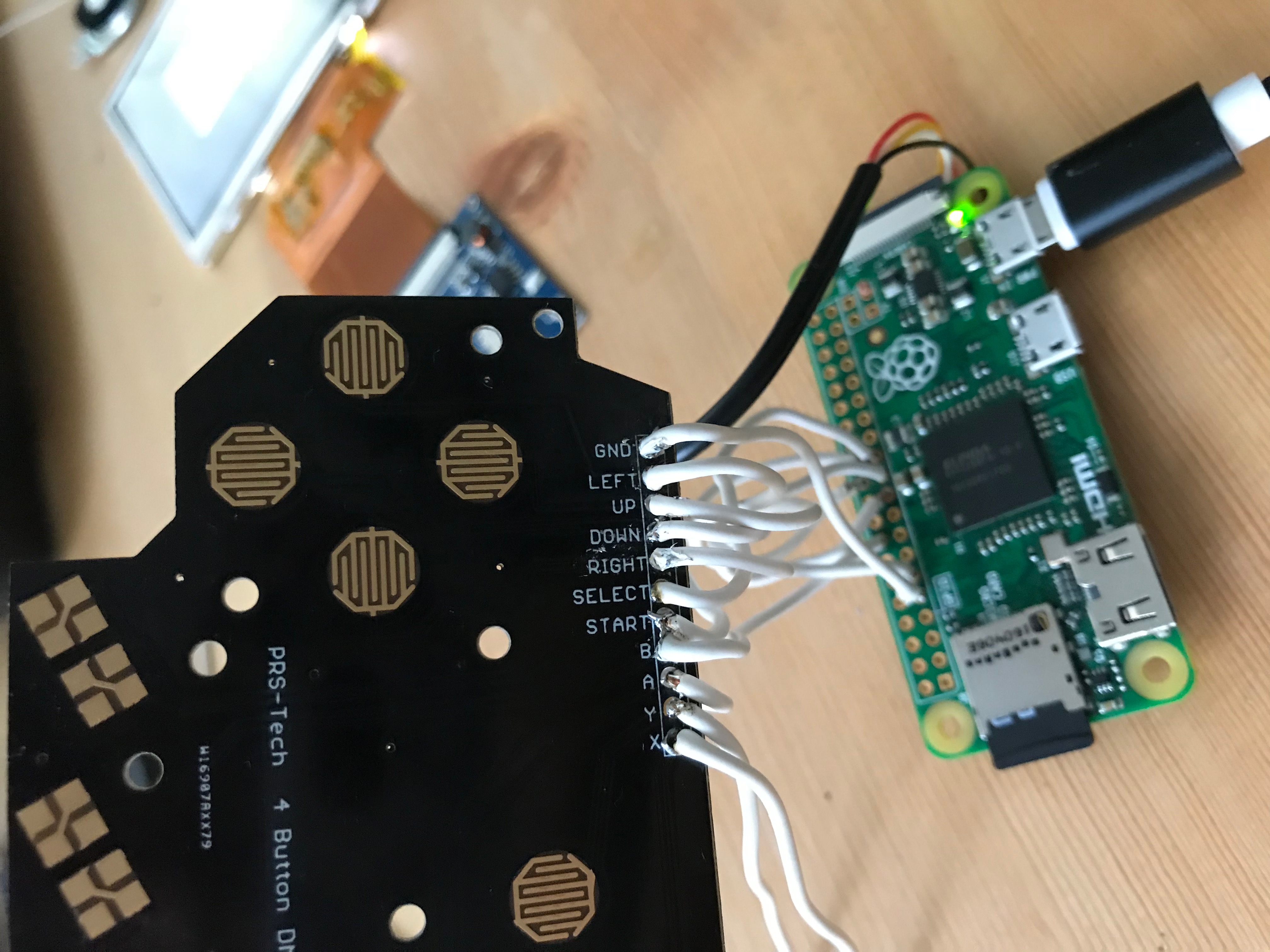

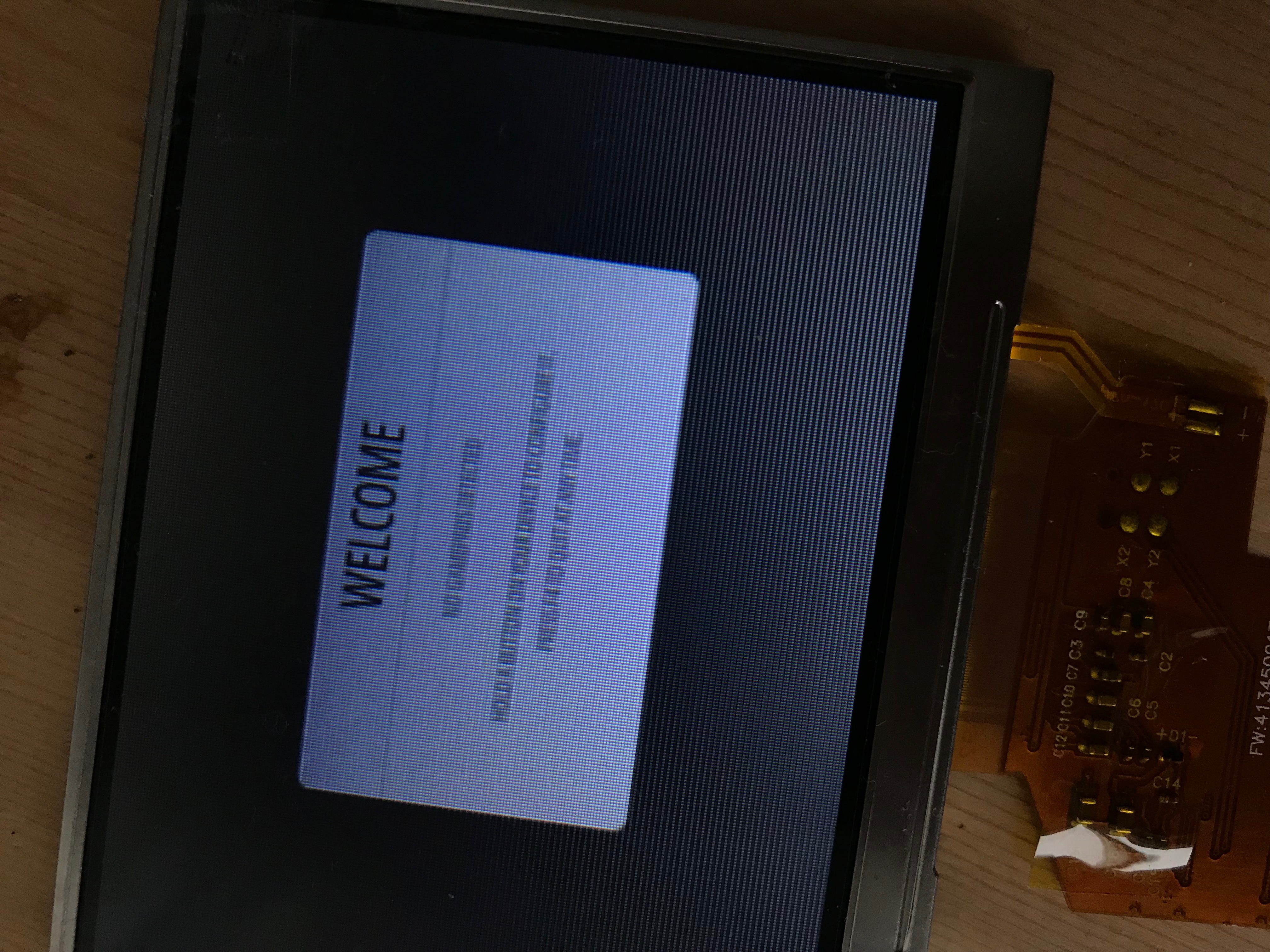

but Retropie doesn't recognize anything, see pictures:

SpoilerShow



Can anyone help me solve this problem?

Thank you!!

[rodocop]

Retropie won't just recognize them right off the bat. You need to install retrogame. This is the guide I always folow, your gpio wiring is different but it shouldn't be too hard to adjust the code. Or just switch the wiring.

http://sudomod.com/forum/viewtopic.php?t=57

If you have done that and it still does not work. Let us know.

[marianvdb]

Thank you for your reply, I'll get on it!

[tinkerBOY]

Check out the link on my signature. Much easier to setup this way.
