Power Issues
With the latest build I've run into an odd problem. If I have a battery connected, everything works fine. If I try to boot with only the micro USB connected, it will reset after the pi loading screen (just before the splashscreen). I'm not sure what the issue could be so any help would be appreciated.

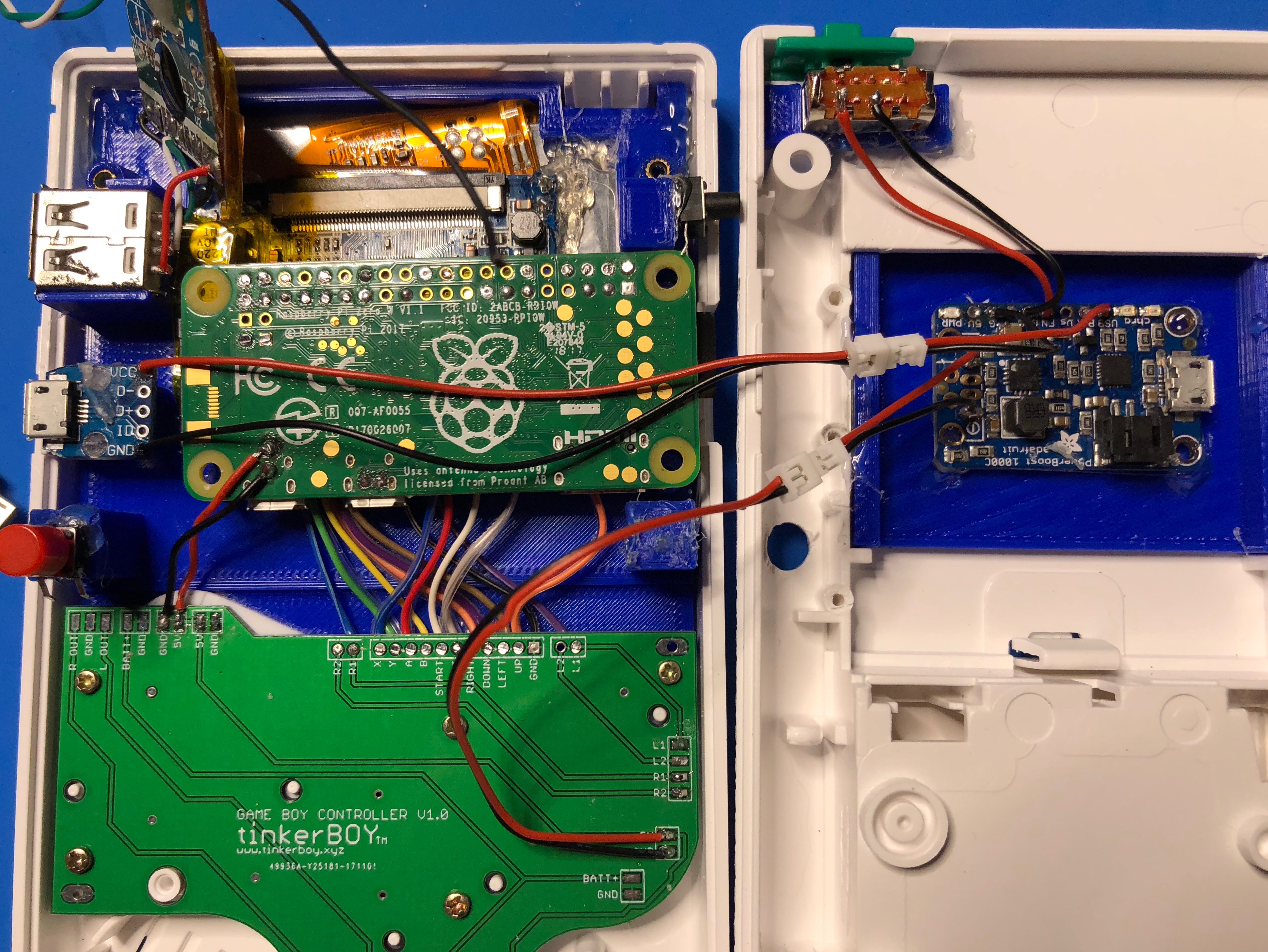

In the picture I have USB disconnected for troubleshooting.
In the picture I have USB disconnected for troubleshooting.
-
tinkerBOY
- Posts: 710
- Joined: Tue May 30, 2017 4:00 am
- Has thanked: 294 times
- Been thanked: 206 times
Re: Power Issues
Looks like the Pi is not getting enough power if it keeps rebooting. Maybe the powerboost1000c needs to detect a battery when smart-loading?
Last edited by tinkerBOY on Sun Feb 25, 2018 8:49 pm, edited 1 time in total.
New! tinkerBOY PowerSwitch v1.0 with Safe Shutdown
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter
Game Boy Zero Controllers available @ tinkerBOY.xyz * Support
tinkerBOY Controller v3.0 - built-in usb controller, usb audio, and usb hub
tinkerBOY Controller v2.0 - GPIO buttons and builtin PWM Audio and Amplifier
tinkerBOY Controller v1.1 - simple pcb button
* DPI Adapter - better display for GBZ
* keyboard converters - IBM XT/AT Soarer's Converter | ADB to USB Converter
-
sixteenbit
- Posts: 54
- Joined: Mon Aug 21, 2017 8:42 pm
- Has thanked: 18 times
- Been thanked: 13 times
- Contact:
Re: Power Issues
I never had the issue before but I guess I’ll always have a battery connected. Just hoping it’s not an issue that could cause problems.
-
tinkerBOY
- Posts: 710
- Joined: Tue May 30, 2017 4:00 am
- Has thanked: 294 times
- Been thanked: 206 times
Re: Power Issues
If that's the case I suggest you go over to https://forums.adafruit.com and post your issues with the powerboost 1000c there. Moderators on the forum are very helpful.
