Screen 12v to 5v help

Having trouble with your GBZ build? Ask your questions here!
Post Reply
Bill
Posts: 4
Joined: Sat Jul 07, 2018 12:38 am
Has thanked: 1 time

Screen 12v to 5v help

Post by Bill » Sat Jul 07, 2018 1:01 am

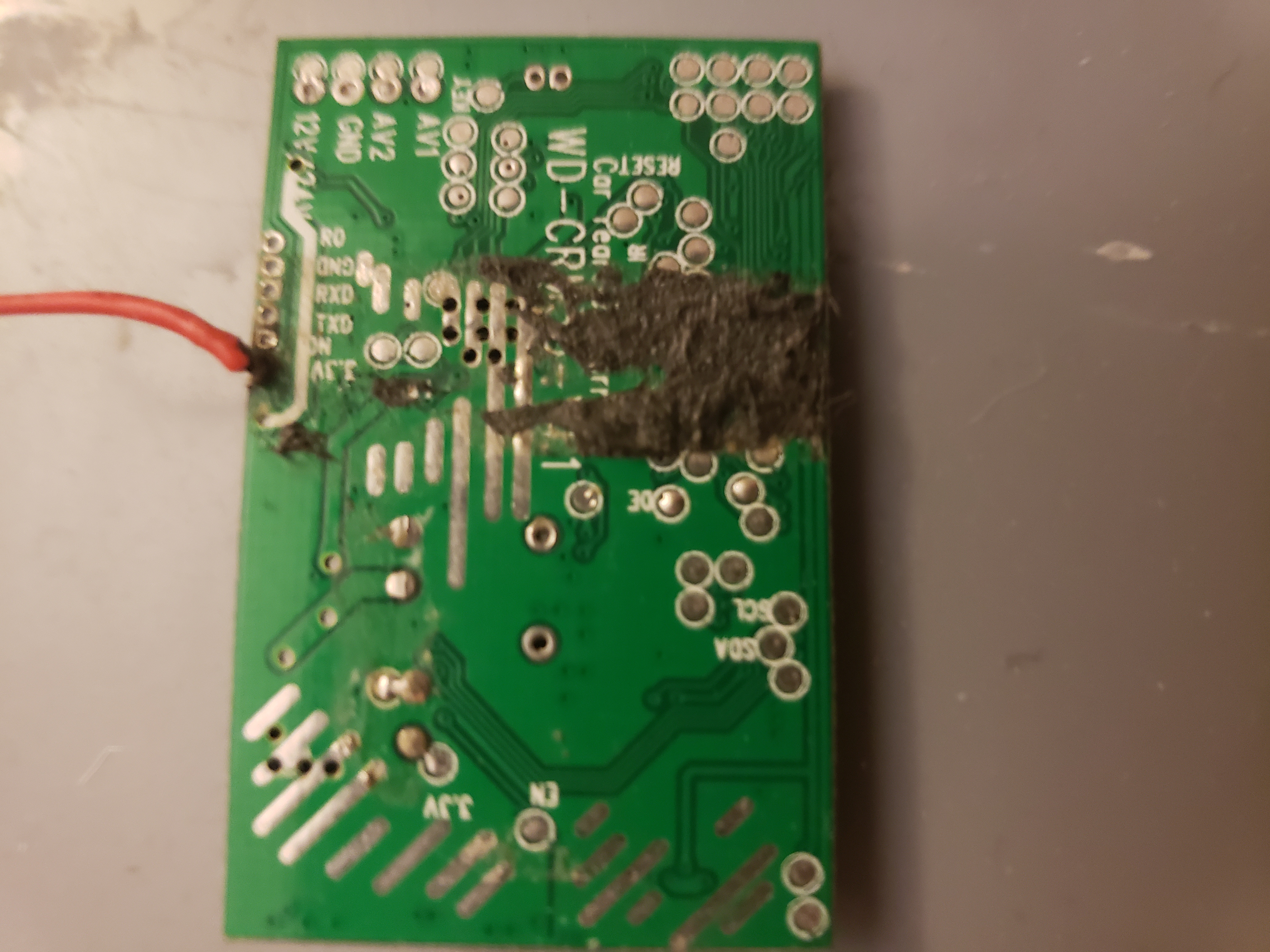

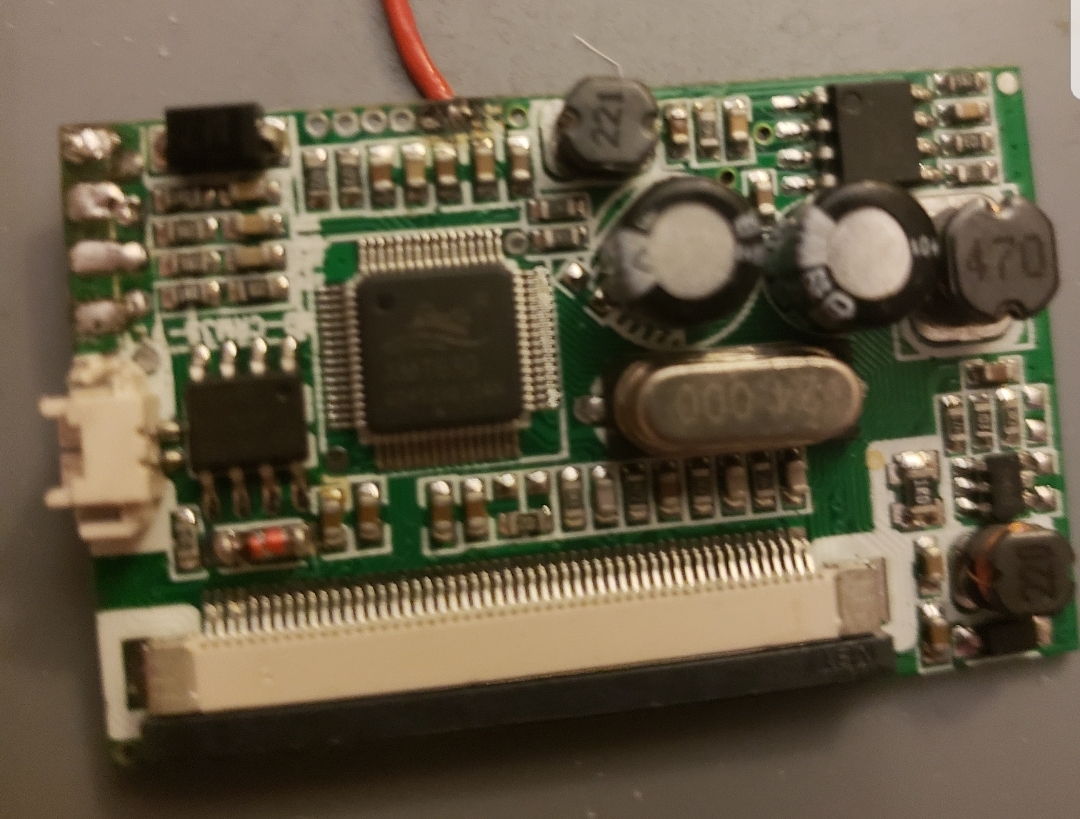

I have searched but haven't found how to change this Bw screen from Amazon board any help would be greatly appreciated sorry if I missed itImage I see this is covered alot. First time building and I keep getting new parts to make it easier. End result still not done
Attachments

User avatar
tinkerBOY
Posts: 709
Joined: Tue May 30, 2017 4:00 am
Has thanked: 294 times
Been thanked: 205 times

Re: Screen 12v to 5v help

Post by tinkerBOY » Sat Jul 07, 2018 9:52 am

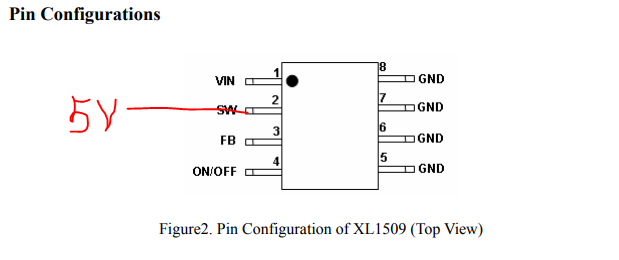

Look for a chip "XL1509" and connect the 5v wire to the SW pin.
