Camble · Post by **Camble** » Mon Oct 10, 2016 1:31 am

@johweb Can you try disconnecting the LBO and Low-batt wires and try again?

johweb · Post by **johweb** » Mon Oct 10, 2016 1:47 am

OK, I'll do this tonight (I'm at work now). Thank you for your patience.

johweb · Post by **johweb** » Mon Oct 10, 2016 12:24 pm

I removed both LBO and low_batt : after complete loading of EmulationStation, I see the video "Warning battery very low" with the countdown, then the pi powers off (with the screen staying powered as before).
I also tried moving the switch from on to off during the video, nothing happens.
I tried with battery + power cord, and power cord only, with the same result. Hope this helps...

Camble · Post by **Camble** » Mon Oct 10, 2016 12:28 pm

Connect a wire from 3.3v to GPIO17 (pin11) to fool the Pi into thinking the battery level is fine.

I just want to see if everything is working without the low battery stuff.

johweb · Post by **johweb** » Mon Oct 10, 2016 12:54 pm

When EmulationStation is launched, nothing happens. I push the switch off : power off without kernel panic, screen staying powered. I push the switch on, nothing more.

ps : I still have LBO and low_batt removed, keep-on on pin 8, and config.txt line commented. That's right ?

Camble · Post by **Camble** » Mon Oct 10, 2016 1:49 pm

It's not switching off properly so powering on again won't do anything. If you pull the Keep-on wire, the powerboost should shut off, right?

johweb · Post by **johweb** » Mon Oct 10, 2016 2:05 pm

I un-soldered keep-on from pin 8 : after shuting down, both screen and powerboost stay powered.

Camble · Post by **Camble** » Mon Oct 10, 2016 2:12 pm

@johweb Can you post a picture or two of your setup?

johweb · Post by **johweb** » Mon Oct 10, 2016 2:28 pm

: IMG_20161010_221638.jpg (88.14 KiB) Viewed 9578 times

: IMG_20161010_221748.jpg (87.69 KiB) Viewed 9578 times

: IMG_20161010_221717.jpg (86.8 KiB) Viewed 9578 times

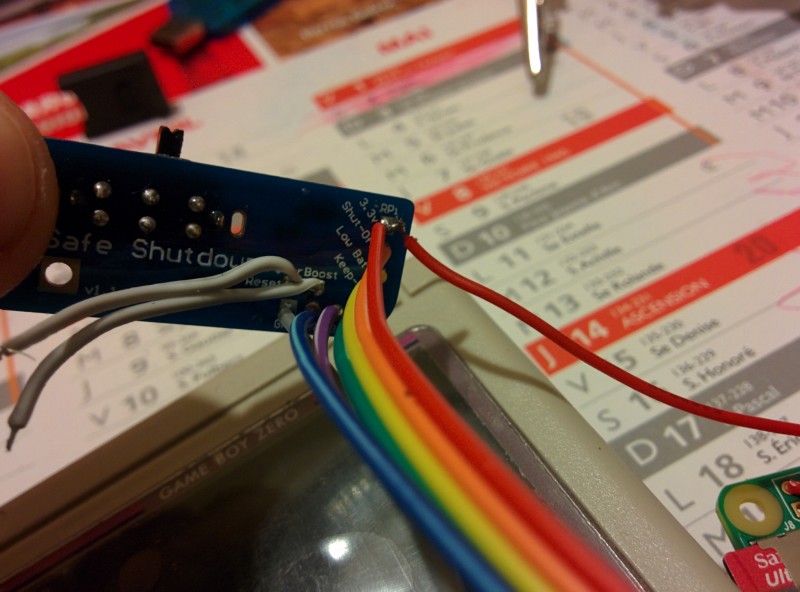

Safe shutdown switch
3.3V to pin 17 on pi
second wire from 3.3V to pin 11 as asked before
Shut-off to pin 13 on pi
Low bat not connected as asked before
Keep-on not connected as asked before
LBO not connected as asked before
EN to EN on powerboost
GND to G on powerboost

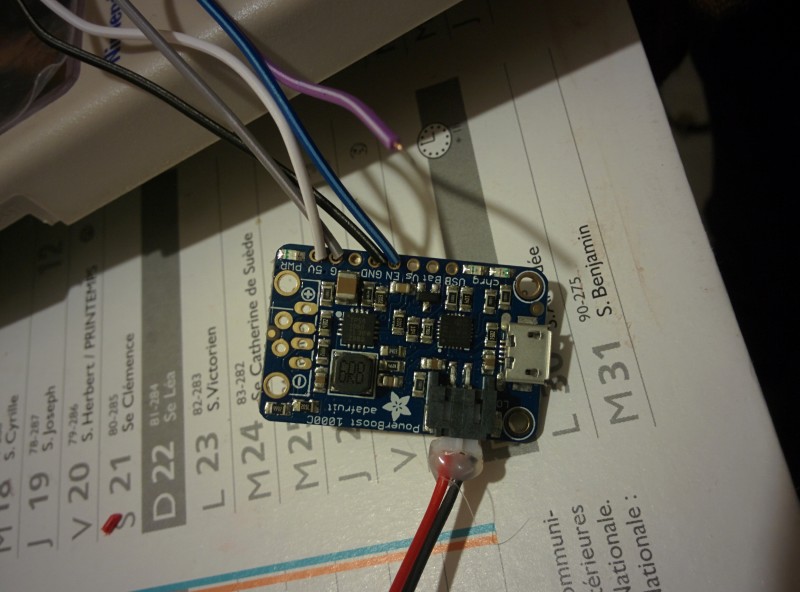

Powerboost
5V to 5V in on powerstrip
GND to GND in on powerstrip

Screen PCB
Composite to tv on pi
5V on pin 2 on pi
Gnd on Gnd on powerstrip

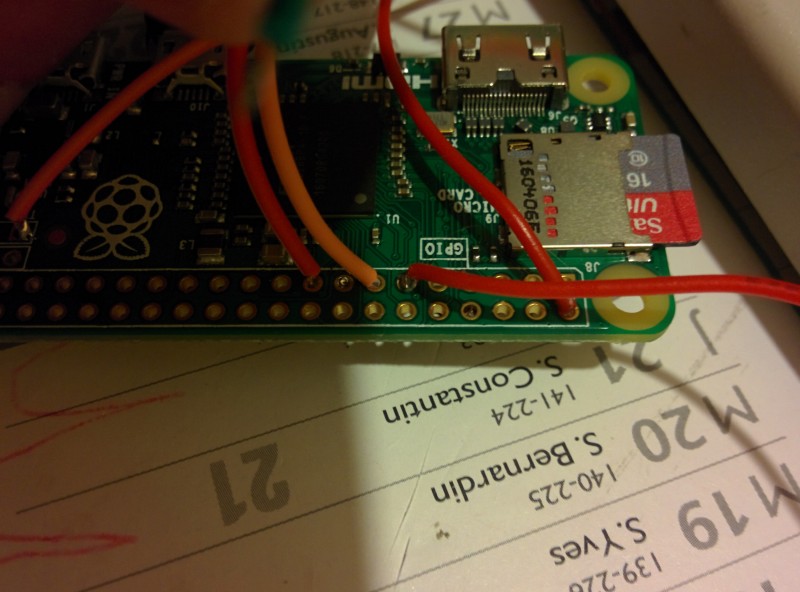

Pi zero
PP1 to 5V on powerstrip
PP6 to GND on powerstrip

Camble · Post by **Camble** » Mon Oct 10, 2016 2:39 pm

With your green(?) keep-on wire disconnected, the Powerboost should shut down immediately when the switch is closed. I'd reconnect that as it was just to test if the Powerboost would shut off.

Out of curiosity, does the Powerboost switch off if you short those two grey reset wires together?
