Power switch doesnt work; Problems with buttons

JCDenton5
Posts: 7
Joined: Sun Feb 04, 2018 1:17 am
Has thanked: 2 times
Been thanked: 2 times

Power switch doesnt work; Problems with buttons

Post by JCDenton5 » Sun Feb 04, 2018 2:05 am

First i would like to thank kite for the great work and support! Second, sorry for my written englisch ;)

I have two bigger problems with my "ready" GBZ-Projekt (Super AIO V0.6c)

1.) The power switch has no function. When i put in any power (USB-cable direkt or battery), the Pi boots directly normal. On/Off position has no effect to the Pi. The only way to get the Pi off is to disconnect from the power source.
The blue power-led is off when switch is in off position and on when switch is in on position.

2.) The buttons doesn't work at the point in boot sequenz when i get the message " Joypad detected ..."
At this point, no input from the buttons has an effect. But for example, i can push the wifi mode (wifi-Led) on/off with mode button and cross button and when i push the top right button (X-Button), i get a quiet sound out from the speaker.

I say thanks for any ideas!
Attachments

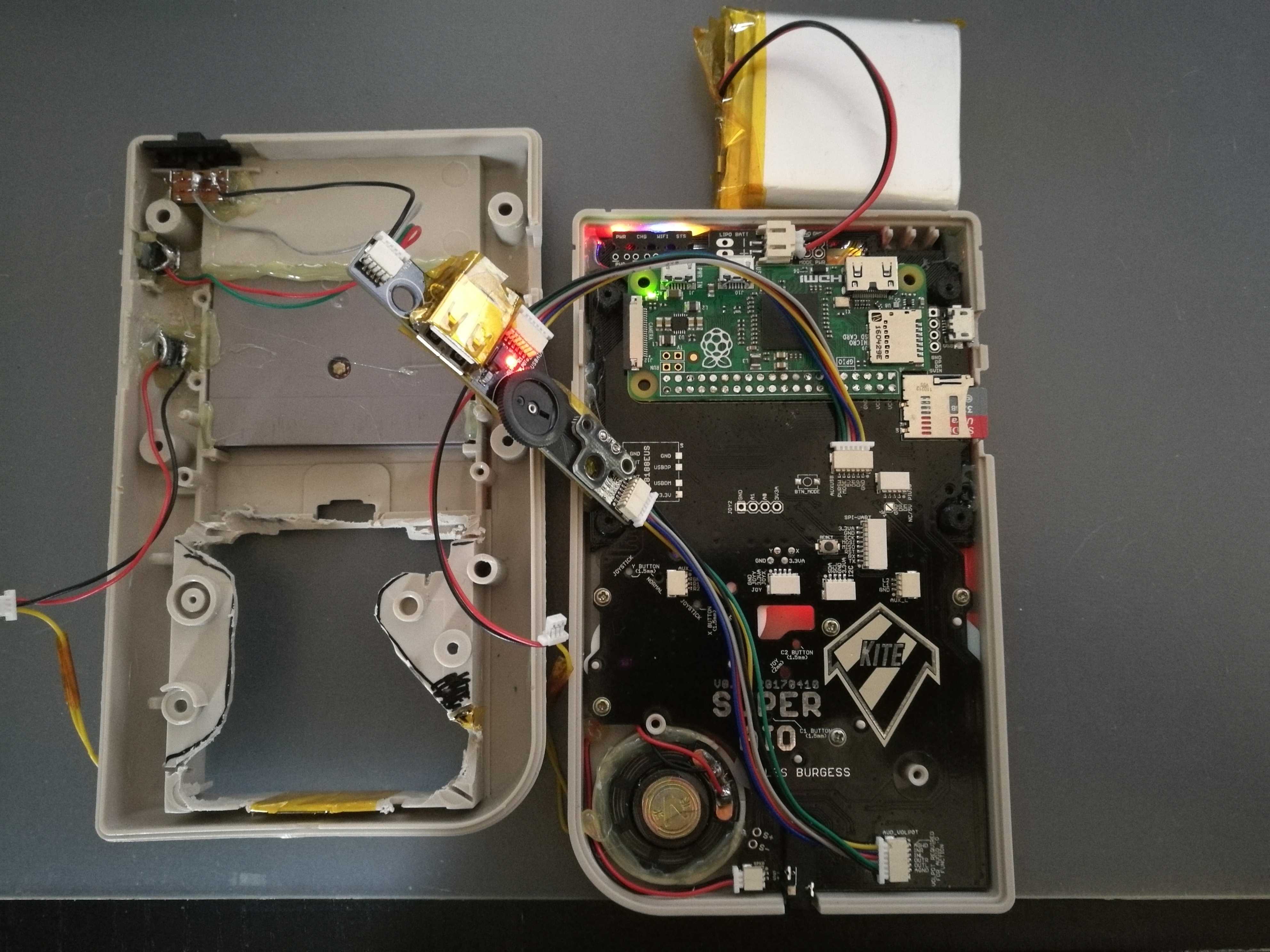

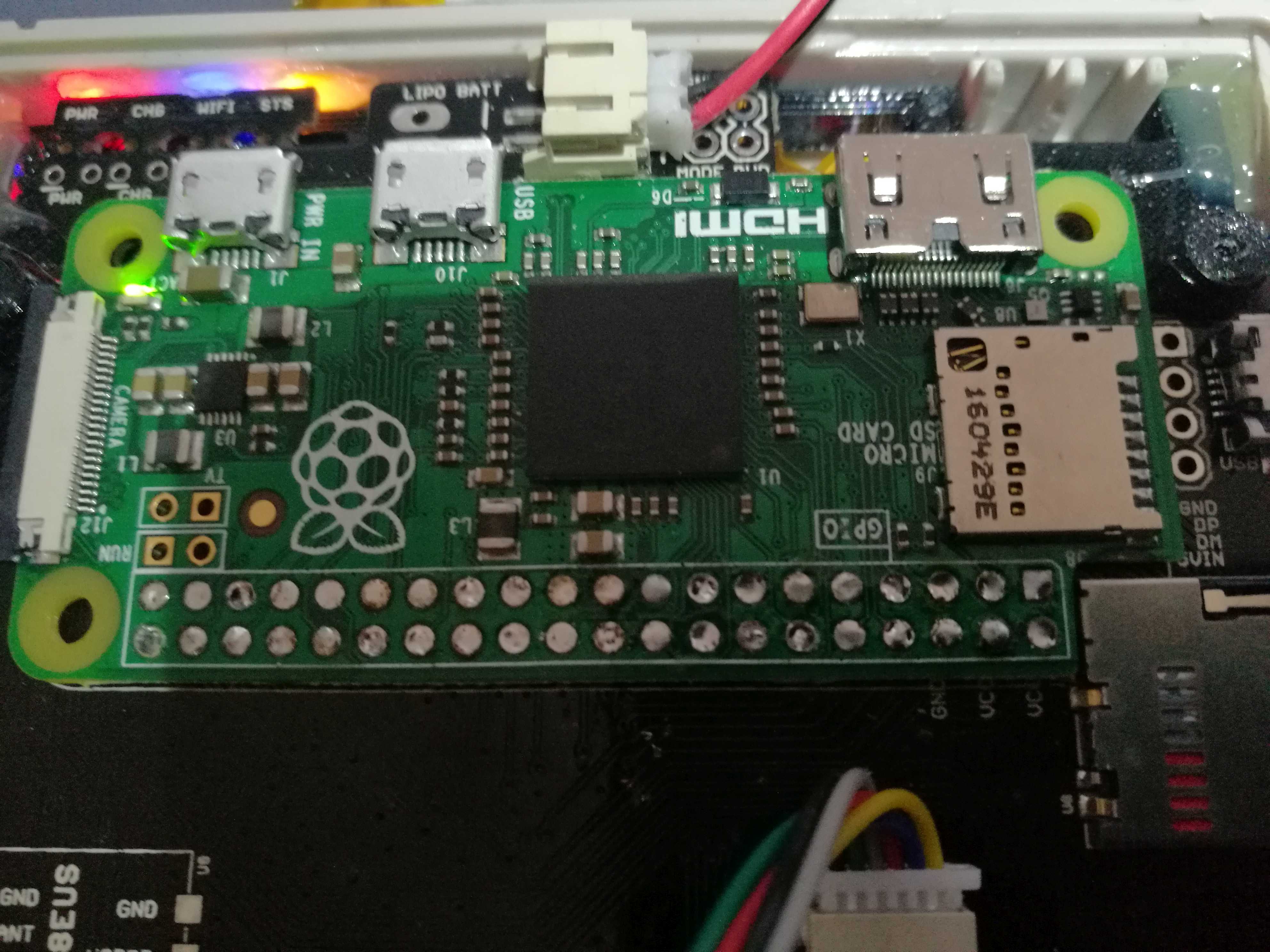

Pi solder.jpg
Pi solder.jpg (637.26 KiB) Viewed 2709 times

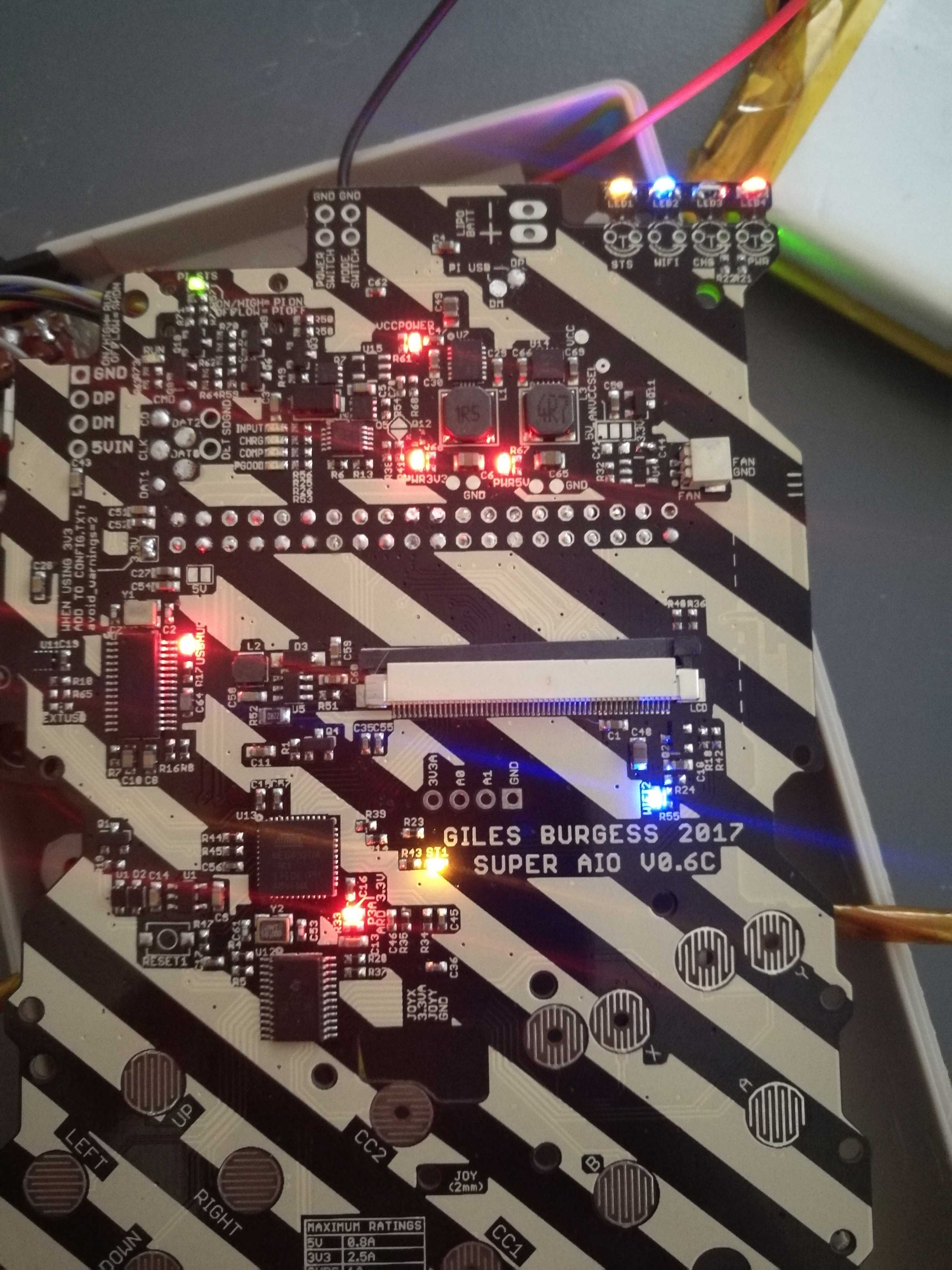

Pswitch off.jpg
Power switch in position off
3.3V and 5V led is on/red ... is this correct?
Pswitch off.jpg (645.64 KiB) Viewed 2709 times

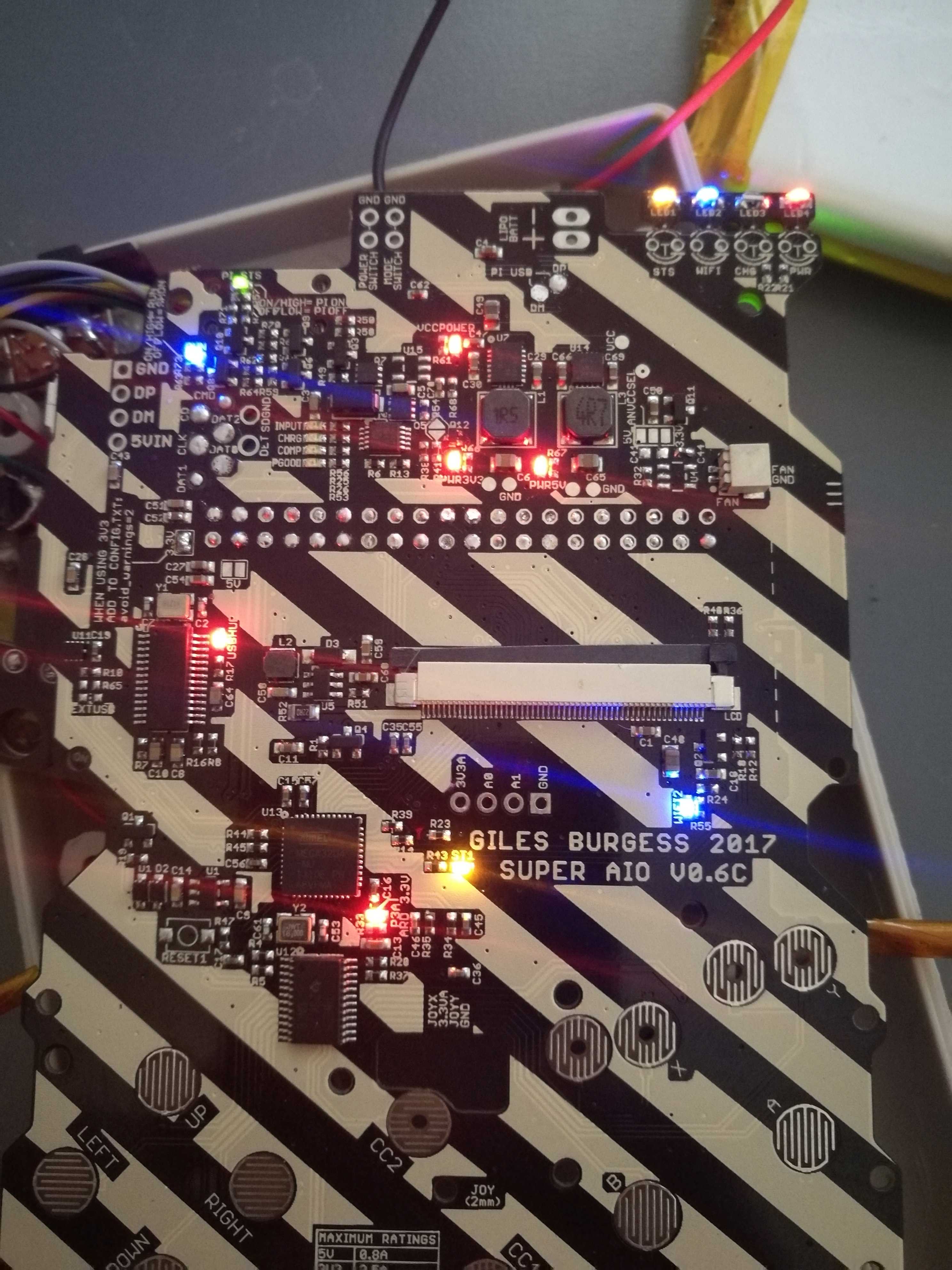

Pswitch on.jpg
Power switch in position on
Pswitch on.jpg (664.76 KiB) Viewed 2709 times

User avatar
kite
Posts: 965
Joined: Thu May 12, 2016 4:30 am
Location: UK
Has thanked: 245 times
Been thanked: 344 times
Contact:

Re: Power switch doesnt work; Problems with buttons

Post by kite » Mon Feb 05, 2018 6:55 am

Hi,

Thank you for being very accurate with your description! From what I can tell, your soldering and power switch is correct (by the BLUE LED going on/off) and the input is working (wifi on/off) however it is like the "mode button is permanently held down". The fact that it boots up by itself is a concern, and I am 99% sure that I will need to take a look at it myself :/ Is it ok for you to PM me and we can work on returning it to me to repair and I will send out? I suspect it is something to do with the safe shutdown circuit messing up, which means I have to replace a few components!

I assume it powered on even it you UNPLUG the back board (those 6pin connectors)?

JCDenton5
Posts: 7
Joined: Sun Feb 04, 2018 1:17 am
Has thanked: 2 times
Been thanked: 2 times

Re: Power switch doesnt work; Problems with buttons

Post by JCDenton5 » Mon Feb 05, 2018 9:47 am

hi kite,

thanks for your quick answer and help! :)

I would like to send you a PM, but the function is blocked by your username

User avatar
kite
Posts: 965
Joined: Thu May 12, 2016 4:30 am
Location: UK
Has thanked: 245 times
Been thanked: 344 times
Contact:

Re: Power switch doesnt work; Problems with buttons

Post by kite » Mon Feb 05, 2018 9:49 am

JCDenton5 wrote:
Mon Feb 05, 2018 9:47 am
hi kite,

thanks for your quick answer and help! :)

I would like to send you a PM, but the function is blocked by your username
Under my picture on the left of this thread, there is a speech bubble .. click that :) It says "send email"

JCDenton5
Posts: 7
Joined: Sun Feb 04, 2018 1:17 am
Has thanked: 2 times
Been thanked: 2 times

Re: Power switch doesnt work; Problems with buttons

Post by JCDenton5 » Mon Feb 05, 2018 9:56 am

done :P

User avatar
YaYa
Posts: 1719
Joined: Mon Jun 26, 2017 12:42 pm
Location: brittany - France
Has thanked: 871 times
Been thanked: 688 times
Contact:

Re: Power switch doesnt work; Problems with buttons

Post by YaYa » Sun Feb 18, 2018 12:41 am

Is this issue solved ? If yes, please report the method so we can grow our Knowledge Database
Follow me on instagram Image

JCDenton5
Posts: 7
Joined: Sun Feb 04, 2018 1:17 am
Has thanked: 2 times
Been thanked: 2 times

Re: Power switch doesnt work; Problems with buttons

Post by JCDenton5 » Fri Feb 23, 2018 2:24 pm

I dont know. My board is still under inspektion by kite.

User avatar
kite
Posts: 965
Joined: Thu May 12, 2016 4:30 am
Location: UK
Has thanked: 245 times
Been thanked: 344 times
Contact:

Re: Power switch doesnt work; Problems with buttons

Post by kite » Fri Feb 23, 2018 3:48 pm

I've just done a brief inspection this evening on it, tomorrow I will be pulling out the iron and working out what component isn't working properly! :)

JCDenton5
Posts: 7
Joined: Sun Feb 04, 2018 1:17 am
Has thanked: 2 times
Been thanked: 2 times

Re: Power switch doesnt work; Problems with buttons

Post by JCDenton5 » Sat Feb 24, 2018 4:38 am

Take your time! 8-)

User avatar
kite
Posts: 965
Joined: Thu May 12, 2016 4:30 am
Location: UK
Has thanked: 245 times
Been thanked: 344 times
Contact:

Re: Power switch doesnt work; Problems with buttons

Post by kite » Sat Feb 24, 2018 12:02 pm

JCDenton5 wrote:
Sat Feb 24, 2018 4:38 am
Take your time! 8-)
Fixed ;) was the transistor 'Q10' at the top left, once replaced it's all working now! :)
