[UPDATE] "Air duct" and "fan-mount" for kites circuit sword

Post by derebbe » Mon Feb 19, 2018 12:11 pm

Hello guys!

I wanna provide you my two variants to mount the little 30mm fan to kites awesome circuit sword:

Variant 1: Air duct

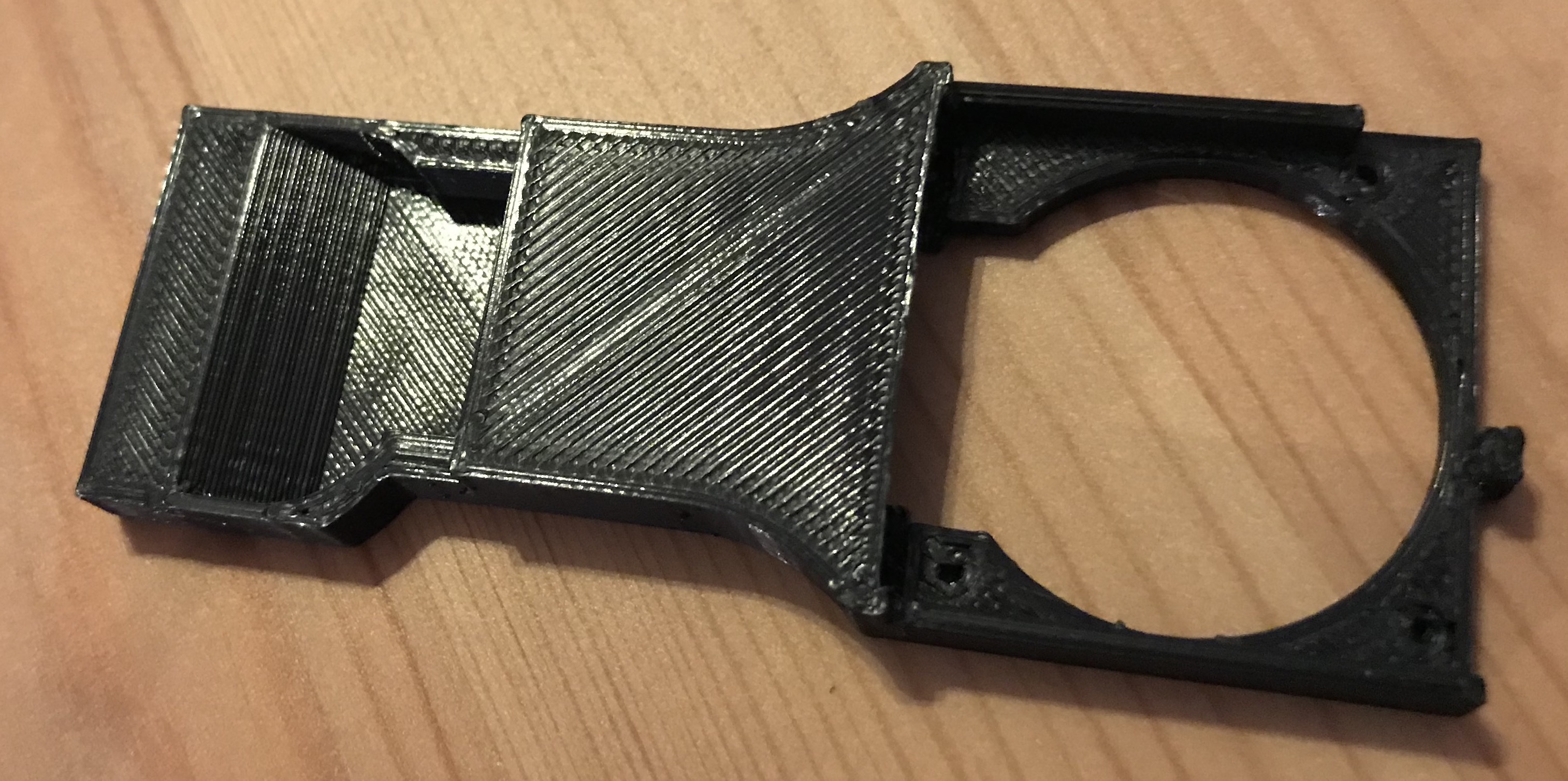

I thought about a solution which blows the warm air out of the shell, so I came up with this little air duct:

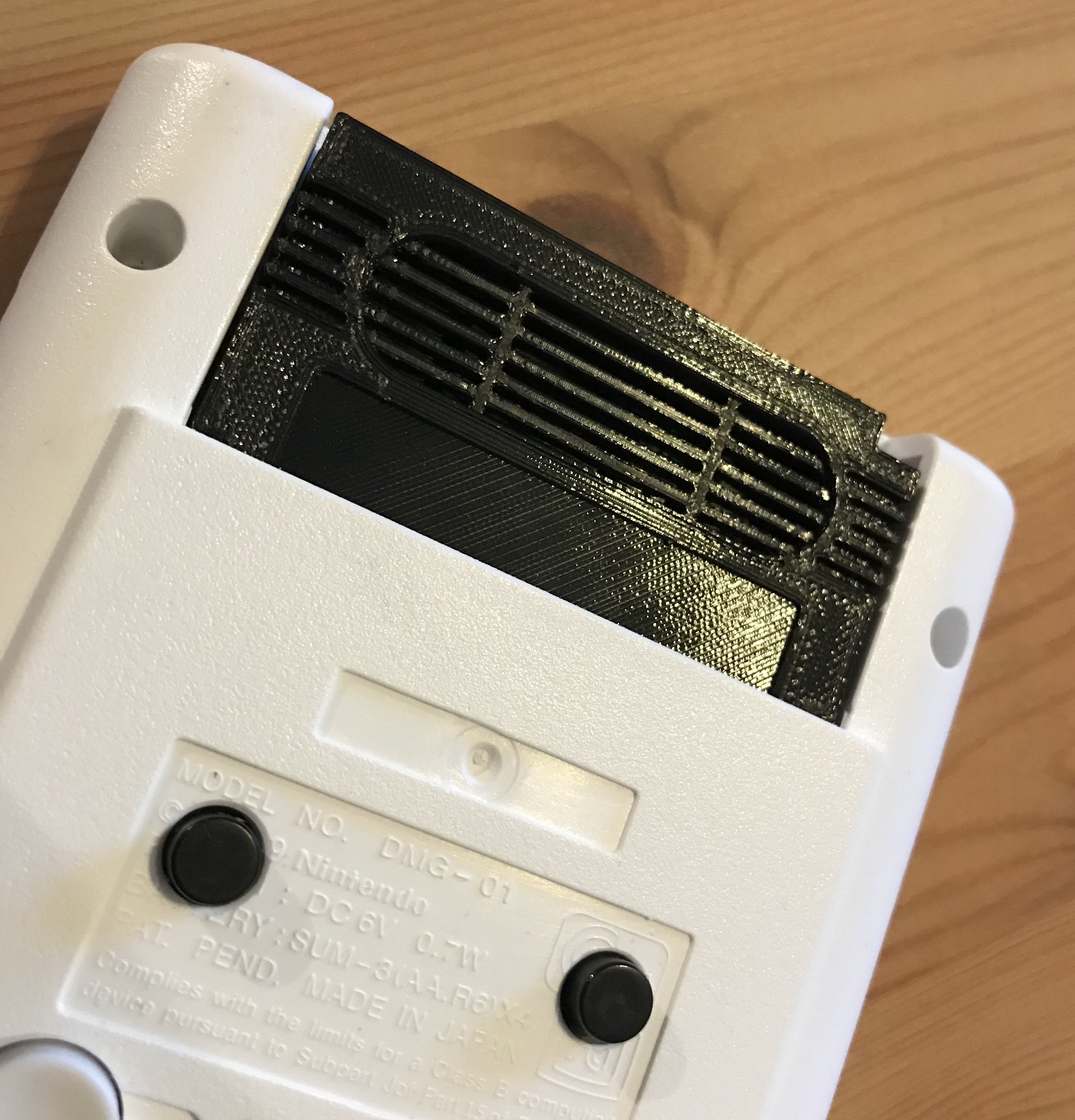

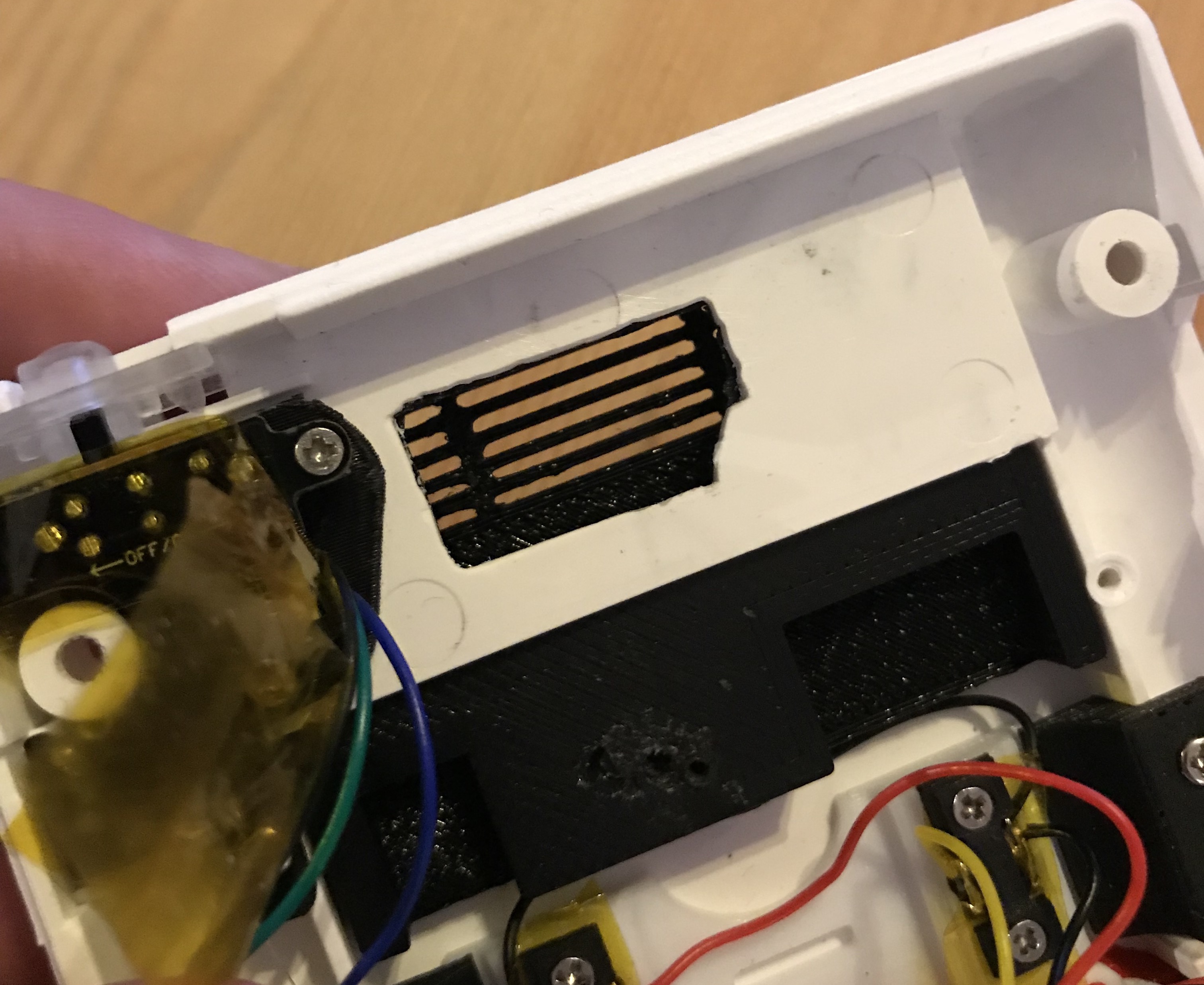

The fan blows against the heat sink >> the warm air goes through the air duct >> passes the DMG shell through a little whole >> and finaly leaves the case through the grill of the game-cartridge:
Detailed pictures of the airflowShow

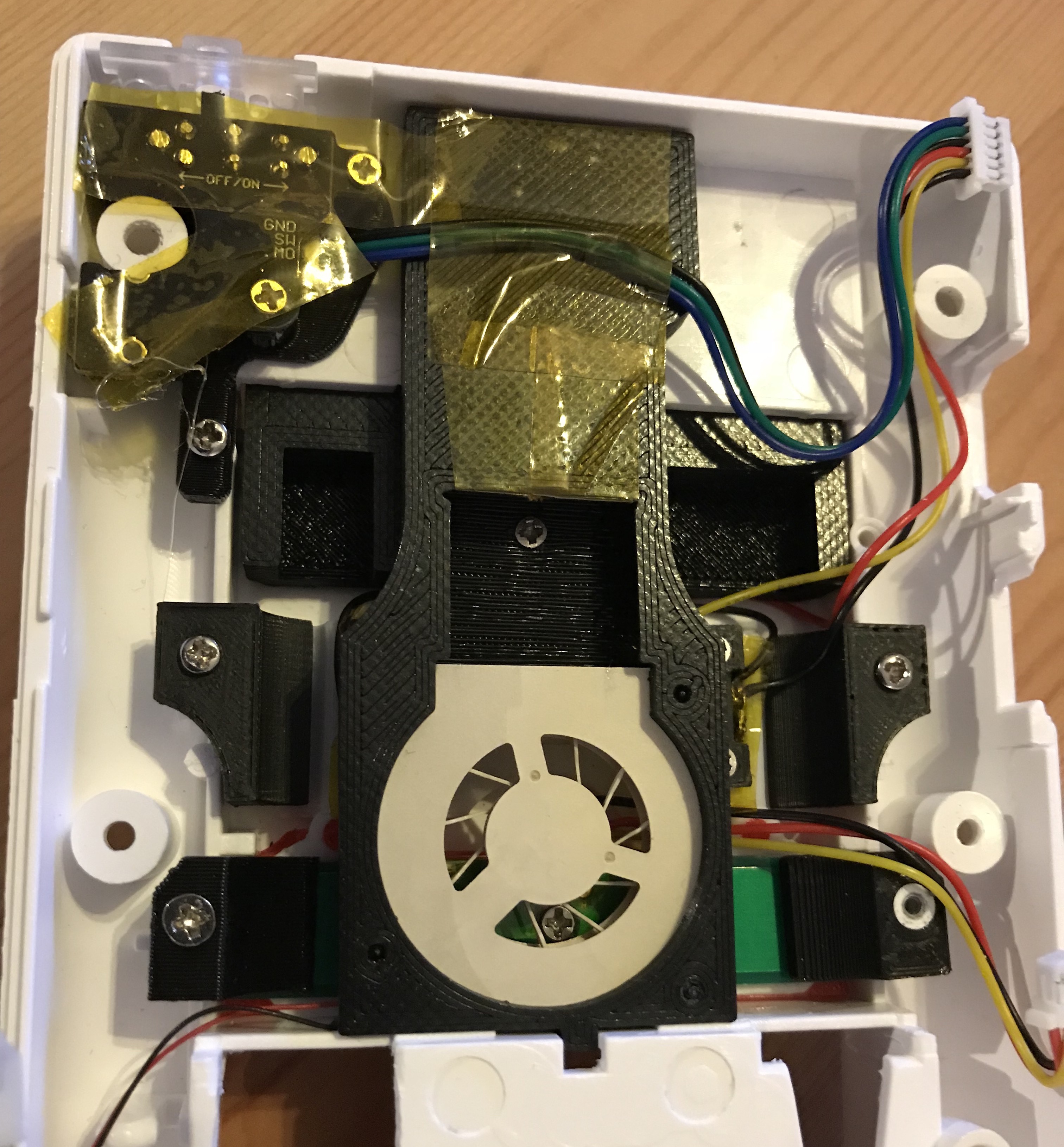

To keep everything in place I used one little self drilling M1.6 screw which I put inside to the duct into the 3D printed game cartridge. Since I used PLA in my print, I put "here and there" some kapton tape to protect the plastic from the "heat" (actually it won't get hot enough to melt the PLA again) of the sink.

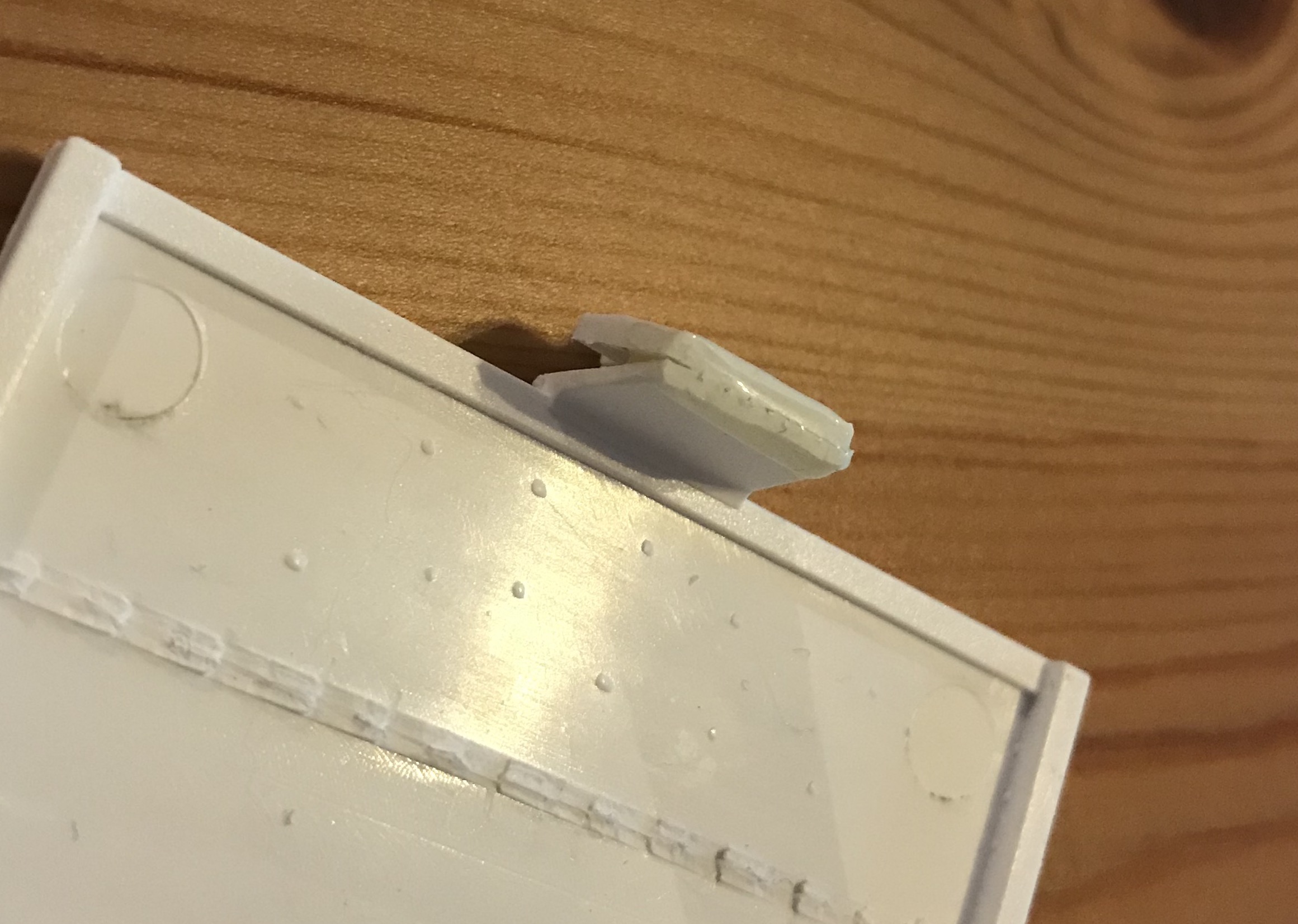

Unfortunately the little closing mechanism of the battery cover hits the fan, so I had to shorten it my 3mm. With some epoxy I glued them together again:
modified battery coverShow
To connect the fan with the CSO PCB I uses a little 2pin JST cable, so it's easy to divide the fan from the other side of the shell which holds the PCB.

The air duct has to be printed with support enabled. The support in the "tunnel" were easy to remove for me id I used the following settings in Cura 3.6:
  • Layer height: 0.2mm (or less)
  • Infill density: 15%
  • Support: YES !!! important !!!
  • Support placement: everywhere !!! important !!!
  • Support pattern: ZigZag !!! important !!!
  • Support density: 12% !!! important !!!
  • Support X/Z distance: 1mm !!! important !!!
  • No support floor or roof !!! important !!!
  • Enable support brim
Downloads:
GBz - CSO-CM3 air duct and cartridge V2.zip
(54.95 KiB) Downloaded 78 times

====================================================================
====================================================================



Variant 2: Simple fan mount

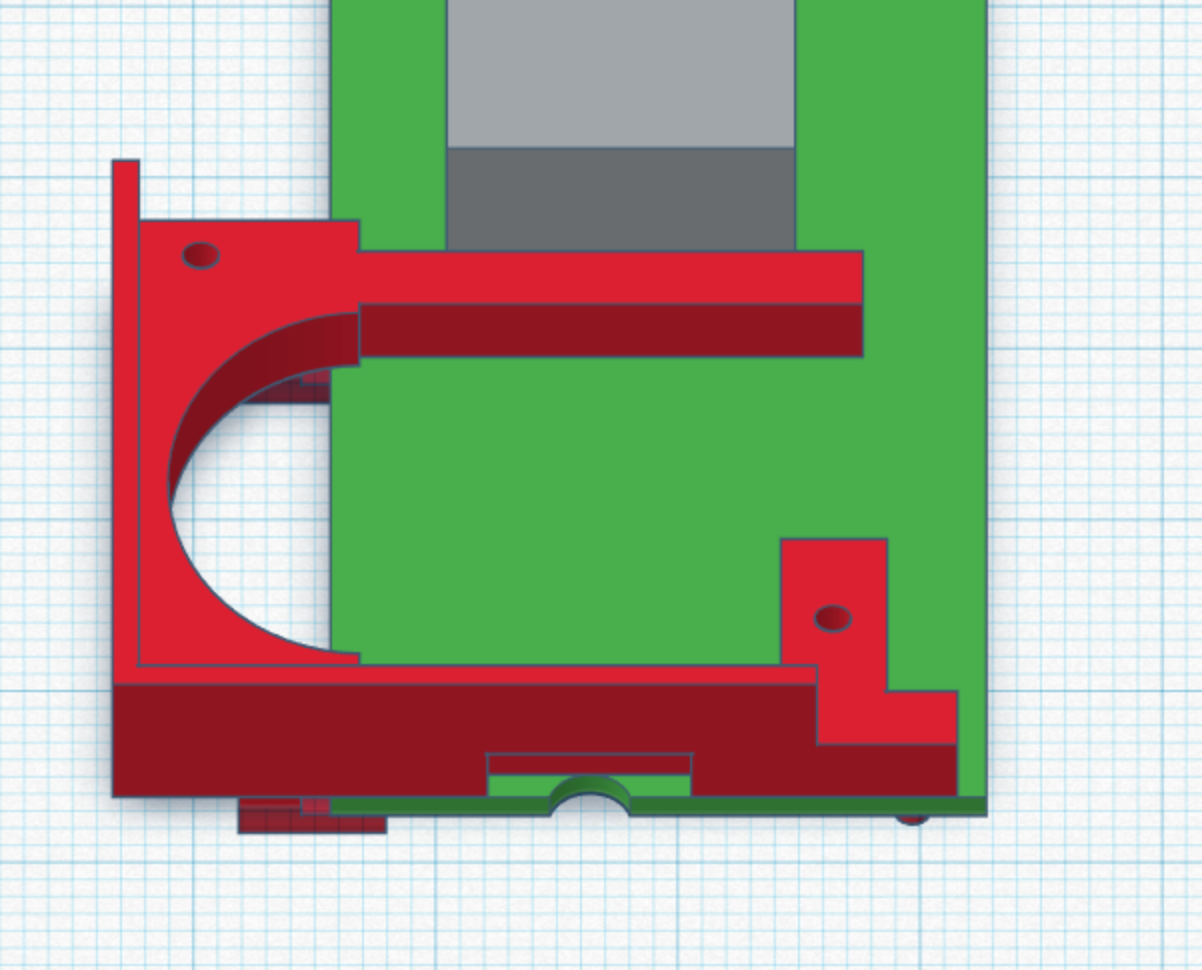

I designed a little bracket which can be used to attach the fan nicely (hopefully :lol: ) to the CM of kites circuit sword. Then fan can be fastened with up to three M1.6 screws (I used the normal little "phillips head screws" from a 3rd party gameboy shell).
To make it fit, a big part of the game cartridge slot must be removed, and can be covered with a actual game cartridge again.

Please print with support enabled :)
PreviewShow
Screen Shot 2018-02-19 at 20.12.37.png
Screen Shot 2018-02-19 at 20.12.37.png (778.99 KiB) Viewed 3944 times
Downloads:
GBz - CM3 fan bracket V2.stl.zip
(6.58 KiB) Downloaded 155 times
Last edited by derebbe on Sat Nov 17, 2018 6:45 am, edited 15 times in total.

User avatar
kite
Posts: 853
Joined: Thu May 12, 2016 4:30 am
Location: UK
Has thanked: 223 times
Been thanked: 301 times
Contact:

Re: [WIP] Fan bracket for kites circuit sword

Post by kite » Mon Feb 19, 2018 12:24 pm

Fantastic :)

User avatar
Nicode70
Posts: 101
Joined: Sun Feb 11, 2018 9:36 am
Has thanked: 17 times
Been thanked: 19 times

Re: [WIP] Fan bracket for kites circuit sword

Post by Nicode70 » Mon Feb 19, 2018 12:43 pm

Could you please show some pictures of the trimed cartidge slot?

It look great by the way. I will definitely print one!
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922

User avatar
Billy Blaze
Posts: 75
Joined: Tue Sep 06, 2016 1:27 pm
Location: Gnosticus IV
Has thanked: 64 times
Been thanked: 31 times
Contact:

Re: [WIP] Fan/blower bracket for kites circuit sword

Post by Billy Blaze » Mon Feb 19, 2018 1:02 pm

great!

User avatar
derebbe
Posts: 48
Joined: Wed Sep 28, 2016 12:30 am
Location: Germany
Has thanked: 51 times
Been thanked: 23 times

Re: [WIP] Fan bracket for kites circuit sword

Post by derebbe » Mon Feb 19, 2018 1:03 pm

Nicode70 wrote:
Mon Feb 19, 2018 12:43 pm
Could you please show some pictures of the trimed cartidge slot?
Have a look t his guide


User avatar
kite
Posts: 853
Joined: Thu May 12, 2016 4:30 am
Location: UK
Has thanked: 223 times
Been thanked: 301 times
Contact:

Re: [WIP] Fan/blower bracket for kites circuit sword

Post by kite » Mon Feb 19, 2018 1:20 pm

You probably want to take more off around where the switch is :) (when you're doing it yourself)

User avatar
Billy Blaze
Posts: 75
Joined: Tue Sep 06, 2016 1:27 pm
Location: Gnosticus IV
Has thanked: 64 times
Been thanked: 31 times
Contact:

Re: [WIP] Fan/blower bracket for kites circuit sword

Post by Billy Blaze » Mon Feb 19, 2018 2:50 pm

if you could, please also try to design a variant that will not affect the back half of the case. it would be nice to have an optional solution where one don't have to cut off the cartridge slot. I know this won't result in the optimal usage of the fans potential performance, but nevertheless.

User avatar
Nicode70
Posts: 101
Joined: Sun Feb 11, 2018 9:36 am
Has thanked: 17 times
Been thanked: 19 times

Re: [WIP] Fan bracket for kites circuit sword

Post by Nicode70 » Mon Feb 19, 2018 3:14 pm

derebbe wrote:
Mon Feb 19, 2018 1:03 pm
Have a look t his guide

Thanks derebbe! I took an extensive look at kite’s wiki. But I thought that your solution would requier a different kind of trim.
https://instagram.com/nicoGBPi
Nintendo ID: 0954-8664-4922

User avatar
goodBEan
Posts: 114
Joined: Wed Sep 06, 2017 7:06 pm
Has thanked: 18 times
Been thanked: 30 times

Re: [WIP] Fan/blower bracket for kites circuit sword

Post by goodBEan » Mon Feb 19, 2018 7:25 pm

It looks like this thing can take some screws, what size/type.


As for the gb slot mod :

Look at what I found
https://www.thingiverse.com/thing:2412998/#files

I think the fullsize cut version would help out for those who want to print it out.


User avatar
derebbe
Posts: 48
Joined: Wed Sep 28, 2016 12:30 am
Location: Germany
Has thanked: 51 times
Been thanked: 23 times

Re: [WIP] Fan/blower bracket for kites circuit sword

Post by derebbe » Tue Feb 20, 2018 12:39 am

goodBEan wrote:
Mon Feb 19, 2018 7:25 pm
It looks like this thing can take some screws, what size/type.
As I already mentioned in my initial comment, I was using the screws which came with my third party DMG shell, those which were used to fasten both sides of the shell... Use some little 4/5mm M1 screws, the holes in the fan are quite narrow
